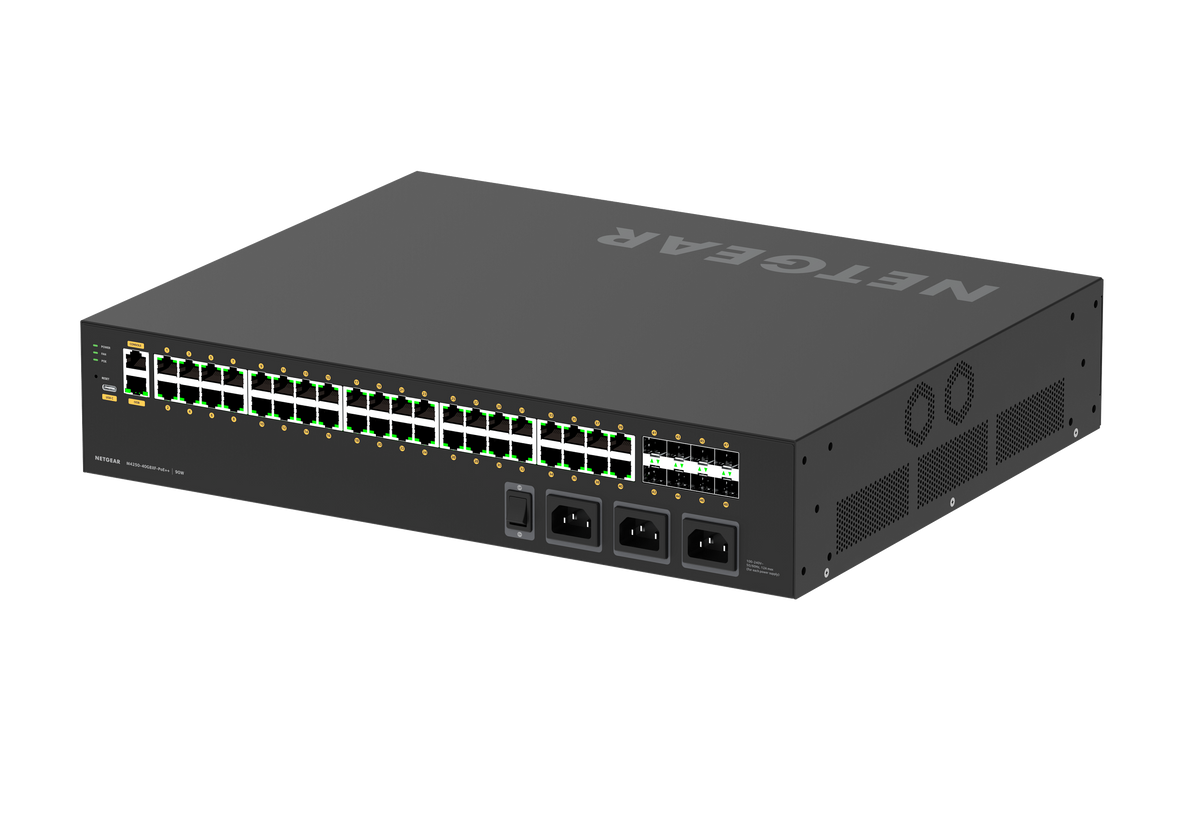

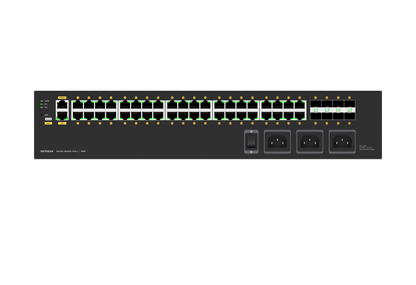

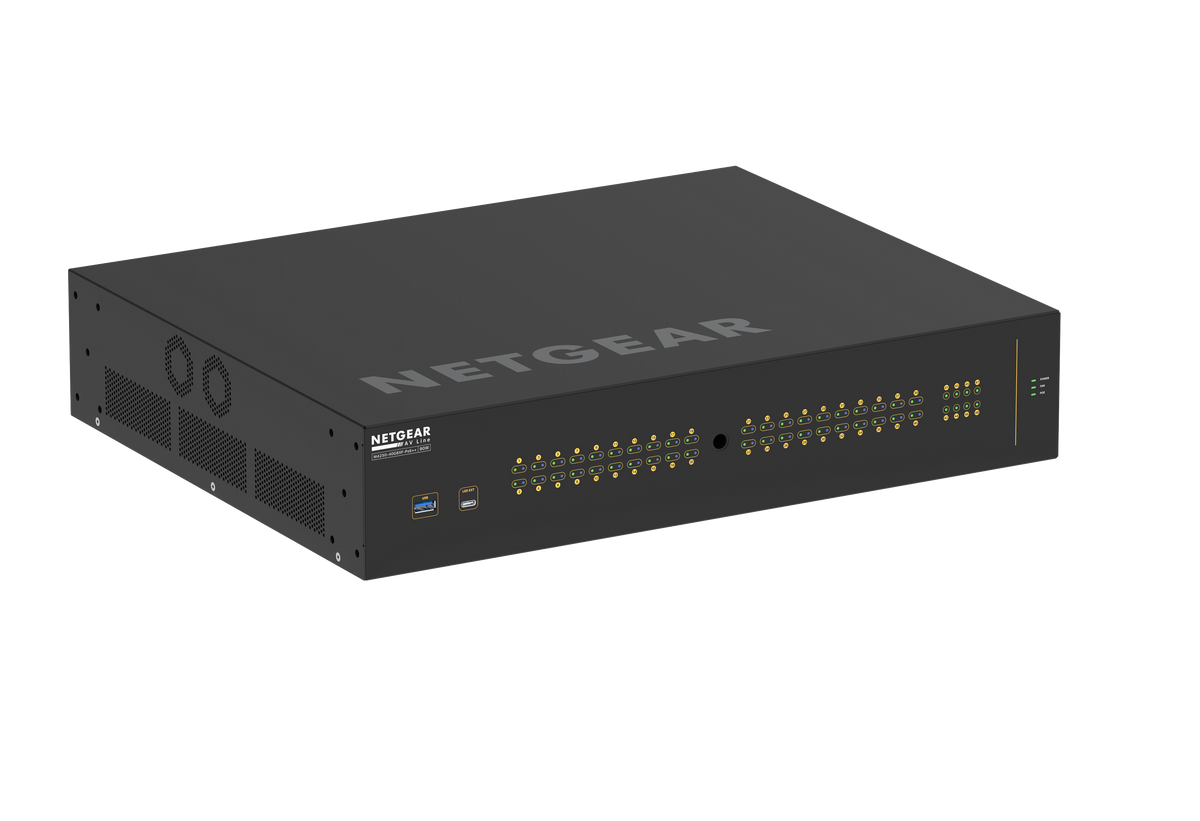

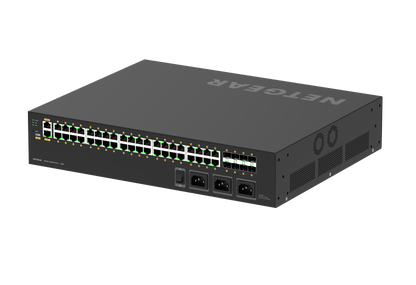

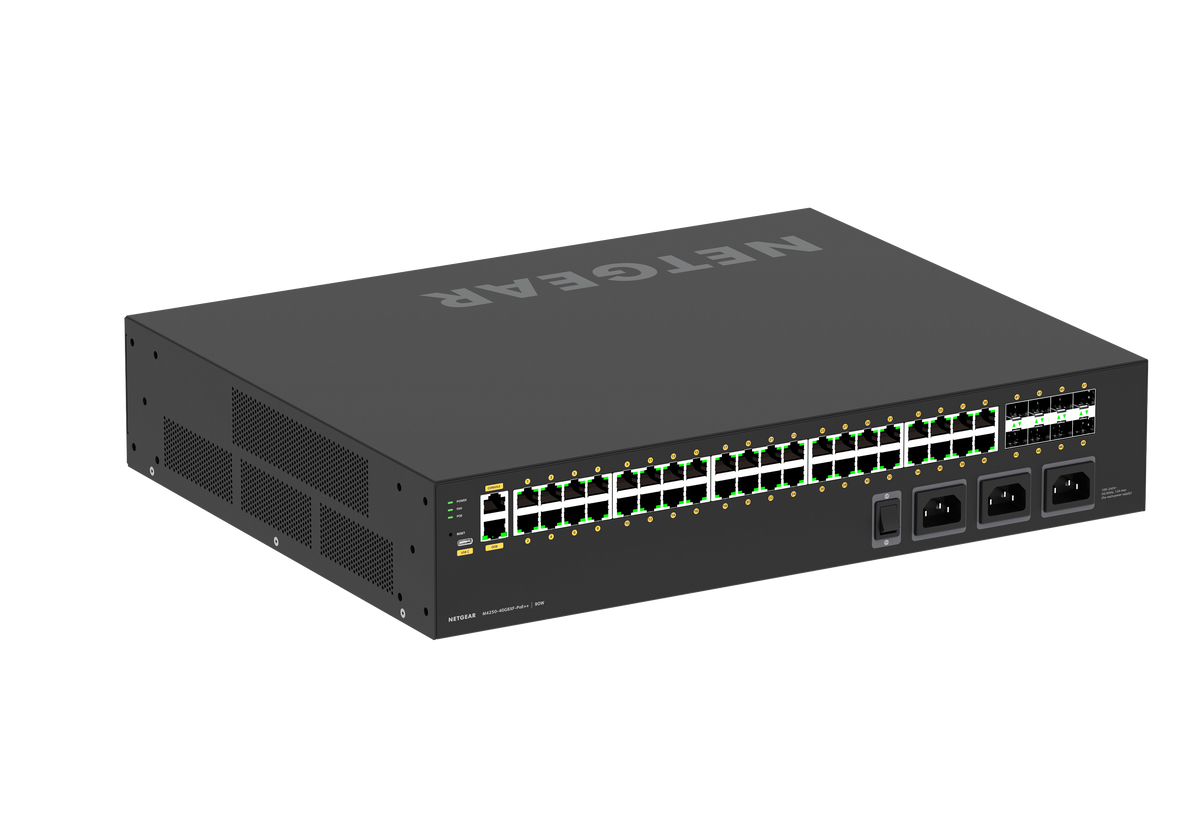

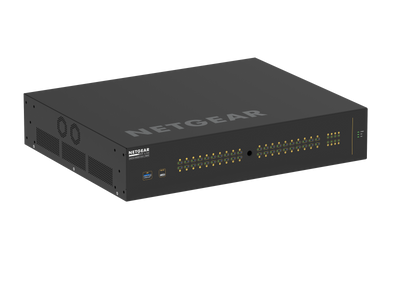

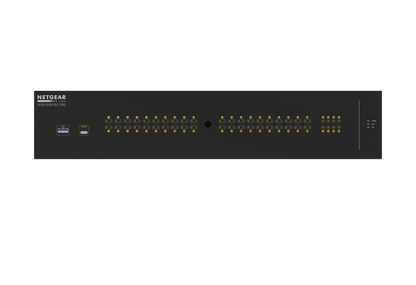

Crestron CEN-SWPOE-48- ULTRA 48 Port Ultra PoE Managed Switch

Crestron CEN-SWPOE-48- ULTRA 48 Port Ultra PoE Managed Switch

Class-leading NETGEAR® AV network switches are designed to make integration with Crestron AV-over-IP products as simple as possible. The CEN-SWPOE-48-ULTRA is a 48 port managed Ethernet switch that provides PoE++ from 40 of its ports. The eight 10 Gigabit Base-X SFP+ ports enable use of transceiver modules to connect to a fiber network.

DM NVX and DM NAX AV-over-IP Profiles
When configuring a DM NVX AV-over-IP or DM NAX Audio-over-IP network, select the appropriate profile to automatically configure the CEN-SWPOE-48-ULTRA with the multicast management functionality required.

Web Browser Interface
Using a streamlined interface, quickly configure individual ports or assign AV profiles for use with DM NVX or DM NAX systems. An advanced command line interface is also available.

Eight SFP+ Ports
All SFP+ ports offer 10 Gigabit Base-X connections with support for both multimode and single-mode fiber transceiver modules, such as the SFP-10G-SR.

Power Over Ethernet++
PoE++ is supplied on 40 ports, offering a centralized power source for multiple devices while eliminating extra wiring and bulky power supplies. Up to 90 W is provided per port with a combined maximum output of 2880 W.

Key Features

• Class-leading NETGEAR® AV network switch
• Rack-mount 48 port managed switch
• Forty 1000Base-T Gigabit Ethernet ports
• Supports PoE++ (802.3bt Type 4) on 40 Ethernet ports
• Provides up to 90 W per port, maximum 2880 W combined output
• Eight 10 Gigabit Base-X SFP+ ports
• Selectable DM NVX® AV-over-IP and DM NAX® Audio-over-IP profiles
• Layer 2 and Layer 3 managed switching functionality
• LLDP (Link Layer Discovery Protocol) support
• 240 Gbps switching fabric (non-blocking)
• Simple-to-use Web browser interface

Specifications

Ethernet

• Ports: (40) 10/100/1000Base-T auto-sensing Gigabit Ethernet w/PoE++; (8) 10 Gigabit Base-X SFP+
• Network Standards: IEEE 802.3af, 802.3at, 802.3bt
• MAC Addresses: Up to 16K
• Switch Fabric: 240 Gbps non-blocking

Lite Layer 3 Package

• Management: Out-of-band; IT Web GUI (main); HTTPs, CLI, Telnet, SSH; SNMP, MIBs, RSPAN; Radius users, TACACS+
• IPv4/IPv6 ACL and QoS: Ingress/egress; 1 Kbps shaping, time-based; Single rate policing
• IPv4/IPv6 Multicast Filtering: Automated IGMP between switches; IGMPv3 MLDv2 snooping, proxy ASM and SSM; IGMPv1, v2 querier (compatible with v3); Control packet flooding
• IPv4/IPv6 Policing and Convergence: Auto-VoIP; Policy-based routing; LLDP-MED; IEEE 1588 PTPv2
• IPv4/IPv6 Authentication Security: Successive tiering (DOT1X, MAB, Captive portal); DHCP snooping; Dynamic ARP inspection; IP source guard
• IPv4/IPv6 Static Routing: Port, subnet, VLAN routing; Multicast static routes; DHCPv4 server; DHCP relay; Stateful DHCPv6 Server
• IPv4/IPv6 Dynamic Routing: IPv4: RIP; IPv4/IPv6: PIM-SM, PIM-DM, SSM
• Spanning Tree Green Ethernet: STP, MTP, RSTP; PV(R)STP; BPDU/STRG; EEE 802.3az
• VLANs: Static, dynamic, voice, MAC; GVRP/GMRP; Double VLAN mode; Private VLANs

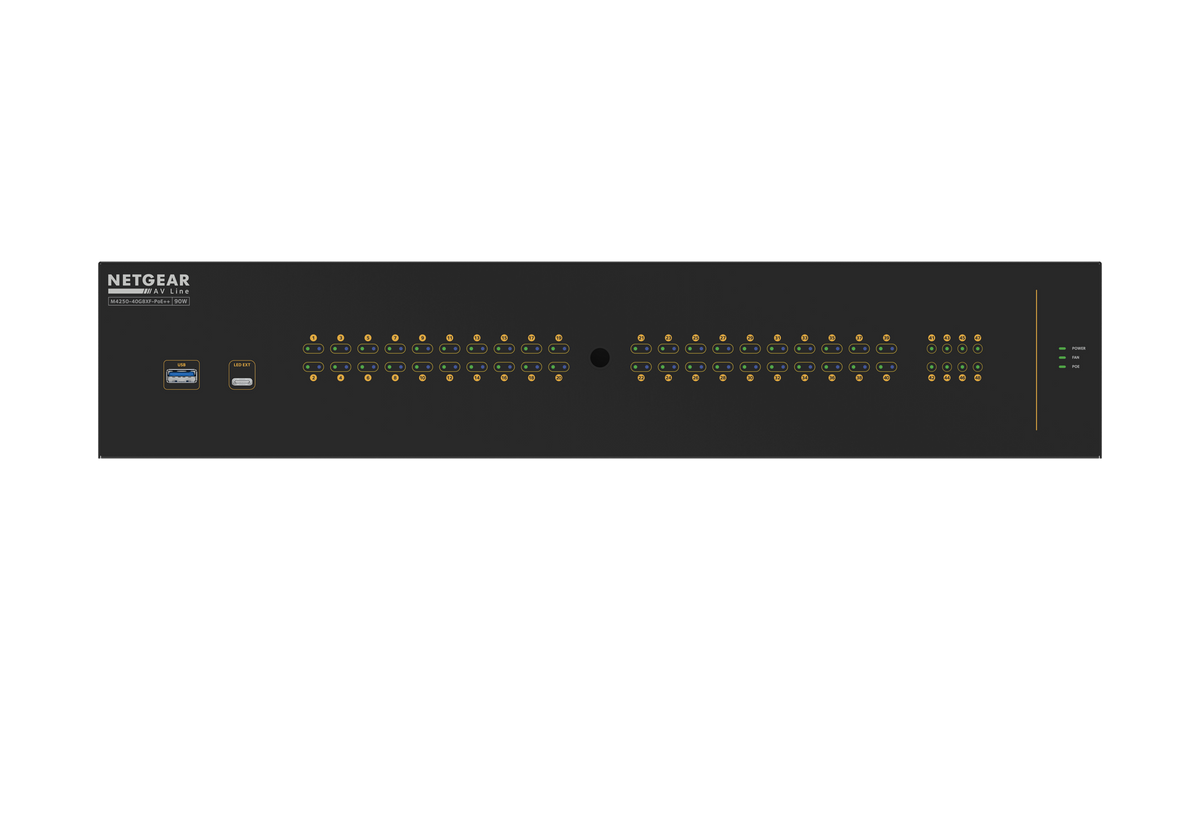

Controls & Indicators

• POWER: (1) green LED, indicates operating power supplied via main power input; Repeated on front and rear panels
• FAN: (1) green LED, indicates fan is in operation; Repeated on front and rear panels
• PoE MAX: (1) green LED, indicates the unit is supplying the maximum amount of PoE; Repeated on front and rear panels
• OOB: (2) green LEDs for Ethernet port, indicates Ethernet link status for out-of-band (service) port
• 1-40: (2) LEDs per each (40) Ethernet port, left (green) LEDs indicate Ethernet link status for each corresponding port, right (blue) LEDs indicate PoE for each corresponding port; Repeated on front and rear panels
• 41-48: (1) green LED per SFP+ port, indicates active connection; Repeated on front and rear panels
• On / Off: (1) Rocker switch; Turns main power on or off
• RESET: (1) Recessed push button; Used for reboot or factory reset

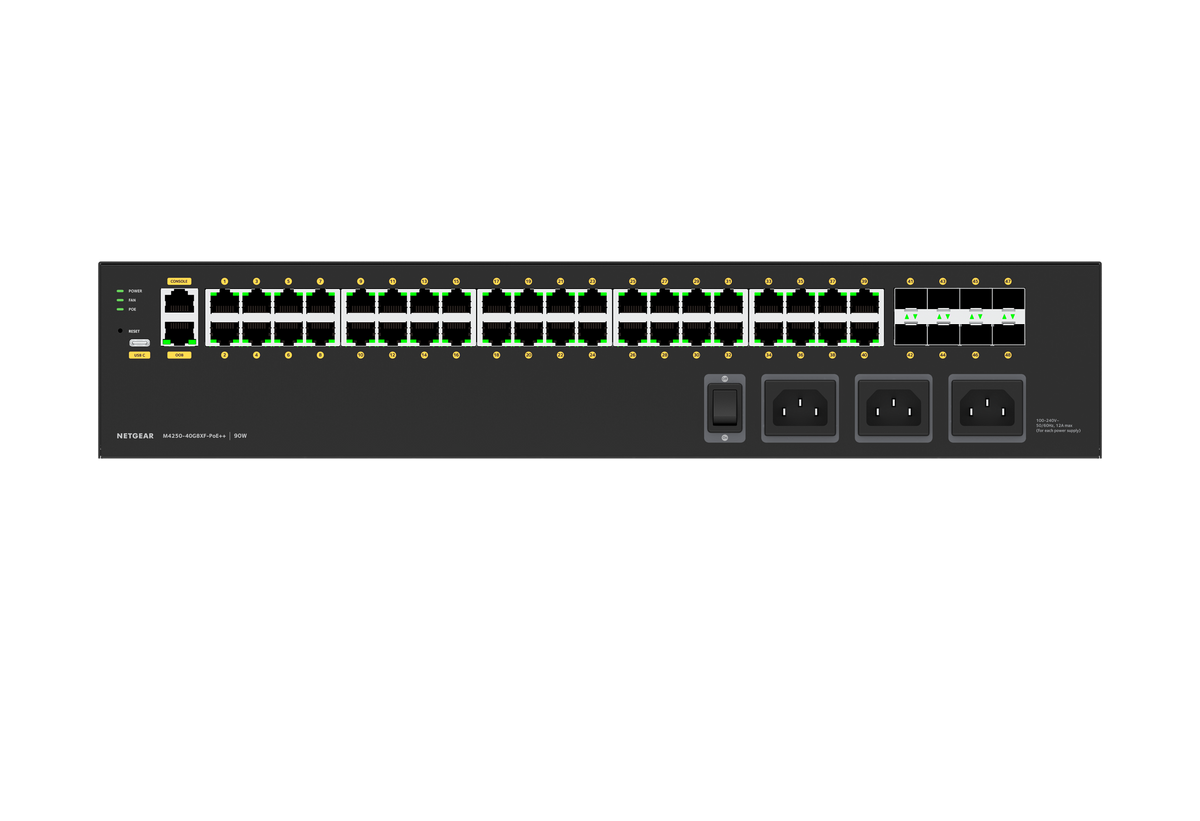

Connectors

• OOB: (1) 8-wire RJ45, female; 10/100/1000Base-T Ethernet port
• CONSOLE: (1) 8-wire RJ45, female
• USB-C: USB-C® port, female
• 100-240V: (3) power connectors
• USB: USB Type A, female
• LED EXT: USB-C® port, female
• 1-40: (40) 8-wire RJ45, female; 10/100/1000Base-T Ethernet ports and PoE Power Sourcing Equipment (PSE) outputs; Supports IEEE 802.3bt Type 4 PoE++ power sourcing from any ports up to the maximum specified power capabilities; Maximum 90 W per port, 2880 W total
• 41-48: (8) SFP+ ports, female; 10 Gigabit Base-X SFP+

Power Requirements

• Main Power: 12A @ 100-240VAC, 50/60 Hz
• Power Consumption: Single AC Connection, Max PoE: 912 W; Dual AC Connection, Max PoE: 1998 W; Triple AC Connection, Max PoE: 3523 W; Full Mesh Traffic, No PoE: 82.6 W; Standby: 68.5 W

Environmental

• Temperature: 32° to 122° F (0° to 50° C)
• Humidity: 10% to 90% RH (non-condensing)
• Acoustic Noise: 60 dBA at 77° F (25° C)

Construction

• Chassis: Metal, black finish, fan-cooled, vented sides
• Mounting: Freestanding or 2U 19-inch rack-mountable with reversible rack ears

Dimensions

• Height: 3.4 in. (86.4 mm)
• Width: 17.32 in. (440 mm)
• Depth: 13.78 in (350 mm)

Weight

• 22.72 lb (10.28 kg)

Compliance

Regulatory Model: GSM4248UX
