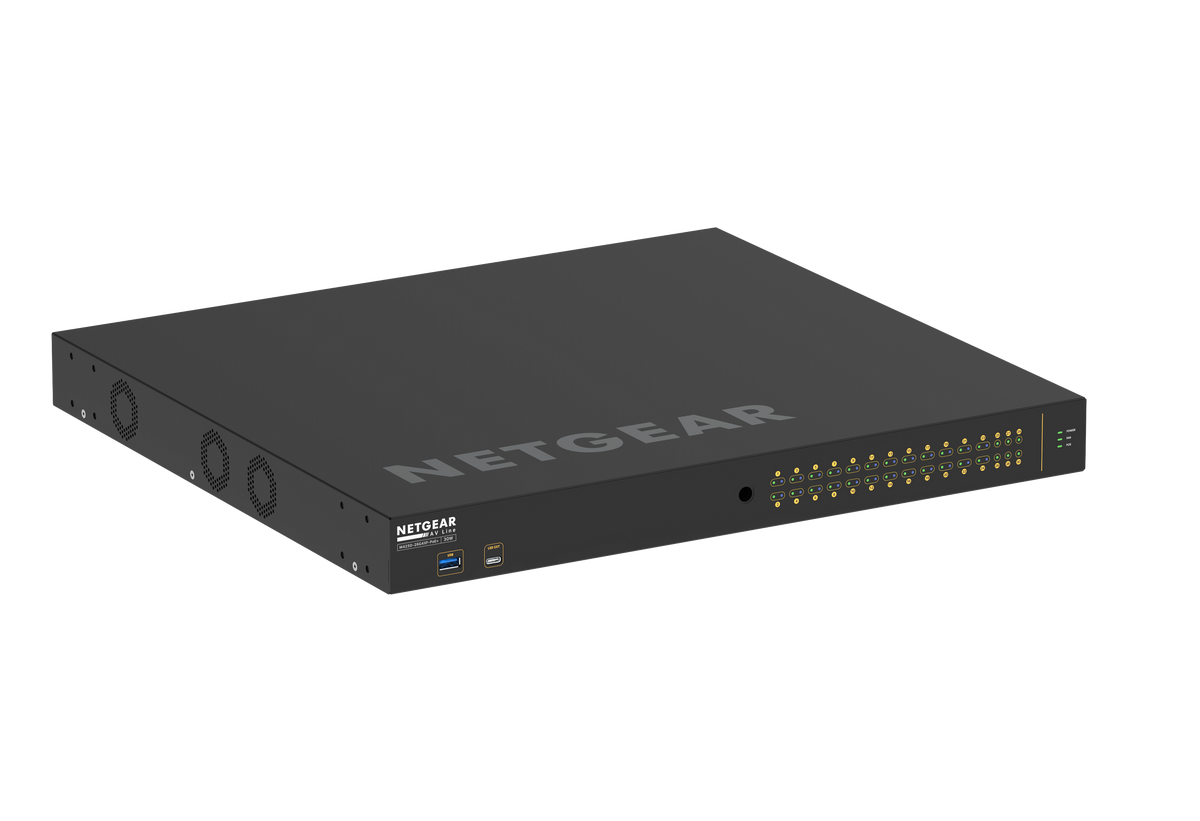

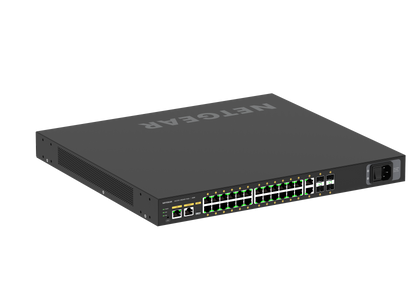

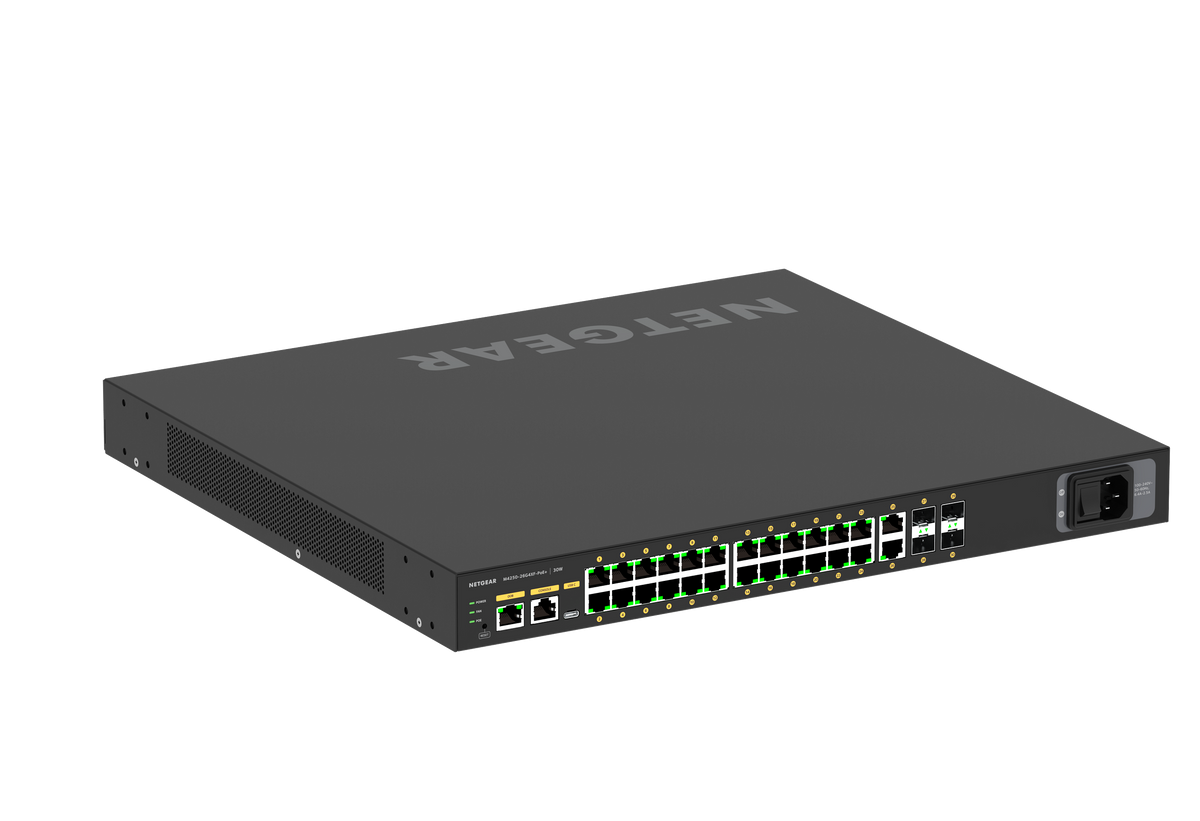

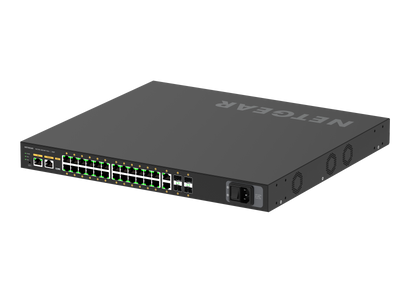

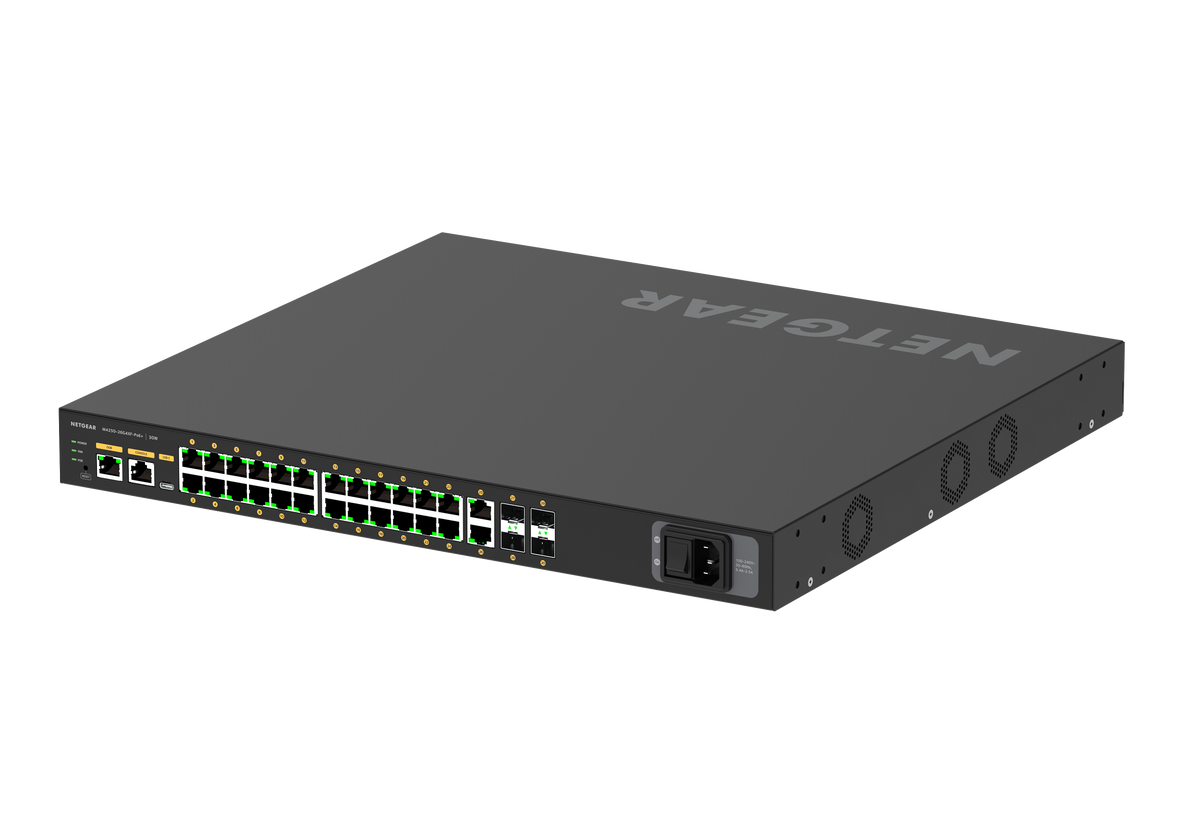

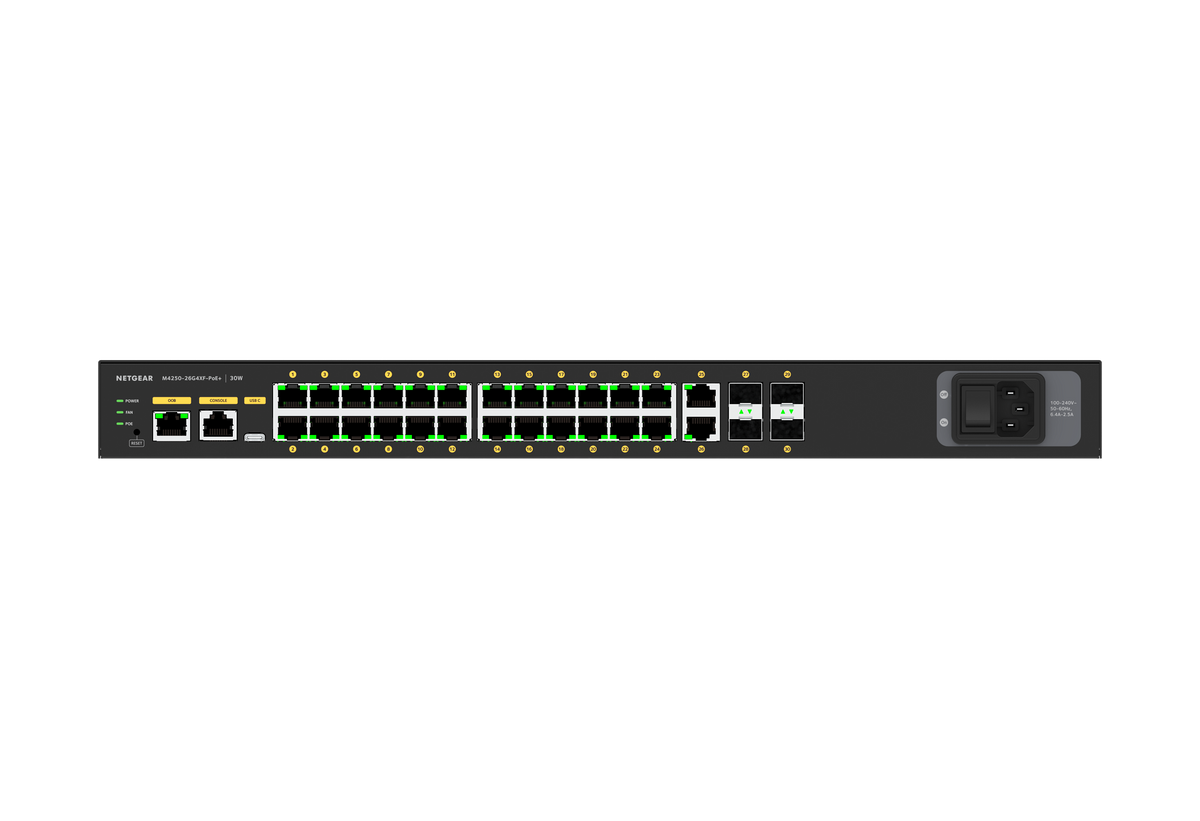

Crestron CEN-SWPOE-30-TAA 30 Port PoE+ Managed Switch, TAA Compliant

Crestron CEN-SWPOE-30-TAA 30 Port PoE+ Managed Switch, TAA Compliant

Class-leading NETGEAR® AV network switches are designed to make integration with Crestron AV-over-IP products as simple as possible. The CEN-SWPOE-30-TAA is a 30 port managed Ethernet switch that provides PoE+ from 24 of its ports. The four 10 Gigabit Base-X SFP+ ports enable use of transceiver modules to connect to a fiber network.

DM NVX and DM NAX AV-over-IP Profiles
When configuring a DM NVX AV-over-IP or DM NAX Audio-over-IP network, select the appropriate profile to automatically configure the CEN-SWPOE-30-TAA with the multicast management functionality required.

Web Browser Interface
Using a streamlined interface, quickly configure individual ports or assign AV profiles for use with DM NVX or DM NAX systems. An advanced command line interface is also available.

Four SFP+ Ports
All SFP+ ports offer 10 Gigabit Base-X connections with support for both multimode and single-mode fiber transceiver modules, such as the SFP-10G-SR.

Power Over Ethernet+
PoE+ is supplied on 24 ports, offering a centralized power source for multiple devices while eliminating extra wiring and bulky power supplies. Up to 30 W is provided per port with a combined maximum output of 480 W.

Key Features

• Class-leading NETGEAR® AV network switch
• Rack-mount 30 port managed switch
• Twenty-six 1000Base-T Gigabit Ethernet ports
• Supports PoE+ (802.3at Type 2) on 24 Ethernet ports
• Provides up to 30 W per port, maximum 480 W combined output
• Four 10 Gigabit Base-X SFP+ ports
• Selectable DM NVX® AV-over-IP and DM NAX® Audio-over-IP profiles
• Layer 2 and Layer 3 managed switching functionality
• LLDP (Link Layer Discovery Protocol) support
• 132 Gbps switching fabric (non-blocking)
• Simple-to-use Web browser interface
• TAA compliant

Specifications

Ethernet

• Ports: (2) 10/100/1000Base-T auto-sensing Gigabit Ethernet; (24) 10/100/1000Base-T auto-sensing Gigabit Ethernet w/PoE+; (4) 10 Gigabit Base-X SFP+
• Network Standards: IEEE 802.3af, 802.3at
• MAC Addresses: Up to 16K
• Switch Fabric: 132 Gbps non-blocking

Lite Layer 3 Package

• Management: Out-of-band; IT Web GUI (main); HTTPs, CLI, Telnet, SSH; SNMP, MIBs, RSPAN; Radius users, TACACS+
• IPv4/IPv6 ACL and QoS: Ingress/egress; 1 Kbps shaping, time-based; Single rate policing
• IPv4/IPv6 Multicast Filtering: Automated IGMP between switches; IGMPv3 MLDv2 snooping, proxy ASM and SSM; IGMPv1, v2 querier (compatible with v3); Control packet flooding
• IPv4/IPv6 Policing and Convergence: Auto-VoIP; Policy-based routing; LLDP-MED; IEEE 1588 PTPv2
• IPv4/IPv6 Authentication Security: Successive tiering (DOT1X, MAB, Captive portal); DHCP snooping; Dynamic ARP inspection; IP source guard
• IPv4/IPv6 Static Routing: Port, subnet, VLAN routing; Multicast static routes; DHCPv4 server; DHCP relay; Stateful DHCPv6 Server
• IPv4/IPv6 Dynamic Routing: IPv4: RIP; IPv4/IPv6: PIM-SM, PIM-DM, SSM
• Spanning Tree Green Ethernet: STP, MTP, RSTP; PV(R)STP; BPDU/STRG; EEE 802.3az
• VLANs: Static, dynamic, voice, MAC; GVRP/GMRP; Double VLAN mode; Private VLANs

Controls & Indicators

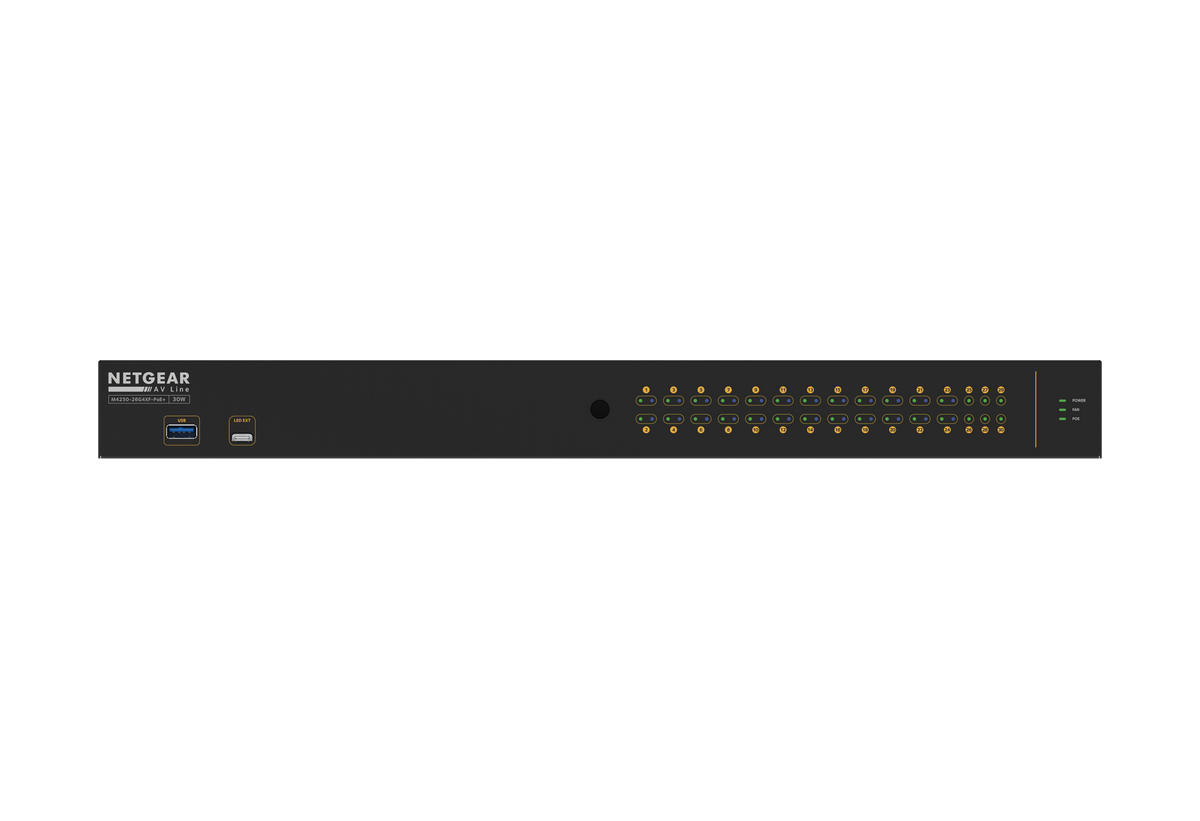

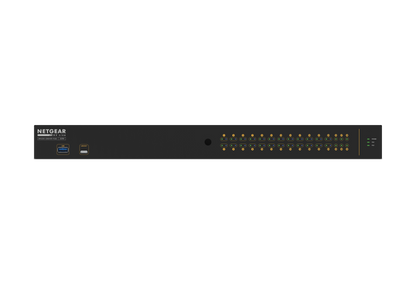

• POWER: (1) green LED, indicates operating power supplied via main power input; Repeated on front and rear panels
• FAN: (1) green LED, indicates fan is in operation; Repeated on front and rear panels
• PoE MAX: (1) green LED, indicates the unit is supplying the maximum amount of PoE; Repeated on front and rear panels
• OOB: (2) green LEDs for Ethernet port, indicates Ethernet link status for out-of-band (service) port
• 1-24: (2) LEDs per each (24) Ethernet port, left (green) LEDs indicate Ethernet link status for each corresponding port, right (blue) LEDs indicate PoE for each corresponding port; Repeated on front and rear panels
• 25-26: (1) green LED per each (2) Ethernet port, indicates Ethernet link status for each corresponding port; Repeated on front and rear panels
• 27-30: (1) green LED per SFP+ port, indicates active connection; Repeated on front and rear panels
• On / Off: (1) Rocker switch; Turns main power on or off
• RESET: (1) Recessed push button; Used for reboot or factory reset

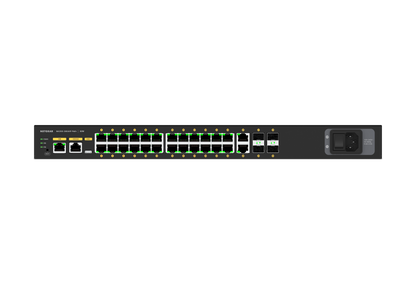

Connectors

• OOB: (1) 8-wire RJ45, female; 100/1000Base-T Ethernet port
• CONSOLE: (1) 8-wire RJ45, female
• USB-C: USB-C® port, female
• 100-240V: (1) power connector
• USB: USB Type A, female
• LED EXT: USB-C® port, female
• 1-24: (24) 8-wire RJ45, female; 10/100/1000Base-T Ethernet ports and PoE Power Sourcing Equipment (PSE) outputs; Supports IEEE 802.3at Type 2 PoE+ power sourcing from any ports up to the maximum specified power capabilities; Maximum 30 W per port, 480 W total
• 25-26: (2) 8-wire RJ45, female; 10/100/1000Base-T Ethernet ports
• 27-30: (4) SFP+ ports, female; 10 Gigabit Base-X SFP+

Power Requirements

• Main Power: 6.4-2.5A @ 100-240VAC, 50/60 Hz
• Power Consumption: Max PoE: 614 W; Full Mesh Traffic, No PoE: 46.8 W; Standby: 33.9 W

Environmental

• Temperature: 32° to 113° F (0° to 45° C)
• Humidity: 10% to 90% RH (non-condensing)
• Acoustic Noise: 42 dBA at 77° F (25° C)

Construction

• Chassis: Metal, black finish, fan-cooled, vented sides
• Mounting: Freestanding or 1U 19-inch rack-mountable with reversible rack ears

Dimensions

• Height: 1.7 in. (43.2 mm)
• Width: 17.32 in. (440 mm)
• Depth: 15.78 in. (400 mm)

Weight

• 12.02 lb (5.45 kg)

Compliance

Regulatory Model: GSM4230PX-TAANAS
