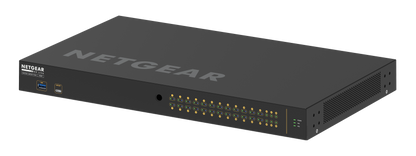

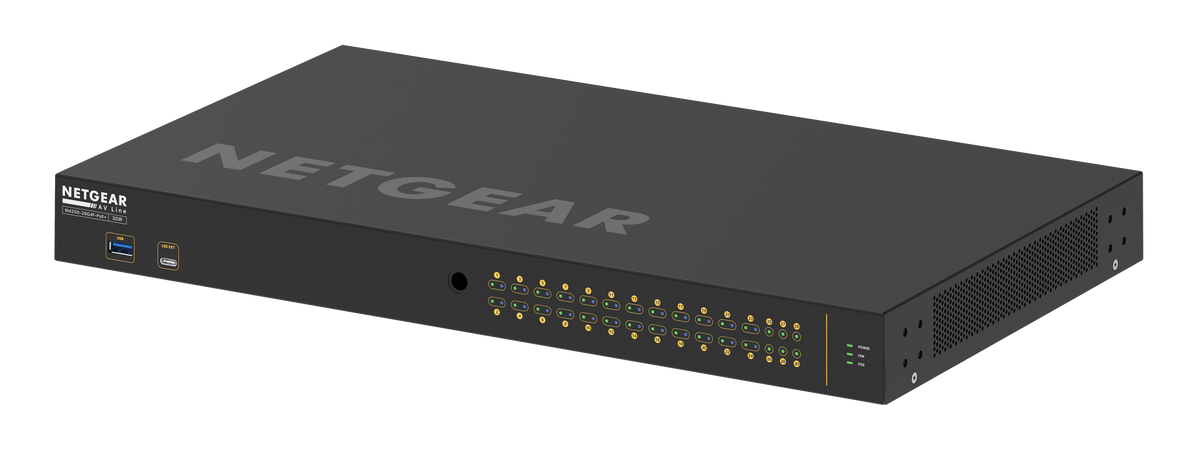

Crestron CEN-SWPOE-26 26 Port PoE+ Network Switch

Crestron CEN-SWPOE-26 26 Port PoE+ Network Switch

This class-leading NETGEAR® network switch is designed to make integration with Crestron commercial lighting products as simple as possible. The CEN-SWPOE-26 is a 26 port managed Ethernet switch that provides PoE+ from 24 of its ports.

Quick Installation
Easily mount the CEN-SWPOE-26 in a lighting enclosure or 19 in. rack to provide an Ethernet connection with no configuration required. A Web browser interface and an advanced command line are available for complex systems.

Power Over Ethernet+
PoE+ is supplied simultaneously across 24 ports, providing a centralized power source for numerous PoE+ powered devices and eliminating the need for cumbersome power supplies and extra wiring. Up to 30 W is provided per port up to a combined maximum output of 300 W.

Key Features

• Class-leading NETGEAR® lighting network switch
• 26 port managed switch
• Lighting enclosure or 19 in. rack mountable
• Twenty-six 1000Base-T Gigabit Ethernet ports
• Supports PoE+ (802.3at Type 2) on 24 Ethernet ports
• Provides up to 30 W per port, maximum 300 W combined output
• Layer 2 and Layer 3 managed switching functionality
• LLDP (Link Layer Discovery Protocol) support
• 60 Gbps switching fabric (non-blocking)

Specifications

Ethernet

• Ports: (2) 10/100/1000Base-T auto-sensing Gigabit Ethernet (24) 10/100/1000Base-T auto-sensing Gigabit Ethernet w/PoE+ (4) 1 Gigabit Base-X SFP
• Network Standards: IEEE 802.3af, 802.3at
• MAC Addresses: Up to 16K
• Switch Fabric: 60 Gbps non-blocking

Lite Layer 3 Package

• Management: Out-of-band; IT Web GUI (main); HTTPs, CLI, Telnet, SSH; SNMP, MIBs, RSPAN; Radius users, TACACS+
• IPv4/IPv6 ACL and QoS: Ingress/egress; 1 Kbps shaping, time-based; Single rate policing
• IPv4/IPv6 Multicast Filtering: Automated IGMP between switches; IGMPv3 MLDv2 snooping, proxy ASM and SSM; IGMPv1, v2 querier (compatible with v3); Control packet flooding
• IPv4/IPv6 Policing and Convergence: Auto-VoIP; Policy-based routing; LLDP-MED; IEEE 1588 PTPv2
• IPv4/IPv6 Authentication Security: Successive tiering (DOT1X, MAB, Captive portal); DHCP snooping; Dynamic ARP inspection; IP source guard
• IPv4/IPv6 Static Routing: Port, subnet, VLAN routing; Multicast static routes; DHCPv4 server; DHCP relay; Stateful DHCPv6 Server
• IPv4/IPv6 Dynamic Routing: IPv4: RIP; IPv4/IPv6: PIM-SM, PIM-DM, SSM
• Spanning Tree Green Ethernet: STP, MTP, RSTP; PV(R)STP; BPDU/STRG; EEE 802.3az
• VLANs: Static, dynamic, voice, MAC; GVRP/GMRP; Double VLAN mode; Private VLANs

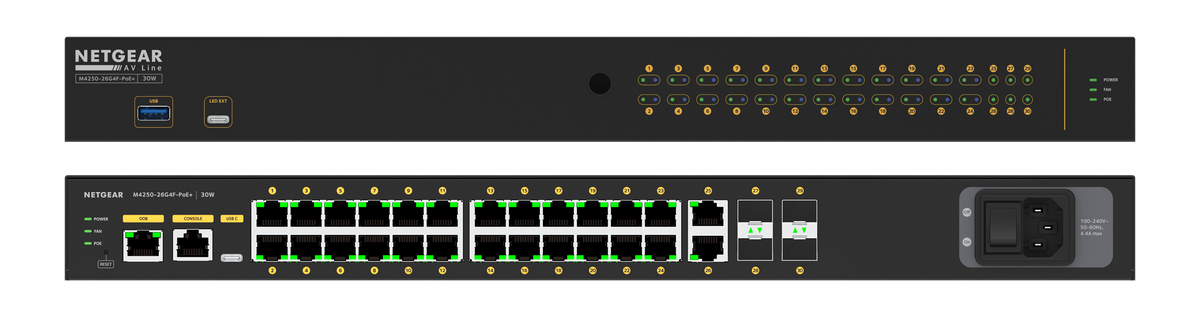

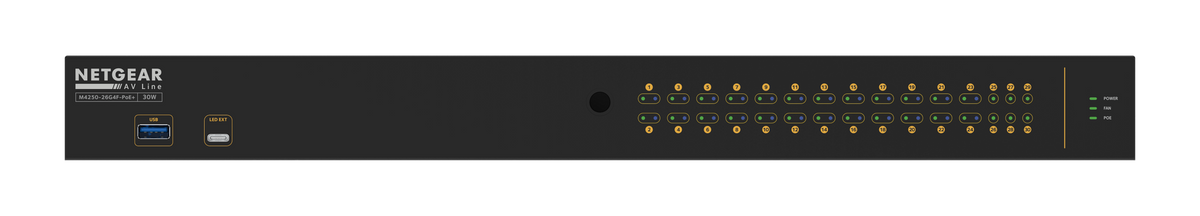

Controls & Indicators

• POWER: (1) green LED, indicates operating power supplied via main power input; Repeated on front and rear panels
• FAN: (1) green LED, indicates fan is in operation; Repeated on front and rear panels
• PoE MAX: (1) green LED, indicates the unit is supplying the maximum amount of PoE; Repeated on front and rear panels
• OOB: (2) green LEDs for Ethernet port, indicates Ethernet link status for out-of-band (service) port
• 1-24: (2) LEDs per each (24) Ethernet port, left (green) LEDs indicate Ethernet link status for each corresponding port, right (blue) LEDs indicate PoE for each corresponding port; Repeated on front and rear panels
• 25-26: (1) green LED per each (2) Ethernet port, indicates Ethernet link status for each corresponding port; Repeated on front and rear panels
• 27-30: (1) green LED per SFP port, indicates active connection; Repeated on front and rear panels
• On / Off: (1) Rocker switch; Turns main power on or off
• RESET: (1) Recessed push button; Used for reboot or factory reset

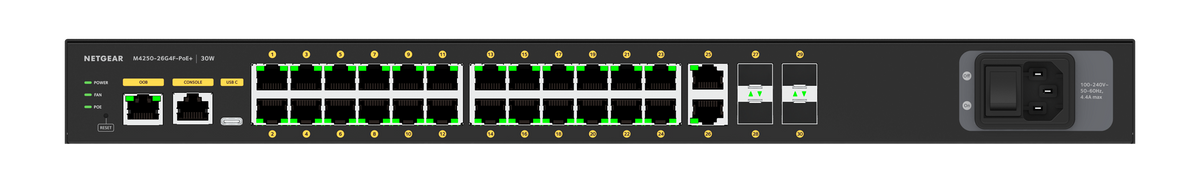

Connectors

• OOB: (1) 8-wire RJ45, female; 10/100/1000Base-T Ethernet port
• 1-24: (24) 8-wire RJ45, female; 10/100/1000Base-T Ethernet ports and PoE Power Sourcing Equipment (PSE) outputs; Supports IEEE 802.3at Type 2 PoE+ power sourcing from any ports up to the maximum specified power capabilities; Maximum 30 Watts per port, 300 Watts total
• 25-26: (2) 8-wire RJ45, female; 10/100/1000Base-T Ethernet ports.
• 27-30: (4) SFP ports, female; 1 Gigabit Base-X SFP

Power Requirements

• Main Power: 4.4 Amps @ 100-240 Volts AC, 50/60Hz
• Power Consumption: Max PoE: 401 W No PoE: 35.8 W Standby: 23.4 W

Environmental

• Temperature: 32° to 113° F (0° to 45° C)
• Humidity: 10% to 90% RH (non-condensing)
• Acoustic Noise: 34 dBA at 77° F (25° C)

Construction

• Chassis: Metal, black finish, fan-cooled, vented sides
• Mounting: Freestanding or 1U 19-inch rack-mountable with reversible rack ears

Dimensions

• Height: 1.7 in. (43.2 mm)
• Width: 17.32 in. (440 mm)
• Depth: 10.11 in. (257 mm)
