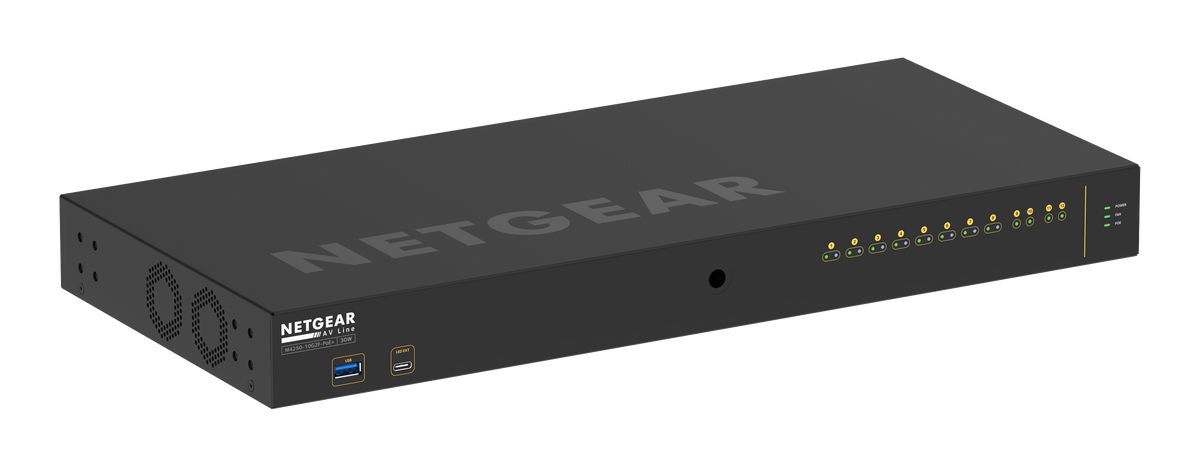

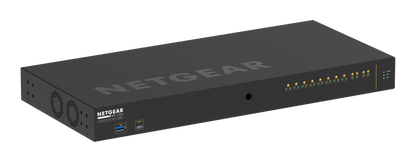

Crestron CEN-SWPOE-12 12 Port PoE+ Managed Switch

Crestron CEN-SWPOE-12 12 Port PoE+ Managed Switch

Class-leading NETGEAR® AV network switches are designed to make integration with Crestron AV-over-IP products as simple as possible. The CEN-SWPOE-12 12 port managed Ethernet switch provides PoE+ from eight of its ports. The two 1 Gigabit Base-X SFP ports enable use of transceiver modules to connect to a fiber network.

Web Browser Interface
Using a streamlined interface, quickly configure individual ports or assign AV profiles for use with DM NVX AV-over-IP or DM NAX audio-over-IP systems. An advanced command line interface is also available. Selecting a DM NVX or DM NAX profile from the web interface automatically configures the CEN-SWPOE-12 with the required multicast management functionality.

Two SFP Ports
Both SFP ports offer 1 Gigabit Base-X connections with support for both multimode and single-mode fiber transceiver modules.

Power Over Ethernet+
PoE+ is supplied on eight ports, offering a centralized power source for multiple devices while eliminating extra wiring and bulky power supplies. Up to 30 W is provided per port with a combined maximum output of 125 W.

Key Features

• Class-leading NETGEAR® AV network switch
• Rack-mount 12 port managed switch
• Ten 1000Base-T Gigabit Ethernet ports
• Provides PoE+ (802.3at Type 2) on eight Ethernet ports, maximum 125 W combined output
• Two 1 Gigabit SFP ports
• Selectable DM NVX® AV-over-IP and DM NAX® Audio-over-IP profiles
• Layer 2 and Layer 3 managed switching functionality
• LLDP (Link Layer Discovery Protocol) support
• 24 Gbps switching fabric (non-blocking)
• Simple-to-use Web browser interface

Specifications

Ethernet

• Ports: (2) 10/100/1000Base-T auto-sensing Gigabit Ethernet; (8) 10/100/1000Base-T auto-sensing Gigabit Ethernet w/PoE+; (2) 1 Gigabit Base-X SFP
• Network Standards: IEEE 802.3af, 802.3at
• MAC Addresses: Up to 16K
• Switch Fabric: 24 Gbps non-blocking

Lite Layer 3 Package

• Management: Out-of-band; IT Web GUI (main); HTTPs, CLI, Telnet, SSH; SNMP, MIBs, RSPAN; Radius users, TACACS+
• IPv4/IPv6 ACL and QoS: Ingress/egress; 1 Kbps shaping, time-based; Single rate policing
• IPv4/IPv6 Multicast Filtering: Automated IGMP between switches; IGMPv3 MLDv2 snooping, proxy ASM and SSM; IGMPv1, v2 querier (compatible with v3); Control packet flooding
• IPv4/IPv6 Policing and Convergence: Auto-VoIP; Policy-based routing; LLDP-MED; IEEE 1588 PTPv2
• IPv4/IPv6 Authentication Security: Successive tiering (DOT1X, MAB, Captive portal); DHCP snooping; Dynamic ARP inspection; IP source guard
• IPv4/IPv6 Static Routing: Port, subnet, VLAN routing; Multicast static routes; DHCPv4 server; DHCP relay; Stateful DHCPv6 Server
• IPv4/IPv6 Dynamic Routing: IPv4: RIP; IPv4/IPv6: PIM-SM, PIM-DM, SSM
• Spanning Tree Green Ethernet: STP, MTP, RSTP; PV(R)STP; BPDU/STRG; EEE 802.3az
• VLANs: Static, dynamic, voice, MAC; GVRP/GMRP; Double VLAN mode; Private VLANs

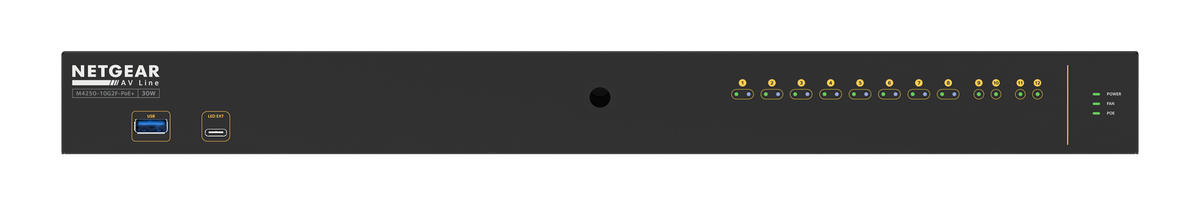

Controls & Indicators

• POWER: (1) green LED, indicates operating power supplied via main power input; Repeated on front and rear panels
• FAN: (1) green LED, indicates fan is in operation; Repeated on front and rear panels
• POE: (1) green LED, indicates the unit is supplying the maximum amount of PoE; Repeated on front and rear panels
• OOB: (2) green LEDs for Ethernet port, indicates Ethernet link status for out-of-band (service) port
• 1-8: (2) LEDs per each (8) Ethernet port, green LEDs indicate Ethernet link status for each corresponding port, blue LEDs indicate PoE for each corresponding port; Repeated on front and rear panels
• 9-10: (1) green LED per each (2) Ethernet port, indicates Ethernet link status for each corresponding port; Repeated on front and rear panels
• 11-12: (1) green LED per SFP+ port, indicates active connection; Repeated on front and rear panels
• On/Off: (1) Rocker switch, turns main power on or off
• RESET: (1) Recessed push button; Used for reboot or factory reset

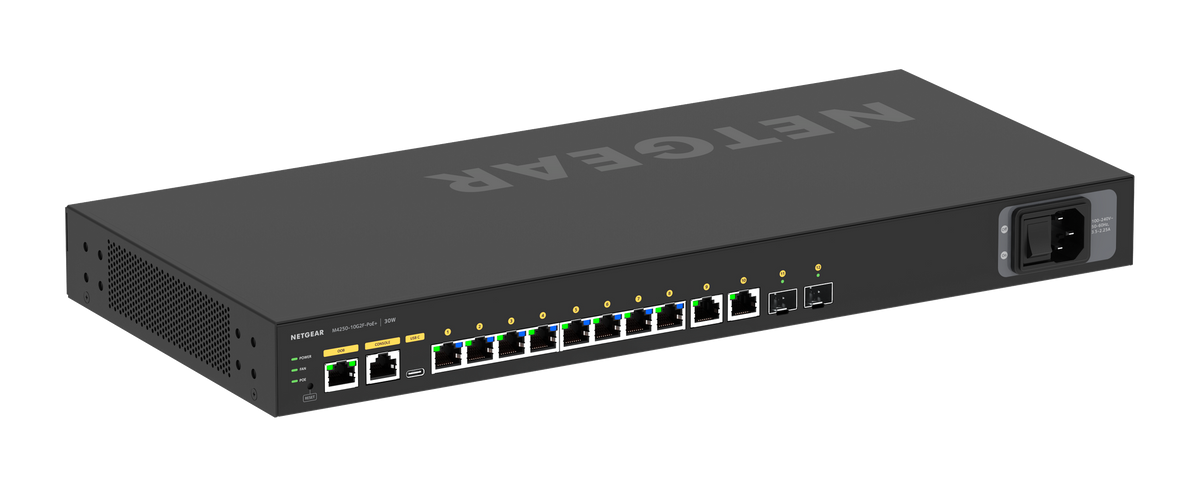

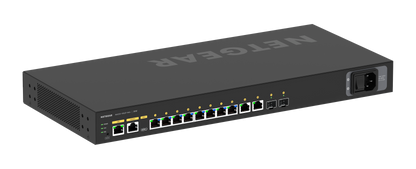

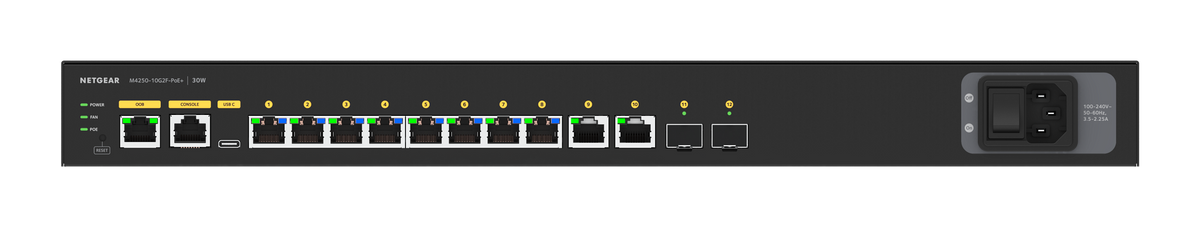

Connectors

• OOB: (1) 8-wire RJ45, female; 10/100/1000Base-T Ethernet port
• CONSOLE: (1) 8-wire RJ45, female
• USB-C: USB-C® port, female
• 100-240V: (1) power connector
• USB: USB Type A, female
• LED EXT: USB-C® port, female
• 1-8: (8) 8-wire RJ45, female; 10/100/1000Base-T Ethernet ports and PoE Power Sourcing Equipment (PSE) outputs; Supports IEEE 802.3at Type 2 PoE+ power sourcing from any ports up to the maximum specified power capabilities; Maximum 30 W per port, 125 W total
• 9-10: (2) 8-wire RJ45, female; 100/1000Base-T Ethernet ports
• 11-12: (2) SFP ports, female; 1 Gigabit Base-X SFP

Power Requirements

• Power Consumption: Max PoE: 163.9 W; Full Mesh Traffic, No PoE: 17.3 W; Standby: 8.5 W

Environmental

• Temperature: 32° to 113° F (0° to 45° C)
• Humidity: 10% to 90% RH (non-condensing)
• Acoustic Noise: Fanless: 0 dBA; Quiet Mode: 27.4 dBA at 77° F (25° C); Cool Mode: 55 dBA at 77° F (25° C)

Construction

• Chassis: Metal, black finish, fan-cooled, vented sides
• Mounting: Freestanding or 1U 19-inch rack-mountable with reversible rack ears

Dimensions

• Height: 1.7 in. (43.2 mm)
• Width: 17.32 in. (440 mm)
• Depth: 7.87 in. (200 mm)
