Crestron CEN-IO-IR-104 Wired Ethernet Module with 4 IR Ports

Crestron CEN-IO-IR-104 Wired Ethernet Module with 4 IR Ports

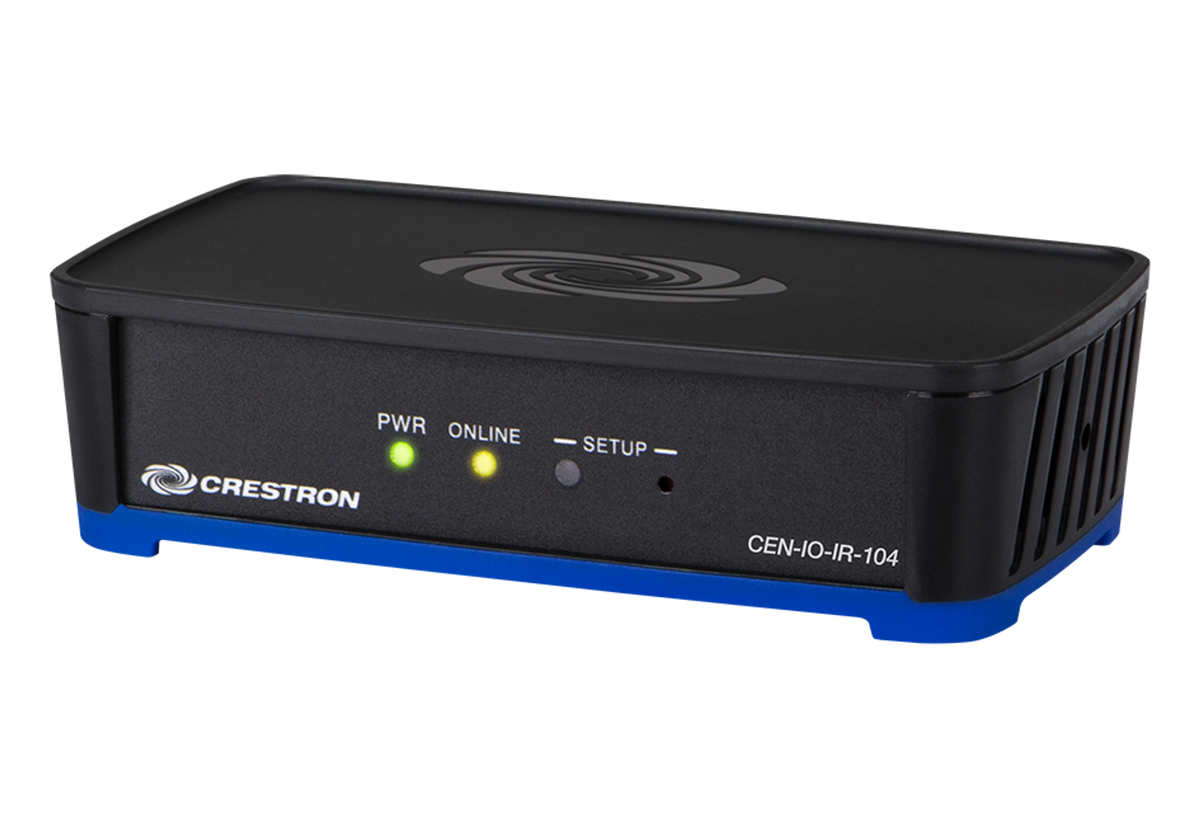

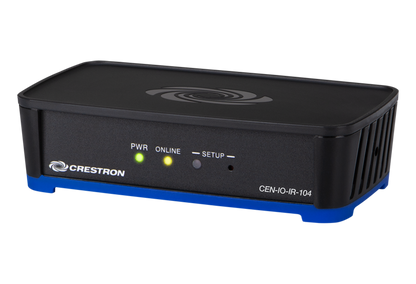

The Crestron® CEN-IO-IR-104 is a compact and cost-effective wired I/O module designed to easily expand the available IR/Serial ports within a commercial or residential system. A small form factor allows the CEN-IO-IR-104 to be placed just about anywhere, with the option to attach it to a flat surface or DIN rail using the included mounting bracket. The four onboard IR/1-way Serial ports enable direct integration with all kinds of third-party equipment.

The CEN-IO-IR-104 communicates to the local network using the available LAN connection, allowing the connected equipment to be remotely controlled and monitored from a computer or tablet. Power is conveniently supplied to the CEN-IO-IR-104 via PoE (Power over Ethernet) or a Crestron control system, eliminating the need for a local power supply or extra wiring.

Security Protocols:
The CEN-IO-IR-104 supports the following security protocols to help protect against service interruptions and malicious intrusions:

• TLS 1.2 for web server and control system connections
• Local Authentication for console, web server, and control system connections
• SSL for console connections

Power over Ethernet
Using PoE technology, the CEN-IO-IR-104 gets its operating power directly through the LAN wiring. PoE eliminates the need for a local power supply or any dedicated power wiring. A PoE Injector (PWE-4803RU) simply connects in line with the LAN cable at any convenient location. Crestron PoE switches (CEN-SW-POE-5 or CEN-SWPOE-16) may also be used to provide a total networking solution with built-in PoE. All PoE injectors and switches are sold separately.

Integrator Friendly Enclosure
The CEN-IO-IR-104 features the Crestron IFE form factor, a compact "Integrator Friendly Enclosure" design that fits almost anywhere and enables a variety of installation options. Its shape allows multiple CEN-IO and other IFE compliant devices to be stacked together. Using the included mounting bracket, it can be fastened to any flat surface or snapped onto a standard DIN rail. Rack mount and pole mount kits are also available.^[1]

Key Features

• Compact, cost-effective wired Ethernet I/O module
• Provides four IR/1-way Serial ports
• Installer setup via Crestron Toolbox™ software or web browser
• Supports TLS 1.2, Local Authentication, and SSL security protocols
• PoE (Power over Ethernet) network powered
• Compact, stackable "IFE micro" form factor
• Surface or DIN rail mountable
• Available rack mount and pole mount options^[1]

Specifications

Communications

• Ethernet: 100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP, SSL, TLS, IEEE 802.3af and 802.3at Type 1 compliant
• IR/Serial: Supports 1-way device control via infrared up to 1.2 MHz or Serial TTL/RS-232 (0-5 Volts) up to 115.2k baud

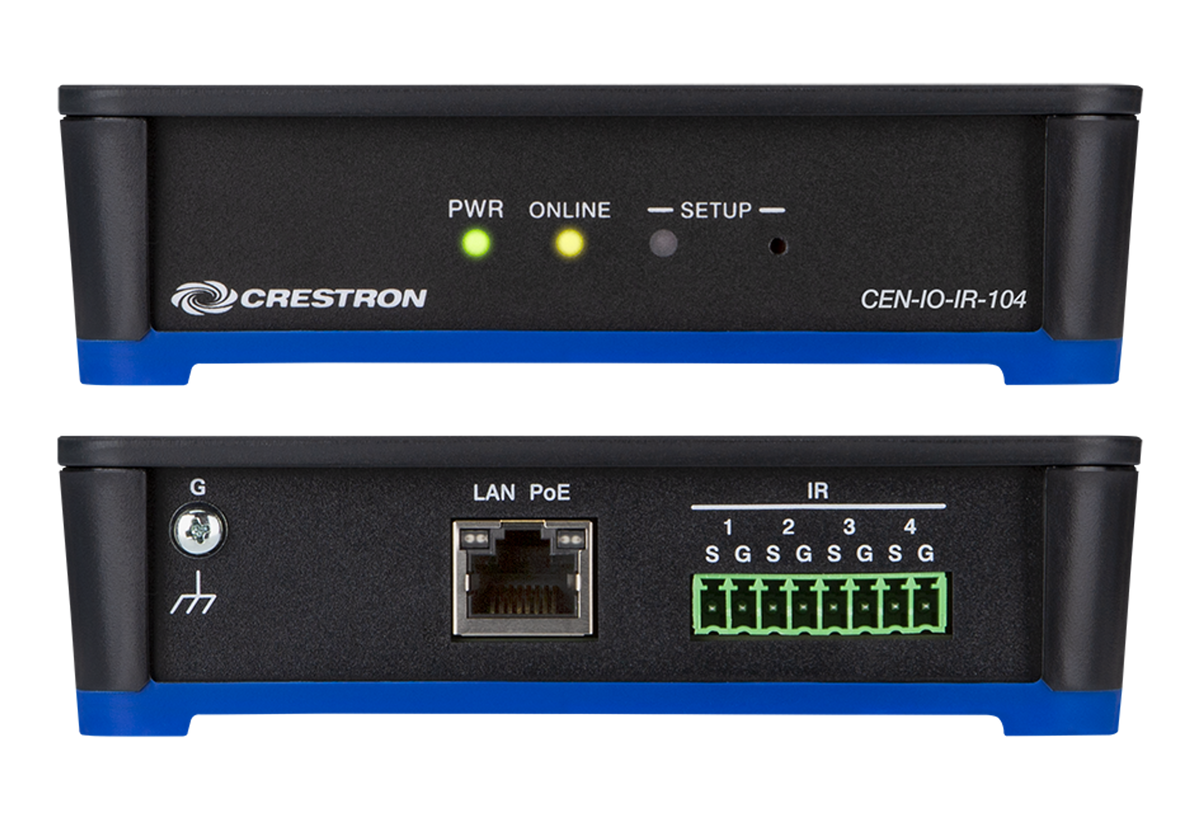

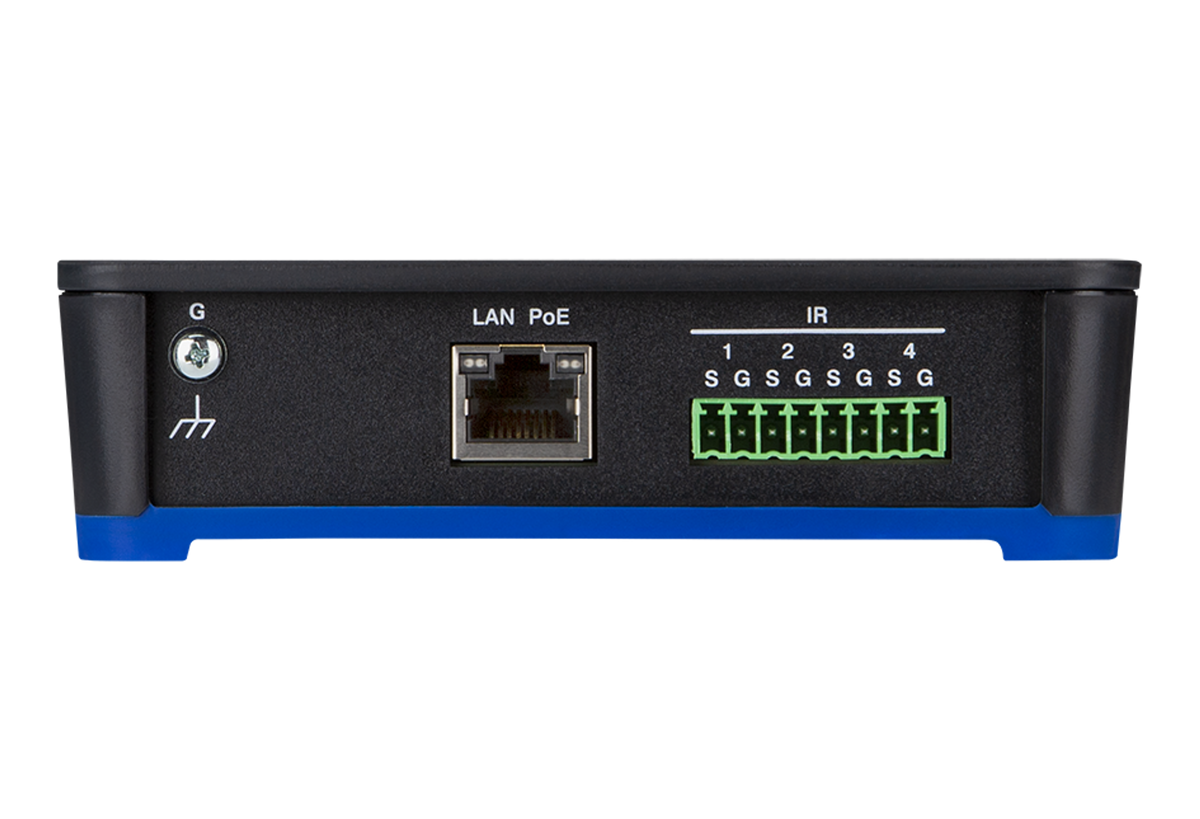

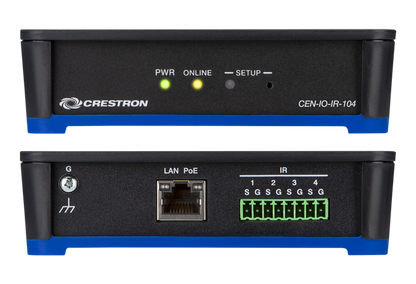

Connectors

• LAN PoE: (1) 8-pin RJ45 connector, female; 100Base-TX Ethernet port; PoE (Power over Ethernet) PD (Powered Device) port
• IR: (1) 8-pin 3.5 mm detachable terminal block; Comprises (4) IR/Serial output ports; IR output up to 1.2 MHz; 1-way serial TTL/RS-232 (0-5 Volts) up to 115.2k baud
• G: (1) 4-40 screw; Chassis ground lug

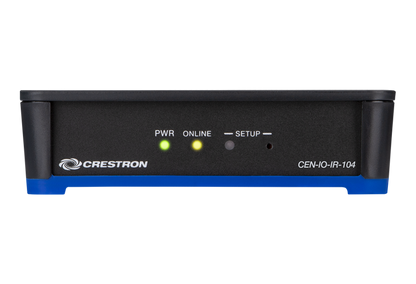

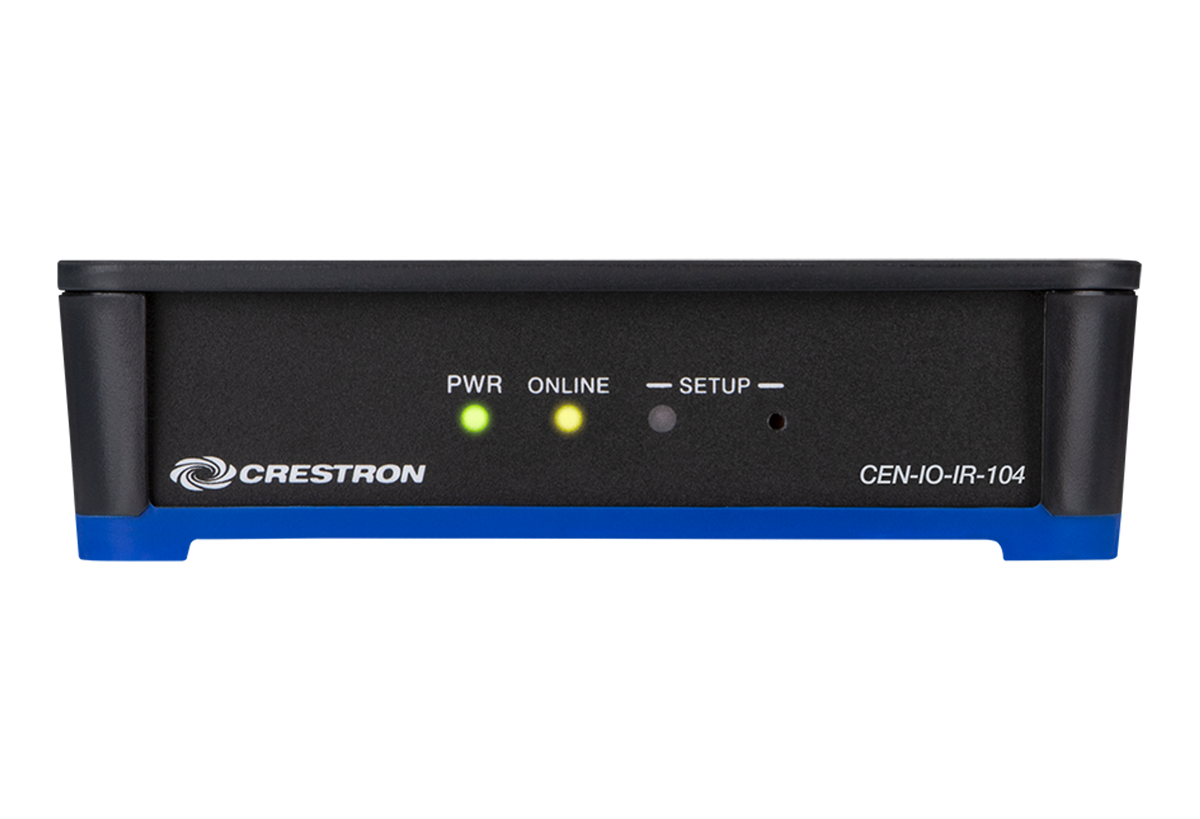

Controls & Indicators

• PWR: (1) Bicolor green/amber LED, indicates that power is present, amber indicates that the device is booting and not yet ready to operate, green indicates that device is ready to operate
• ONLINE: (1) Green LED, indicates that the device is connected to a Crestron control system via Ethernet
• SETUP: (1) Red LED and (1) recessed pushbutton for Ethernet setup, LED indicates that the SETUP pushbutton has been pressed (times out automatically) [2]
• LAN PoE: (2) Bicolor LEDs, green LED indicates 100Mbps Ethernet link status, amber LED indicates Ethernet activity

Power

• PoE (Power over Ethernet): IEEE 802.3at Type 1 (802.af compatible) Class 0 (12.95 Watts) PoE Powered Device
• Power Consumption: 2.3 Watts

Environmental

• Temperature: 41 to 104 °F (5 to 40 °C)
• Humidity: 10% to 90% RH (noncondensing)
• Heat Dissipation: 8 BTU/hr

Construction

• Enclosure: IFE micro form factor, black and blue plastic
• Mounting: Freestanding, stackable, surface mount, or 35 mm DIN EN 60715 rail mount; Occupies 8 DIN module spaces (144 mm); Surface/DIN rail mounting bracket included, optional rack mount and pole kits sold separately

Dimensions

• Height: 1.35 in. (34 mm), 1.77 in. (45 mm) with bracket
• Width: 5.04 in. (128 mm), 5.36 in. (136 mm) with bracket
• Depth: 2.86 in. (73 mm), 3.33 in. (85 mm) with bracket

Weight

• 6.4 oz (180 g)

Compliance

Regulatory Model: CEN-IO UL® Listed for the United States and Canada under UL/IEC 62368-1. CE compliant for applicable European market requirements.
