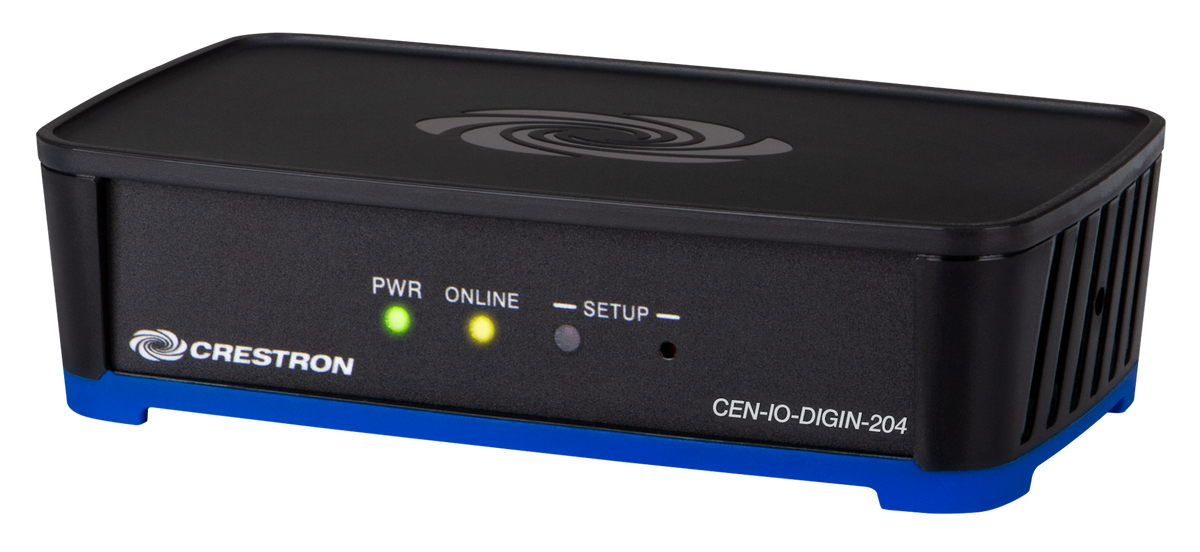

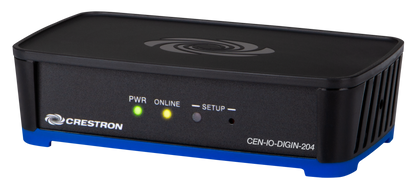

The Crestron® CEN-IO-DIGIN-204 is a compact and cost-effective wireless I/O extender designed to easily expand the available digital inputs within a commercial or residential system. A small form factor allows the CEN-IO-DIGIN-204 to be placed just about anywhere, with the option to attach it to a flat surface or DIN rail using the included mounting bracket. The four onboard digital inputs enable direct integration with all kinds of third-party equipment.

The CEN-IO-DIGIN-204 communicates to the local network over Wi-Fi® wireless communications, allowing the connected equipment to be remotely controlled and monitored from a computer or tablet. Power is conveniently supplied to the CEN-IO-DIGIN-204 via an included 5 VDC power pack.

Security Protocols
The CEN-IO-DIGIN-204 supports the following security protocols to help protect against service interruptions and malicious intrusions:

• TLS 1.2 for control system connections
• Local Authentication for console and control system connections

Advanced Wi-Fi Wireless Performance
Crestron enhanced Wi-Fi performance is optimized to deliver fast, dependable wireless communications with a 50 ft (15 m) omnidirectional range (conditions permitting). The choice of 802.11 a, b, g, and n protocols affords reliable, high-speed wireless connectivity in most RF environments. Up to five wireless access points can be memorized for easy connectivity within larger networks.

Integrator Friendly Enclosure
The CEN-IO-DIGIN-204 features the Crestron IFE form factor, a compact Integrator Friendly Enclosure design that fits almost anywhere and enables a variety of installation options. Its shape allows multiple CEN-IO and other IFE compliant devices to be stacked together. Using the included mounting bracket, it can be fastened to a flat surface or snapped onto a standard DIN rail. Rack mount and pole mount kits are also available.¹

Key Features

• Compact, cost-effective wireless network I/O extender
• Communicates to the local network over Wi-Fi® wireless communications
• Up to five wireless access points can be memorized
• Provides four digital inputs
• Installer setup via Crestron Toolbox™ software or web browser
• Supports TLS 1.2 and Local Authentication security protocols
• Powered via included 5 VDC power pack
• Compact, stackable IFE micro form factor
• Surface or DIN rail mountable
• Available rack mount and pole mount options

Specifications

Wireless Communication

• Transceiver: IEEE 802.11a/b/g/n Wi-Fi (2.4 or 5 GHz 2-way RF), static IP or dynamic IP via DHCP
• Security: 64 and 128-bit WEP, WPA and WPA2-PSK with TKIP and AES
• Range: Up to 50 feet (15 m), subject to site-specific conditions
• Gateway: Requires an 802.11a/b/g/n wireless access point and Ethernet-enabled Crestron control system

Connectors

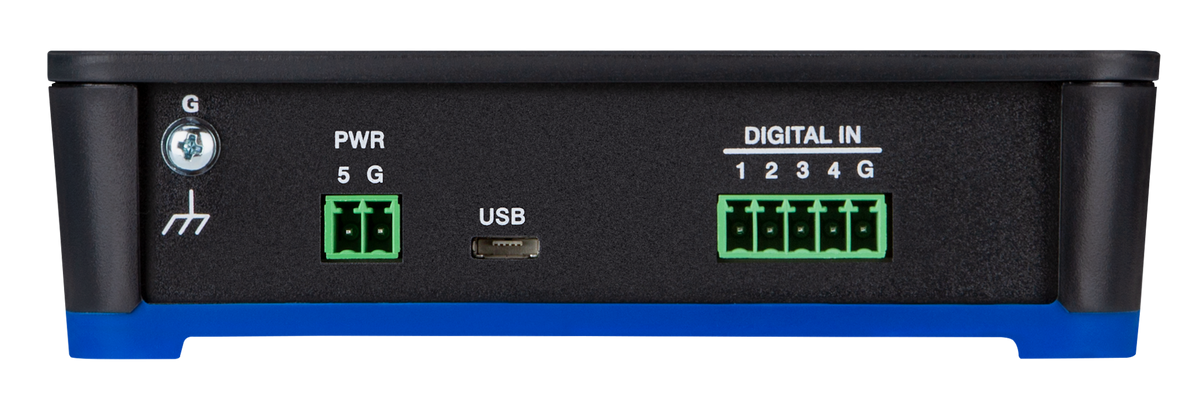

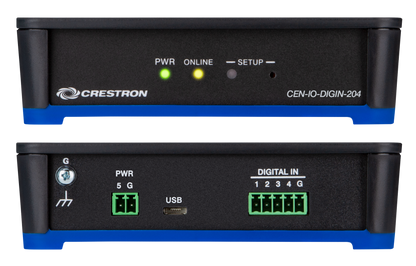

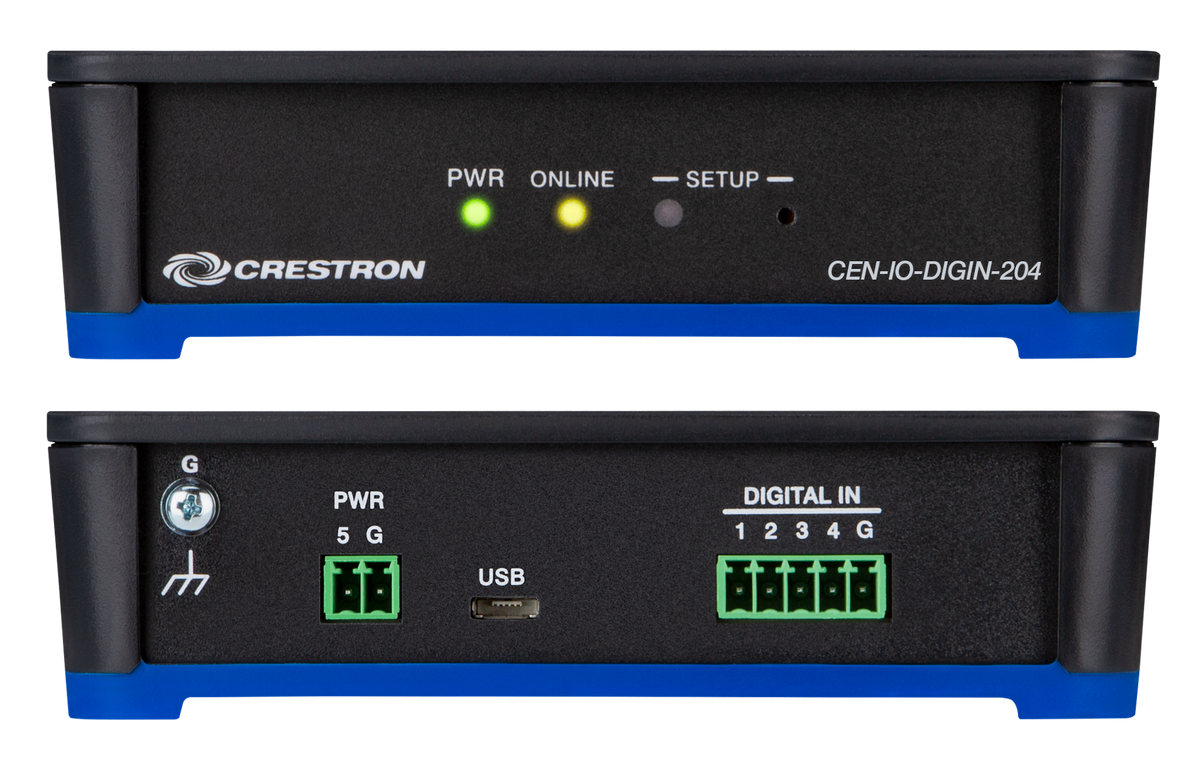

• DIGITAL IN: (1) 5-pin 3.5 mm detachable terminal block; Comprises (4) digital inputs (referenced to GND); Input Voltage Range: 0-24 VDC; Logic Threshold: ohm2.0 VDC 0/low, ohm0.6 VDC 1/high; Input Impedance: 2.2k ohm pulled up to 5 V
• USB: (1) Micro-USB Type B console port; For setup via Crestron Toolbox™ software
• PWR: (1) 2-pin 3.5 mm detachable terminal block; 5 VDC power input for included power pack
• G: (1) 4-40 screw; Chassis ground lug

Controls and Indicators

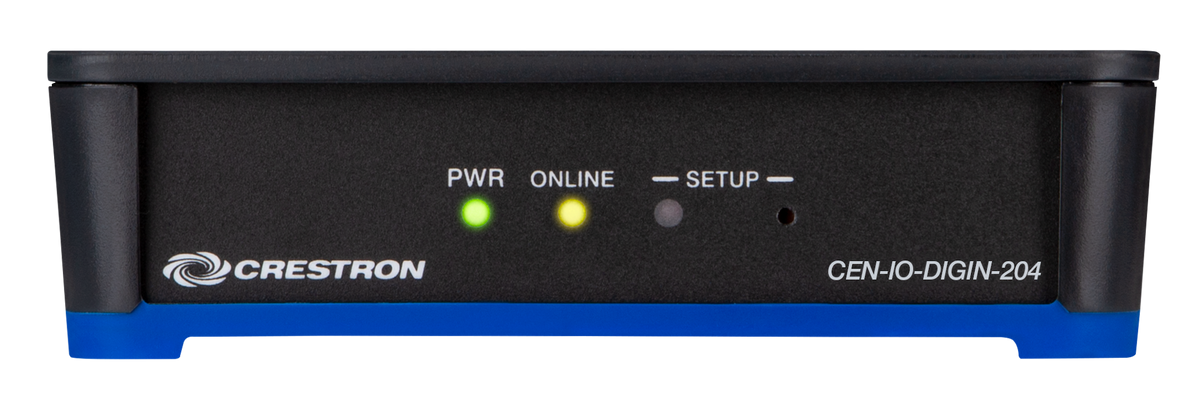

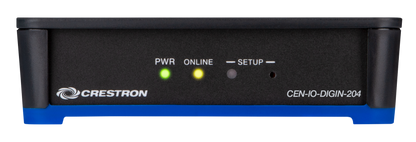

• PWR: (1) Bicolor green/amber LED, indicates that power is present, amber indicates that the device is booting and not yet ready to operate, green indicates that device is ready to operate
• ONLINE: (1) Green LED, indicates that the device is connected to a Crestron control system via Wi-Fi wireless communications
• SETUP: (1) Red LED and (1) recessed pushbutton for web setup, LED indicates that the SETUP pushbutton has been pressed (times out automatically)2

Power

• Power Pack (included): Input: 100-240 VAC, 50/60 Hz; Output: 1.2 A @ 5 VDC; Model: PW-0510WUL
• Power Consumption: 0.7 W typical

Environmental

• Temperature: 41 to 104 °F (5 to 40 °C)
• Humidity: 10% to 90% RH (noncondensing)
• Heat Dissipation: 2.4 BTU/hr

Construction

• Enclosure: IFE micro form factor, black and blue plastic
• Mounting: Freestanding, stackable, surface mount, or 35 mm DIN EN 60715 rail mount; Occupies 8 DIN module spaces (144 mm); Surface/DIN rail mounting bracket included, optional rack mount and pole kits sold separately1

Dimensions

• Height: 1.35 in. (34 mm), 1.77 in. (45 mm) with bracket
• Width: 5.04 in. (128 mm), 5.36 in. (136 mm) with bracket
• Depth: 2.86 in. (73 mm), 3.33 in. (85 mm) with bracket

Weight

• 6.4 oz (180 g)

Compliance

Regulatory Model: CEN-IO UL® Listed for the United States and Canada under UL/IEC 62368-1. CE compliant for applicable European market requirements.
