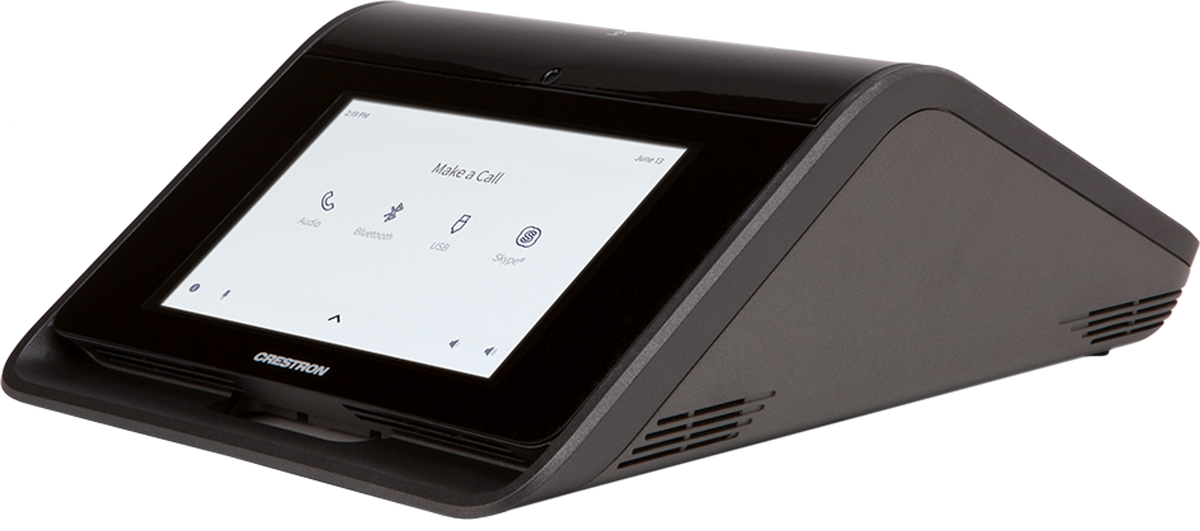

The CCS-UC-1-X tabletop conferencing device provides a speakerphone and touch screen solution for use with Crestron Collab Compute hardware (sold separately).

Built-In Speakerphone
An integrated 360° quad microphone array captures voices from every seat at the table while the built-in speaker provides full-range audio playback for voice and program content. Echo cancellation is handled by the Microsoft Teams® software running on the connected Crestron Collab Compute.

BYOD Support
The CCS-UC-1-X is compatible with the CCC-BYOD-KIT (sold separately) to support BYOD use cases. When a laptop is connected, the CCS-UC-1-X uses the laptop's meeting platform. When the HDMI® and USB connections are disconnected from the CCS-UC-1-X, it returns to the native Crestron Collab Compute platform.

Intuitive UI
The built-in 7 in. (178 mm) capacitive multitouch screen receives a Microsoft Teams or Zoom Rooms™ user interface directly from the connected Crestron Collab Compute.^{1, 2} The interface displays meeting schedule details and basic call controls. The touch bar on the top of the conferencing device also provides a simple mute/unmute control and indicator.

Power over Ethernet
The CCS-UC-1-X receives power over Ethernet (PoE+) from the connected Crestron Collab Compute. The PoE+ of the compute functions both as a power source and a dedicated touch screen configuration port. Once the proper setup is performed on the compute, connecting the CCS-UC-1-X will automatically configure the conferencing device.

Key Features

• Tabletop UC conferencing solution
• Automatically configures once connected to the PoE+ port of a Crestron Collab Compute (sold separately)
• Compatible with CCC-BYOD-KIT (sold separately) for BYOD applications
• 7 in. (178 mm) HD color touch screen with Microsoft Teams® or Zoom Rooms™ user interface
• Integrated 360° quad microphone array
• High-powered full-range speaker
• High-visibility mic mute indication
• Enterprise-grade security
• CCS-UCA-SMK swivel mount kit sold separately

Specifications

Communications

• Ethernet: 100 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, DHCP, TCP/IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SRTP, IEEE 802.1X, Legacy Active Directory® authentication, digest access authentication, password login, XiO Cloud client, IEEE 802.3at Type 2 PoE+ compliant

Audio

• Speaker: Full range speaker; Amplifier Power: 11 W (rated power); Maximum Output: 95 dB SPL @ 0.5 m; Frequency Response: 90 Hz - 22 kHz
• Microphones: 360° quad mic array, 20 ft (6 m) typical pickup range

Touch Screen

• Screen: 7 in. (178 mm) diagonal capacitive multi-touch TFT active matrix color LCD, 1280 x 800 pixels
• UI: Microsoft Teams® or Zoom Rooms™ interface when paired with a Crestron Collab Compute device (sold separately)2

Connectors

• LAN: (1) 8-pin RJ-45 connector, female; 100BASE-TX Ethernet port; Connects to POE+ port of Crestron Collab Compute device
• TX OUT: (1) 8-pin RJ-45 connector, female; Connects to HD-CONV-USB-260 (included with CCC-BYOD-KIT)
• USB B: (1) USB Micro-B connector, female; USB 2.0 host port; Connects to BYOD laptop
• HDMI: (1) HDMI® Type A connector, female; HDMI digital video/audio input; Connects to BYOD laptop
• MIC POD 1-2: Not used
• USB/ACC: Not used
• 24V 2.5A: (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW-2420RU power supply included

Controls and Indicators

• Mic Mute Symbol and Light Bar: (2) Capacitive buttons with bicolor LEDs; Either button toggles between mute and unmute; Symbol LED blinks green when the unit is powering up; All LEDs illuminate red when the mic is muted; All LEDs illuminate green when the mic is unmuted during an active call or online meeting

Power

• Power: 24VDC: 24 Volts DC via external 100-240VAC, 50/60 Hz power pack, model PW-2420RU (included)

Environmental

• Temperature: 32° to 104°F (0° to 40°C)
• Humidity: 10% to 90% RH (noncondensing)

Construction

• Mounting: Tabletop placement; Tabletop mounting via swivel mount kit (CCS-UCA-SMK, sold separately)

Dimensions

• Height: 4.11 in. (104 mm)
• Width: 8.92 in. (227 mm)
• Depth: 12.74 in. (324 mm)

Weight

• 8.38 lb (3.80 kg)

Compliance

Regulatory Model: CCS-UC-1 UL® Listed for the United States and Canada, under UL/IEC 60950-1. CE compliant for applicable European market requirements.
