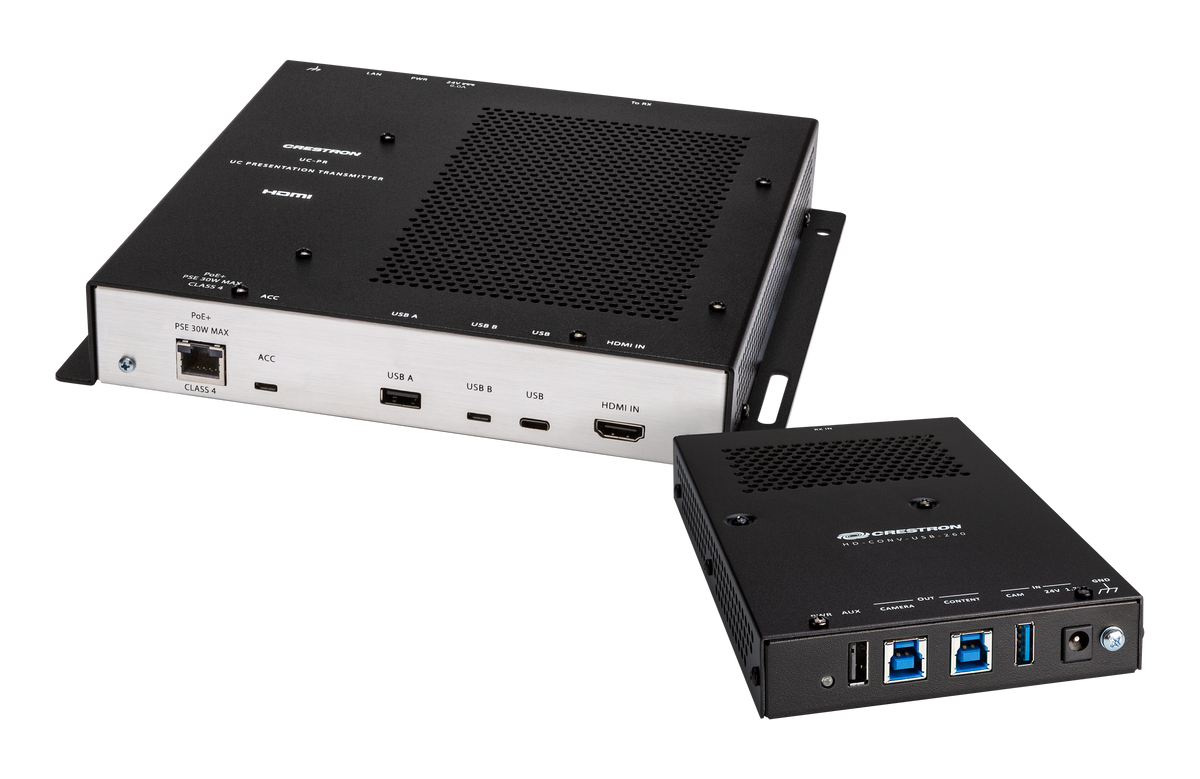

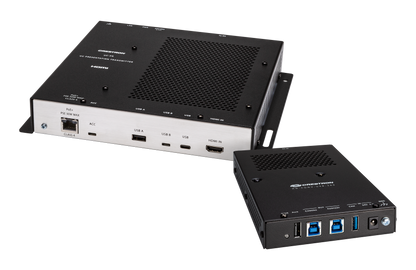

Crestron CCC-BYOD-KIT Crestron Collab Compute Bring Your Own Device (BYOD) Kit

Crestron CCC-BYOD-KIT Crestron Collab Compute Bring Your Own Device (BYOD) Kit

The CCC-BYOD-KIT provides Bring Your Own Device (BYOD) functionality for Crestron Collab Compute devices. The UC Presentation Transmitter (UC-PR) switches to the laptop's meeting platform when connected and returns to the Crestron Collab Compute's native platform when disconnected.

The CCC-BYOD-KIT is compatible with the following Crestron Collab Compute devices:

• CCC-110-T
• CCC-110-Z
• CCC-120-T
• CCC-120-Z

Specifications

UC Presentation Transmitter (UC-PR)1

Communications

• Ethernet: 100 Mbps
• HDMI: HDCP
• HDMI over CAT5 Ethernet: HDCP
• USB: USB 2.0 and USB 3.0

Indicators

• PWR: (1) Green LED indicator for operating power supplied via power supply
• Ethernet: (2) LEDs on To RX port; Green indicates Ethernet link status; Amber indicates Ethernet activity

Video

• Input Signals: HDMI, DisplayPort 1.2 via the USB Type-C® port
• Output Signal: HDMI over CAT5
• Resolution: 1080p
• Video Content Protection: HDCP 1.4 and HDCP 2.2

Audio

• Input Signal: HDMI, DisplayPort 1.2 via the USB Type-C port
• Output Signal: HDMI over CAT5

Connectors

• LAN PoE: (1) 8 pin RJ-45 connector, female
• ACC: (1) USB 3.0 Type B connector, female; For firmware loading only
• USB-A: (1) USB 2.0 Type A connector, female
• USB-B: (1) USB 2.0 Type B connector, female
• USB: (1) USB Type-C 2.0 connector, female
• HDMI IN: (1) HDMI Type A, female

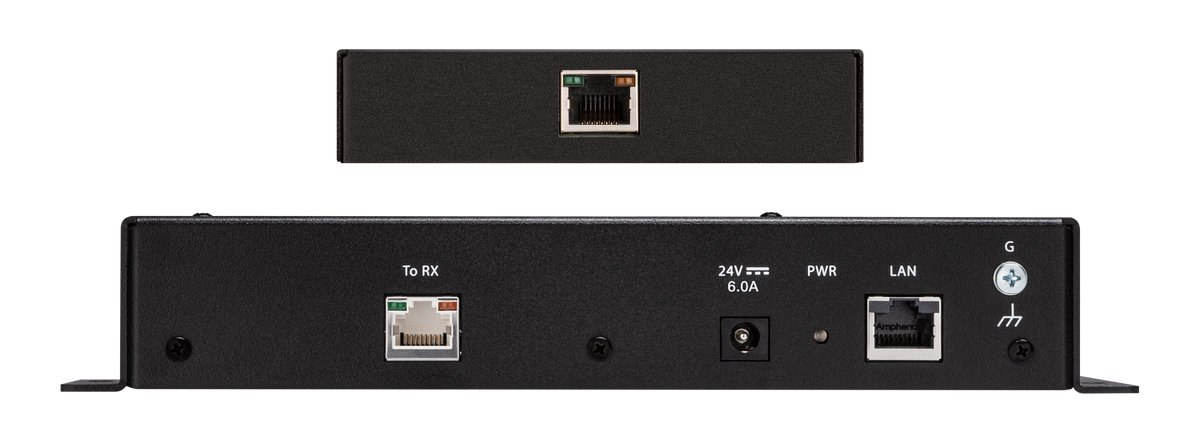

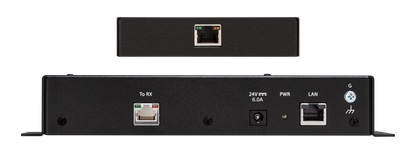

• To RX: (1) 8-pin RJ-45 connector, female
• Power Jack: (1) DC power connector
• LAN: (1) 8-pin RJ-45 connector, female
• Ground: (1) 6-32 screw

Power

• Power (from included power supply): 24VDC, 3.75A, 100-240VAC, 90 W
• Device Charging: Up to 60 W charging for devices connected via the USB Type-C port

Environmental

• Temperature: 32° to 104°F (0° to 40°C)
• Humidity: 10% to 95% RH (noncondensing)

Construction

• Chassis: Metal, black finish, integral mounting flanges; Vented top, front, bottom, and sides
• Mounting: Attaches to a single rack rail or freestanding

Dimensions

• Height: 1.58 in. (40 mm)
• Width: 9.25 in. (235 mm)
• Depth: 8.37 in. (213 mm)

HD-CONV-USB-260

Communications

• RX IN: DM Essentials via UC Presentation Transmitter (UC-PR)
• USB: USB 2.0 and USB 3.0

Indicators

• PWR: (1) Green LED indicator for operating power supplied via power supply
• Ethernet: (2) LEDs on RX IN port; Green indicates Ethernet link status; Amber indicates Ethernet activity

Connectors

• RX IN: (1) 8-pin RJ-45 connector
• Camera OUT: (1) USB 3.0 Type B connector, female; For USB UVC Device
• Content OUT: (1) USB 3.0 Type B connector, female; For USB UVC Device
• CAM IN: (1) USB 3.0 Type A connector, female
• 24V 1.25A: (1) DC Power connector (via included power supply)
• AUX: (1) USB 2.0 Type B connector, female; For USB UAC Device
• Ground: (1) 6-32 screw

Power

• Power (from included power supply): 24VDC, 1.25A, 100-240VAC

Environmental

• Temperature: 32° to 104°F (0° to 40°C)
• Humidity: 10% to 95% RH (noncondensing)

Construction

• Chassis: Metal, black finish, integral mounting flanges; Vented top, front, bottom, and sides
• Mounting: Attaches to a single rack rail or freestanding

Dimensions

• Height: 1.05 in. (27 mm)
• Width: 4.55 in. (116 mm)
• Depth: 7.19 in. (163 mm)
