Description

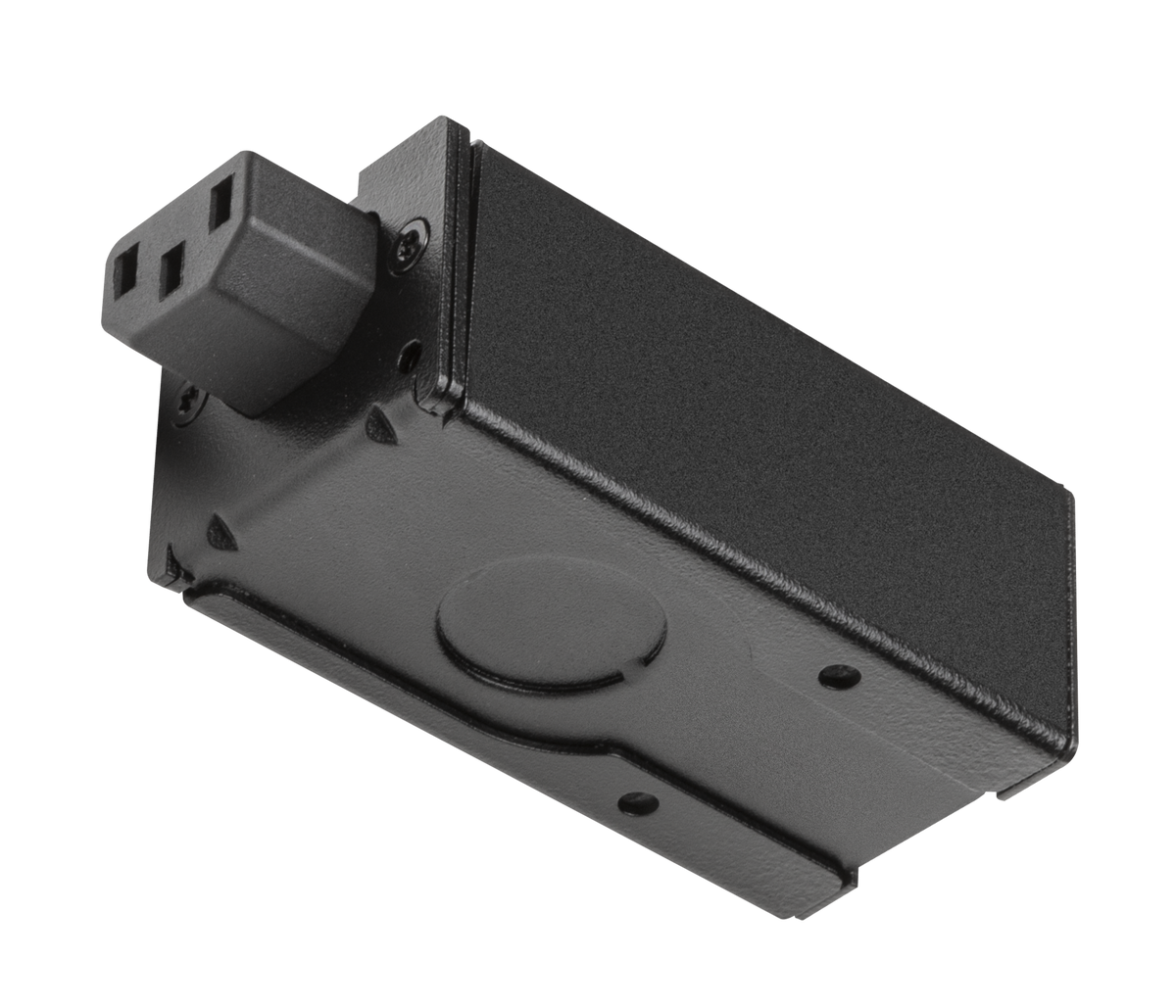

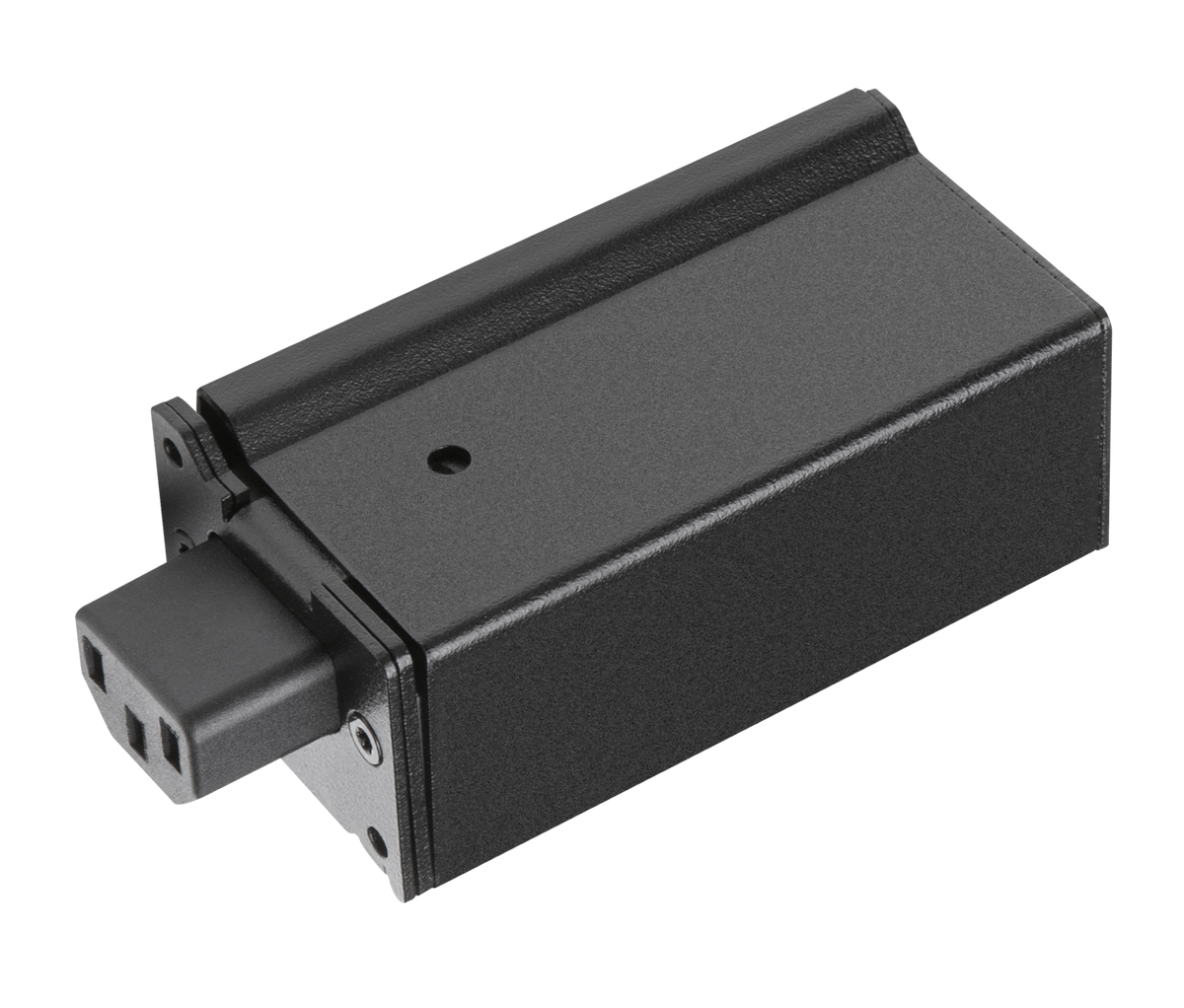

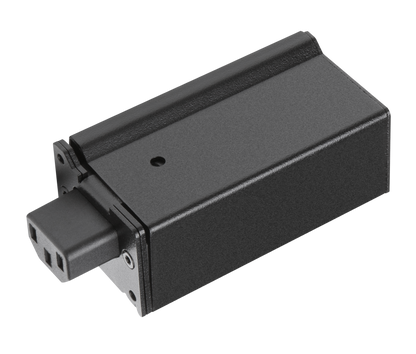

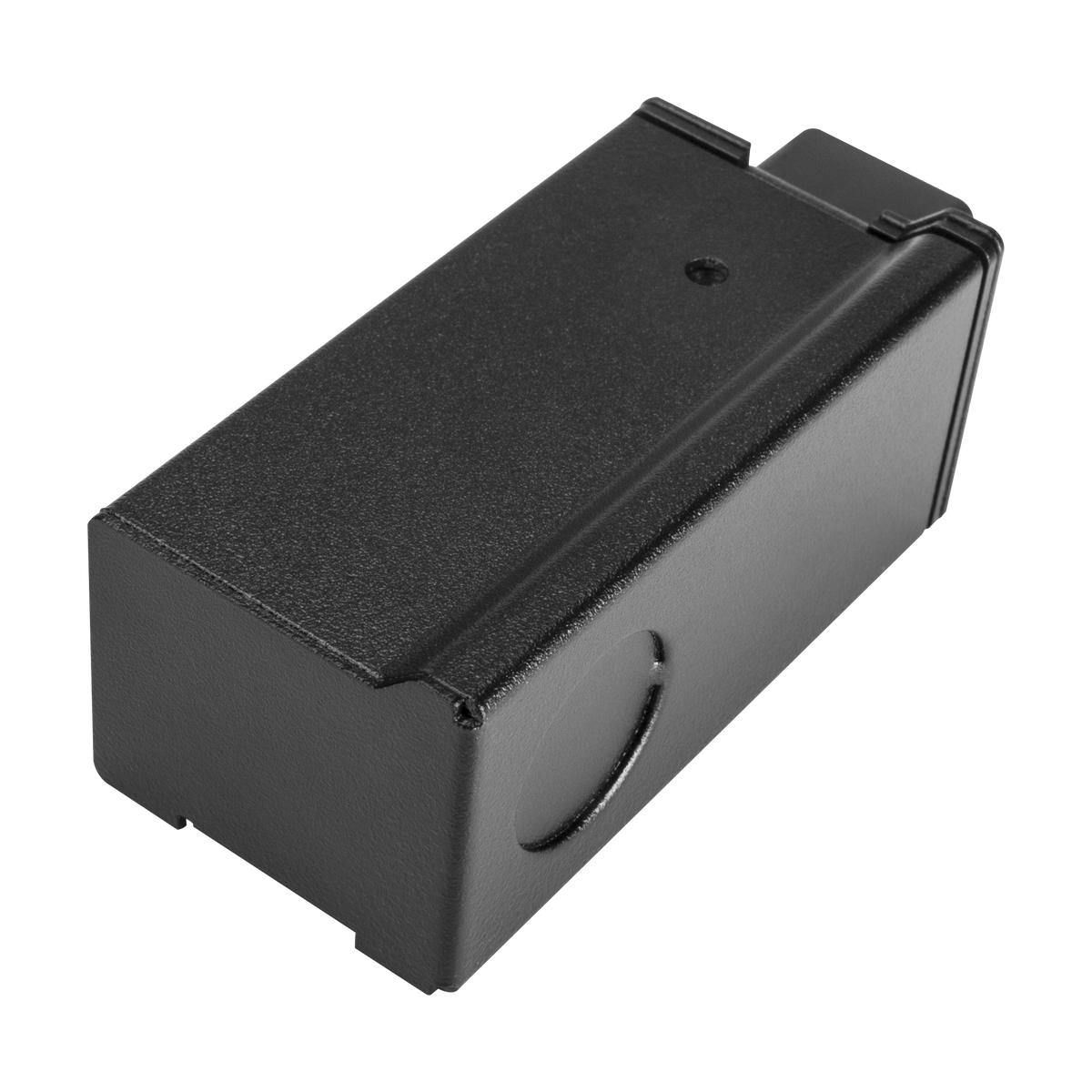

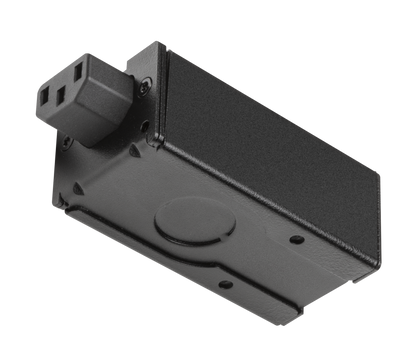

Crestron AMP-PNMK Plenum Kit for Crestron X-Series Audio Amplifiers
The AMP-PNMK plenum kit connects AC power to the IEC C14 AC power inlet of a compatible Crestron X-Series audio amplifier, allowing the amplifier to meet the necessary plenum rating requirements. The AMP-PNMK is compatible with the AMP-X75, AMP-X300, and DM-NAX-AMP-X300 amplifiers.
Key Features
- Enables compatible X-Series amplifiers to be installed in plenum spaces
- Connects to an IEC C14 AC power inlet to meet plenum rating requirements
- Compliant with UL 2043 Plenum Rating, CCEA Section 18-27-300.22, NFPA70-National Electric Code
Specifications
Connections
Knockout
-
Knockout size: 3/4 in. NPT Fitting
Environmental
-
Temperature: 4° to 176° F (-15.5° to 80° C)
-
Humidity: 10% to 95% RH (non-condensing)
Dimensions
-
Height: 3.85 in. (978 mm)
-
Width: 1.67 in. (42 mm)
-
Depth: 1.58 in. (40 mm)
Weight
Compliance
Regulatory Model: ETLus-Intertek, UL-2043, WEEE
