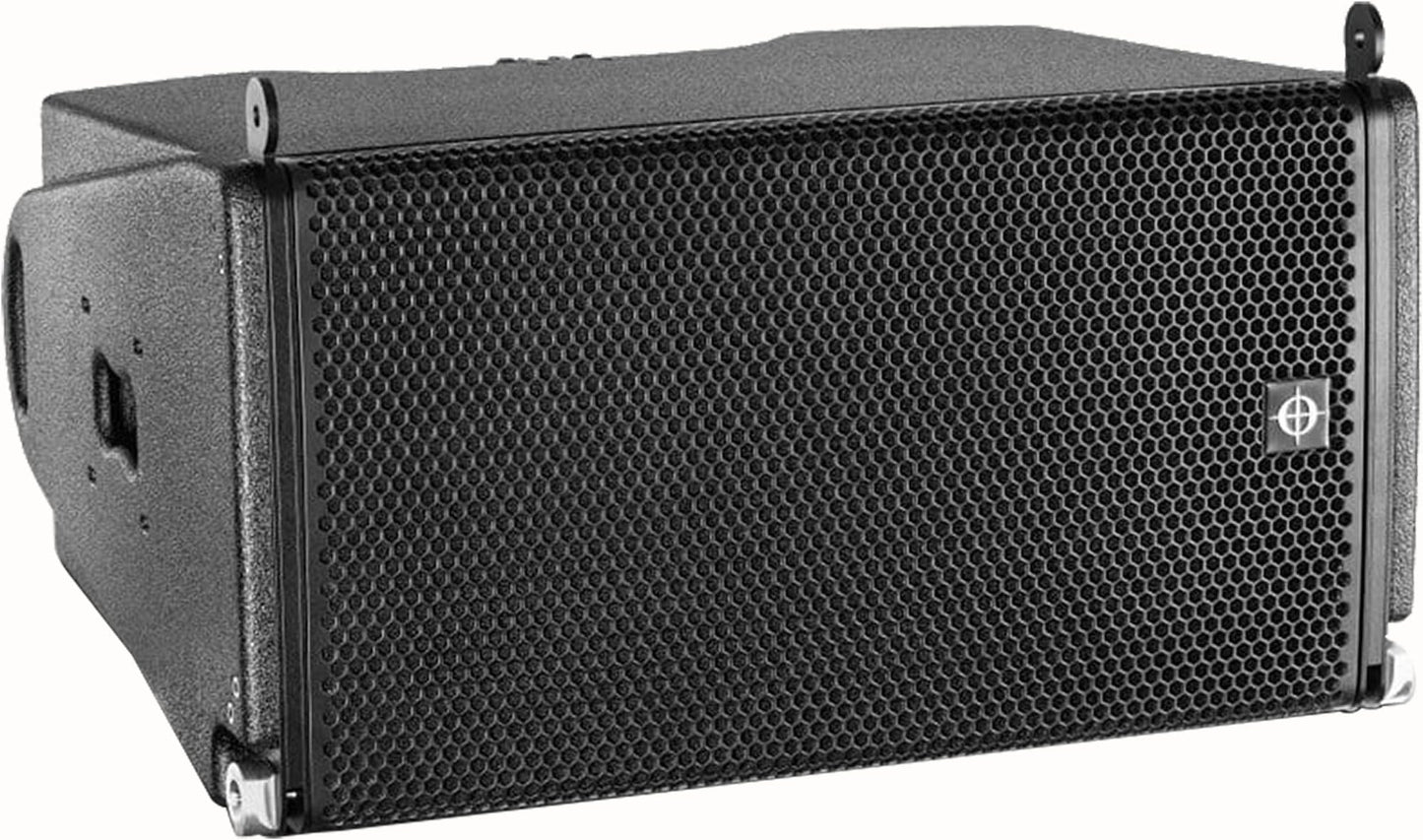

Coda Audio AiRAY Full Range Line Array System
The AiRAY is a fully integrated compact 2x 12” / 3-way line array system, designed for wide varieties of applications where high output, even coverage and outstanding intelligibility is required. The AiRAY unique package brings together the high output of a large system with the flexibility of a compact system creating a new category in large reinforcement systems.
Specifications:
- Type: 3-way bi-amplified line array module
- Frequency response: 50 Hz – 22 kHz (-6 dB)
- Power handling AES / peak (passive): Bi-amplified only
- Low AES / peak: 2000 W / 8000 W
- Mid / High AES / peak: 300 W / 2600 W
- Sensitivity low 1W / 1m: 103 dB
- Sensitivity mid / high 1W / 1m: 114 dB
- Maximum peak SPL (with LINUS10)
- Low: 143 dB
- Mid / High: 148 dB
- Amplification, Cabinets per Amplifier:
- LINUS14D Optimum / Maximum: 4/6
- LINUS10 Optimum / Maximum: 2/3
- Dispersion horizontal: 90°, 120° or asymmetrical 105°
- Dispersion vertical: Array dependent: 0°, 0.5°, 1°, 2°, 2.5°, 3° to 8° in 1°-steps
- Components:
- Low frequency: 2x 12″ neodymium, water resistant cones, 4″ (101.6 mm) voice coil, 1000 W (AES) each
- Mid/High frequency:
- 2x 6″ DDP (Double Diaphragm Planar-wave-drivers)
- Mid: 3.5″ (90 mm) voice coil, 150 W (AES) each
- High: 1.75″ (44.4 mm) voice coil, 80 W (AES) each
- Crossover point: 400 Hz bi-amp, 6300 Hz passive
- Input connectors: 2x Neutrik™: 1x Input + 1x Link Cable
- Nominal impedance LF / MF+HF: 8 Ohm (1+/1-) / 16 Ohm (2+/2-)
- Enclosure material: Birch plywood
- Finish: Polyurea coating (water resistant)
- Flying hardware: Integrated
- Dimensions (WxHxD): 674 x 356 x 555 mm / 26.54 x 14.02 x 21.85″ (674 x 400 x 555 mm / 26.54 x 15.75 x 21.85″ incl. hardware)
- Net weight: 40 kg / 88.18 lbs
