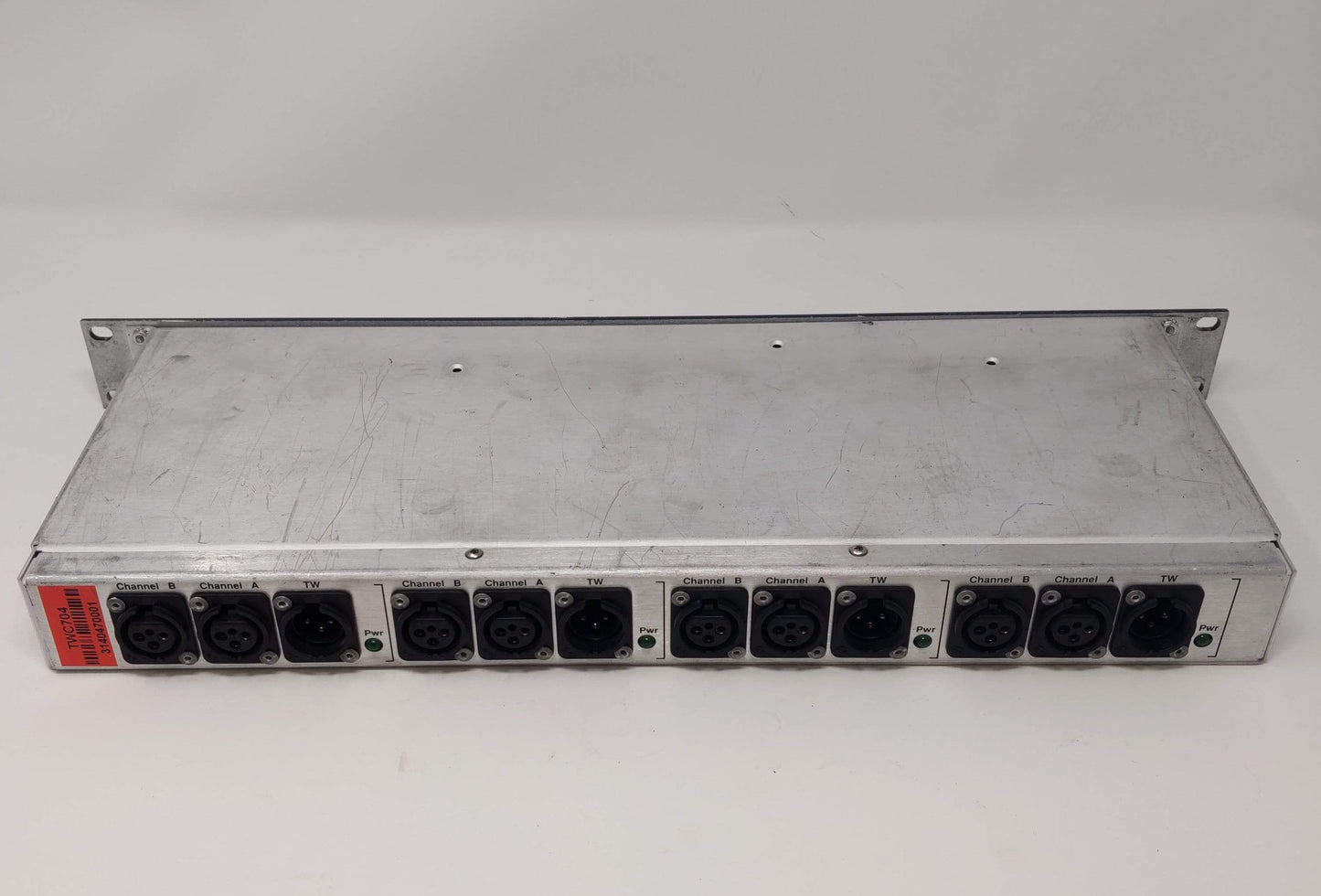

Clear-Com TWC704 4-Line Multiplexer
The TWC-704 provides four TWC circuits in 1RU. TWC-704 module can drive up to fifteen RS-603 series beltpacks.
Specifications:
- Rear Panel Connectors
- Intercom in (8) XLR3F (2 per channel)
- TW (4) XLR3M (1 per channel)
- Rear Panel Controls & Indicators
- (4) Power LED
- Power Requirements
- Input Voltage: 20-30 VDC
- Input Current: (idle) <= 120mA
- Current Trip 1.1A
- Environmental
- 32o to 122o F (0o to 50o C)
- Dimensions
- 19 in. W x 1.75 in. H x 7.0in. D
- (483 mm x 44 mm x 1678mm)
- Weight
- 2.64 lbs (1.2 kg)
