Clear-Com MVX-A16-HX Eclipse HX Analog 16-Port Card 16-Port Analog Panel / Direct / Interface

Clear-Com MVX-A16-HX Eclipse HX Analog 16-Port Card 16-Port Analog Panel / Direct / Interface

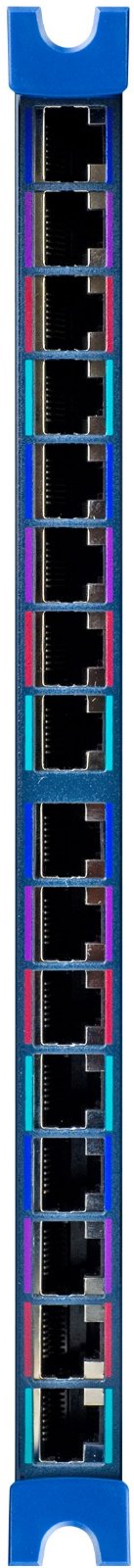

The MVX-A16-HX card provides Eclipse Matrix frames with an analog interface for connection to any analog device. With 16 RJ45 ports on the back plane of the card, it serves as the primary interface for analog connection to Clear-Com panels.

The MVX-A16-HX analog interface card communicates with Clear-Com panels or other analog audio equipment over a balanced, line-level analog audio connection and RS422 serial for control. The card connects up to 16 audio devices (such as user panels, interfaces, or 4-wire audio equipment) to the central matrix. Each analog connection to the card enables distribution of that audio to any other device within the Eclipse system.

The MVX-A16-HX supports the following Clear-Com equipment: Panels ( V-Series™, V-Series Iris™, I-stations & ICS1016 & ICS-1008), LQ® (LQ SIP for telephone connections), TEL-14, CCI-22 and FOR-22.

Features:

• 16-port Interface Card
• Enables up to 16 additional analog audio interface ports
• For use with Eclipse HX Frames: HX-Delta, HX-Delta Lite, HX-Median and HX-Omega
• Up to 15 cards supported per Eclipse HX card frame
• Provides balanced, line-level, 4-wire
• analog audio and RS422 interfacing
• Configured by Eclipse HX Configuration Software (EHX)

Specifications:

• Audio:
  • Audio Interface: 16, bi-directional
  • Input Format: Balanced
  • Output Format: Balanced
  • Ground Isolation: None; expected at User Panel/Station
• Analog Port Card Outputs:
  • Level: 0 dBu nominal
  • Impedance: 100Ω balanced
  • Frequency Response: 30 Hz–22 kHz ± 3 dB
  • Distortion: <0.05 %, @ 0 dBu, 300 Hz to 10 kHz; <0.1 %, @ 0 dBu, 100 Hz to 20 kHz
• Analog Port Card Inputs:
  • Level: 0 dBv nominal
  • Impedance: 600Ω balanced
  • Frequency Response: 30 Hz–22 kHz ± 3 dB
  • Distortion: <0.05 %, @ 0 dBu, 300 Hz to 10 kHz; <0.1 %, @ 0 dBu, 100 Hz to 20 kHz
• Weight:
  • Front Card: 1.64 lbs (0.75kg)
  • Rear Card: 9.2 oz (0.26kg)
• Environmental:
  • Operating Temperature: +32° F to +113° F (0° C to +45° C)
  • Storage Temperature: -22° F to +158° F (-30° C to +70° C)
  • Humidity: 90%, non-condensing
• Dimensions:
  • Height: 6RU (vertically in Eclipse HX-Median and Omega frames, or horizontally in Eclipse HX-Delta frames)
  • Depth:
    • Front Panel: 11.8in (300mm)
    • Rear Panel: 2.28in (58mm)
