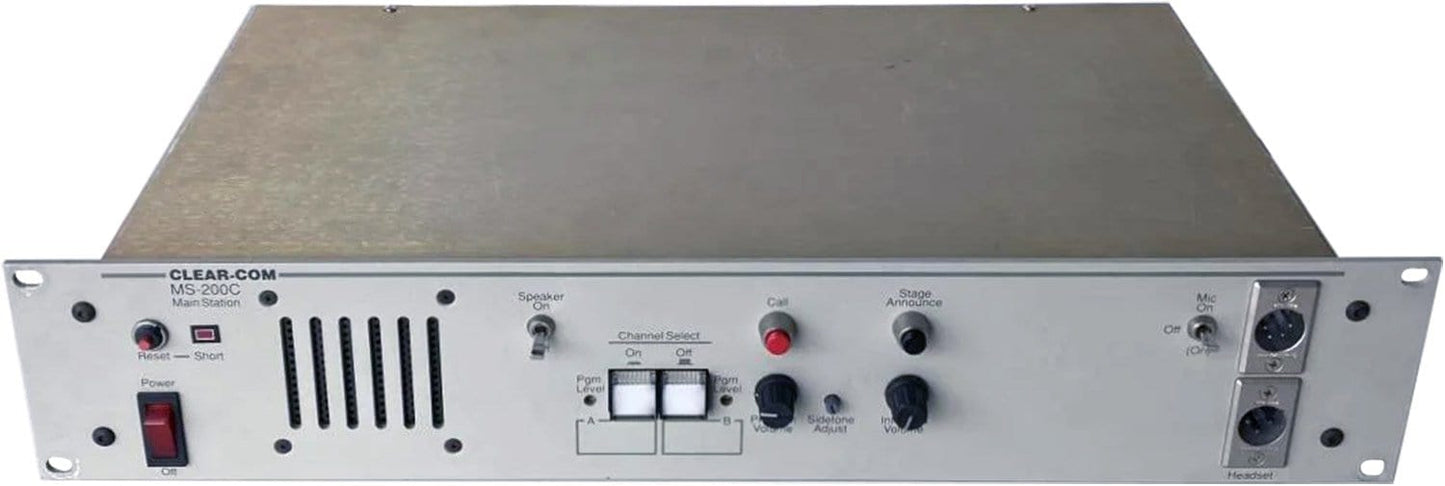

Clear-Com MS200C 2-Channel Intercom Master
The MS-200C is a rackmount, two-channel main station with a regulated power supply (supports up to 60 remote headset stations or 12 speaker stations,) built-in speaker, program input, and a versatile monitoring system. It features excellent speech intelligibility in all poise levels.
Specifications:
- Channel Monitoring: Push-button-selectable A, B, or both.
- Call Circuitry: Receives a signal from remote stations whether or not channel is monitored. The call button sends a signal only on channel(s) being monitored.
- Capacity: Will support up to 60 headset stations or 12 speaker stations.
- System Impedance: 200 ohms, internally terminated (jumper removable).
- System Level: -14 dBv nominal; 0 dbv before clipping.
- Signaling: Call Light sensitivity, 4 VDC max; Call Voltage, 11VDC min
- Stage Announce: Balanced, line-level (0dBV) transformer isolated 600-ohm output from mic pre-amp.
- CONNECTORS:
Headset: (2) XLR 4-pin male Channel Outputs: (6) XLR 3-pin male Stage Announce: (1) XLR 3-PIN MALE Program Input: (1) XLR 3-pin female Ext. Speaker: 1/4" mono phone jack
- POWER REQUIREMENTS: 105-125 OR 210-250 VAC; panel; 60 watts max. 50-60 Hz, switch-selectable from rear
- DIMENSIONS: 3-1/2" H x 19" W x 9" D (front to back) (89 X 254 X 305 mm)
- WEIGHT: 10 lbs. (4.5 kg)
- ENVIRONMENTAL TOLERANCE: 0-50 degrees C (32-122 degrees F)
- Headset: (2) XLR 4-pin male Channel Outputs: (6) XLR 3-pin male Stage Announce: (1) XLR 3-PIN MALE Program Input: (1) XLR 3-pin female Ext. Speaker: 1/4" mono phone jack
