Description

Clear-Com DX210 System 4-User Bundle 2-Channel 2.4 Gigahertz with 1x BS210 / 4x BP210

The Clear-Com DX210 System 4-User Bundle 2-Channel 2.4GHz with 1x BS210 / 4x BP210 contains pretty much everything you'll need to get your production up and running. The system features a BS210 license-free base station with 2 antennas and 4 (four) BP210 Beltpacks.

BS210 Base Station

The BS210 Base Station is a key part of the Clear -Com DX210 system offering the perfect blend of performance, expanded connections and ease of use for reliable communications. Operating in the 2.4GHz band, the BS210 delivers exceptional sound clarity and enables interference free communications for highly demanding productions.

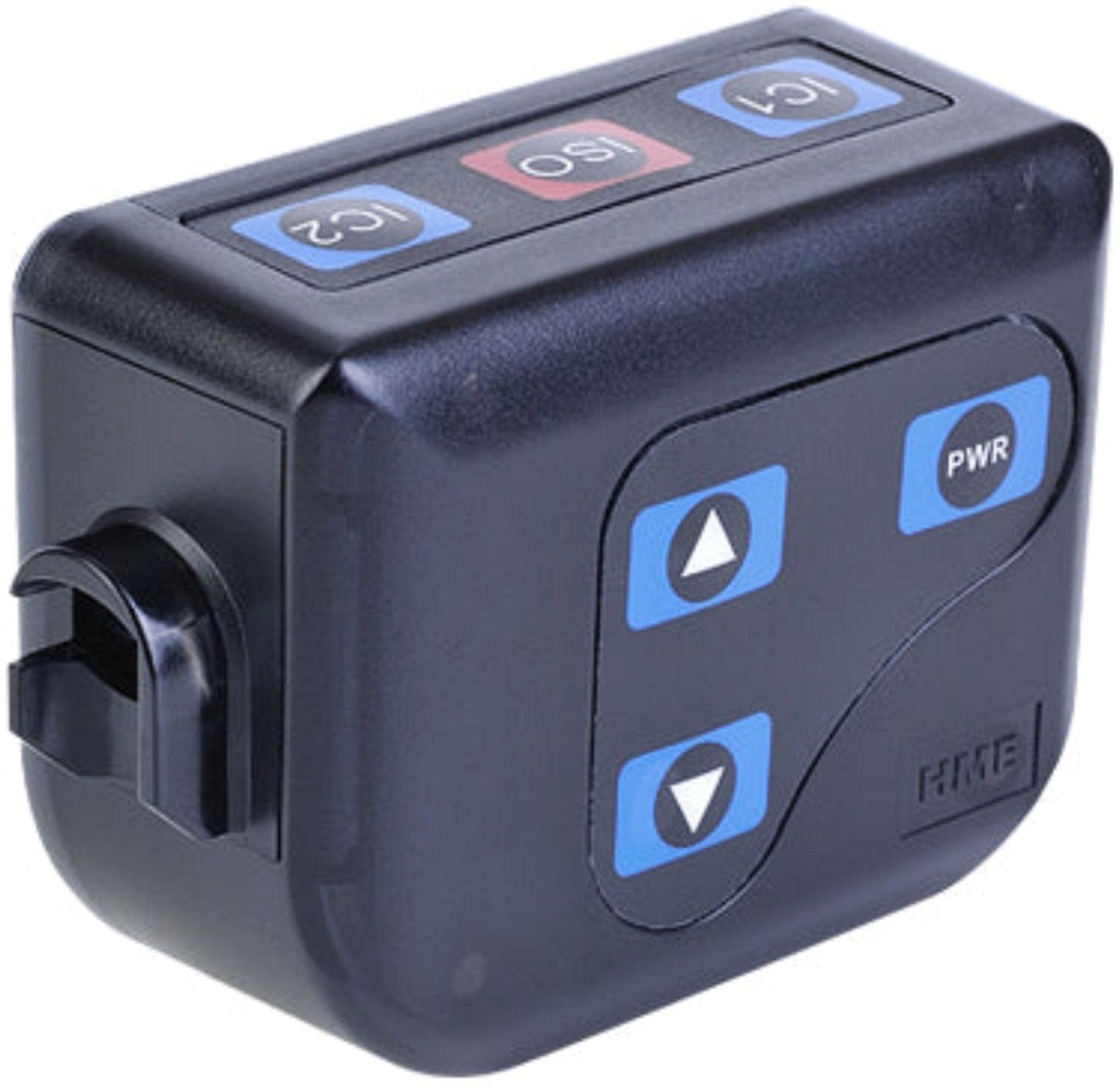

4-Pack BP210 Wireless Belt Pack

The BP210 is a 2-channel 2.4GHz wireless belt pack with push to talk or latch mode operation, and up to 20 hours run time per charge. The BP210 comes equipped with internal antennas so there's no worrying about damage or hung up cables and at 7.4 ounces you'll barely know it's there.

Features:

  • BS210 Base Station:
    • 2-Channel 2.4GHz Base Station
    • 2-channels of communications
    • 2.4GHz license-free operation
    • Supports 4 full-duplex or 11 half-duplex beltpacks or all-in-one headsets
    • Link up to 4 co-located base stations
    • Two separate 2-wire and 4-wire interconnections
    • Digital auto-nulling
    • Wireless ISO talk-around
    • Relay (GPIO) actuation with ISO function
    • Feedback protection for un-terminated 2-wire channels
    • Triple diversity (space, time and frequency) operation
  • BP210 Wireless Belt Pack:
    • 2-Channel 2.4GHz Wireless Beltpack
    • Two-channel operation
    • 2.4GHz license-free operation
    • Beltpack mic gain and side tone control
    • Selectable PTT or latching button modes

Specifications:

  • BS210 Base Station :
    • TX & RX Antenna: ½-Wave, Dual Diversity Dipole
    • 4-Wire I/O: RJ-45, 600Ω Balanced, Level Adjustable, Simultaneous Operation with 2-Wire (x2)
    • 2-Wire I/O: XLR-3F & 3M, Externally-Switchable RTS or ClearCom Mode, 200Ω, Level Adjustable, Null Adjustable
    • Auxiliary Input: XLR-3F/ 1/4 inch Phone Combo Jack, 600Ω Balanced, Level Adjustable
    • Auxiliary Output: XLR-3M, 600Ω Balanced, Level Adjustable
    • Headset I/O: N/A
    • Headset Connector: 4-Pin Mini-DIN
    • Headset Output: 250mW into 32Ω
  • BP210 Wireless Belt Pack :
    • 2-Channel 2.4GHz Wireless Beltpack
    • Two-channel operation
    • 2.4GHz license-free operation
    • Beltpack mic gain and side tone control
    • Selectable PTT or latching button modes
    • ISO restrict mode
    • Internal antennas
    • Voice prompts
    • Up to 20 hours of beltpack operation
