Clear-Com CS-100 Intercom Master 1-Channel

Clear-Com CS-100 Intercom Master 1-Channel

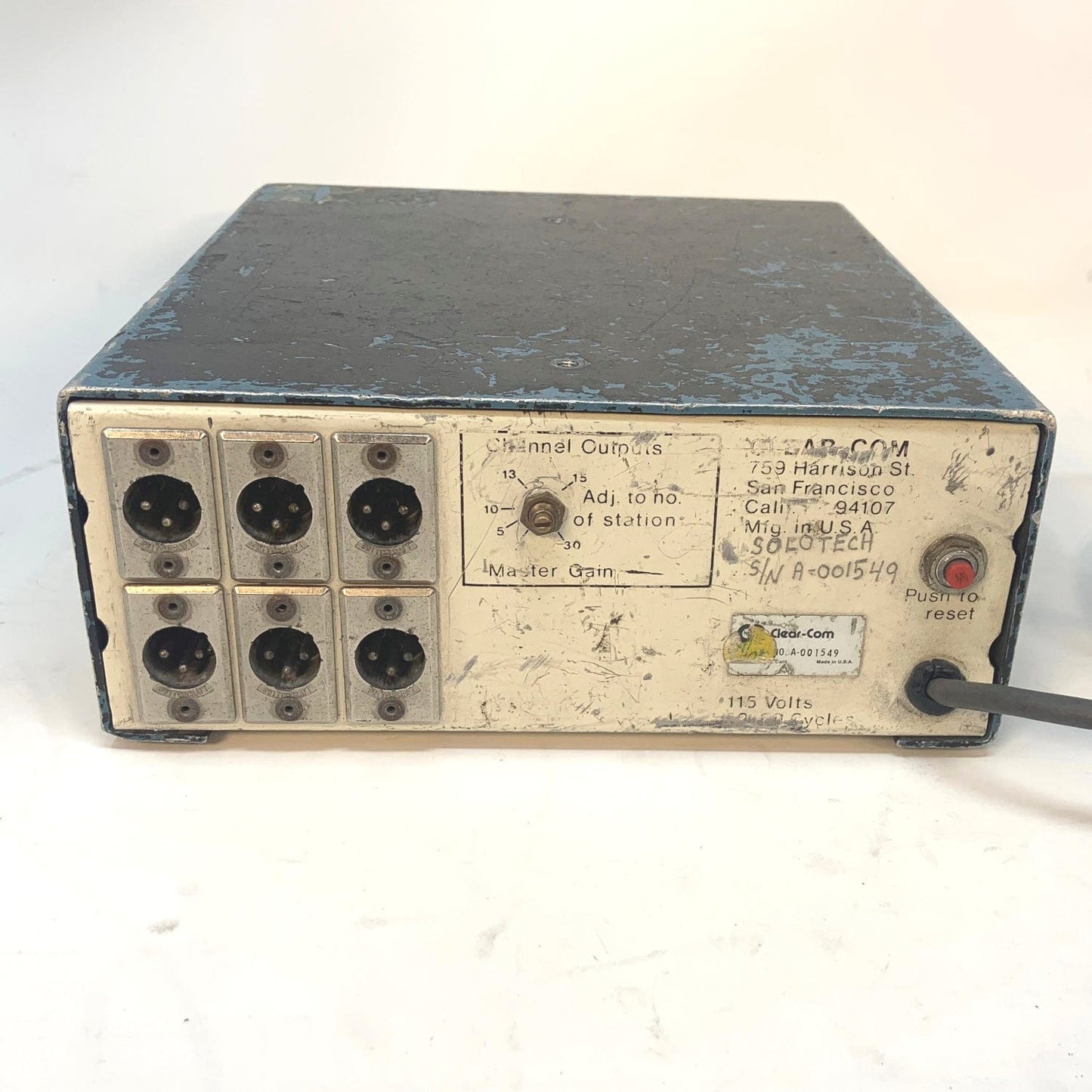

For portable intercom systems, main station equipment must be compact, lightweight, and easily moved for storage. The CS-100 single­ channel main station fulfill these requirements.

Specifications

• AMPLIFIER:
• Solid State IC plug in printed circuit amplifier module including signalling circuit. Current limited and short circuit protected.
• FREQUENCY RESPONSE:
• 250 Hz - 10 KHz (-3 dB ref. to 1 KHz) with a risingresponse to enhance voice intelligibility.
• HEADSET MICROPHONE INPUT LEVEL:
• -55 dBm.
• HEADPHONE OUTPUT LEVEL:
• 9 volts rms into 600ohm maximum. (-20dBm)
• DISTORTION:
• Less than 0.5%.
• SYSTEM IMPEDANCE AND LEVEL:
• Approximately -25 dBm into 200(Level dependent onmaster gain control settings)
• AUXILIARY INPUT AUDIO LEVEL:
• 100 mv into 600ohm minimum
• HEADSET INPUT CONNECTOR:
• 2 - 4 pin connectors (D4M)
• INTERCONNECT OUTPUT CONNECTORS:
• 6 each in parallel, Switchcraft D3M
• AUXILIARY INPUT CONNECTOR:
• Switchcraft D3M.
• POWER SUPPLY:
• 28 volts circuit breaker protected.
• CAPACITY:
• Will support up to 40 RS-100A or MR-102 remotestations or 15 KB-100 or KB-lll remote stations.
• POWER REQUIREMENTS:
• 115/230 volts 50-60 Hz.80 watts maximum.
• DIMENSIONS:
• 9.5"L X 4"H X 8.5"D
• WEIGHT:
• 6 lbs. 14 oz
