Clear-Com ARCADIA-X4-160P Arcadia Central Station with 160 Licensed Ports - 4 Pin Headset Connector
Arcadia Central Station is the centerpiece of a scalable IP networked intercom platform with support for more than 192 wired and wireless intercom user stations of various form factors, frequencies and connectivity. Coupled with Clear-Com’s I.V. Direct, Dante and analog interfacing of audio and control, Arcadia is suitable for any infrastructure locally and globally. Arcadia’s compact 1RU form factor is capable of mixing 285 audio signals, features front panel intercom user station, fast and easy setup, configuration and monitoring. With the ability to grow in capacity and features over time, Arcadia is the ideal intercom system.
Features:
- Combined wired and wireless intercom
- I.V. Direct Clear-Com global interfacing:
- LQ
- Eclipse E-IPA
- Arcadia
- Local Dante and analog interfacing
- CCM™ browser setup, configuration, and monitoring
- Scalable licensed port capacity
- Front panel color touch screen with encoders for control and configuration
- Plug-and-go central discovery and pairing
Specifications:
- Connectors:
- Headset: 4-pin XLR-M (X4)
- Gooseneck Microphone: ¼” TRS 7/16UNF-2A Threaded
- 2-Wire I/O: (4) XLR-3F
- 4-Wire I/O: (8) RJ45
- Audio Crossover Mode: Software selectable
- Special use of Port #8 using provided cable;
- Program Audio Input/Stage Announce Output: XLR-3F, XLR-3M
- GPIO: (2) DB9F (1 GPI, 2 GPO, 12V - each connector)
- FreeSpeakII E1 TCVR/SPL Ports: (2) RJ45, (2) SFP (RJ45 or SFP)
- FSII DECT Synchronization: (2) RJ45 (Input and Output)
- LAN: (2) RJ45, (2) SFP (Function assignable)
- AC Power Connector: IEC-C14
- DC Power Connector: KPJX-4S-S
- Grounding Screw: Terminal
- Controls and Indicators:
- Front Panel:
- (2) Color Touch Screen Displays
- (2) Power Supply Status LEDs
- (1) Mic mute button
- (1) Headset/Gooseneck Mic Input Select button
- (1) Menu Access Button
- (1) FN Button – For future use
- (4) Encoders for Menu & Level Control
- (1) Reset button - For service use
- (1) Speaker Mute LED
- (1) Main Listen Level LEDs

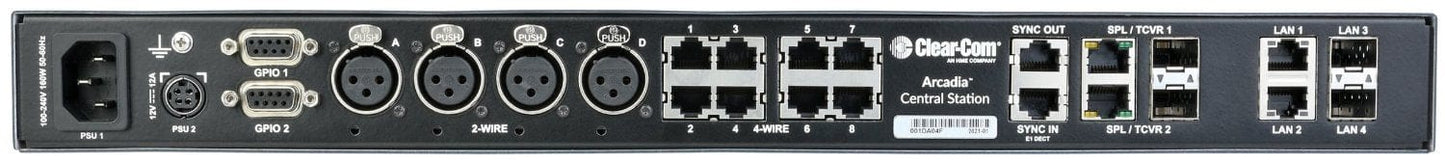

- Rear Panel:
- (2) LAN RJ45 Link/Activity LEDs
- (2) FSII E1 TCVR RJ45 Link/Activity LEDs
- (4) 2-Wire Power/Configuration Indicator LEDs
- Microphone Input:
- Input Type: Dynamic/Electret - Selectable
- Headset Mic Voltage: 5V
- Input Level (nominal): -45dBu
- Input Level (max): -10dBu
- Frequency Response: 200Hz to 12kHz ±3dB
- Mic Limiter Threshold: -35dBu ±3dB
- Mic Limiter Range: ≥ 20dB
- Loudspeaker and Amplifier:
- Speaker: 1.6 x 2.8”
- Load: 4Ω
- Max Speaker Level: 87dB ± 2dB SPL A at 3ft/1m
- Frequency Response: 100Hz - 10kHz
- Max Output Level before 1% Distortion: 18dBu ± 2dB
- Total Harmonic Distortion (THD): < 0.5% THD at 1kHz
- 4-Wire Line Level Interfaces:
- Transformer balanced input and output
- Input:
- Nominal Level: 0dBu (adjustable -12dB to +12dB)
- Maximum Level: +18dBu
- Frequency Response: 80Hz to 20kHz ±3dB
- Impedance: ≥ 10KΩ
- Output:
- Nominal Level: 0dBu (adjustable -12dB to +12dB)
- Maximum Level: +18dBu
- Frequency Response: 80Hz to 20kHz ±3dB
- Impedance: 200Ω + 10%
- 2-Wire Partyline Interfaces:
- Unbalanced High-Impedance bridging
- Compatibility: Clear-Com, RTS-TW with Call and Remote Mic Kill
- Termination: Optional per pair (A/B or C/D)
- Nulling: User initiated Auto-Calibration
- Null Depth: >60dB at 1kHz
- Nominal Level: CC: -18dBu, RTS-TW: -12dBu (adjustable -3dB to +3dB)
- Headroom: 18dB
- Frequency Response: 200Hz to 12kHz. ±3dB
- Impedance: ≥ 10KΩ bridging
- Total Harmonic Distortion (THD): < 0.1% THD @ 1 kHz
- Power: 560mA optional per pair (A/B or C/D)
- Voltage: 25-28V DC
- Frequency Response:
- Headset Mic: 200Hz to 12kHz
- Gooseneck Mic: 200Hz to 12kHz
- Speaker: 100Hz to 10kHz
- Freespeak Edge: 200Hz to 12kHz
- Freespeak II: 200Hz to 7.1kHz
- HelixNet: 200Hz to 10kHz
- I.V. Direct: 50Hz to 7.1kHz
- Dante: 20Hz to 20kHz
- 4-Wire: 80Hz to 20kHz
- 2-Wire: 200Hz to 12kHz
- Logic Power Output:
- To power Logic Inputs
- Output Voltage: 12V, separate pin
- Current (Max): 2mA
- Logic Inputs – GPI:
- Assignable to activation of audio crosspoints or call
- Input: 2
- Style: Optically isolated
- Input Voltage Range: 4 - 30V DC or AC
- Input Current: ≥ 1.2mA required
- Logic Outputs – GPO/Relay:
- Assignable to talk, call keys, and audio crosspoints or call
- Outputs: 4
- Style: SPDT / Power Relay
- Normalized: Open or Closed, separate pins
- Switching Voltage (Max): 30V DC
- Switching Current (Max): 1A
- Power:
- AC Internal Power Supply:
- Input Voltage Range: 100 - 240V AC
- Input Frequency Range: 50 - 60Hz
- Input Power (Max): 160W
- BTU (Max): 545BTU/h
- Input Power Connector: IEC-C14
- DC Power Input:
- Voltage: 12V DC ± 5%
- Current (Max): 12A
- Power (Max): 144W
- BTU (Max): 491BTU/hr
- Input Power Connector: KPJX-4S-S
- This unit can be powered via DC input using:
- AC Adapter - Inline:
- Type: PSU-EXT-001 (supplied)
- Mounting Bracket: 272G048-SP (optional)
- Input Voltage Range: 100 - 240V AC
- Input Frequency Range: 50 - 60Hz
- Input Power Connector: IEC-C14
- Output Voltage: 12V DC ± 5%
- Output Current (Max): 12.5A
- Output Power (Max): 150W
- Output Power Connector: KPPX-4-P
- Environmental;
- Operating: 32° to 113°F (0° to 45°C)
- Storage: -22° to 158°F (-30° to 70°C)
- Humidity: 20-90% Non-Condensing
- Dimensions:
- 1RU
- 19 x 1.7 x 13.9in (WxHxD) (482.6 x 43.2 x 353.1mm)
- Weight: 7.3lbs (3.3kg)
