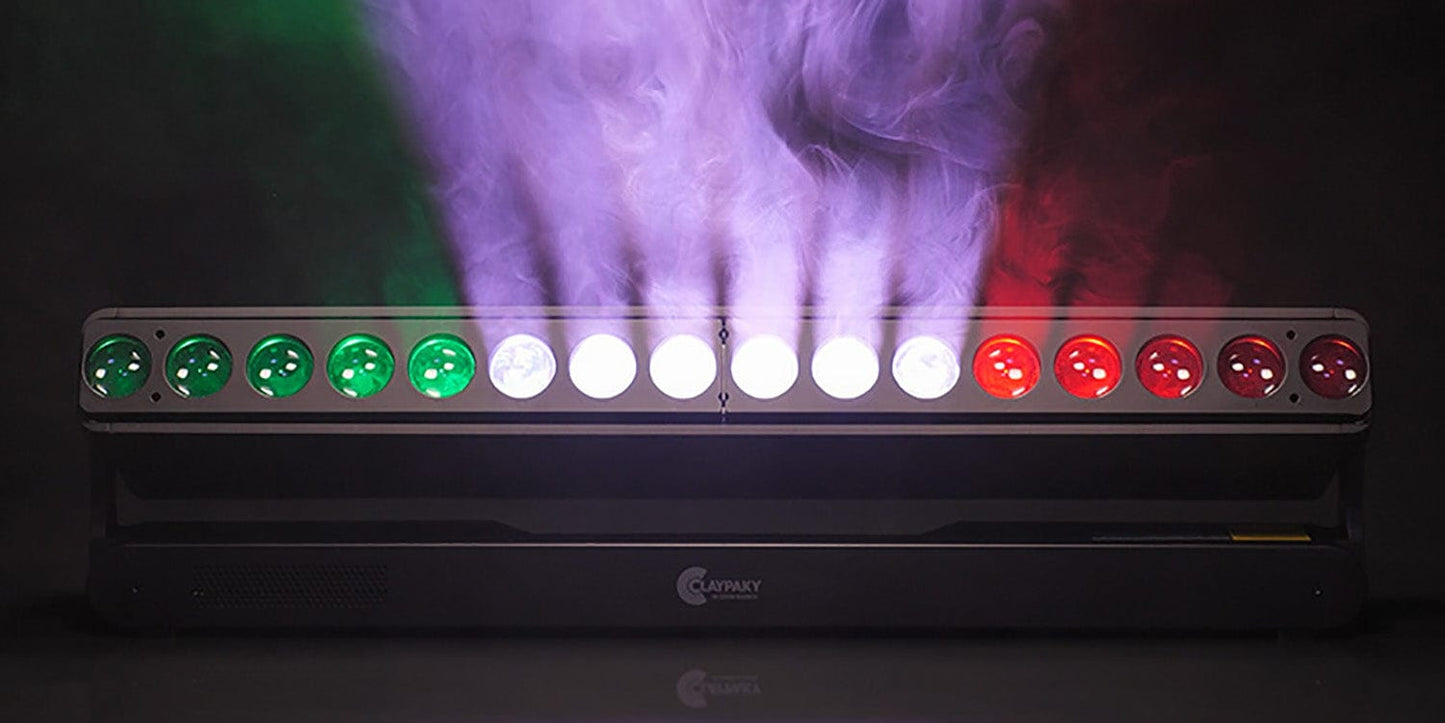

Clay Paky Tambora Batten Round 16x 40-Watt RGBW LED Bar

Tambora Batten is a high-power LED batten fixture with advanced pixel mapping capabilities and a unique “three layers” selection, which you can arrange seamlessly in line or in a matrix for amazing lighting effects.

The need for a high-power, feature-rich batten fixture is now fulfilled with the Claypaky Tambora Batten. Powered by sixteen Osram 40W RGBW LEDs – the same LEDs used in the HY B-EYE and MINI-B fixtures – this batten allows dynamic control of each LED cell for dynamic pixel mapping effects. Users can control each LED’s color, dimming, and strobe rates individually or in unison. Several bars may be arranged seamlessly in a line or a matrix while maintaining uniform distance between fixtures for consistent side-by-side and top-to-bottom alignment.

The Tambora Batten offers linear zoom control from 4° to 50°, and the unit’s cells tilt has a range of over 220°, making it very versatile. It also features a white color temperature range from 2500-8000K, beam edge softening control for soft, uniform washes, and a unique “three layers” selection in advanced mode. With this feature, the operator may choose to use three levels of effects at the same time. You can simultaneously select a background color, an internal built-in sequence, and video content from an external source – switching between all the layers quickly and easily.

Available in Round or Square lens configurations, the Tambora Batten is an adaptable lighting instrument that addresses many needs for inline or matrix lighting applications, offering an excellent cost-to-performance ratio.

Features:

• Square to Round Interchangeable lenses
• Exclusive Advanced Layers Management
• Separate manageable pixel array

Specifications:

• Light Source Type:
  • 16 x 40W RGBW Osram LEDs
  • Colour Temperature: 8000K to 2500K
  • LED life expectancy: 50000 hrs L70
• Photometric Data:
  • Zoom range: 4°- 53°
  • 9934 Lumen Output
  • Round: 16 x Round lenses diameter: 52 mm
  • Square: 16 x Square lenses: 47 x 47 mm
  • High efficiency optical system
• Noise Level:
  • Auto: 40.5 dBA
  • Constant: 43.5 dBA
  • Silent: 36.7 dBA
  • Theatre: 36.2 dBA
• Control and Connections:
  • Personalities: 5 modes with 13/17/27/29/35 control channels – Pixel Engine: 48 and 64 channels
  • Control Protocol: DMX, Art-Net, RDM
  • Arkaos Kling-Net protocol already included in the firmware
  • DMX and RDM connectors: Locking 5 pin XLR IN/OUT
  • Ethernet port: RJ45 IN
  • Power connector: PowerCon True1 IN/OUT
  • Built In Web Server
• Dynamic Effects:
  • Individual LED control for each parameter
  • White CT emulation 2500-8000K
  • Beam edge softening control (in wash mode)
  • Exclusive parallel beam consisting of an array of individually controllable micro-beams
  • RGBW color mixing system
  • Shape effects
  • 16-bit resolution with 5 different dimmer curves
  • Electronic strobe/stop from 1 to 25 f/sec
  • Pixel mapping control
  • Unique “three layers” selection (Just in Advanced mode)
  • Movement:
    • Tilt: 220° - 16-bit
    • Fast/Normal speed selectable by Function channel
    • Mechanical Tilt lock for safe transportation and maintenance
• Hardware and Software:
  • Long life self-charging battery
  • Display: Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM
• Housing:
  • Aluminum and steel structure with plastic covers
  • IP20 protection rate
• Working Position:
  • Working in any position
  • Hanging system: with fast-lock clamp
  • Optional safety chain
• Electrical:
  • Operating Voltage: 100-240V, 50/60 Hz - In/Out Max 4(2) fixtures @ 200-240Vac (@ 100-120Vac)
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: 660 VA
• Thermal Specification:
  • Max ambient temperature: 45°C (113°F)
  • Min ambient temperature: -10°C (14°F)
  • Max temperature of the external surface: 90°C (194°F)
  • Total heat dissipation: 2220 BTU/hr ±10% / 2340 kJ/hr ±10%
• Safety Specs:
  • Minimum distance of illuminated objects: 0.5 meters (1’ 8”)
  • Minimum distance from flammable materials: 0.2 meters (8”)
  • Fuse: T10A – 250V
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans
• Compliance:
  • In conformity with the European Directives:
    • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
    • 2014/30/EU - Electromagnetic Compatibility (EMC)
    • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
    • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
  • cMETus Listed
• Weight - Size:
  • 15.5 Kg (34.2 lbs)
  • 105 x 1000 mm (base dimension) – 288 mm with vertical head (height)
  • Distance between two fixtures: 1000 mm
