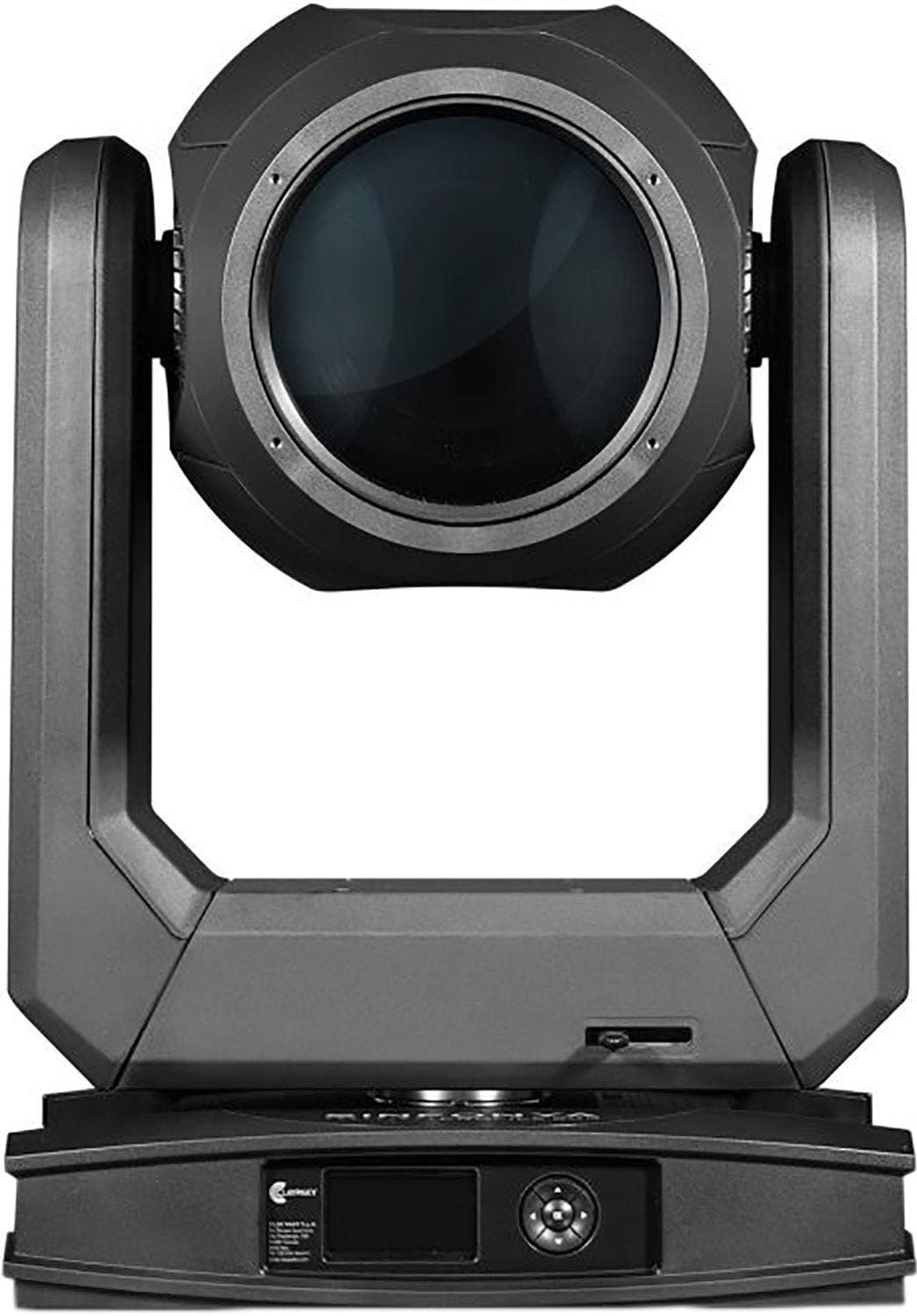

Clay Paky Sinfonya Profile 600 600-Watt RGBAL LED Moving Head
Sinfonya Profile 600 is a unique, low-noise LED-based fixture, conceived and developed exclusively for the theater market. Exclusive features are TONEDOWNTM for a low noise operation (27dB), ACCUFRAMETM (new framing system using 2 focal planes: 40 times more precise than traditional framing systems), New Proprietary Optical System (featuring an impressive 5° to 60° Zoom); Five-color LED Light engine (RGBAL) controlled by a special, internally developed firmware algorithm; the new ColorMatch calibration syncing for matching the color temperatures to other fixtures; Absolute Position for the advanced PAN & TILT control; LINEGUARD, a new frost system using two pair of blades. Sinfonya Profile 600 is the truly next generation of lighting for theaters.
Theaters need applications with low noise operation, very high quality of light, and control and precision of re-positioning. They are delighted to introduce the first of a brand-new family of LED fixtures designed and manufactured exclusively for the theater market.
The new Sinfonya series from Claypaky addresses all the special needs and provides brand-new levels of performance that were not possible before.
Sinfonya Profile 600 is stylish and fully packed with technology. What makes Sinfonya different is its excellent core technology that offers endless possibilities for theater designers thanks to various features specifically developed for theatrical productions.
Features:
- TONEDOWN™ - For noise levels as low as 27dB
- COLORMATCH In-field calibration
- ACCUTUNE - A new color control algorithm
- ACCUFRAME™ - A new framing system
- LINEGUARD - A new frost system
- ABSOLUTE POSITION - For advanced PAN & TILT control
Specifications:
- Light Source Type:
- RGBAL LED Engine
- Power: 600W
- CRI: Up to 95
- Colour Temperature: 2500K to 10000K
- Lamp life expectancy: 40,000 Hrs
- Photometric Data:
- Zoom Range: 5°- 60°
- 12050 Lumen Output (Integrating Sphere)
- Front Lens Diameter: 165 mm
- Optical system: 14 high efficiency lenses
- Noise Level:
- Able to control linearly fans speed
- Fixed presets: 27dBA / 30dBA / 35dBA
- Fanless mode with reduced output
- Control and Connections:
- Personalities: 3 modes with 58 / 49 / 43 control channels
- CRMX (Lumen Radio) (Optional)
- Control Protocol: DMX, Art-Net, RDM, sACN
- DMX and RDM connectors: Locking 5 pin XLR IN/THRU
- Ethernet port: RJ45 IN
- Power connector: PowerCon True1 IN/OUT
- Web Server Built In
- Cloud/IO Fully compatible
- On-field calibration for color consistency
- Dynamic Effects:
- Colours:
- RGBAL control
- Virtual CTO
- Digital color filters
- Adjustable
- ± green correction
- Gobos:
- 1 Rotating gobo wheel with 6 HD Indexable and replaceable gobo
- Ext Diam. 32.8 mm
- Image Diam. 22 mm
- Thickness 1.1 mm
- Framing Systems:
- 4 Blades with +/- 45° Rotation of the full system, 2 Focal Planes
- “Total Curtain" Effect Allowing the Full Blackout with each single blade
- Frost:
- Light Frost 1° for Soft Diffusion (Interchangeable)
- Heavy Frost 5° for Wash Effect (Fixed)
- Rotating Effects:
- 1 aluminium animation wheel with continuous rotation in both directions at variable speed - XY movement
- 1 four-facet prism with rotation in both directions at variable speed
- Iris: 16 Blades motorized with variable pulse and random effects
- Movement:
- Tilt: 270° - 16bit
- Pan: 540° - 16bit
- Accuracy: Resolution ± 0.06° (Range 0.12°)
- Absolute position
- Automatic repositioning
- Mechanical Pan/Tilt lock for safe transportation and maintenance
- Beam:
- Motorized Zoom and Focus
- Autofocus
- Dimmer/Shutter:
- High resolution electronic Dimmer - 24 bit, 3 curves
- High speed electronic Shutter and Strobe
- Hardware and Software:
- Long life self-charging battery
- Display Graphic LCD backlit b/w Display
- Firmware upload from another fixture
- Firmware Upgrade via Web Server
- Diagnostic
- DMX monitoring
- Remote access through RDM
- Housing:
- Aluminum and steel structure with plastic covers
- Two side handles for transportation
- IP20 protection rate
- Working Position:
- Working in any position
- Hanging system: with fast-lock omega clamps (1/4 turn) on the base
- Optional safety chain
- Electrical:
- Operating Voltage: 100-240V, 50/60 Hz
- Power Supply: Electronic auto range with active PFC
- Max Power consumption: 770 W
- Thermal Specification:
- Max ambient temperature 40°C (104°F)
- Min ambient temperature -20°C (-4°F)
- Max temperature of the external surface 40°C (104°F)
- Total heat dissipation: 2220 BTU/hr ±10% / 2340 kJ/hr ±10%
- Safety Specs:
- Minimum distance of illuminated objects 2 meters (6’ 7”)
- Minimum distance from flammable materials 0.2 meters (8”)
- Thermally protected power supply (overheating and cooling failure)
- Forced ventilation with axial fans
- Compliance:
- CE Marking:
- 2014/53/EU - Radio Equipment Directive (RED)
- 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
- 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
- UKCA:
- S.I. 2017 N.1206
- S.I. 2012 N.3032
- S.I. 2021 N.2671
- cETLus LISTED:
- UL 1573:2003
- CSA C22.2 N.166:2015
- Weight - Size:
- 36.8 Kg (81.1 lbs)
- Base dimension: 425 x 417 mm (17.79 x 16.42 in)
- Height with vertical head: 796 mm (31.34 in)
- Distance between two fixtures: 700 mm
