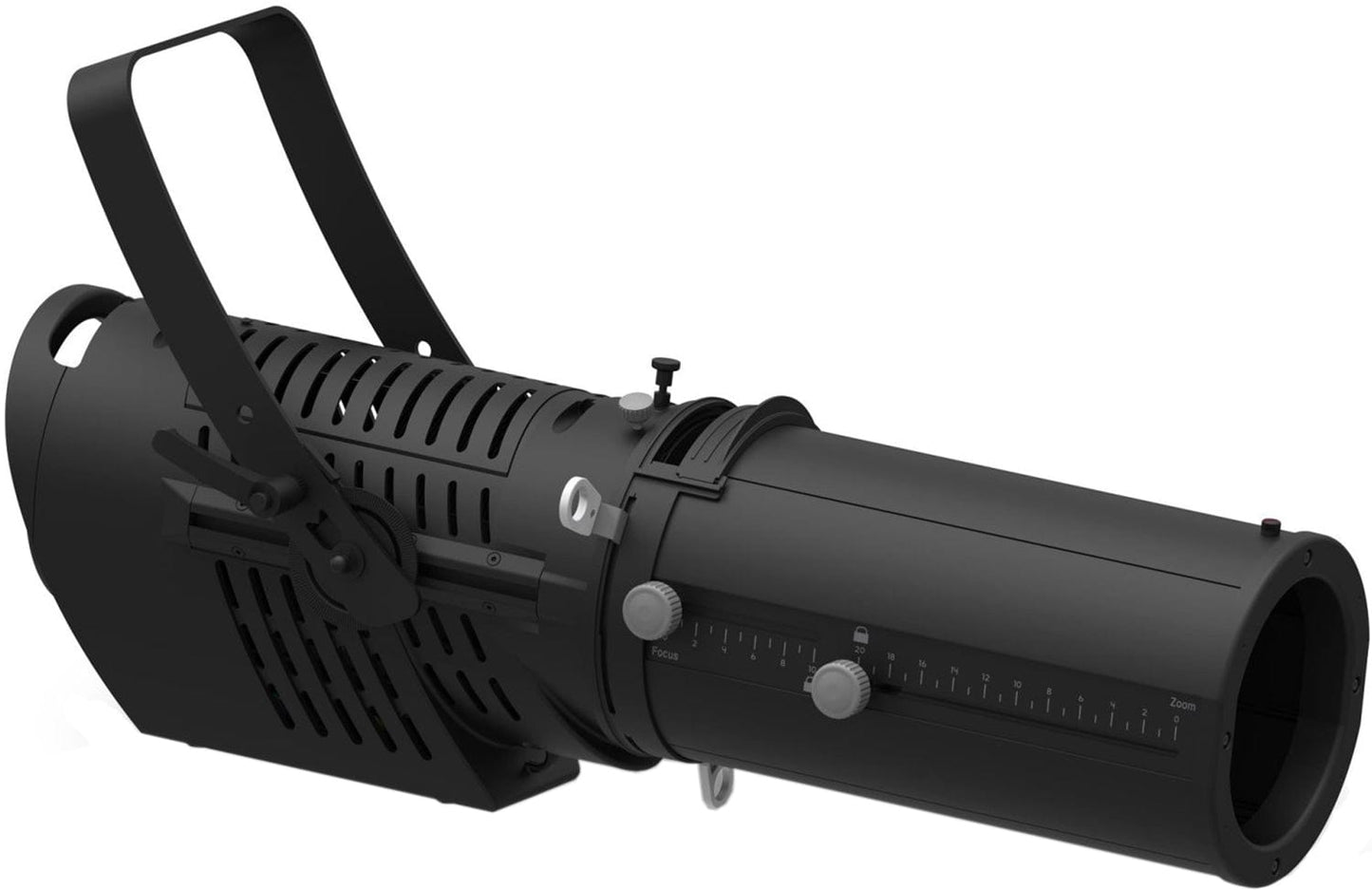

Clay Paky Orkis Profile M: Zoom 22-50 Degree 300-Watt RGBACL LED
The new Orkis Profile based on the 6-colour HCR technology has been designed to meet the needs of the most demanding lighting designers in terms of dimming, colour mixing, variable white, beam uniformity and light quality. It is fully compatible with the Orkis Fresnel, the Oksalis and the Klemantis, both in terms of colorimetry and colour control.
Equipped with WDMX as standard, the Orkis Profile features zoom optics consisting of a double lens combined with a single lens to prevent field distortion and chromatic aberrations. These lenses have a special anti-reflective coating, which ensures extremely high light output, uniform light distribution and perfect sharpness.
The luminaire has a 4-shutter framing system and is designed to work with up to 6 shutters on three focal planes when necessary. All the blades have an anti-reflective coating. After adjustment, the shutters can be positioned in place thanks to a special locking system.
The two zoom units, 12-30° and 22-50°, can be simply swapped in a few seconds thanks to the unique “Fast Optical Mount” system. It can be done easily with the luminaire in any position. This unique system allows rotating the zoom, along with shutters and gobo, freely and completely.
You may adjust the zoom and focus lenses freely and smoothly, from one side, while the luminaire is in any position, thus giving you highly precise control over the light beam. A graduated scale on the side along the tube allows you setting precisely the zoom and focus positions.
The body of the Orkis Profile is equipped with two guide rails which allow you to reposition the yoke to suit different situations. The special curved shape of the yoke means the profile may be used hung or on the floor without interfering the shutters setting. Its locking system is quick and practical thanks to the single adjustable handle.
The Orkis Profile features an integrated wireless DMX system as standard.
Specifications:
- Light Source Type:
- Source: HCR LED module featuring six colors:
- Red
- Green
- Blue
- Cyan
- Amber
- Lime
- Color temperature: Variable white ranging from 2500K to 8000K
- CRI above 97 throughout the entire CCT (up to 99)
- Lamp life expectancy L70: 57000 hrs
- Photometric Data:
- Zoom 22° - 50°
- High efficiency optical system
- Noise Level:
- Standard mode: 24.0 dB (A) @ 1 m
- Boost mode: 32.0 dB (A) @ 1 m
- Control and Connections:
- Control protocols: DMX512 / RDM / sACN Art-Net 4
- Wireless DMX control: W-DMX™ system available as an option
- Data IN connector: Neutrik 5 pins XLR + RJ45
- Data OUT connector: Neutrik 5 pins XLR
- Dynamic Effects:
- Tungsten mode, to replicate the behavior of a tungsten lamp.
- Color control modes: Hue Saturation, RGB, CMY
- Tint correction: +/- green/magenta adjustments.
- 16-bit ultra-smooth dimming, with different dimming curves available.
- Wide color gamut and extended spectrum, including deep blue and deep red.
- Smooth color transition through different time, cross-fade and path options, and a gamma correction system.
- Color control: Hue Saturation Luminosity (HSL), CMY, RGB and RAW modes fully exploit the potential of the six-color system.
- 80 Digital filters (Color macros) which reproduce the spectrum of gel filters with tungsten bulbs.
- High color stability and accuracy, also in tungsten mode, thanks to a high resolution driver.
- Fixture to fixture color repeatability, thanks to tight wavelength binning selection and 100% fixture calibration.
- Flicker-free, thanks to PWM frequency adjustment from 1 KHz to 50 KHz (10 Hz steps).
- The fixture has a 4 shutters framing system and is designed to work with up to 6 shutters on three focal planes.
- All the blades have an anti-reflective coating
- Hardware and Software:
- Long life self-charging battery
- IHM: color touch-screen & 3 push encoders
- Firmware upload from another fixture
- Firmware Upgrade via Web Server
- Diagnostic
- DMX monitoring
- Remote access through RDM
- Housing:
- Painting: black with epoxidic powder
- IP protection rate: IP20
- Working Position:
- Working position: Tilt angle +/-360°
- Electrical:
- Power supply: electronic auto-ranging
- Input voltage range: 110-240Vac 50/60 Hz
- Max power consumption: 300 VA at 230 V/50 Hz
- Thermal Specification:
- Min. distance to illuminated surface: 2 m
- Ambient temperature (min max): -20 °C/+40° C
- Maximum surface temperature: 90°
- Safety Specs:
- Min. distance to illuminated surface: 2 m
- Compliance:
- CE marking: In conformity with the European Directives:
- 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU - Electromagnetic Compatibility (EMC)
- 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
- 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
- UKCA: conforms to UK legislation
- cETLus Listed
- Weight - Size:
- Net Weight Body: 9.5 kg (19lbs)
- Net Weight Zoom 22° – 50°: 6 kg
- Body & Zoom 22° – 45°: LxWxH (mm): 710 x 315 x 295
