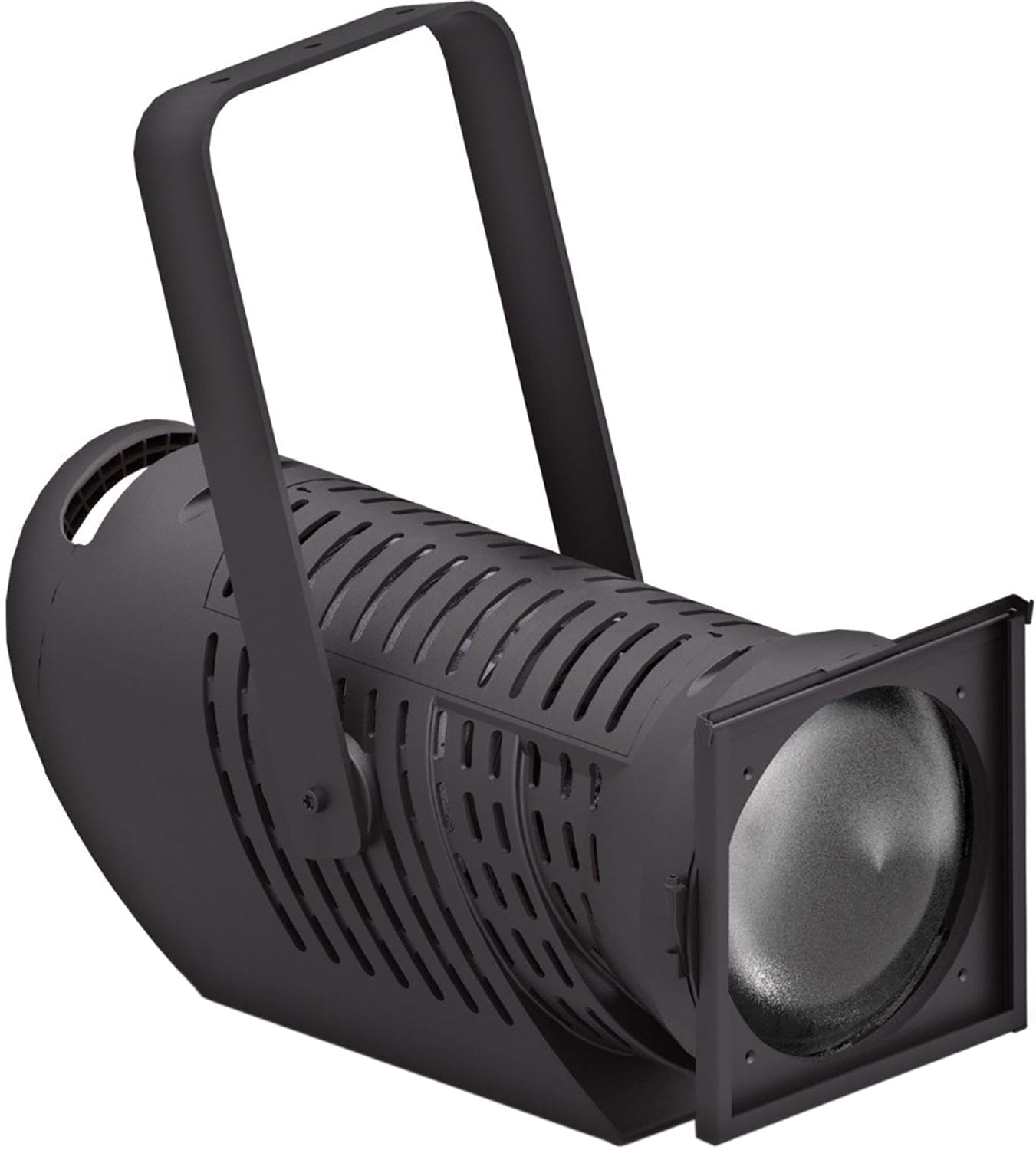

Clay Paky Orkis Pebble M 300-Watt RGBACL LED Fresnel Spotlight

Clay Paky Orkis Pebble M 300-Watt RGBACL LED Fresnel Spotlight

The ORKIS is ADB’s new color LED fresnel or pebble luminaire, which brings the modernity of innovative technology to the stage in a simple, versatile, heavy duty unit. Its CRI remains stable at values of at least 97 thanks to a modern 6-color LED system and advanced software. The Orkis’s performance really comes into its own in color production: the color range obtainable is very wide, and every shade can truly be achieved. It faithfully reproduces the behaviour of a halogen light, making it compatible with various different light sources. The Orkis is also an extraordinary variable white LED unit, from 8000K to 2500K: the white light it produces is extremely pure since it combines six colors, and the CRI is unaltered when the color temperature changes. Its flexibility of use is remarkable: the fresnel version produces a flood light up to an angle of 87° (field angle), or a spot light with an angle of 15° (beam angle). Variation is continuous, smooth and linear within this range. Alternatively, the Orkis can be modified into a Pebble luminaire, by changing the lens with the related accessory or vice-versa. A W-DMX wireless control version of Orkis Fresnel is available. Modern, technologically advanced, versatile and extremely quiet, the Orkis can deliver high quality light in many applications: a complete solution for your rig.

Specifications:

• Light Source Type:
  • 6-Color LED (Red, Green, Blue, Amber, Cyan, Lime)
  • CRI: 97 at any color temperature
  • Color temperature range: 2500K - 8000K
  • Motorized zoom
  • Fresnel lens (standard):
    • Beam angle: 15° to 54°
    • Field angle: 22° to 87°
  • PC lens (optional):
    • Beam angle: 14.5° to 56°
    • Field angle: 26° to 80°
  • Lamp life expectancy L70: 57000 hrs
• Photometric Data:
  • Fresnel narrow beam @ 5m = 2375 Lux
  • Fresnel wide beam @ 5m = 305 Lux
  • PC narrow beam @ 5m = 1668 Lux
  • PC wide beam @ 5m = 280 Lux
  • Front lens diameter: 160mm
  • High efficiency optical system
• Noise Level:
  • Noise level (standard mode): 24dB(A) @ 1 m
• Control and Connections:
  • Personalities: Four mode with 15/15/28/28 control channels
  • Color control modes: Hue Saturation, RGB, CMY
  • Control modes: DMX 512, RDM, ArtNET, sACN
  • W-DMX wireless control version available
  • DMX and RDM connectors: Locking 5 pin XLR IN/THRU
  • Ethernet port: RJ45 IN
  • Power connector: PowerCon True1
  • Local control: Zoom, Intensity, CTO, Green-Magenta adjustment
  • Built In Web Server
• Dynamic Effects:
  • Tungsten mode, to replicate the behavior of a tungsten lamp.
  • Tint correction: +/- green/magenta adjustments.
  • Motorized zoom
  • 16-bit ultra-smooth dimming, with different dimming curves available.
  • Wide color gamut and extended spectrum, including deep blue and deep red.
  • Smooth color transition through different time, cross-fade and path options, and a gamma correction system.
  • Color control modes: Hue Saturation Luminosity (HSL), CMY, RGB and RAW modes fully exploit the potential of the six-color system.
  • 80 Digital filters (Color macros) which reproduce the spectrum of gel filters with tungsten bulbs.
  • High color stability and accuracy, also in tungsten mode, thanks to a high resolution driver.
  • Fixture to fixture color repeatability, thanks to tight wavelength binning selection and 100% fixture calibration.
  • Flicker-free, thanks to PWM frequency adjustment from 1 KHz to 50 KHz (10 Hz steps).
• Hardware and Software:
  • Long life self-charging battery
  • IHM: color touch-screen & 3 push encoders
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM
• Housing:
  • Aluminium & metal die-cast housing
  • Color: black
  • IP20 protection rate
• Working Position:
  • Working position: Tilt angle +/-360°
• Electrical:
  • Power consumption: 300VA at 230V 50 HZ
  • Voltage range: 100-240 V
  • Frequency: 50/60 Hz
• Thermal Specification:
  • Ambient temperature (min max): -20 °C / +40° C
  • Maximum surface temperature: 90°
• Compliance:
  • CE marking: In conformity with the European Directives:
  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU - Electromagnetic Compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
  • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
  • UKCA: conforms to UK legislation
  • cETLus Listed
• Packaging:
  • Weight - Size:
    • 11 Kg (24.2 lbs)
