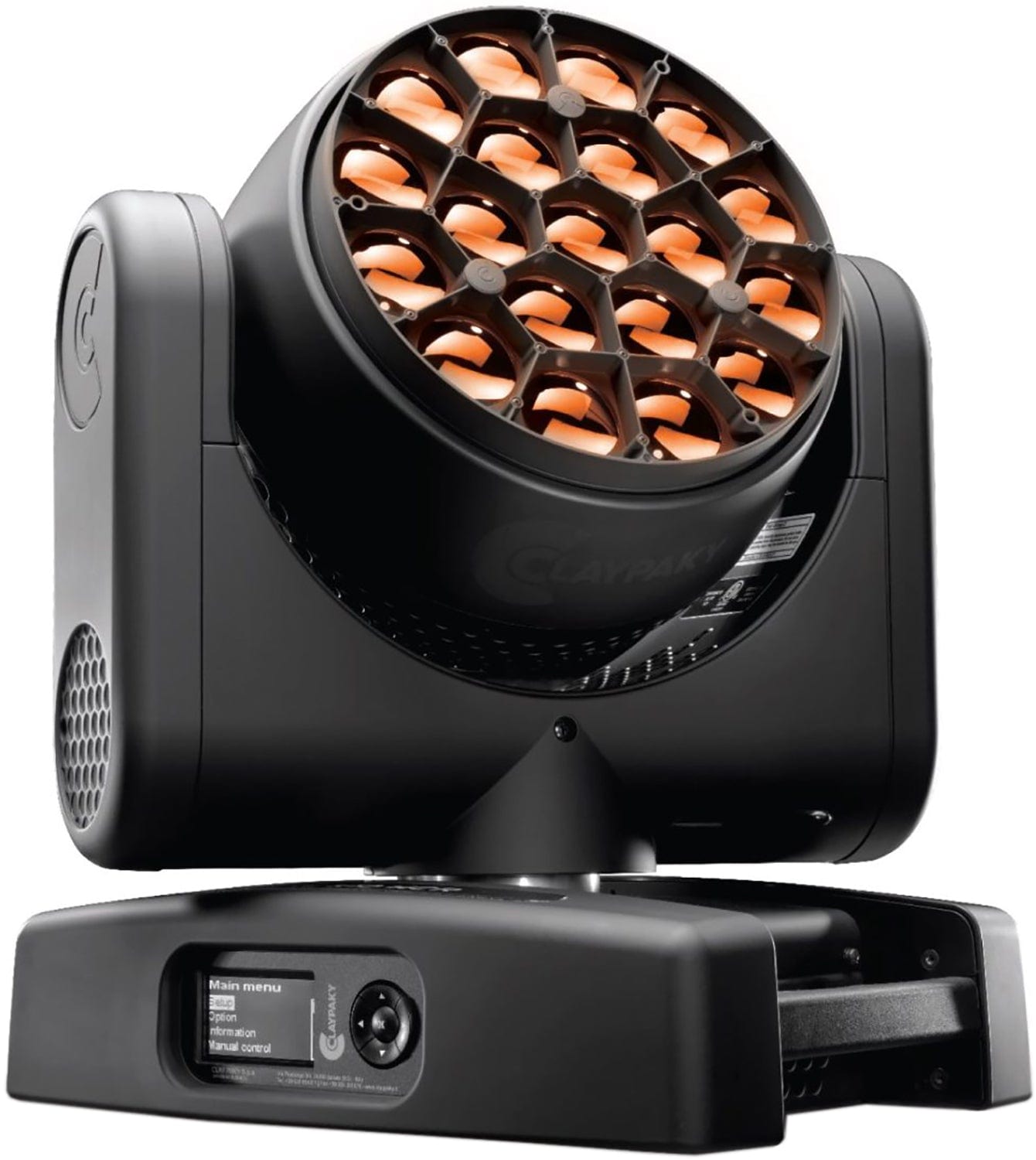

Clay Paky K-Eye K10 HCR 19x 15-Watt RGBACL LED Moving Head
K-EYE HCR is an LEDwash light which provides total control over the quality of all forms of white or colored light. The new HCR technology used in the K-EYE is an exclusive electronic platform developed by Claypaky in conjunction with Osram to meet the needs of lighting designers all over the world who were not fully satisfied with the performance of LED devices in comparison with traditional lamps, in particular because of their incomplete color range, poor color rendering index and lack of consistency.
All these limitations have been overcome in the K-EYE HCR, and it is finally possible to produce every color, every nuance and every shade with satisfactory quality. The heart of the K-EYE HCR wash light is a LED light source consisting of a module with six chips, each for a different color: besides the three “classic” basic red, green and blue colors, Claypaky has added amber, cyan and lime. This exclusive Claypaky device provides a very wide color range with excellent color spectrum coverage.
Specifications:
- Light Source Type:
- Light sources: 6-color LED modules
- LED module: R+G+B+Amber+Cyan+Lime
- Number of LEDs: 19
- LED life expectancy: min. 50,000h
- Total lumen output: 5,500 lumen
- Typical lumen maintenance: 70%@50,000 hours
- Typical CRI value: > 97 up to 99
- Photometric Data:
- Optics featuring 6-color LED module system
- Rod-bar mixing system
- 6°- 50° linear electronic Zoom
- Color System:
- Color system: R+G+B+Cyan+Amber+Lime LED module
- Color Temperature control: Linear from 2500K to 8000K (CTO controlled mode plus RAGCB correction)
- Control of the colors:
- RAW mode: Enable specific control of each color
- HSL mode: Function is based on algorithm. HSL parameters: HUE, HUE fine, Saturation, Crossfade, Path, Tint
- RGB mode: The projectors works in the same way as a classical RGB fixture
- CMY mode: The projectors works in the same way as a classical CMY fixture
- Halo Emulation: 750W, 1000W, 1200W, 2000W, 2500W lamp emulation
- Gamma Wave: Different chromatic curves for each color
- Macro: Dedicated color macro channel with 80 preselected colors
- Control and Connections:
- 19/32 DMX 512 control channels
- Control signal: USITT DMX 512
- Protocols: sACN, RDM, WebServer and Art-Net
- Display: Graphic LCD backlit b/w display
- Display battery: Long life self-charging buffer battery
- Pan/Tilt Resolution: 16 bit
- Dimmer Resolution: 16 bit
- Movement control: vectorial
- DMX signal connection: 3 and 5 pole XLR input and output
- Firmware update: Software upload through DMX input
- Dynamic Effects:
- Electronic and linear dimmer, 16 bit
- Strobe: 24 flash/sec. Electronic, instant open and blackout. Variable speed pulsation
- Movement:
- PAN range: 540°
- TILT range: 210°
- Hardware and Software:
- Long-life auto-charging buffer battery
- Preset color and graphic effect macros
- Function reset controllable from a central control unit
- Menu-self-test function
- Electronic check-up of every single parameter with error alarm
- DMX level monitoring on each channel
- Automatic internal data transmission error diagnostics
- Firmware upgrade with no power
- Firmware transfer from one light to another
- Housing:
- Structure in aluminium with die-cast plastic cover
- Handles: Two side handles for transportation
- Device locking: PAN and TILT mechanisms for transportation
- Optional frame for external gels and frost filters
- Optional top hat (adjustable with the Zoom movement)
- Working Position:
- Working position: Any
- Hanging system: 2x fast-lock omega clamps (1/4 turn) on the base
- Optional 48-51mm, max 300Kg clamps; Ø 4mm, length 680mm safety cable
- Electrical:
- Operating Voltage: 100/240V 50/60 Hz
- Max Power consumption: 750VA
- Thermal Specification:
- Max ambient temperature 45°C (113°F)
- Min ambient temperature -20°C (-4°F)
- Max temperature of the external surface 90°C (194°F)
- Total heat dissipation: 2562 BTU/hr ±10% / 2700 kJ/hr ±10%
- Safety Specs:
- Minimum distance of illuminated objects: 0.2 meters (8”)
- Minimum distance from flammable materials: 0.2 meters (8”)
- Max ambient temperature: 40°C (104°F)
- Max temperature of the external surface: 90°C (194°F)
- Bipolar circuit breaker with thermal protection
- Automatic break in power supply in case of overheating
- Forced ventilation with axial fans
- Compliance:
- In conformity with the European Directives:
- 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU - Electromagnetic Compatibility (EMC)
- 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
- 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
- ETL: This product is available, on demand, with cETLus Listed Mark, that complies with the UL 1573, UL 8750 and CSA C22.2 No. 166 standards.
- Weight - Size:
- 16.5 Kg (36.38 lbs)
- Light sources: 6-color LED modules
- LED module: R+G+B+Amber+Cyan+Lime
- Number of LEDs: 19
- LED life expectancy: min. 50,000h
- Total lumen output: 5,500 lumen
- Typical lumen maintenance: 70%@50,000 hours
- Typical CRI value: > 97 up to 99
- Optics featuring 6-color LED module system
- Rod-bar mixing system
- 6°- 50° linear electronic Zoom
- Color system: R+G+B+Cyan+Amber+Lime LED module
- Color Temperature control: Linear from 2500K to 8000K (CTO controlled mode plus RAGCB correction)
- Control of the colors:
- RAW mode: Enable specific control of each color
- HSL mode: Function is based on algorithm. HSL parameters: HUE, HUE fine, Saturation, Crossfade, Path, Tint
- RGB mode: The projectors works in the same way as a classical RGB fixture
- CMY mode: The projectors works in the same way as a classical CMY fixture
- Halo Emulation: 750W, 1000W, 1200W, 2000W, 2500W lamp emulation
- Gamma Wave: Different chromatic curves for each color
- Macro: Dedicated color macro channel with 80 preselected colors
- 19/32 DMX 512 control channels
- Control signal: USITT DMX 512
- Protocols: sACN, RDM, WebServer and Art-Net
- Display: Graphic LCD backlit b/w display
- Display battery: Long life self-charging buffer battery
- Pan/Tilt Resolution: 16 bit
- Dimmer Resolution: 16 bit
- Movement control: vectorial
- DMX signal connection: 3 and 5 pole XLR input and output
- Firmware update: Software upload through DMX input
- Electronic and linear dimmer, 16 bit
- Strobe: 24 flash/sec. Electronic, instant open and blackout. Variable speed pulsation
- Movement:
- PAN range: 540°
- TILT range: 210°
- Long-life auto-charging buffer battery
- Preset color and graphic effect macros
- Function reset controllable from a central control unit
- Menu-self-test function
- Electronic check-up of every single parameter with error alarm
- DMX level monitoring on each channel
- Automatic internal data transmission error diagnostics
- Firmware upgrade with no power
- Firmware transfer from one light to another
- Structure in aluminium with die-cast plastic cover
- Handles: Two side handles for transportation
- Device locking: PAN and TILT mechanisms for transportation
- Optional frame for external gels and frost filters
- Optional top hat (adjustable with the Zoom movement)
- Working position: Any
- Hanging system: 2x fast-lock omega clamps (1/4 turn) on the base
- Optional 48-51mm, max 300Kg clamps; Ø 4mm, length 680mm safety cable
- Operating Voltage: 100/240V 50/60 Hz
- Max Power consumption: 750VA
- Max ambient temperature 45°C (113°F)
- Min ambient temperature -20°C (-4°F)
- Max temperature of the external surface 90°C (194°F)
- Total heat dissipation: 2562 BTU/hr ±10% / 2700 kJ/hr ±10%
- Minimum distance of illuminated objects: 0.2 meters (8”)
- Minimum distance from flammable materials: 0.2 meters (8”)
- Max ambient temperature: 40°C (104°F)
- Max temperature of the external surface: 90°C (194°F)
- Bipolar circuit breaker with thermal protection
- Automatic break in power supply in case of overheating
- Forced ventilation with axial fans
- In conformity with the European Directives:
- 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU - Electromagnetic Compatibility (EMC)
- 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
- 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
- ETL: This product is available, on demand, with cETLus Listed Mark, that complies with the UL 1573, UL 8750 and CSA C22.2 No. 166 standards.
- 16.5 Kg (36.38 lbs)
