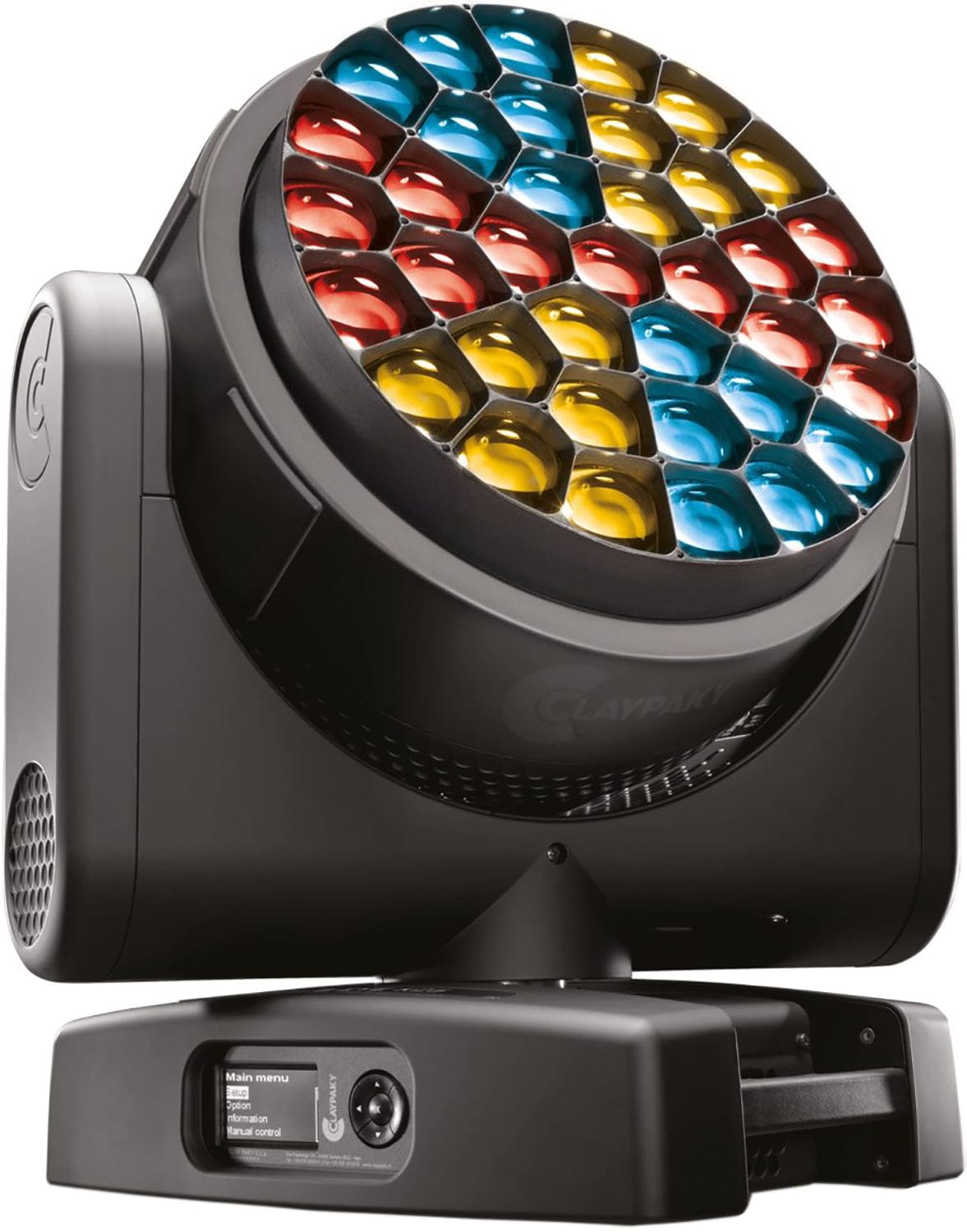

Clay Paky HY B-Eye K25 37x 40-Watt RGBW LED Moving Head

The B-EYE has revolutionized the way we think of LED show lighting. Its innovative optical unit enhances the uniformity and efficiency of the light output. The rotating front lens and the possibility to control each single LED individually have made spectacular kaleidoscopic projections and charming eye candy effects possible. A sophisticated effect engine has made it easier to routinely use macro effects, which would otherwise be difficult to program. These technological innovations make the B-EYE a versatile product: a high-performance LED wash light, a perfect beam light, and a spectacular visual effect projector all in one. It has won several awards and has been copied by countless manufacturers for years.

Today Claypaky offers HY B-EYE, which is TWICE MORE POWERFUL and bright than B-EYE. It even offers more VERSATILITY and more INTERACTIVITY with the media servers (Kling-Net protocol included), it is very SILENT while featuring the same size and control mode as the B-EYE.

Features:

• Pixel Mapping and kaleidoscopic projections
• Twice More Powerful and bright than B-EYE
• More versatility and more interactivity with the media servers
• Higher Luminous efficiency

Specifications:

• Light Source Type:
  • 37 RGBW LEDs driven at 40 Watt
  • Type: OSRAM OSTAR - Stage II LE RTDUW S2WN
  • Color Temperature: 6000 K
  • Life: 50000 hrs
  • *It may vary depending on various factors, as type of use and environment
• Optics:
  • Zoom range: 4°-60° Electronic Zoom Range
  • High efficiency optical system
• Input Power:
  • 1250 VA @230Vac - 50Hz
• Control and Connections:
  • 22/36/111/148 DMX channels
  • Basic Engine (Standard and Shape Mode)
  • Pixel Engine (RGB and RGBW Mode)
  • DMX protocol signal: USITT DMX 512
  • Art-Net / RDM / sACN
  • Arkaos Kling-Net protocol already included in the firmware
  • Display: Graphic LCD backlit b/w Display
  • Pan/Tilt Resolution: 16 bit
  • Dimmer Resolution: 16 bit
  • Movement control: vectorial
  • DMX signal connection: 3 and 5 pole XLR input and output
  • Software upload through DMX input
• Effects Section:
  • Three operating modes: wash, beam, FX (Kaleido effects)
  • Bi-directional Rotating Front Lens
  • Digital Wash-Beam Framing effect
  • Beam edge softening control (in Wash mode)
  • Pixel Patterning Macros with enhanced control
  • 0-100% linear electronic dimmer
  • Adjustable speed stop/strobe effect, with instantaneous blackout
  • Dedicated channel for color temperature setting
  • White CT Emulation 2500-8000K
  • RGBW auto-tuning to lamp CT Emulation
  • Tungsten Lamp Emulation
  • Slow Strobe: 1 flash/sec; Fast Strobe: 25 flash/sec
  • Movement:
    • PAN = 540°
    • TILT = 210°
• Hardware and Software:
  • Long life self-charging battery
  • Display: Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM
  • CloudIO compatibility
• Housing:
  • Aluminum structure with die-cast plastic cover
  • Two side handles for transportation
  • PAN and TILT lock for transport and maintenance
• Working Position:
  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
  • Optional safety chain
• Electrical:
  • Power Supply: 100-240V 50/60Hz
  • 1250 VA @230Vac - 50Hz
• Thermal Specification:
  • Max ambient temperature 45°C (113°F)
  • Min ambient temperature -20°C (-4°F)
  • Max temperature of the external surface 90°C (194°F)
  • Total heat dissipation: 2562 BTU/hr ±10% / 2700 kJ/hr ±10%
• Safety Specs:
  • Automatic power safety derating in case of overheat of the LED board
  • Forced ventilation
• Compliance:
  • CE: conforms to the European Directives
  • UKCA: conforms to UK Regulations
  • EAC: conforms to EurAseC Regulations
  • cMETus Listed
• Weight - Size:
  • 27.5 Kg (60.6 lbs)
