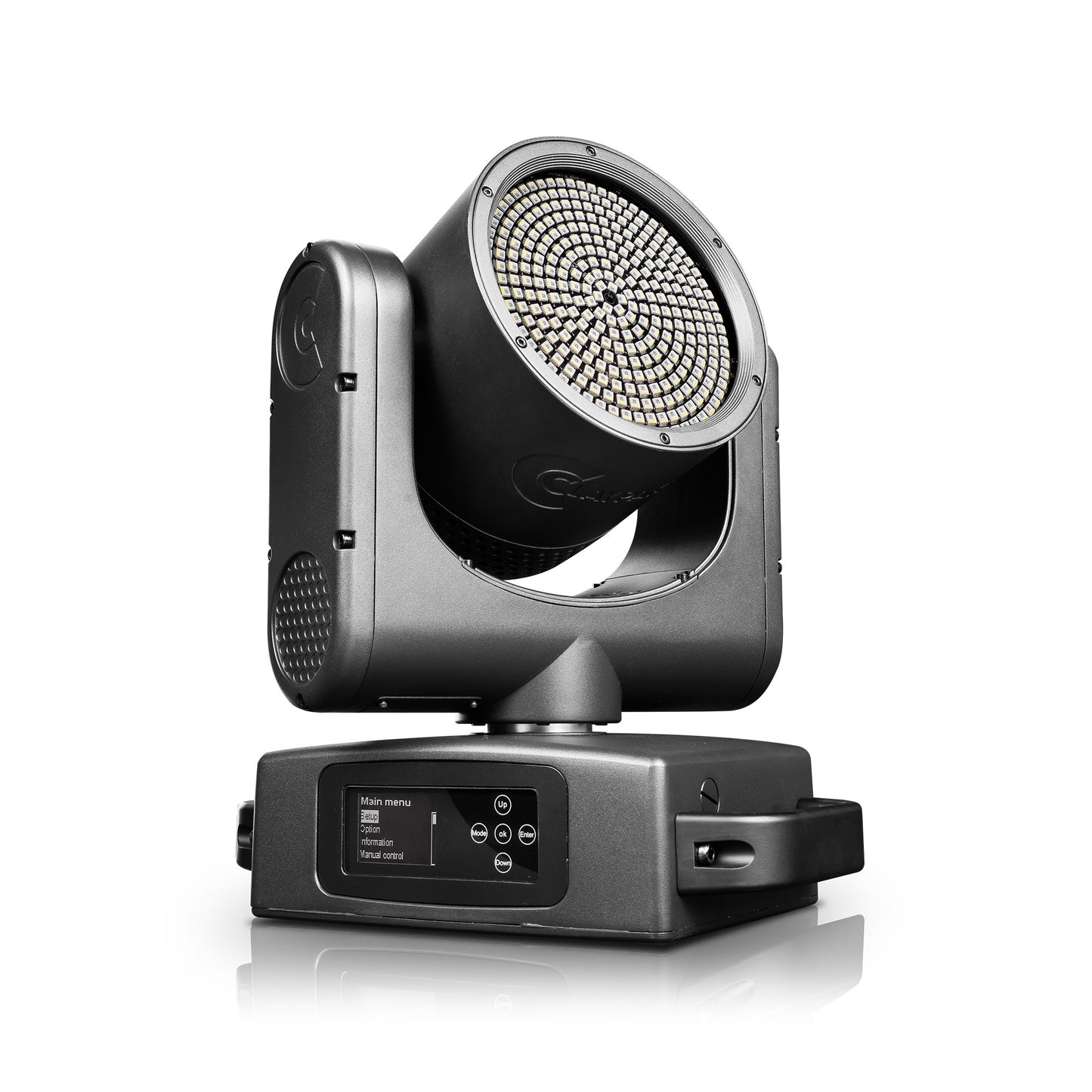

Clay Paky CL3034E41100S Mini-B Sparky Aqua330x 1w RGBW SMD LEDs100-240V 50/60 Hz ETL IP66

Features

• Robust Design, Powerful Performance: Mini-B Sparky Aqua doesn’t play games when it comes to durability and brightness. Its high-output RGBW SMD LEDs, arranged in 10 individually controllable concentric circles, create intense colors that spread evenly across a wide 120° floodlight. Whether indoors or outdoors, this tiny fixture delivers awesome visual effects, from kaleidoscopic displays to strong strobe effects.
• Swift Moves, Precise Beams: Thanks to lightning-fast pan and tilt movements, Mini-B Sparky Aqua hits its mark every time. Perfect for live performances, events, and dynamic light shows, it’s like having a nimble dancer on stage. From gentle fades to dramatic sweeps, it’s got the moves.
• Sleek Design, Seamless Integration: Mini-B Sparky Aqua’s compact profile fits anywhere—trusses, overhead rigs, or discreet spots. Modern design meets top-tier performance.
• Creativity Released: Our Advanced Layer Management system lets you merge effects effortlessly. Background color, built-in macros, and external video content—mesmerizing possibilities at your fingertips.
• Rock the Stage, Illuminate the backdrops: Mini-B Sparky Aqua can deliver vibrant lighting effects that leave audiences spellbound.

Whether you’re planning a large-scale event, a theatrical production, or a themed installation, this fixture promises to deliver unparalleled performance and reliability. Get ready to be hypnotized!

Specifications

LIGHT SOURCE

• Source type: LED RGBW (330 pcs x 1W)
• LED life expectancy: 50,000Hrs (L70*)
  *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

• Aperture: 120°
• Lumen Output: 14000 Lm (integrating sphere)
• Front Lens: Ø 188 mm
• Optical system: High efficiency

NOISE LEVEL

• Fixed presets:
  • Auto: 51,2 dB
  • Silent: 41 dB
  • Theatre: 49,1 dB
  • Constant: 51.2 dB

CONTROL and CONNECTIONS

• Personalities:
  • Main engine: 5 modes with 14 / 18 / 28 / 36 / 30 control channels
  • Pixels engine : 2 modes with 30 / 40 control channels
• Protocols: DMX, Art-Net, RDM, sACN, webserver
• Connectors:
  • Locking 5 pin XLR IN/OUT
  • RJ45 IN/OUT
• Power connectors: PowerCon True 1 IN/OUT
• CloudIO: Fully compatible
• Built In Web Server

DYNAMIC EFFECTS

• Colors:
  • RGBW color mixing - 16 bit
  • Linear CTO 2700K to 8000K
  • Advanced layers management (color, internal shape, pixel mapping)
  • individual control of 10 LEDs areas (ring);
  • Pre-programmed shape selection of static and dynamic patterns
• Movement:
  • Tilt: 220° (16 bit)
  • Pan: 540° (16 bit)
• Strobe:
  • Electronic strobe from 1 to 25 f/sec
• Dimmer/Shutter:

  • High speed electronic dimmer - 16 Bit, 5 curves
  • High speed electronic shutter and strobe

HARDWARE and SOFTWARE

• Long life self charging battery
• Display Graphic LCD backlit b/w Display
• Firmware upload from another fixture
• Firmware Upgrade via Web Server
• Diagnostic
• DMX monitoring
• Remote access through RDM

HOUSING

• Magnesium housing
• Two side handles for transportation
• IP66 protection rate
• Working in any position
• Hanging system: with fast-lock omega clamps (1/4 turn) on the base
• Optional safety chain

ELECTRICAL

• Operating Voltage: 100–240 V, 50/60 Hz
• Power supply: Electronic auto range with active PFC
• Max Power consumption: 340W

THERMAL SPECIFICATION

• Max ambient temperature 45°C (113°F)
• Min ambient temperature -20°C (-4°F)
• Max temperature of the external surface 90°C (194°F)
• Total heat dissipation: 1161 BTU/hr ±10% / 1224 kJ/hr ±10%

SAFETY SPECS

• Minimum distance of illuminated objects: 0.2 m (8’’)
• Minimum distance from flammable materials: 0.2 meters (8”)
• Protections:
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with fans and heatsink
  • Fuse T10 - 250V + battery use T10A 250V

COMPLIANCE

• CE Marking (in conformity to the following):
  • 2014/ 35 EU Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU Electromagnetic compatibility of equipment (EMC)
  • 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
  • 2009/125/EC EcoDesign requirements for Energy related Products (ErP)
• UKCA: conforms to UK Regulations:
  • S.I. 2016 N. 1101
  • S.I. 2016 N. 1091
  • S.I. 2021 N. 745
• cMETus Listed:
  • UL 1573: 2003
  • CSA C22.2 N. 166: 2015

PACKAGING

• Carton box + Polystyrene
• Carton box + Foam shell
• Flight case + Foam shell (6 positions)

WEIGHT - SIZE

• Weight: 12,194 Kg (26,88 lbs)
• Base dimensions: 332 x 200 mm (13.07 x 7,87 In)
• Height with vertical head:
  • 373 mm (14,68 In)
  • 420 mm (16.53 In) with top hat
• Distance between two fixture: 400 mm
