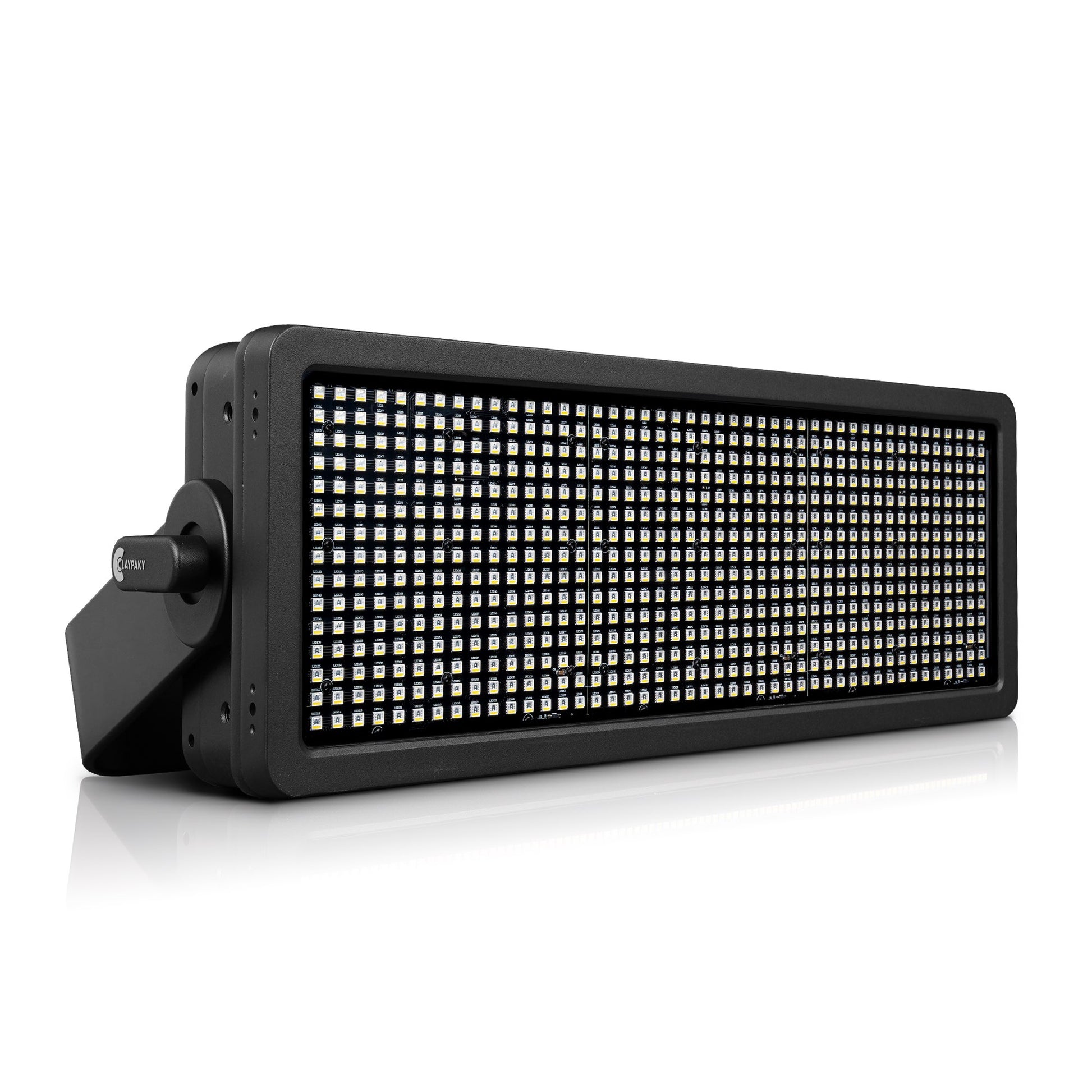

Clay Paky CL2026E41100S Tambora Stormy: 675x 2w RGBW SMD LEDs 100-240V, 50/60 Hz ETL IP66

Features

Top-Notch Lighting Effects: Packed with high-performance RGBW SMD LEDs it delivers powerful wide-angle projections, fast feedback, and rapid-firing strobe effects. With 27 controllable segments, you can create dynamic color effects and pixel-mapping combos for any scenario.

Innovative Advanced Layer Management: With our innovative system, you can mix three layers at once – a background color, an internal built-in macro sequence, and some external video content. Switch between these layers seamlessly with just a flick of a switch!

Versatile and Precise: It offers dynamic color temperature control with Red Shift tech and a 120° beam angle for remarkable strobe effects on large stages and rich lighting for shorter throws.

Easy-mounting Accessories:  Optional tool-free or magnetic accessories like barndoors or filter frames for extended control and customization allow you to adapt the lighting to any specific needs.

Seamless Integration: Tambora Stormy matches the dimensions of Tambora Flash and Rays for a cohesive look. Mix and match them with our accessories for endless creative possibilities in any configuration. Its efficiency, compact size, and easy rigging make setup quick and hassle-free anywhere.

Built to Last: With its all-weather design and high IP66 protection rating, the Tambora Stormy is perfect for outdoor events and installations. Plus, it’s practically maintenance-free, making it a sustainable and long-lasting choice for outdoor and indoor use.

Get ready to wow your audience with the powerful, energy-laden effects of the new Tambora Stormy – The must-have strobe light that will take your lighting designs to the next level!

Specifications

LIGHT SOURCE

• Source type: LED RGBW (675 pcs x 2W)
• CRI: Up to 80
• Lamp life expectancy: 50.000 Hrs L70*
  *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

• Lumen Output: 41367 Lm (Integrating Sphere)
• Beam angle:
  • 108,9° : 10%
  • 65° : 50%

NOISE LEVEL

• Controlled by: Able to control linearly the speed of the fans
• Fixed presets:
  • Auto: 52.3 dB
  • Silent: 34.6 dB
  • Theatre: 34.9 dB
  • Constant: 52.3 dB

CONTROL and CONNECTIONS

• Personalities:
  • Main engine: 3 modes with 10 / 32 / 26 control channels
  • Pixels engine : 2 modes with 81 / 108 control channels
• Protocols:
  • DMX, Art-Net, sACN, RDM, Webserver
• Connectors:
  • Locking 5 pin XLR IN/OUT
  • RJ45 IN/OUT
• Power connector:
  • PowerCon True1 IN/OUT
• Web Server:
  • Built In
• CloudIO:
  • Fully compatible

DYNAMIC EFFECTS

• Colours:
  • Advanced layers management (color, internal shape, pixel mapping (3 x 9)
  • Linear CTO 2700K to 8000K
  • Individual control of 27 LEDs
  • Pre-programmed shape selection of static and dynamic patterns,and dynamic patterns, adjustable in color, speed, direction, fade and strobe
• Strobe:
  • Electronic strobe from 1 to 30f/sec
• Dimmer/Shutter:
  • High resolution electronic dimmer 24 bit, 5 curves

HARDWARE and SOFTWARE

• Long life self charging battery
• Display Graphic LCD backlit b/w Display
• Firmware upload from another fixture
• Firmware Upgrade via Web Server
• Diagnostic
• DMX monitoring
• Remote access through RDM

HOUSING

• Magnesium housing
• IP66 protection rate
• Working in any position
• Advanced mechanics for horizontal and vertical combination
• Hanging system: with fast-lock omega clamps (1/4 turn) on the base
• Optional safety chain

ELECTRICAL

• Operating Voltage: 100–240V, 50/60 Hz
• Power Supply: Electronic auto range with active PFC
• Max Power consumption:
  • 720 W @100V 7.2A
  • 700 W @240V 3.2A

THERMAL SPECIFICATION

• MAX Ambient temperature:
  • 45°C (113°F)
• Min Ambient temperature:
  • -20°C (-4°F)
• MAX temperature of the external surface:
  • 90°C (194°F)
• Total heat dissipation:
  • 2460 BTU/hr ±10% / 2592 kJ/hr ±10%

SAFETY SPECS

• Minimum distance of illuminated objects:
  • 0,5 m (1’8’’)
• Minimum distance from flammable materials:
  • 0.2 meters (8”)
• Protections:
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans
  • External mains fuse T 15A 250V
  • External fuse for battery T3A 250V

COMPLIANCE

• CE Marking (in conformity to the following):
  • 2014/35 EU Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU Electromagnetic compatibility of equipment (EMC)
  • 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
  • 2009/125/EC EcoDesign requirements for Energy related Products (ErP)
• UKCA: conforms to UK Regulations:
  • S.I. 2016 N. 1101
  • S.I. 2016 N. 1091
  • S.I. 2012 N. 3032
  • S.I. 2021 N. 745
• cMETus Listed:
  • UL 1573: 2003
  • CSA C22.2 N. 166: 2015

PACKAGING

• Carton box + Polystyrene
• Carton box + Foam shell
• Flight case + Foam shell

WEIGHT - SIZE

• Weight:
  • 10,334 Kg (22,78 lbs)
• Dimensions  without handle:
  • 497 x 180 x 186 mm
  • 19,56 x 7,08 x 7,32 In
• Dimensions with handle:
  • 537 x 180 x 244 mm
  • 21,14 x 7,08 x 9,61 In
