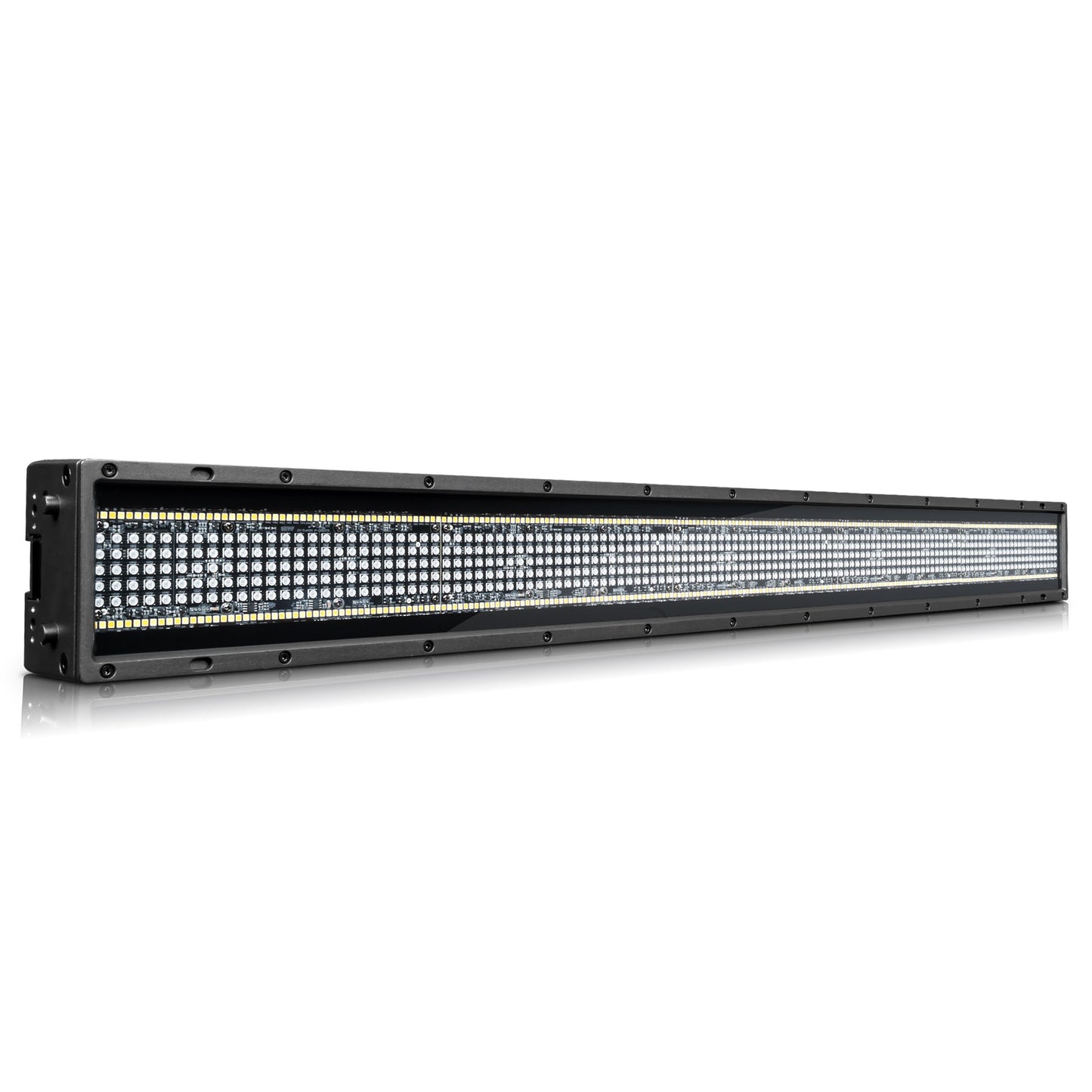

Clay Paky CL2024E41100F Tambora Stormy Linear: 25x 5x5 RGB SMD LEDs (Wash) 250x 1w CW LEDs, 250x 1w WW LEDs (Strobe) 100-240V, 50/60 Hz ETL IP66

Features

• Dual-Engine Hybrid Performance: Unlock versatility with 25 central RGBW LEDs for vibrant color and two ultra-powerful strobe lines with 125 WW/CW LEDs, each divided into 25 controllable segments. Create simultaneous color effects and strobe sequences effortlessly.
• Precision Pixel Control: Gain full control over each of the 25 segments, adjusting color, intensity, and timing for motion graphics and dynamic effects.
• Advanced Layer Management System: Blend three effect layers in one fixture—background color, built-in macros, and custom video content. Achieve professional looks with ease and make live adjustments during performances.
• Modularity Anywhere, Anytime: Tambora Stormy Linear shares accessories and design elements with Tambora Glare, offering seamless integration in both horizontal and vertical setups. Build cohesive lighting arrays or distribute fixtures across venues.
• All-Weather, IP66 Rated: Perfect for outdoor events, this fixture withstands challenging weather conditions. Its compact design (less than 14kg) simplifies transport, while magnetic filters allow quick adjustments for frost or enhanced pixel definition.
• Broadcast-Ready: With neutral density filters optimized for broadcast, Tambora Stormy Linear ensures crisp, high-visibility lighting that excels both live and on screen. Its 120° aperture provides generous coverage without sacrificing intensity.

Specifications

LIGHT SOURCE

• Source type:
  • 5x5 SMD RGB LEDs x25 (Main Engine)
  • 2 (Lines) x 125CW+125WW x1W LEDs, for each line (Strobe engine)
• Color temperature: 2500K - 8000K
• LED life expectancy:
  • 50.000 Hrs L70*
    *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

• Aperture:
  • RGB LEDs: 120°
  • CW and WW LED strobe: 120°
• Lumen output:
  • 26.776  Lm (integrating sphere)
• Optical system:
  • High efficiency

NOISE LEVEL

• Fixed presets:
  • Silent mode: 31.4 dB
  • Theatre mode: 31.2 dB
  • Constant mode: 44.2 dB
  • Auto mode: 44.2 dB

CONTROL and CONNECTIONS

• Personalities:
  • Main engine: 16 / 36 / 48 control channels
  • Pixel engine: 75 channels
  • Strobe engine: 50 / 50 / 50 / 100 control channels
• Protocols:
  • DMX, Art-Net, RDM, sACN
• Connectors:
  • Locking 5 pin XLR IN/THRU
  • RJ45 IN /OUT
• Power con:
  • PowerCon True1 IN/OUT
• Web Server:
  • Built In
• CloudIO:
  • Fully compatible

DYNAMIC EFFECTS

• Colors:
  • 625 pcs 3-in-1 RGB LEDs
  • 500 pcs Cold+Warm white LEDs split into 50 areas
  • Advanced layers management (color, internal shape, pixel mapping + strobe)
  • White CT emulation 2500 – 8000 K
  • RGB and strobe shape effect
• Frost:
  • Neutral Density filter (Optional)
  • White filter 60° (Optional)
• Dimmer/Shutter:
  • High resolution electronic dimmer, 24 bit, 5 curves
  • Electronic strobe 0,3 to 25 f/sec
  • High speed electronic shutter and strobe

HARDWARE and SOFTWARE

• Long life self-charging battery
• Display Graphic LCD backlit b/w Display
• Firmware upload from another fixture
• Firmware Upgrade via Web Server
• Diagnostic
• DMX monitoring
• Remote access through RDM

HOUSING

• Magnesium housing
• Two side handles for transportation
• IP66 protection rate
• Built-in mechanical horizontal alignment system
• Working in any position
• Accessories for vertical alignment (optional)
• Optional safety chain (optional)

ELECTRICAL

• Operating Voltage:
  • 100 - 240V, 50 / 60 Hz
• Power Supply:
  • Electronic auto range with active PFC
• Max Power consumption:
  • Max 480W @100V 4,8A

THERMAL SPECIFICATION

• Max ambient temperature:
  • 45°C (113°F)
• Min ambient temperature:
  • -20°C (-4°F)
• Max temp. of ext. surface:
  • 90°C (194°F)

SAFETY SPECS

• Min. dist. of illum. objs:
  • 0.2 m (8’’)
• Min. dist. from flamm. mat.:
  • 0,2 m 8 in
•  Protections:
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans
  • T10A 250V 5x20mm – External mains fuse
  • T6.3A 250V 5x20mm – External fuse

COMPLIANCE

• CE Marking (in conformity to the following):
  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU – Electromagnetic compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
  • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
• UKCA conforms to UK regulations:
  • S.I. 2016 N. 1101
  • S.I. 2016 N. 1091
  • S.I. 2012 N. 3032
  • S.I. 2021 N. 745
• cMETus Listed:
  • UL 1573:2003
  • CSA C22.2 N.166: 2015

PACKAGING

• Carton box + polystyrene
• Carton box + Foam shell
• Flight case + Foam shell

WEIGHT - SIZE

• Weight:
  • 13.6 Kg (30 lbs)
• Dimensions:
  • 1000 x 198 x 106 mm
  • 39.4 x 7,8 x 4.2 in
