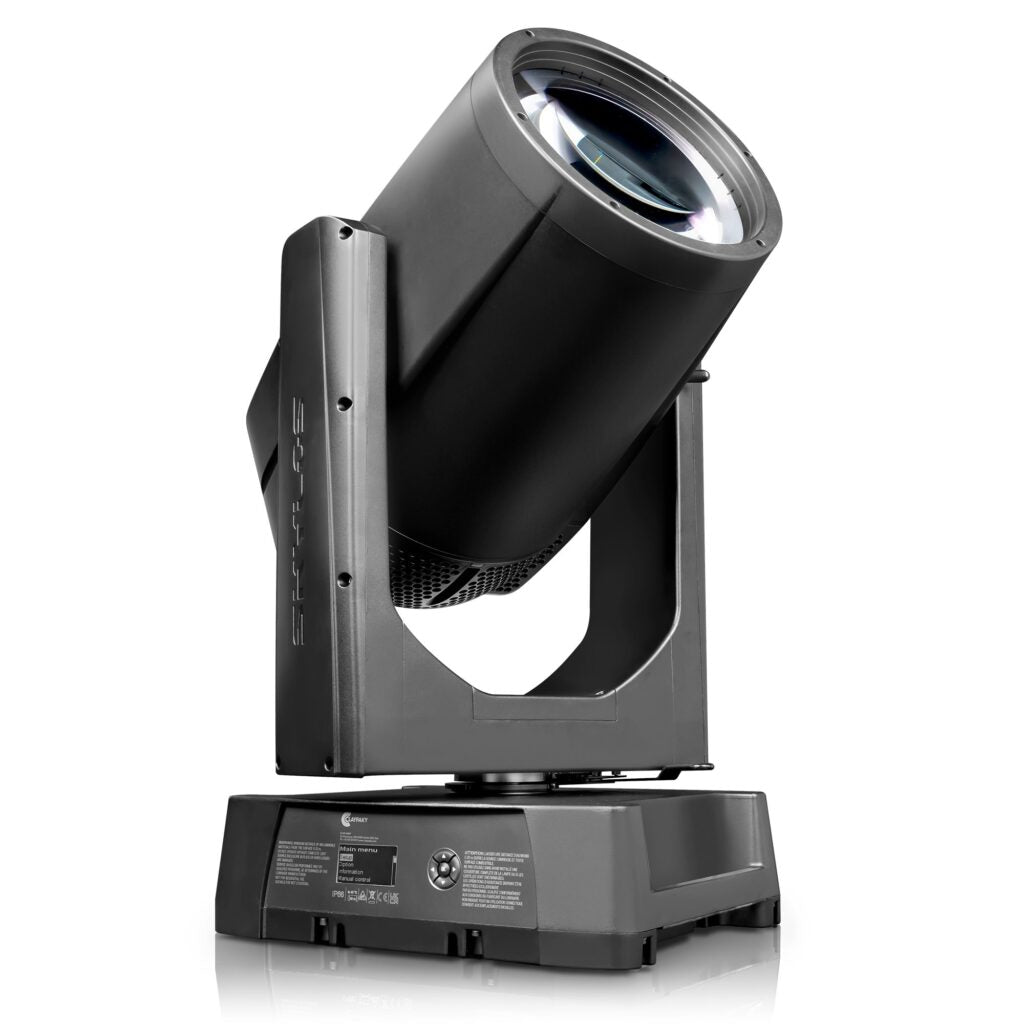

Clay Paky CJ3007E41100S Skylos NV: (No Variance Required) Custom White Laser Engine 100-240V, 50/60 Hz ETL IP66

Claypaky’s Skylos provides a long list of features and performance specs that make it much more than just a simple searchlight. They are extremely versatile fixtures in every way. They will also be appreciated in the touring sector, where LDs are constantly looking for dense, solid beams of light highly visible from afar and ever-greater light output.

Key features at a glance:

• Innovative light source: a custom 300W white laser source, delivering an unrivaled parallel beam that is still visible and rich in contrast even past 2km or over a mile away, while ensuring safety and reliability, setting new benchmarks in lighting technology.
• Superior performance: experience top-tier performance coupled with minimal power consumption, offering an optimal balance of luminosity and energy efficiency. These fixtures are more than innovation; they are a commitment to sustainability. Every beam of light is a step towards a greener, more responsible future, as we state in our CP Green manifesto.
• IP66 rating / Marine grade protection: their specially designed bodies can be used in any weather conditions and environments with high marine salinity and high risk of corrosion. Ideal for cruise ships and seaside environments, they are part of Claypaky’s Shield Family (IP66), ensuring reliability in every performance.
• Arctic Shield / Heat Shield / Solar Shield: Their sophisticated internal heating system enables performance in extreme temperatures -40°C +45°C (- 40° +113°F). Solar Shield is a system of passive and active metal sheets that shade the engine and internal components from sun exposure.
• Optical precision: Skylos features a specially designed 300mm front lens, which helps spread a uniform, intense beam of light visible even from a distance. Adjustable beam angle (0.5° to 5°) ensures exceptional light intensity.
• Wide range of effects: distinguished by their prism battery, these fixtures feature a rotating six-sided prism, a rotating five-sided linear prism, and a fixed 4-sided prism. Combining these prisms creates striking effects, including a breathtaking moonflower effect. Laser technology enhances optical contrast for sharp light mid-air projections. They are equipped with a 14-color wheel for high brightness with color filters, a 5° frost filter for soft edge effects, a 24-bit digital dimmer, and a digital stop-strobe effect for dynamic lighting control.
• Built for the High Seas: Skylos is purpose-built for extreme environments, and with Marine Shield, it’s fully at home on cruise ships and seaside installations. This specialized treatment protects the fixture against high marine salinity and the risk of corrosion, complementing Skylos’s IP66 body and Arctic/Heat/Solar Shield systems to create one of the most resilient and versatile searchlights available for maritime use.

Skylos is not just a searchlight. They are a comprehensive lighting solution that addresses the needs of lighting designers and the entertainment lighting industry. Their combination of efficiency, versatility, and performance makes them a valuable asset for any production, ensuring that Skylos is the light of choice for those who seek to dazzle and captivate audiences worldwide.

Specifications

LIGHT SOURCE

• Source type: Laser
• Power: 300W
• Color Temperature 10000k
• Laser life expectancy: 30000 hrs L70*
  *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

• Zoom Range: 0.5°- 5° range
• Front lens: 300mm
• Optical system: High efficiency

NOISE LEVEL

• Fixed Preset: 52,6 dBA

CONTROL and CONNECTIONS

• Personalities: 1 mode with 20 control channels
• Protocols:
  • DMX, Art-Net, sACN, RDM
  • CRMX (Wireless Solution / Lumen Radio)
• Connectors:
  • Locking 5 pin XLR IN/OUT
  • RJ45 IN
• PowerCon: PowerCon True1 IN/OUT
• Ethernet port: RJ45 IN
• Web Server: Built In
• CloudIO: Fully compatible

DYNAMIC EFFECTS

• Colors:
  • Color wheel with 14 dichroic colors
• Gobos:
  • 1 slot position for customizable fixed gobo
  • Ext Diameter 25.9mm
  • Image Dianmeter 16mm
  • Thickness 1.1mm
• Frost:
  • Linear heavy frost 5° for wash effect
• Rotating Effects
  • Wheel with 2 positions: 6 faced prism + 5 faced linear prism
  • 4 faced fixed prism on a separate channel
• Movement:
  • Tilt: 270° - 16bit
  • Pan: 540° - 16bit
  • Accuracy: ± 0.2° - Range 0,4°
  • Automatic repositioning
  • Mechanical Pan/Tilt lock for safe transportation and maintenance
  • Fast/Normal  speed selectable via Function channel
• Beam:
  • Motorized zoom
• Dimmer/Shutter:
  • High resolution dimmer - 24 bit
  • High speed electronic shutter and strobe

HARDWARE and SOFTWARE

• Long life self-charging battery
• Display Graphic LCD backlit b/w Display
• Firmware upload from another fixture
• Firmware Upgrade via Web Server
• Diagnostic
• DMX monitoring
• Remote access through RDM

HOUSING

• Aluminum and steel structure with plastic covers
• Two side handles for transportation
• IP66 protection rate
• Marine Grade protection
• IK06 impact resistance rate
• Working in any position
• Hanging system: with fast-lock Omega clamps (1/4) turn on the base
• Optional safety chain

ELECTRICAL

• Operating Voltage: 100-240V, 50/60 Hz
• In/Out MAX: Mains out MAX 1 fixture MAX 1200 VA
• Power Supply: Electronic auto range with active PFC
• Max Power consumption: 900VA

THERMAL SPECIFICATION

• Max ambient temperature: 45°C (113°F)
• Min ambient temperature: -40°C (-40°F)
• Max temperature of the external surface: 55°C (131°F)
• Total heat dissipation: 3074 BTU/hr ±10% / 3240 kJ/hr ±10%

SAFETY SPECS

• Minimum distance of illuminated objects: 30 meters (98 ft 5 In )
• Minimum distance from flammable materials: 0.2 meters (o ft 8In )
• Protection:
  • Thermally protected power supply (overheating and cooling failure)
  • Power fuse: T10A 250V (6,3x32 mm)
  • Internal fuse (for battery): T2A 250V (5x20 mm)
  • Forced ventilation with axial fans

COMPLIANCE

• CE Marking (in conformity to the following):
  • 2014/53/EU - Radio Equipment Directive (RED)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
  • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
• UKCA: conforms to UK Regulations:
  • S.I. 2017 N.1206
  • S.I. 2012 N.3032
  • S.I. 2021 N.745
• cETLus LISTED:
  • UL 1573:2003
  • CSA C22.2 N.166:2015

PACKAGING

• Total Carton box
• Flight case + Foam shell (1 position)

WEIGHT - SIZE

• Weight:
  • 60 Kg (132,3 lbs)
• Base Dimensions:
  • 400 x 480mm
  • 15.75 x 18.90 In
• Height with vertical head (h):
  • 928 mm
  • 36.54 In
• Distasce between 2 fixtures:
  • 1000 mm
  • 39.97 In

ACCESSORIES

• Omega bracket : 2x183102/805 (included)
  • ETL Power CAB02B/802 (Optional) cord 1.5mt. (bare end with IP65 PowerConTrue1 connector)
• Flight case 1 positions: CF1027 (optional)
• Safety Chain: 105041-001 (optional)
