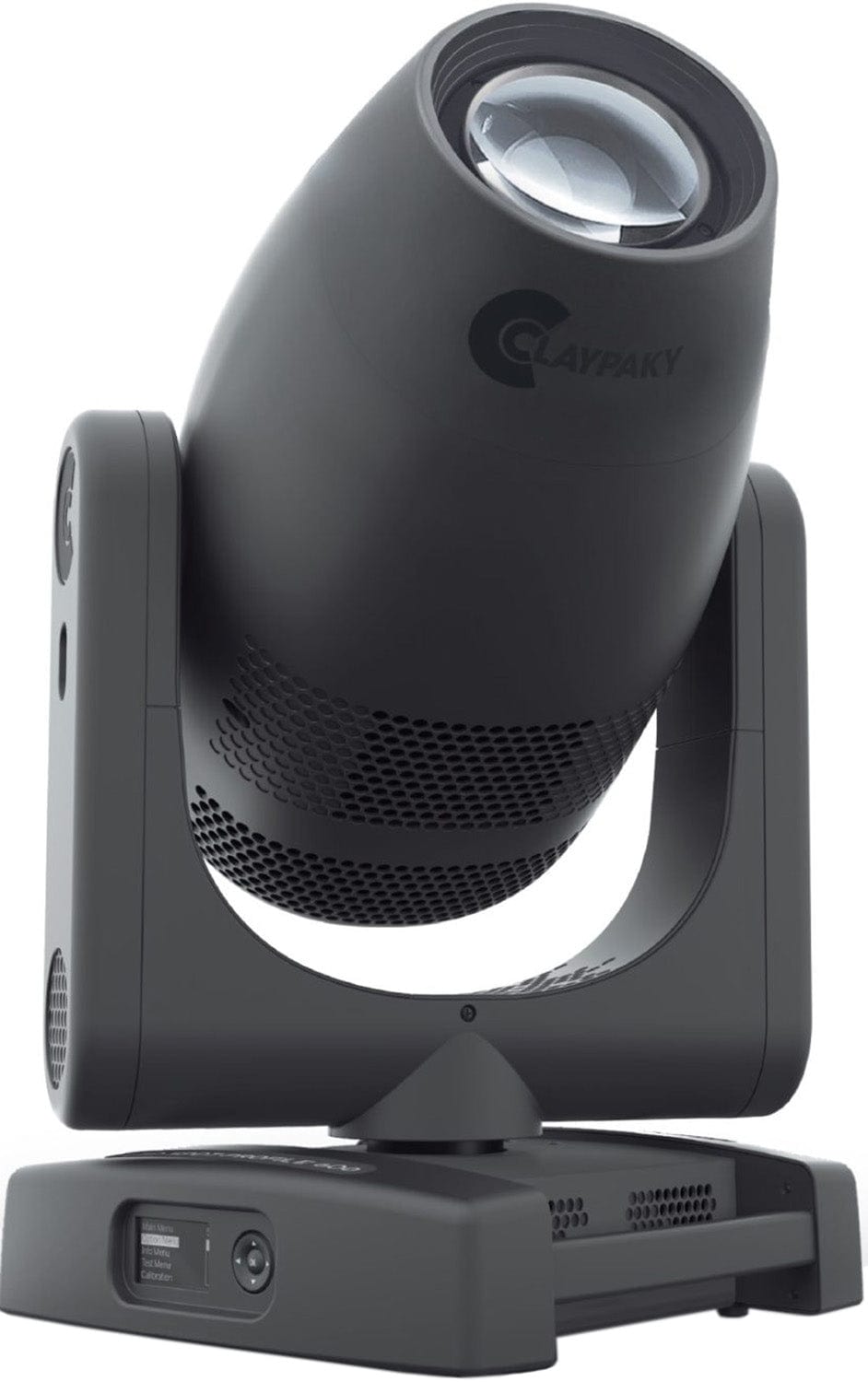

Clay Paky Axcor Profile 600 Teatro 500-Watt 6500k White LED Moving Head

Clay Paky Axcor Profile 600 Teatro 500-Watt 6500k White LED Moving Head

In the crowded world of medium-high power lights, the Axcor Profile 600 stands out for its excellent combination of high performance, exceptional light quality, and versatility of use. It features a 500 W white LED engine, available in two versions: with a high output 6500K color temperature, or alternatively, with a 5600K color temperature and a CRI of around 90.

The luminous efficiency is among the highest in this power category, and it can be further increased by about 25% thanks to "boost mode" (available on the standard version and on the HC version), making the Axcor Profile 600 a perfect tool for tours and large events. A wide zoom range from 5.3° to 47.2° (1:9 ratio) means the light can be used in a variety of situations, including those for which a narrow angle is best.

The completeness of its color section, its wealth of visual effects, and its framing system enhanced with technological devices for precision and versatility, as well as the possibility of using it as a wash light, make the Axcor Profile 600 an essential benchmark for modern entertainment uses.

The Axcor Profile 600 Teatro is a special version featuring an updated cooling system and mechanisms to significantly reduce the unit’s acoustical footprint. Available in two different CRI versions, this fixture is ideal for applications where noise is a concern in venues such as theatres, television studios, opera houses, conference halls, and more.

Specifications:

• Model: Axcor Profile 600 TEATRO (CL3016)
• Light Source Type:
  • 500W White LED Engine
  • CRI: 70+, CT 6500K
  • LED life expectancy: 40,000 hrs L70
• Photometric Data:
  • Zoom range: 5.3°- 47.2°
  • Front lens diameter: 132mm
  • High efficiency optical system
  • Axcor Profile 600 Teatro: 15,500 Lumen Output
• Noise Level:
  • Axcor Profile 600 series
  • Standard Mode; LED @ 500W: 45.0 dBA
  • Standard Mode; LED @ 400W: 41.5 dBA
  • Axcor Profile 600 Teatro series
  • Standard Mode; LED @ 500W: 42.5 dBA
  • Silent Mode; LED @ 400W: 38.5 dBA
  • Silent Mode; LED @ 300W: 35.0 dBA
• Control and Connections:
  • Personalities: 2 modes with 40/44 control channels
  • Control Protocol: DMX, Art-Net, RDM, sACN
  • DMX and RDM connectors: Locking 3 and 5 pin XLR IN/THRU
  • Ethernet port: RJ45 IN
  • Power connector: PowerCon True1 IN/OUT
  • Built In Web Server
• Dynamic Effects:
  • Colours:
    • Linear CMY colour mixing
    • Linear CTO (6500K – 3200K)
    • Fixed color wheel with 5 dichroic colors
  • Gobos:
    • 1 Rotating gobo wheel with 7 HD Indexable and replaceable gobos
    • Ext diam. 25.9mm
    • Image diam. 20mm
    • Thickness 1.0mm
  • Framing system:
    • 4 blades that move separately with +/- 90° rotation
    • Motorized framing system with 4 focal planes
    • Smooth, flexible blade movements at variable speed
    • A "total curtain" effect with each blade
  • Frost:
    • Variable “soft edge” frost 0-100% linear
  • Rotating Effects:
    • Aluminum animation wheel with continuous rotation
    • 4 Facets prism with rotation at variable speed
  • Iris: Motorized with variable pulse and random effects
  • Movement:
    • Tilt: 268° - 16bit
    • Pan: 540° - 16bit
    • Accuracy: Resolution ± 0.23°
    • Automatic repositioning
    • Fast/Normal speed selectable by Function channel
    • Mechanical Pan/Tilt lock for safe transportation
  • Beam: Motorized Zoom and Focus
  • Dimmer/Shutter:
    • High resolution electronic Dimmer - 24 bit, 4 curves
    • High speed electronic Shutter and Strobe
• Hardware and Software:
  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM
  • CloudIO compatibility
• Housing:
  • Aluminum and steel structure with plastic covers
  • Two side handles for transportation
  • IP20 protection rate
• Working Position:
  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
  • Optional safety chain
• Electrical:
  • Operating Voltage: 100-240V, 50/60 Hz
  • Max Power consumption: 800VA
• Thermal Specification:
  • Max ambient temperature 40°C (104°F)
  • Min ambient temperature -10°C (14°F)
  • Max temperature of the external surface 90°C (194°F)
  • Total heat dissipation: 2390 BTU/hr ±10% / 2520 kJ/hr ±10%
• Safety Specs:
  • Minimum distance of illuminated objects 3 meters (9’ 10’’)
  • Minimum distance from flammable materials 0.2 meters (8”)
  • Thermally protected power supply
  • Forced ventilation with axial fans
• Compliance:
  • CE: conforms to the European Directives
  • UKCA: conforms to UK Regulations
  • cETLus Listed
• Weight - Size:
  • 33 Kg (72.7 lbs)
  • 329x388mm (base dimension) – 785mm with vertical head (h)
  • Distance between two fixtures 700mm
