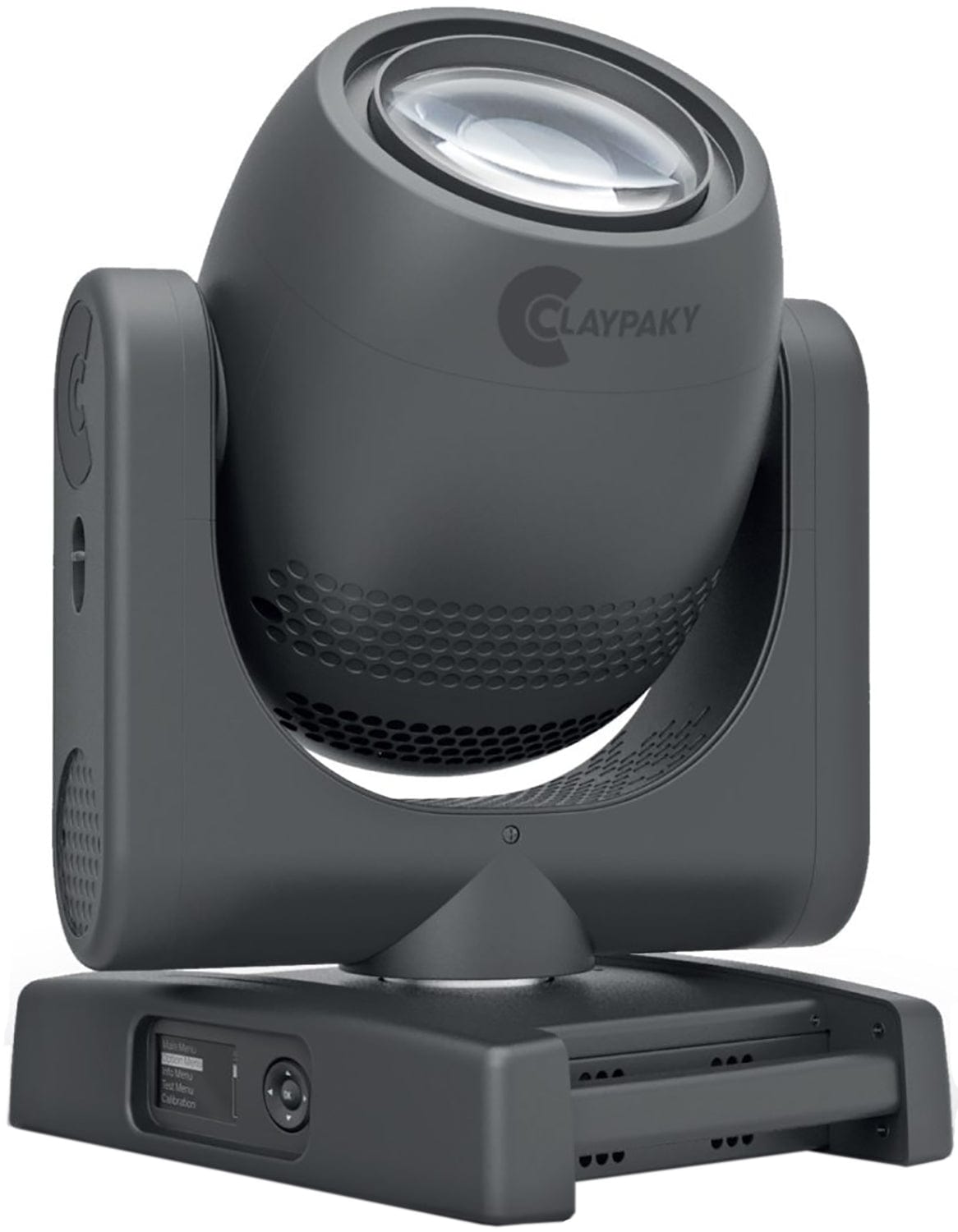

Clay Paky Axcor Beam 300 110-Watt 7600k White LED Moving Head

Clay Paky Axcor Beam 300 110-Watt 7600k White LED Moving Head

The Axcor 300 family of moving LED fixtures brings Claypaky’s no-compromise quality and performance to the broad mid-market. The quality of their effects, their construction, and their high light output derive from the high-end products Claypaky specializes in.

The Axcor Beam 300 has an even more compact body – less than 500mm – and is able to emit a super-concentrated solid beam with a beam angle as small as 2° and a surprising light output. The wealth and quality of its colors and aerial effects, its electronic focus and its 140 mm diameter front lens make the Axcor Beam 300 the ideal beam moving light in any application area, and the perfect replacement of a Claypaky Sharpy! It boasts cutting-edge electronic and software technology, with all the features that enable optimal fixture management and maintenance over time. With a price-point, physical size and power consumption that disguise its strength and creative potential, the Axcor Beam 300 enables a new world of expression in touring, events, TV, theatre and installed lighting markets.

Specifications:

• Light Source Type:
  • 110W White LED engine (7600 K)
  • L70: 20000hrs
  • *It may vary depending on various factors, as type of use and environment
• Photometric Data:
  • 1800 Lumen Output
  • Front lens diameter: 140mm
  • Beam aperture: 2°
  • Motorised focus lens
• Control and Connections:
  • 14/16 DMX channels
  • Control Protocol: DMX, Art-Net, RDM, sACN
  • DMX and RDM connectors: Locking 5 pin XLR IN/THRU
  • Ethernet port: RJ45 IN
  • Power connector: PowerCon True1 IN/THRU
  • Built In Web Server
• Dynamic Effects:
  • One color wheel with 14 Colors
  • One gobo wheel with 17 Gobos
  • Rotating 8-facet Prism spin CCW and CW
  • Movement:
    • PAN range 540°
    • TILT range 270°
  • Automatic repositioning
  • Mechanical Pan/Tilt lock for safe transportation and maintenance
  • Dimmer/Shutter: 16-bit Electronic Dimmer with 4 curves
  • Shutter and Strobe effect - 24 f/sec
• Hardware and Software:
  • Long life self-charging battery
  • Display: Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM
  • CloudIO compatibility
• Housing:
  • Aluminum and steel structure with plastic covers
  • Two side handles for transportation
  • IP20 protection rate
• Working Position:
  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
  • Optional safety chain
• Electrical:
  • Operating Voltage: 100-240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: 215 VA @230Vac - 50Hz
• Thermal Specification:
  • Minimum distance of illuminated objects 3 meters (9’ 10”)
  • Minimum distance from flammable materials 0.2 meters (8”)
  • Max ambient temperature 40°C (104°F)
  • Max temperature of the external surface 90°C (194°F)
  • Forced ventilation with axial fans
• Safety Specs:
  • Minimum distance of illuminated objects 8 meters (26’ 3”)
  • Minimum distance from flammable materials 0.2 meters (8”)
  • Fuse T10A – 250V
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans
• Compliance:
  • In conformity with the European Directives:
  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU - Electromagnetic Compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
  • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
  • cMETus Listed
• Weight - Size:
  • 17.6 Kg (38.8 lbs)
