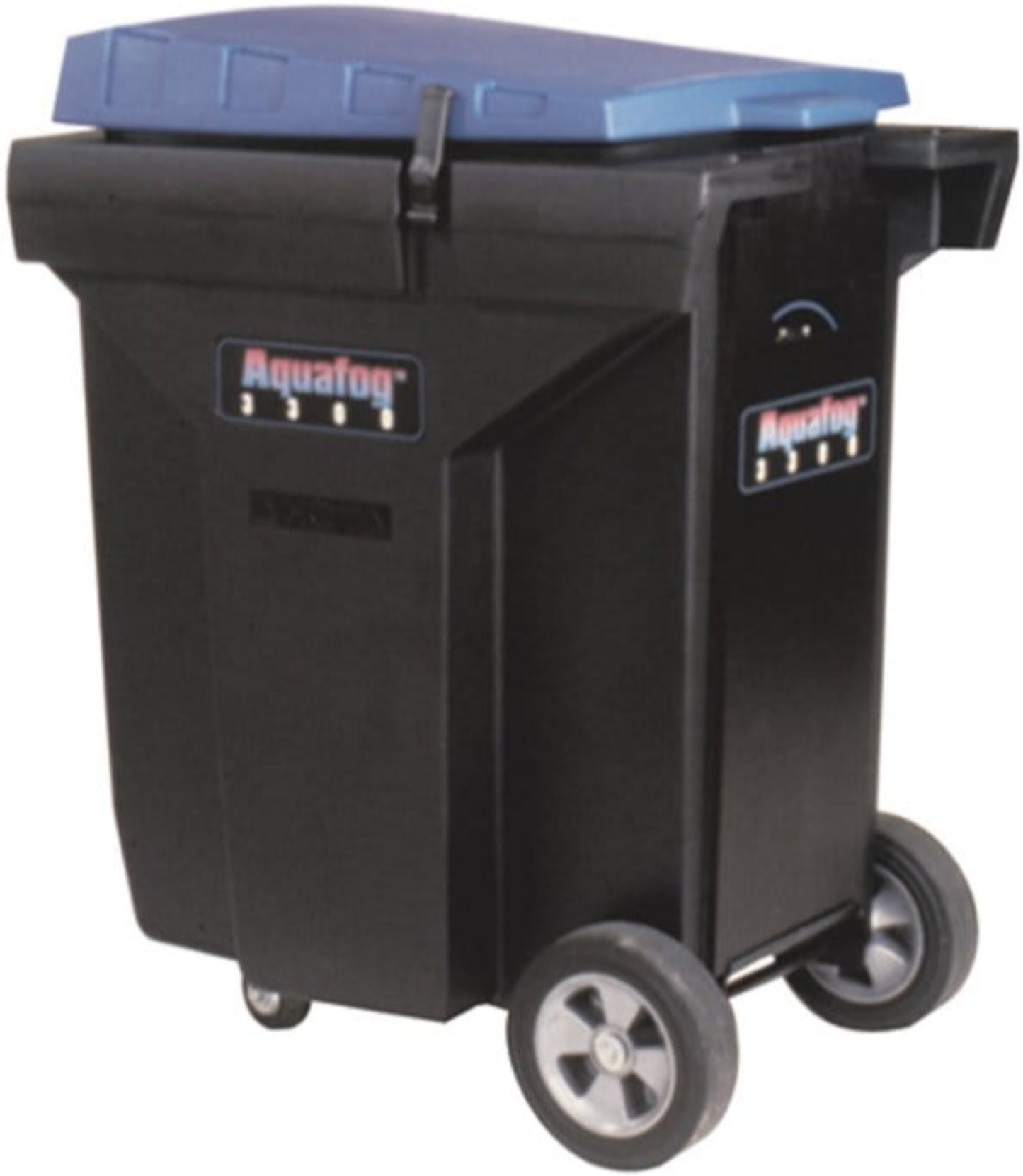

City Theatrical Aquafog 3300 Dry Ice Fog Machine
This water-based system is light-weight, portable and durable, allowing you to create large amounts of billowing fog. The AQUAFOG 3300™ features a durable molded thermoplastic tank for corrosion resistance and light weight. No more rusting steel drums to replace. The large lid lifts for easy loading of the stainless steel ice shelf. All electrical components are conveniently located behind the electrical panel. A powerful stainless steel pump brings heated water from the tank up to the dry ice. A 6" fan pressurizes the tank and sends the fog out to the stage.
Features:
- Award winning lightweight, portable, dry ice fog machine holds 28 gallons (106 litres) of water and 75 lbs. (34kg) of dry ice
- 120v electrical system with circuit breakers, indicator lights for water temperature and heating element status, low-water cutout protection and an adjustable sensing circuit to maintain temperature over extended use periods
- Non-corroding thermoplastic tank features an extra large access lid for easy loading with integral casters for transport
Specifications:
-
Tank
- Material: High temperature plastic polymer
- Dimensions: 21 1/2” x 31” x 38” (including casters) (546mm x 787mm x 965mm)
- Water capacity: 28 gallons (106 litres)
- Ice capacity: 75 lbs. (34 kg.)
- Casters: 3 1/2” (88.9mm) swivel front, 8” (203mm) fixed rear
- Hose vent: 4” (101.6mm) molded into tank
- Fill Door: 20” x 30” (508mm x 762mm)
- Weight empty: 115 lbs. (52kg.)
- Shipping weight: 130 lbs. (59kg.)
- Weight fully loaded: 455 lbs. (208.19kg.)
-
Plumbing
- Pump: Stainless steel 10GPM (37.85 litres/min.)
- Fittings: All stainless, brass or high temperature plastic
-
Electrical
- Voltage: 120v, 230v available
- Heating elements: 120v 1650 watt; 230v 3000 watt (two) screw in
- Thermostat: Adjustable automatic control (100°F-160°F) (38°C-71°C)
- Overtemperature: 175°F (79°C) cutout, manual reset
- Low water cutout: Turns off heaters when water is low
- Blower: 240 CFM axial (6.799 CMM)
- Circuit breakers-Type: 20 amp on heating element 2 amp (lighted) on fan & pump
-
Tank
- Material: High temperature plastic polymer
- Dimensions: 21 1/2” x 31” x 38” (including casters) (546mm x 787mm x 965mm)
- Water capacity: 28 gallons (106 litres)
- Ice capacity: 75 lbs. (34 kg.)
- Casters: 3 1/2” (88.9mm) swivel front, 8” (203mm) fixed rear
- Hose vent: 4” (101.6mm) molded into tank
- Fill Door: 20” x 30” (508mm x 762mm)
- Weight empty: 115 lbs. (52kg.)
- Shipping weight: 130 lbs. (59kg.)
- Weight fully loaded: 455 lbs. (208.19kg.)
-
Plumbing
- Pump: Stainless steel 10GPM (37.85 litres/min.)
- Fittings: All stainless, brass or high temperature plastic
-
Electrical
- Voltage: 120v, 230v available
- Heating elements: 120v 1650 watt; 230v 3000 watt (two) screw in
- Thermostat: Adjustable automatic control (100°F-160°F) (38°C-71°C)
- Overtemperature: 175°F (79°C) cutout, manual reset
- Low water cutout: Turns off heaters when water is low
- Blower: 240 CFM axial (6.799 CMM)
- Circuit breakers-Type: 20 amp on heating element 2 amp (lighted) on fan & pump
