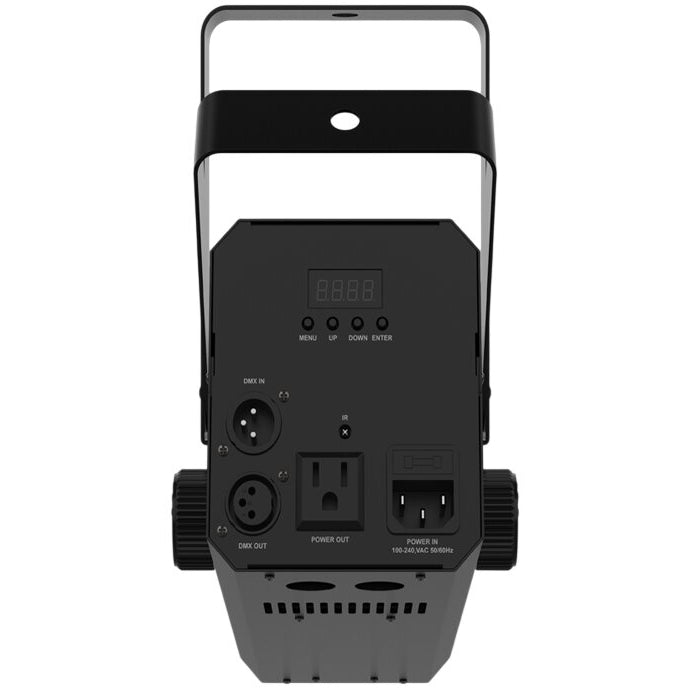

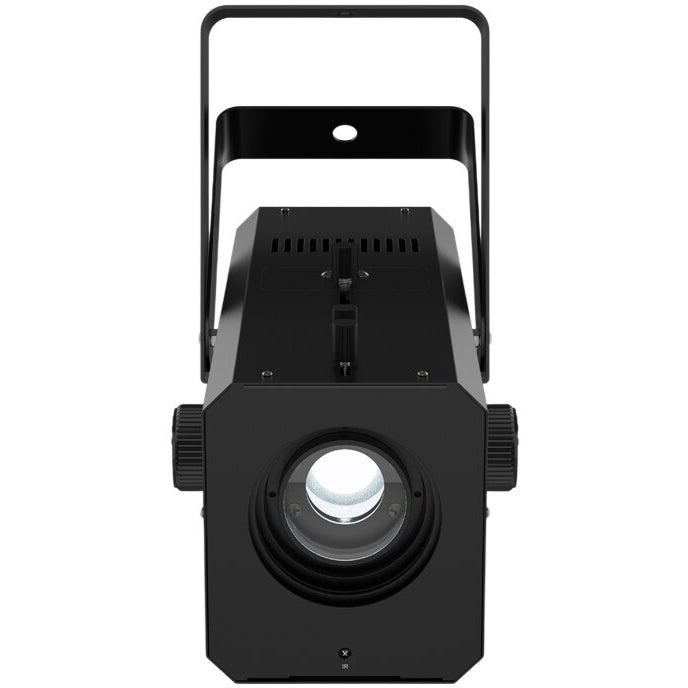

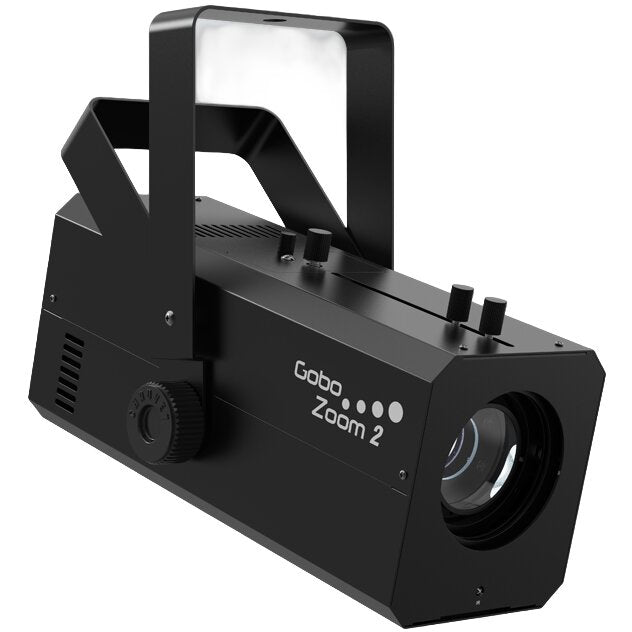

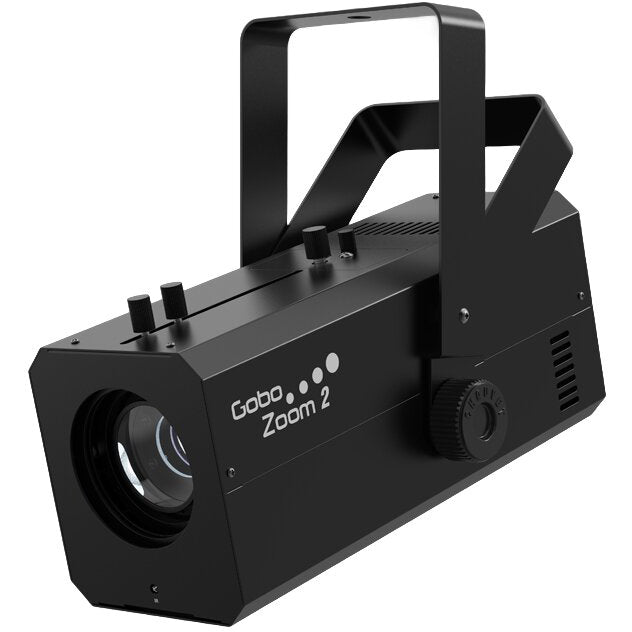

Chauvet Gobo Zoom 2 High Powered Gobo Projector
Thrill event guests with customized logos, icons and other designs with Gobo Zoom 2, a high-powered custom gobo projector with a punchy 70 W LED. Proper positioning of gobos is easy with an innovative manual rotation knob that allows fast indexing without gobo removal. Gobo Zoom 2 comes with 10 popular holiday gobos and manual zoom for short-throw or long-throw applications, making it versatile and convenient. The convenience doesn’t stop there. Most functions are accessible with an optional IRC-6 remote and set-up time can be reduced by power linking multiple units.
Features:
- High-powered custom gobo projector with a punchy 70 W LED
- Innovative manual rotation knob allows fast indexing without gobo removal
- Manual zoom for short-throw or long-throw applications
- Includes 10 popular holiday gobos
- Access most functions via the optional IRC-6 remote
- Reduce set-up time by power linking multiple units
- Fits best in the CHS-40 VIP gear bag
Specifications:
- DMX Channels: 1
- DMX Connectors: 3-pin XLR
- Light Source: 1 LED (cool white) 70 W, (3A), 50,000 hours life expectancy
- PWM Frequency: 4000 Hz
- Illuminance: (21°): 8,030 lux @ 2 m
- (38°): 2,660 lux @ 2 m
- Lumens: 2,894
- Power Linking: 7 units @ 120 V; 14 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 74 W, 1 A @ 120 V, 60 Hz
- 72 W, 0.6 A @ 230 V, 50 Hz
- Weight: 5.8 lb (2.6 kg)
- Size: 13 x 6 x 5.7 in (330 x 150 x 145 mm)
- Approvals: CE
- Gobo Size (E): 37.3 mm outside, 22 mm image, 1 mm max thickness
- Zoom Angle (manual): 21° to 38°
- Bracket Mounting Hole: 13 mm
- Optional Controllers: IRC
