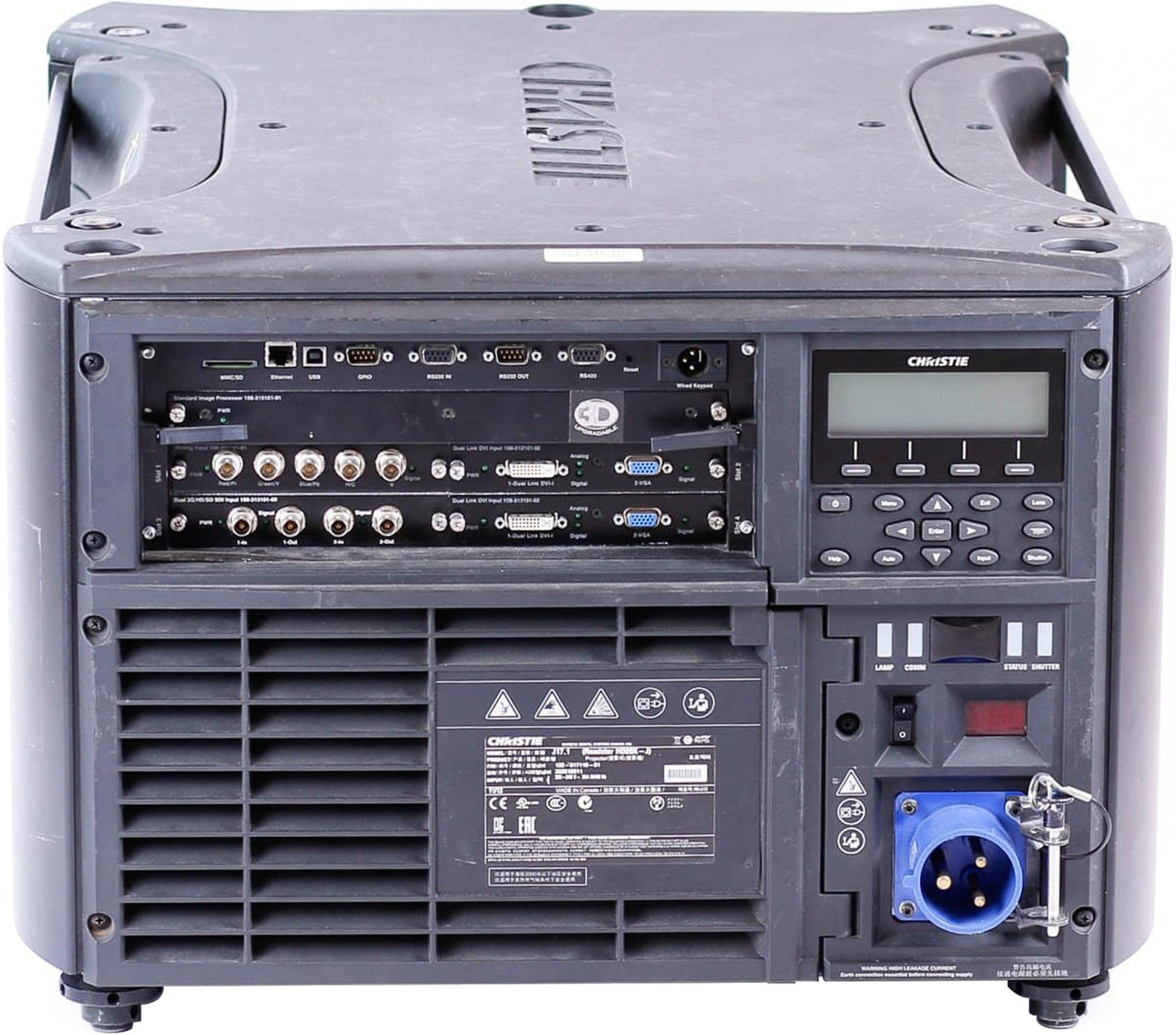

Christie Digital Mirage HD20K-J Video Projector
The Christie® Mirage HD20K-J 3DLP® projector offers exceptional image quality and detail in a compact size. With 18,000 ANSI (20,000 center) lumens for pure presentation power and unsurpassed color accuracy and adjustability, the Christie Mirage J Series platform offers the smallest, high-performance 3DLP stereoscopic products on the market. The Christie Mirage J Series delivers visually stunning 3D for home theater and entertainment, museums and education, scientific research, manufacturing, oil and gas exploration and anything else in between.
Features:
- HD resolution (1920 x 1080)
- 18,000 ANSI (20,000 center) lumens
- 3kW CERMAX® Xenon pre-aligned lamp module for highest image quality
- Up to a full 120Hz native frame rate
- Two standard full 330MHz Dual-link DVI-D input cards
- Variable contrast ratio using electronically an adjustable iris for crisp, detailed images – 1600-2000:1 (full on, full off) / 650:1 ANSI
- Smallest chassis in its class
- CT lens mount (optional)
- Yellow notch filter (optional)
- Embedded Christie Twist™ image warping and edge blending
- Dust-sealed engine
- Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
- Liquid cooling allows for operating temperatures up to 104° F (40° C)
- Set-up lights help users see menu displays in low light environments
Specifications:
-
- Brightness: 18,000 ANSI lumens, 20,000 center lumens
- Contrast: 1600-2000:1 full field | 650:1 ANSI
- Uniformity: 80% brightness uniformity
-
Display
- Type: 3DLP 0.95” DMD
- Native resolution: HD (1920 x 1080)
- Frame delay: As low as one frame
-
Lamp
- Type: 3kW Xenon Bubble pre-aligned lamp module
- Life: 750 hours typical lamp life
-
Input (standard)
- Slot 1-2 populated, standard: two Dual Link DVI-D (330 MHz) input cards (each has VGA (165 MHz) for 3D or dual input 3D compatibility) with HDMI 1.3 receiver
- Slot 3-4 unpopulated
-
Input (optional)
- Analog
- Dual link DVI
- SD/HD-SDI
- Video Decoder
- Twin HDMI
-
TwinSignals
- HDTV formats VGA through to QXGA (2048 x 1536)
- Accepts all current 2D HDTV/DTV formats (optional input module may be required)
- HDMI 1.3 receiver supports mandatory HDMI 1.4a 3D modes of operation plus 24-144Hz triple flash 3D mode
- Multi-standard video decoder
- Horizontal and vertical scaling, all inputs
-
Pixel clock
- 330 MHz
-
Scan rates
- Horizontal: 15-120kHz
- Vertical: 23.97-150Hz (frame lock maximum 120Hz)
- 48-60Hz frame doubled or dual input 3D
- 96-120Hz frame rate up to 1920 x 1200
- 24-144Hz triple flash 3D
-
Inputs/outputs, control and networking
- RS232 In/Out
- RS422 In
- Ethernet (10/100)
- GPIO (RS232 9 Pin male connector)
- Built-in, backlit LCD keypad
- Remote control (with optional wired XLR connection)
-
Optical system
- Dust-sealed 3-chip DMD light engine
- Motorized horizontal and vertical lens offset
- Scheimpflug/Boresight (tilt) adjustment
- Built-in light shutter
- Tool-free lens insertion system
-
Lens options (fixed)
- 0.67:1 HD/WU ILS Lens*
- 1.1:1 HD/WU ILS Lens
-
Lens options (zoom)
- 1.16-1.49:1 HD/WU ILS Lens**
- 1.4-1.8:1 HD/WU ILS Lens
- 1.8-2.6 HD/WU ILS Lens
- 2.6-4.1:1 HD/WU ILS Lens
- 4.1-6.9:1 HD/WU ILS Lens
- 6.9-10.4:1 HD/WU ILS Lens
-
Lens options (offsets)
- +/- 120% Vertical
- +/- 54% Horizontal
- (* +/-35%V +/- 12%H)
- (** +/-102%V +/-40%H)
-
Accessories (standard)
- IR remote
- Power cord
- GPIO 3D sync card
-
Accessories (optional)
- 3.0kW Xenon lamp bare bulb kit
- Bulb alignment tool
- ILS lens adapter kit
- Fog filters
- Remote IR sensor
- Active 3D glasses
- Active stereoscopic emitter
- DMX512 interface card
- 3D passive glasses
- Passive stereoscopic modulator
-
Enhanced feature sets
- Embedded Christie Twist™
- Intelligent Lens System (ILS™)
- Advanced block artifact reduction
- ChristieNET™ web interface
- User-friendly, intuitive LCD keypad
- Advanced Loop-Thru twin HDMI card
- Lamp memory module
- User replaceable lamps
- Advanced, 10-bit processing
- Automatic shut off
- Dust-sealed light engine
- SNMP (simple network management protocol)
- DHCP (dynamic host configuration protocol)
- Liquid cooling
- Set-up lights
- Compatibility with many legacy accessories
-
