Description

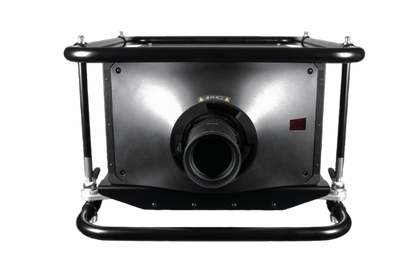

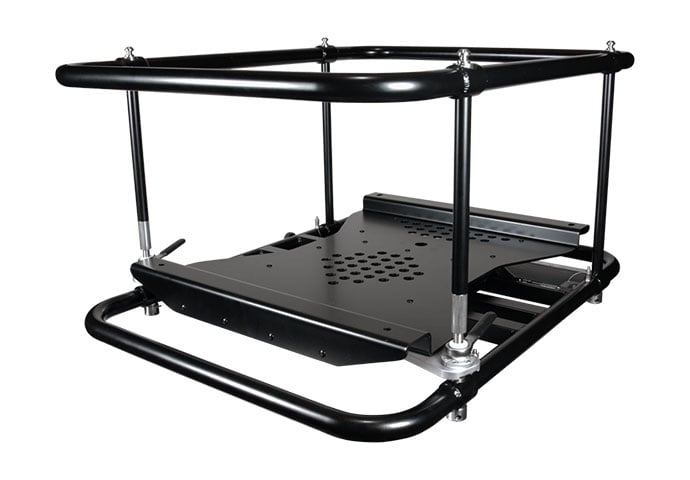

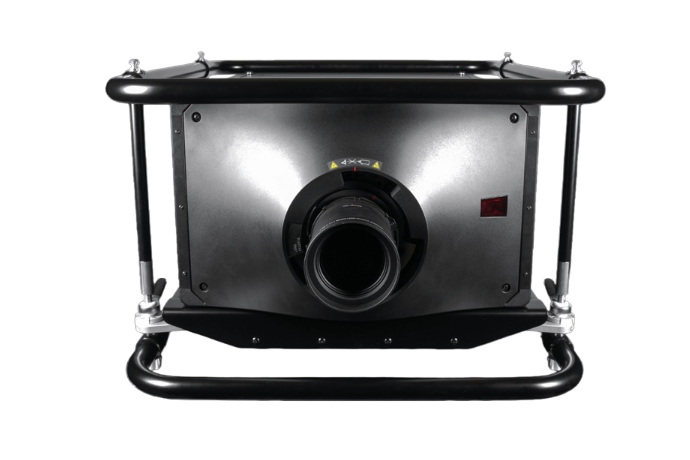

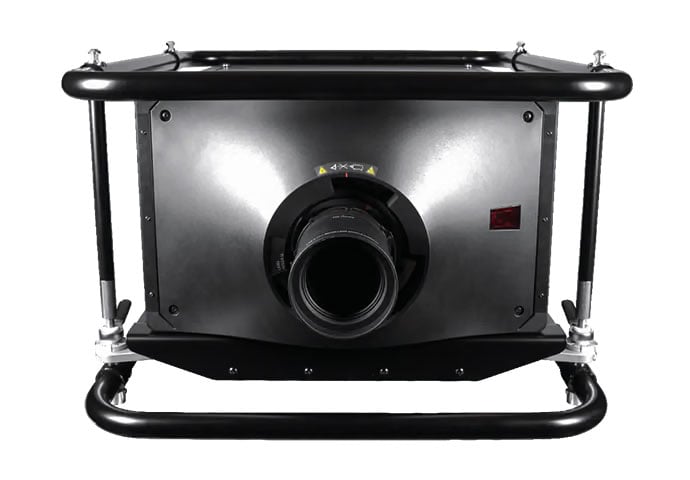

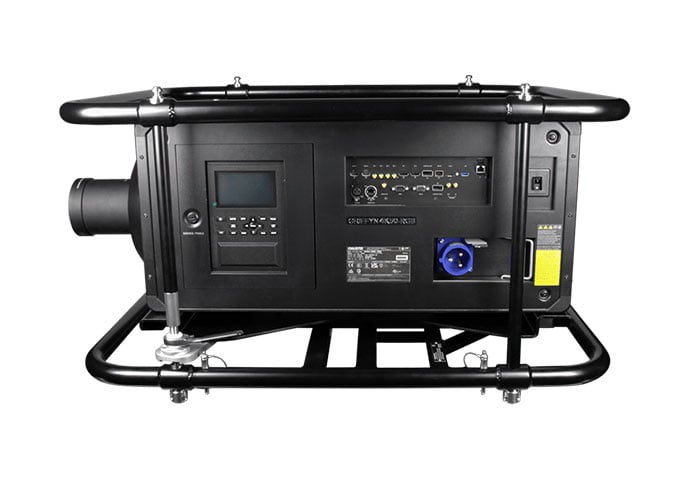

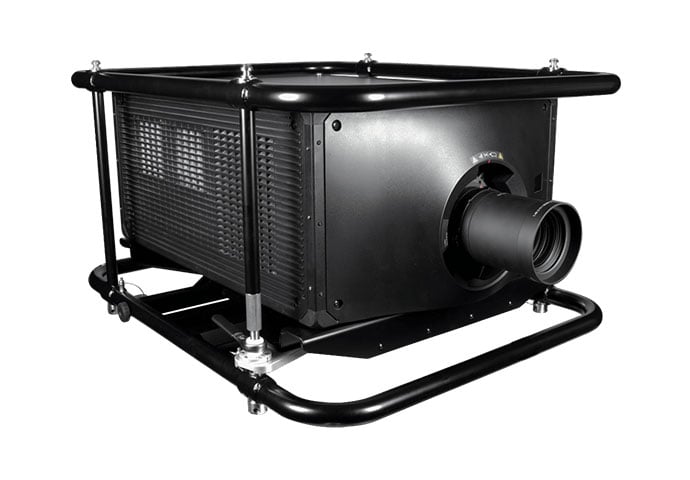

Christie Digital 163-198109-01 Rigging Frame for Griffyn and Sapphire projectors
The Griffyn® Series stacking frame attaches directly to the bottom of the projector and features pitch, roll, and yaw adjustments. It allows quick, precise alignment of blended or overlaid images. The upper part of the frame can be removed for applications that require it.
Each projector in a stack can be adjusted independently, ensuring that changes to one projector don’t affect the others.
Specifications
-
Dimensions: W x H x D: 33.9 x 23.2 x 41.9 inch (860 x 590 x 1065 mm)
-
Weight:: 77.16 lbs (35 kg)
-
Maximum projector weight:: 242.5 lbs (110 kg) including lens
-
Orientation*:: Landscape | Portrait | Vertical down
-
Maximum stacking:: Ceiling mount 2; Floor 3
-
Certifications: CE certified; Safety tested by an external testing laboratory; DGUV V17 verified (safety and accident prevention regulation)
