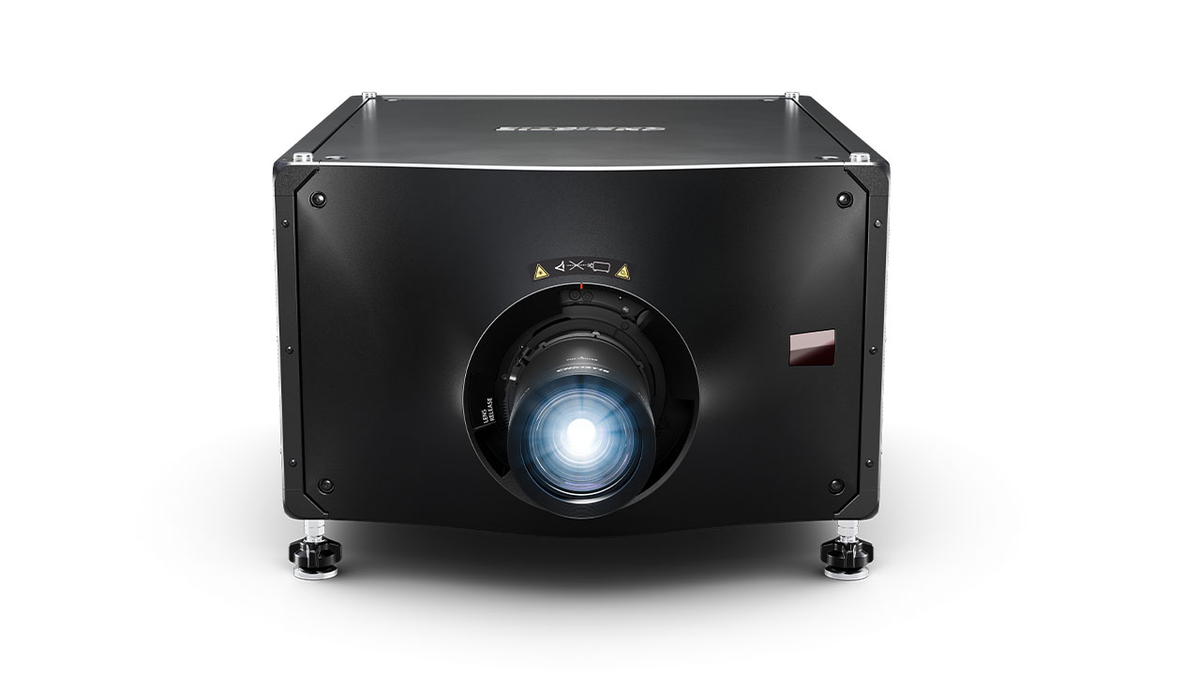

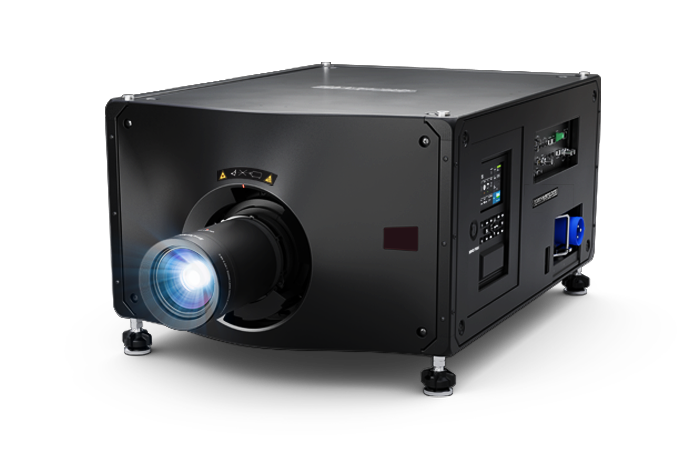

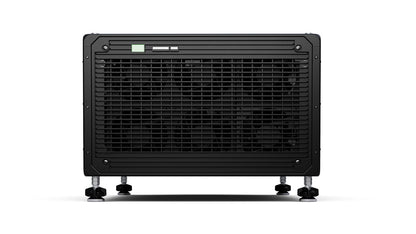

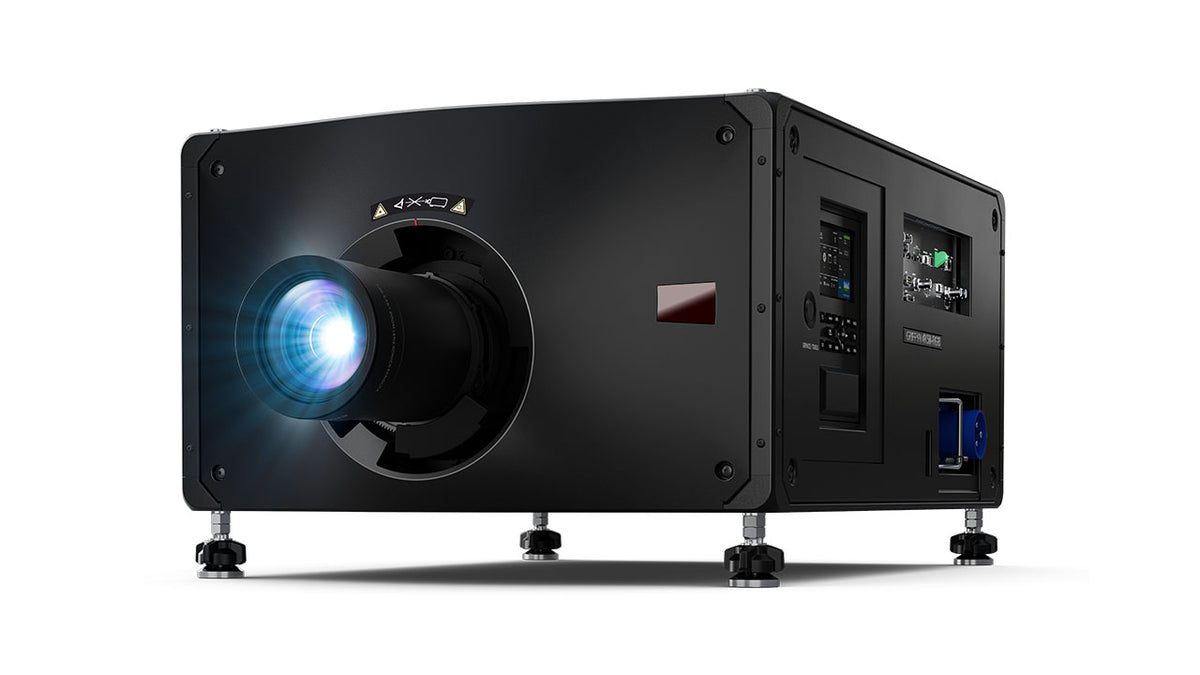

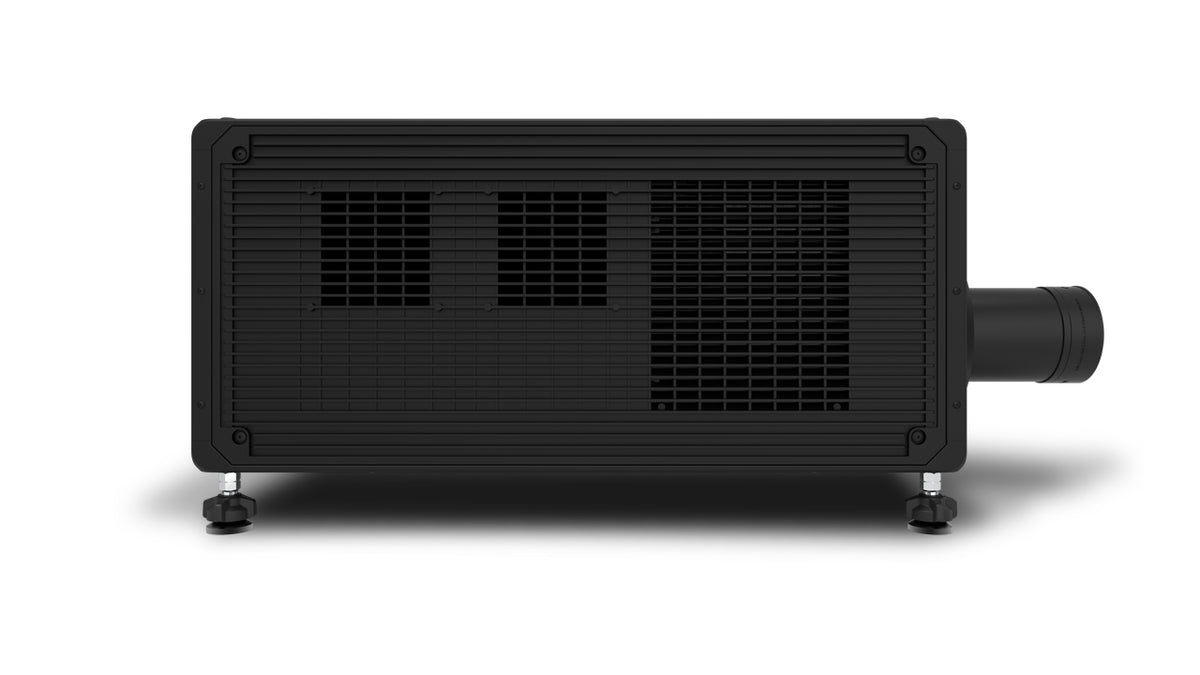

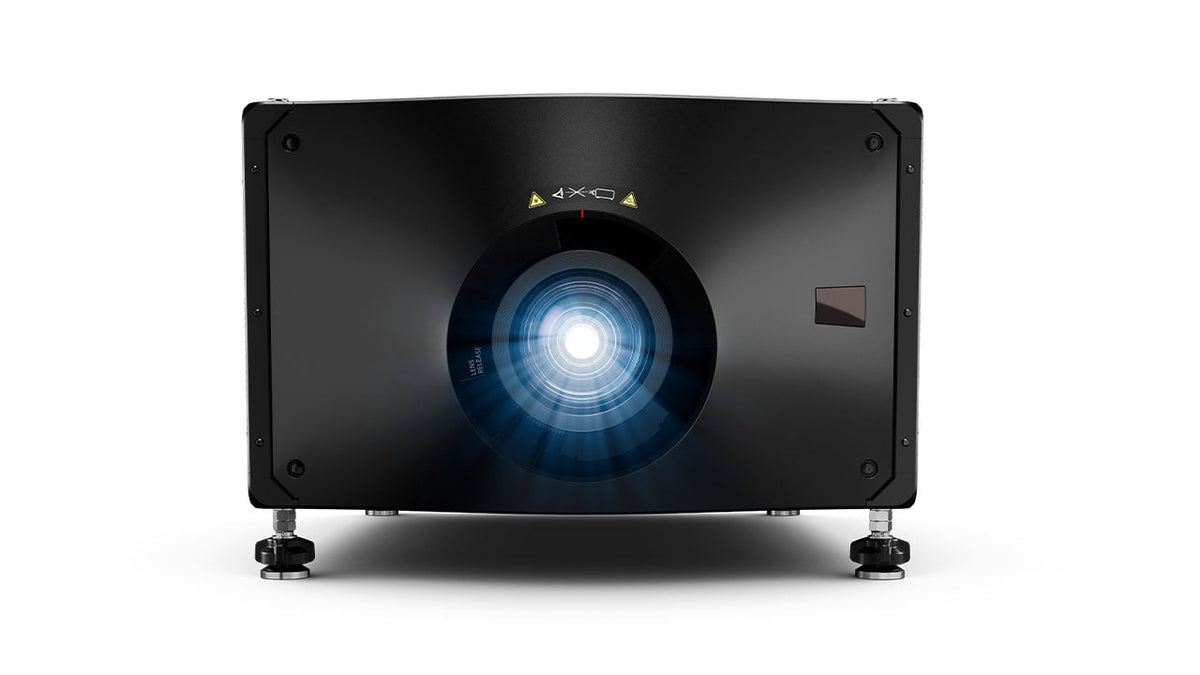

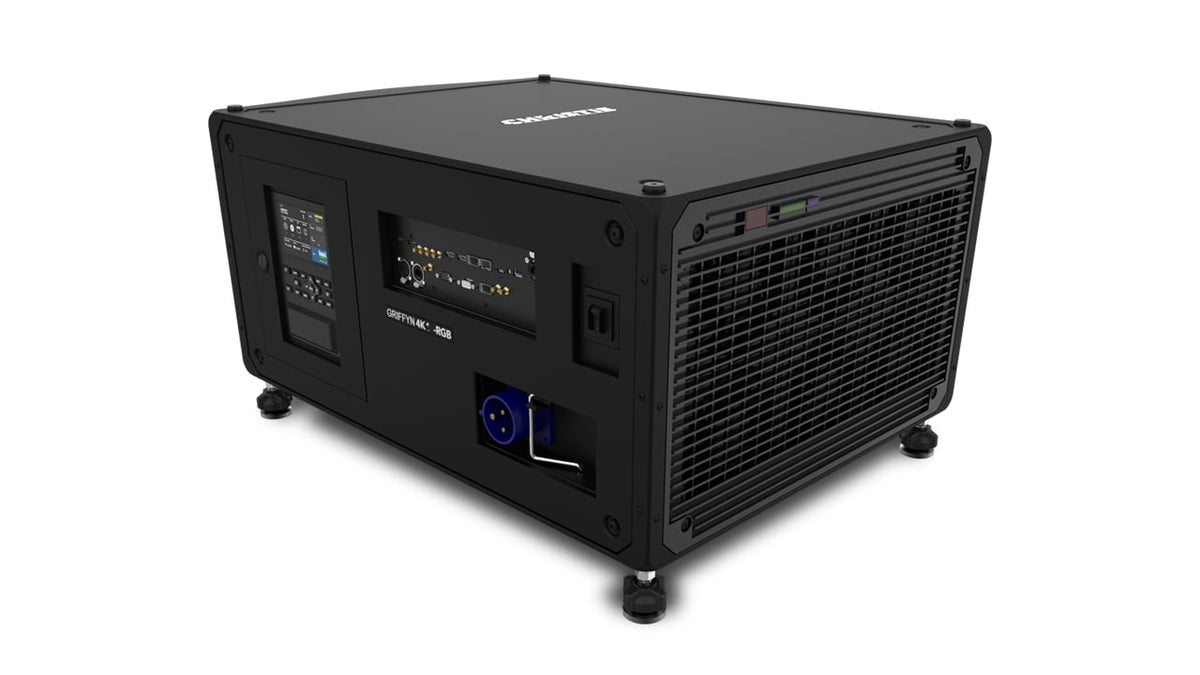

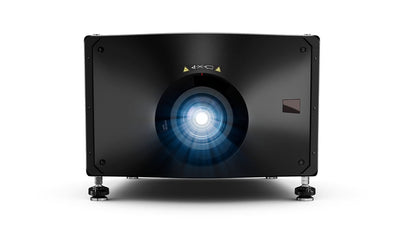

Christie Digital 163-050106-03 Griffyn 4K50-RGB, 3DLP, 4K, 50,000 ISO lms, 197lbs, RGB Laser Illumination - no lens

Christie Digital 163-050106-03 Griffyn 4K50-RGB, 3DLP, 4K, 50,000 ISO lms, 197lbs, RGB Laser Illumination - no lens

Pure laser. Pure color. Pure excellence.

Create legendary large-scale experiences with 50,000 lumens of pure RGB laser power.

Christie Griffyn^® 4K50-RGB combines Christie TruLife+™ electronics, a sealed optical engine, and advanced, solid-state illumination for stable operation, long service life, and outstanding energy efficiency.

Built to excel in demanding large venue applications, Griffyn 4K50-RGB delivers premium color reproduction with support for Rec. 709, P3, and up to 98% of Rec. 2020, bringing rich, vibrant, high-fidelity visuals to life. With all-in connectivity built in, every input you need is ready to go. No option cards. No add-ons. Just streamlined setup and dependable signal management.

Raising the bar in energy efficiency. Reducing your operating costs.

The energy-efficient Griffyn 4K50-RGB delivers tangible savings over time.

Key features

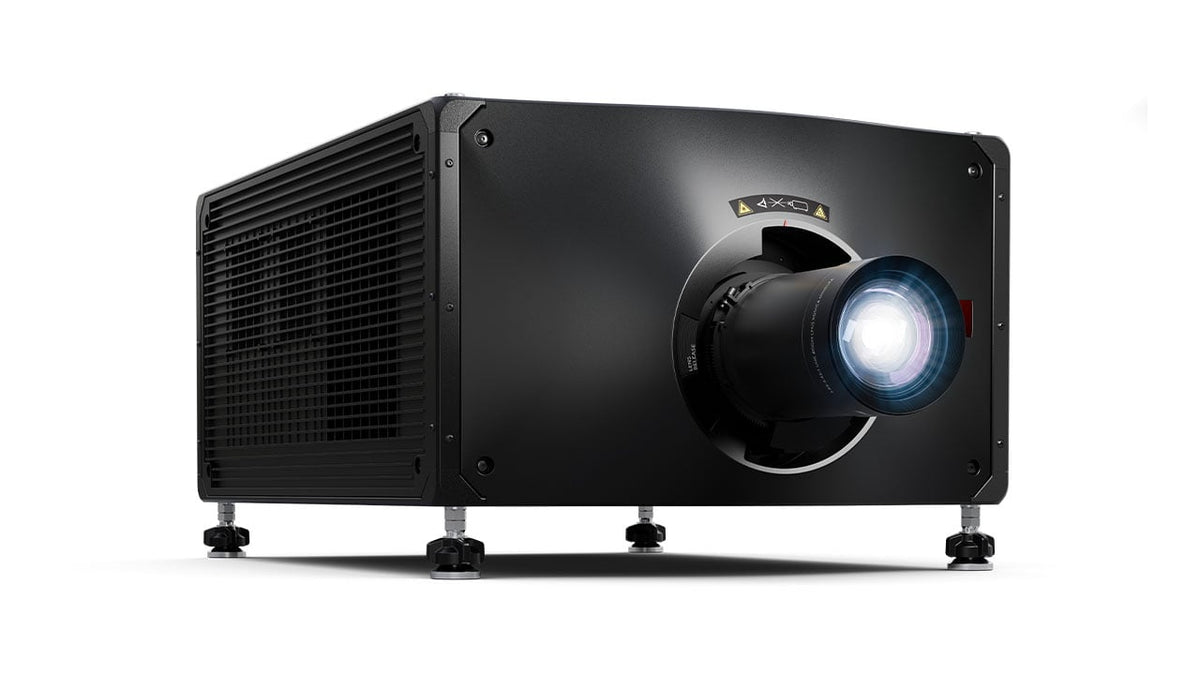

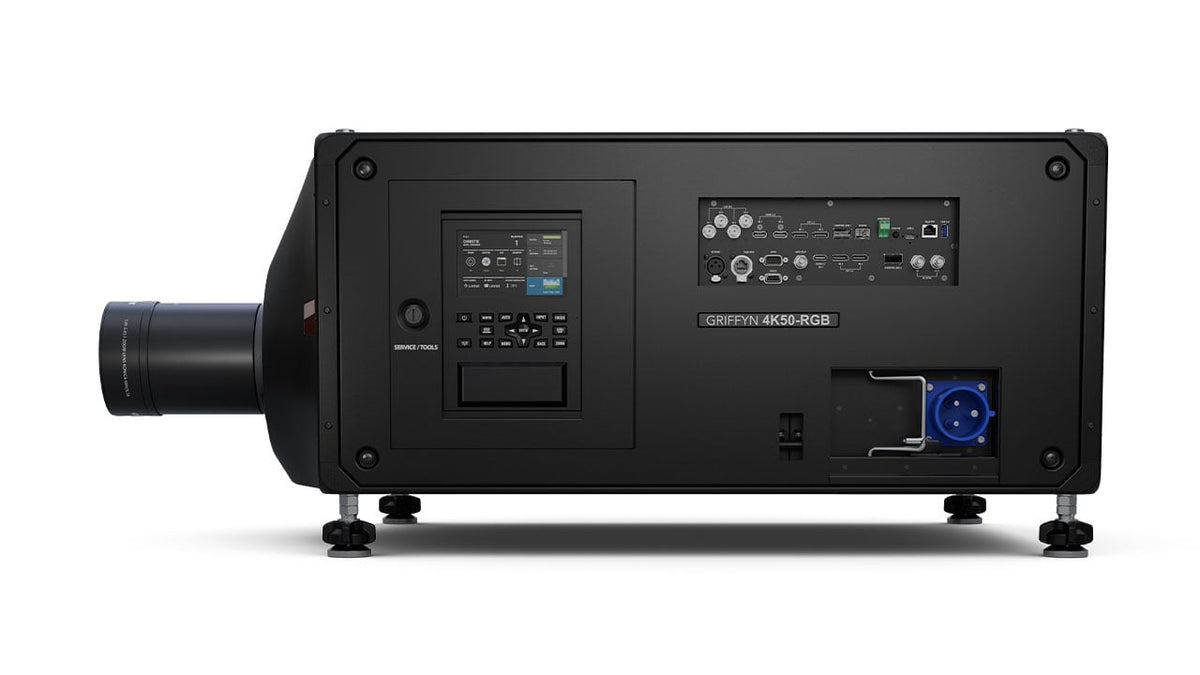

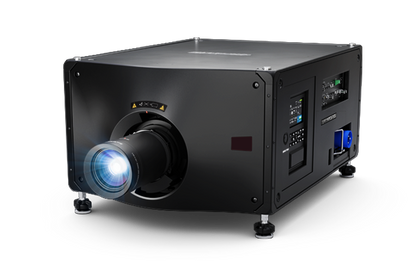

• Enjoy simplified installation and serviceability: The smallest, lightest laser projector available in its class, Griffyn 4K50-RGB has a compact chassis and features omnidirectional operation and a field-replaceable light source.
• Easily maintain picture-perfect color alignment: Converge colors mechanically or use electronic color convergence via remote control, offering flexibility for a wide range of applications.
• Preserve color balance and brightness over time, regardless of fluctuations in ambient temperature, with Christie LiteLOC™.
• Expertly warp and blend multi-projector arrays with built-in Christie Twist™. Save even more time with optional Mystique™ automated camera-based alignment software.
• Take advantage of the convenience and cost savings of Griffyn 4K50-RGB’s compatibility with all Christie^® 3DLP ILS4 native 4K lenses.
• Elevate the experience with high frame rates: 4K at 60 Hz is standard. The Mirage option delivers 4K at 120 Hz or 4K at 60 Hz per eye for 3D content. Mirage Pro adds further capabilities: 240-480Hz at 2K resolution and Christie View simultaneous multi-content viewer.

We're here to support your investment
Backed by Christie's industry-leading warranties, service and support, you can feel confident investing in the Christie Griffyn 4K50-RGB. If you have any questions, or if you'd like to speak to a Christie sales representative, please contact us.

• Brightness: 50,000 ISO lumens* 44,500 ANSI lumens*
• Contrast ratio: 2000:1 On/Off | 5000:1 On/Off with high contrast lens**
• Display type: 3DLP 1.38" DMD
• Resolution: 4K (4096 x 2160)
• Illumination type: RGB pure laser
• Illumination performance (hrs): 25,000 hours at 100% brightness***
• Orientation: Omnidirectional
• Image processing: Christie TruLife+™ electronics, 1.2Gpx/s
• Supported frame rates: Standard: 24-60Hz | Christie Mirage option: 4K@120Hz and 4K 3D@60Hz per eye | Christie Mirage Pro option: all the features of the Mirage option plus 2K@240-480Hz and Christie View simultaneous multi-content viewer

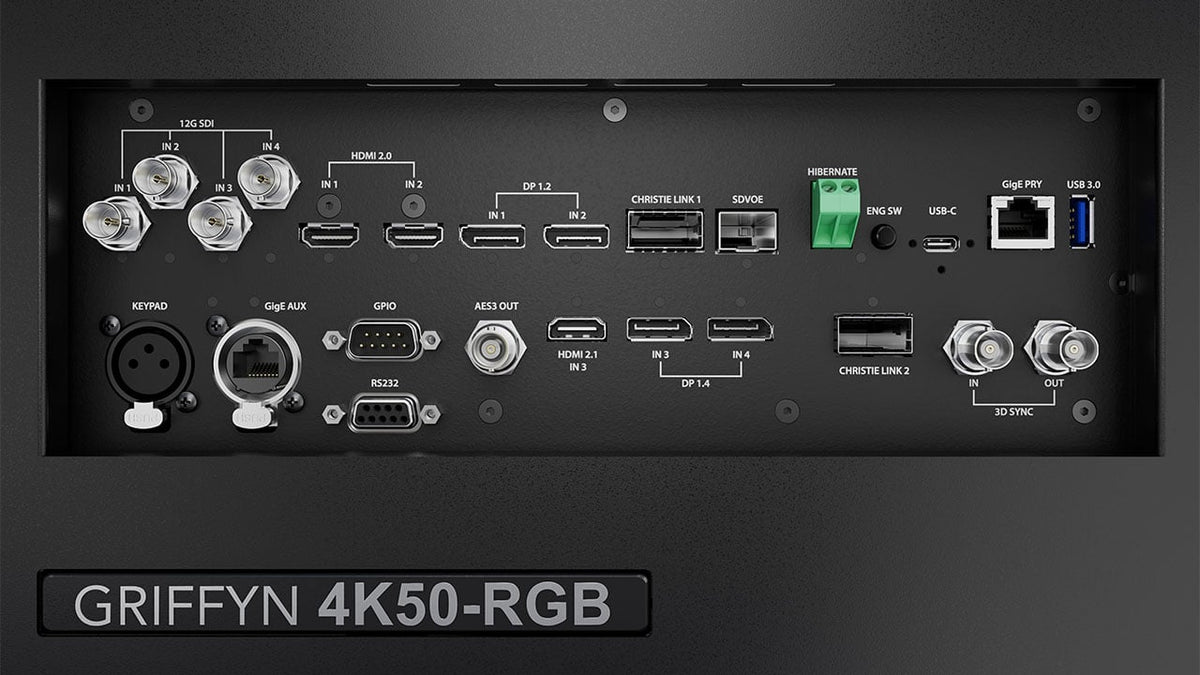

• Standard inputs: 1 x HDMI 2.1; 2 x HDMI 2.0; 2 x DisplayPort 1.4; 2 x DisplayPort 1.2; 4 x 12G-SDI (full-size BNC); SDVoE; Christie Link 1 input/1 output (2x Fiber/QSFP+); 3D Sync (1 input/1 output)
• Sound level: 44 dBA/55 dBA****

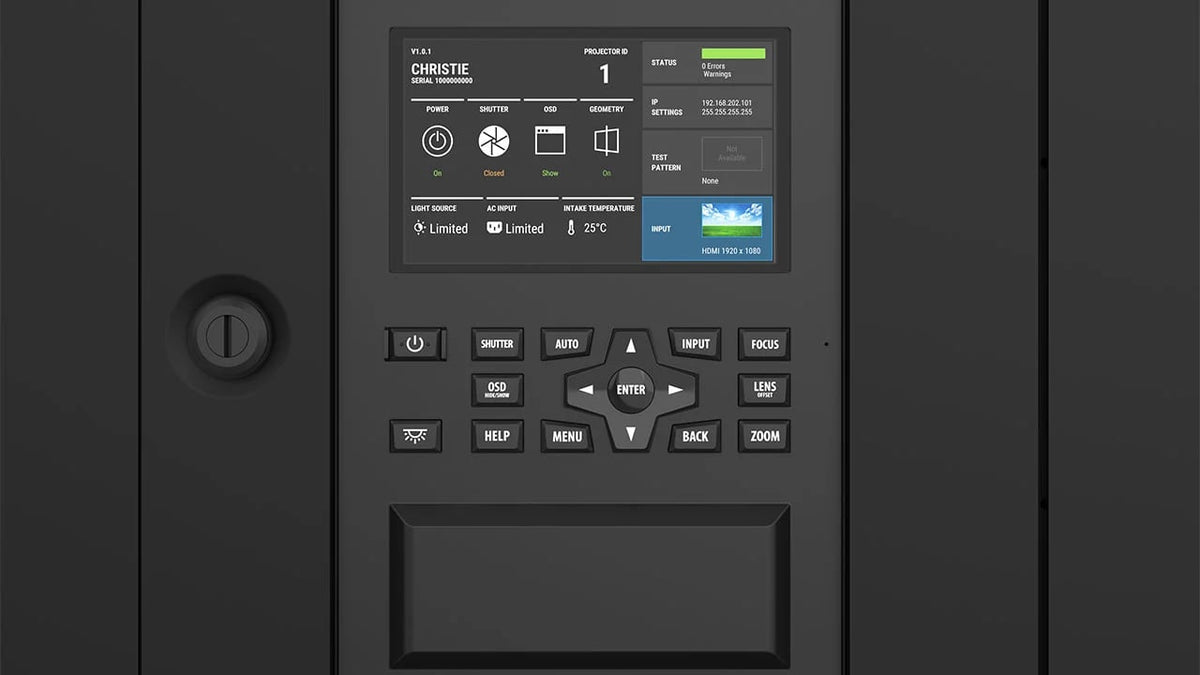

• Control: Ethernet - Control and Web UI; RS232 (Serial); GPIO; Wired keypad
• Power consumption: 2800W typical (9,550 BTU/hr); 3800W max (13,000 BTU/hr)
• Input line voltage: 200-240 VAC, 19A, 50/60Hz Single phase; Connector: IEC60309 30A
• Cooling: Liquid, self-contained
• Laser class: Class 1, Risk Group 3†
• Operating environment: 5-40 C (41-104 F); Relative humidity: 10-80% non-condensing
• Dimensions: (LxWxH): 36.3 x 25 x 15"; (922 x 635 x 380mm) not including lens
• Weight: 197 lbs (89.3 kg)
• Shipping dimensions (L x W x H): 47 x 33 x 30" (1194 x 838 x 762mm)
• Shipping Weight: 261lbs (118.39kg)
• Multi-projector management (optional): Christie Conductor - monitors/controls up to 256 projectors on a single network (complimentary software download)
• True black feature: When enabled, Christie RealBlack™ reduces light output to zero (true black) whenever the projector detects full black frames in the video source content
• TAA-compliant: Optional
• Regulatory: This product conforms to all relevant European directives, standards, safety, health, and environmental concerns. Directives: RoHS, REACH, WEEE Contact Christie for timing of certifications: UL/CSA/IEC 62368-1, FCC Class A, UL, CE, FDA, CCC, KC, PSE, VCCI, RCM, Mexico, BSMI
• Limited warranty: 3 years
