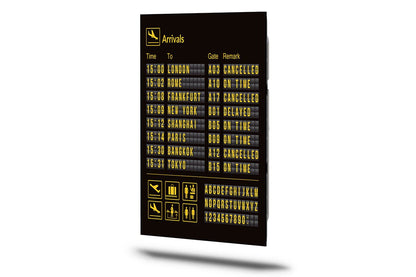

Christie Digital 161-021104-01 MicroTiles LED MBA 0P9375

Christie Digital 161-021104-01 MicroTiles LED MBA 0P9375

Christie MicroTiles^® LED 0.9mm delivers ultra-fine pixel pitch precision combined with unparalleled architectural flexibility for premium installations.

When your project requires exceptional visual clarity with the freedom to create unique shapes and configurations, MicroTiles LED 0.9mm transforms your vision into reality. This premium display solution delivers stunning image quality at any brightness up to 1,500 nits and high contrast to bring every detail to life, making it ideal for government control rooms, mission-critical command centers, simulation and training facilities, and defense applications where visual precision and reliability are non-negotiable.

Powered by VividLife

Engineered for accuracy, reliability, and brilliance, Christie VividLife™ is our LED video processing platform that combines advanced hardware architecture, intelligent processing, pixel-perfect factory calibration, and an incredibly intuitive interface into one seamless system.

Discover VividLife

Ready to start planning your video wall?

 With just a few clicks, our LED designer can help you start designing a wall to fit your space and create a simple reference diagram with a bill of materials. Have a custom idea in mind? Our team of LED experts is ready to help bring your ideas to life.

Start designing

Contact sales

Why choose MicroTiles LED 0.9mm? See what sets it apart from the rest:

• Ultra-fine pixel pitch for critical viewing: Delivers exceptional visual acuity for close-viewing distances where every detail matters, making it ideal for government control rooms, simulation and training environments, command centers, and defense applications requiring flawless image quality and mission-critical reliability.
• Superior color and contrast performance: Experience cinema-quality visuals with DCI-P3 colors, 24-bit output color processing, HDR10 support, and 3,840 Hz refresh rate for smooth, flicker-free imagery.

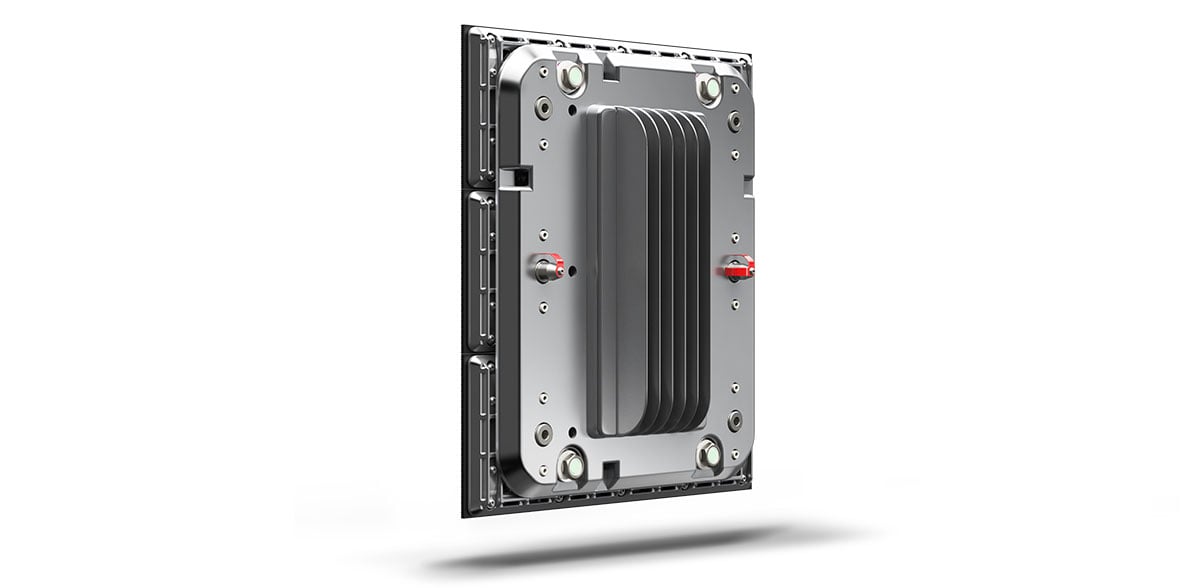

• Designed for increased reliability and efficiency: By using flip-chip technology, MicroTiles LED distributes power evenly across the LEDs and dissipates heat more efficiently. The result is a lower total cost of ownership, greater power efficiency, and a more reliable system without sacrificing visual quality.
• Trusted displays: Designed and manufactured in Canada, MicroTiles LED is a secure, reliable, and fully TAA-compliant LED solution.
• Incredibly intuitive Web UI: Using our E1000 wall controller, you manage inputs, customize color optimizations, perform diagnostics, troubleshoot, and get alerts in real-time.

Discover the truly limitless design freedom of MicroTiles LED

Discover truly limitless design freedom

• Pixel pitch: 0.9375mm
• Pixel configuration: 4-in-1 (4R4G4B)
• Brightness (maximum calibrated): 400 nits (cd/sq m)
• Aspect ratio: 1:1
• Contrast ratio (full field): Greater than 5,000:1
• Viewing angle (degrees) - horizontal / vertical: 160 / 160
• Refresh rate: up to 3,840 Hz
• Scan rate: 1/48
• Color temperature: 2,700-9,600 K
• Display colors: 18 quadrillion (18-bit)
• Color space: DCI-P3
• Power input rating – remote power supply*: 100-240 VAC at 50-60 Hz
• Power input rating – tile: 48 V Power over Ethernet
• Power consumption per tile/cabinet: 15W typical - 35W maximum
• Heat output per tile: 51 BTU/hr typical - 119 BTU/hr maximum
• Operating temperature - degrees F / C: 32-104 F / 0-40 C
• Operating humidity: 10-90% non-condensing
• Storage temperature - degrees F / C: 14-122 F / -10-50 C
• Environment: Indoor
• IP rating: 30
• LED lifespan (50% brightness): 100,000 hrs
• Runtime: 24/7

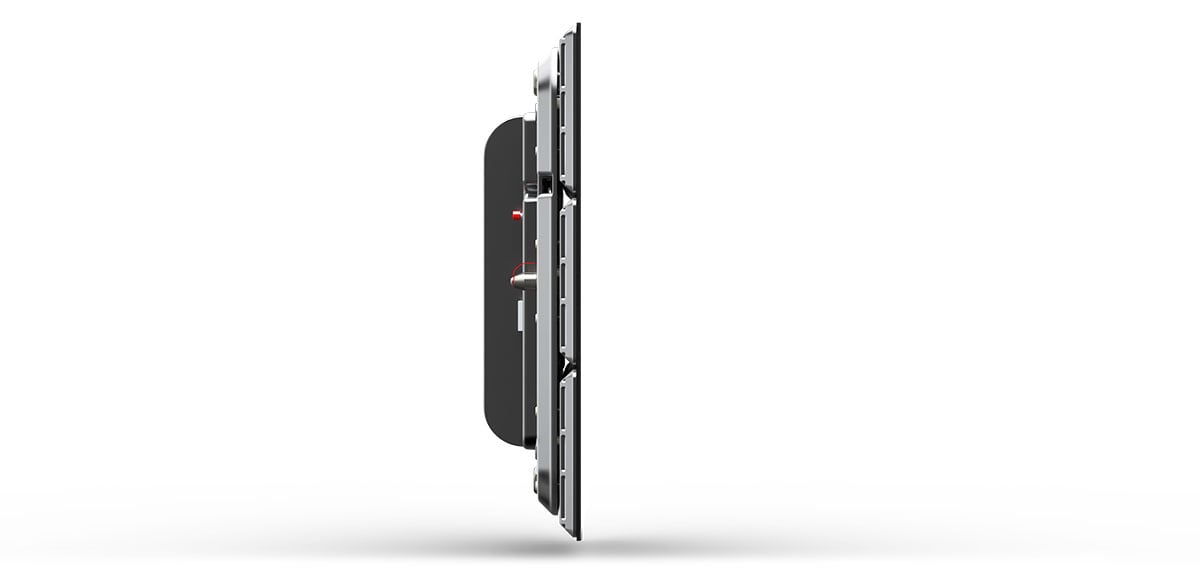

• Tile dimensions (installed): (W x H x D) 10.63 x 10.63 x 3.35" (270 x 270 x 85 mm)
• Diagonal: 15.40" (391.2 mm)
• Tile area: 0.7857 ft² (0.0729 m²)
• Tile resolution: 288 x 288 pixels
• Tile weight: 78.03 lbs (35.39 kg) per square meter

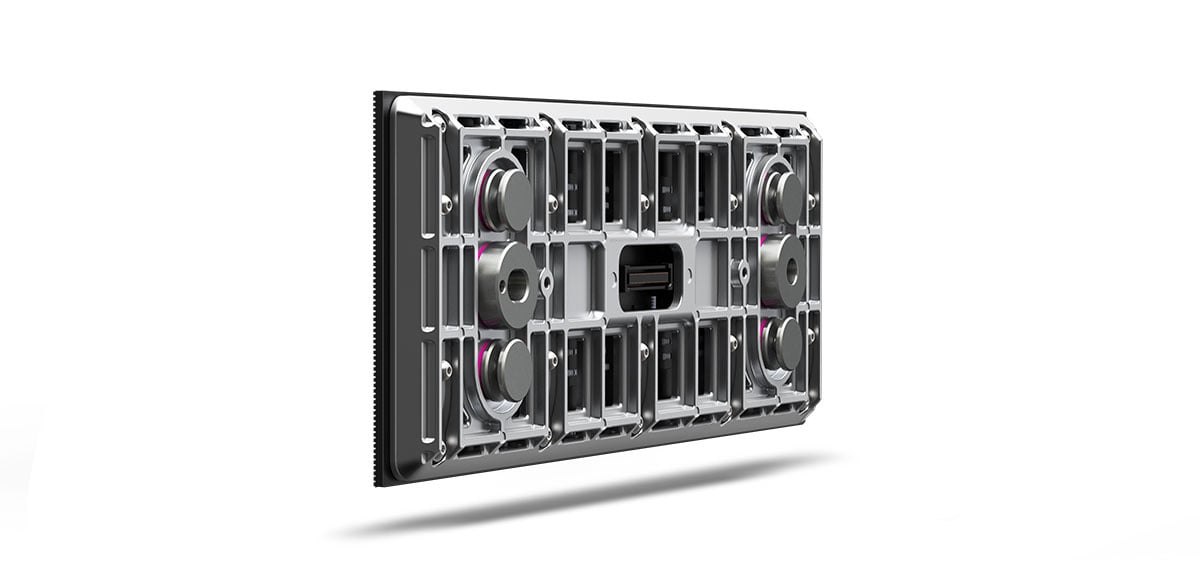

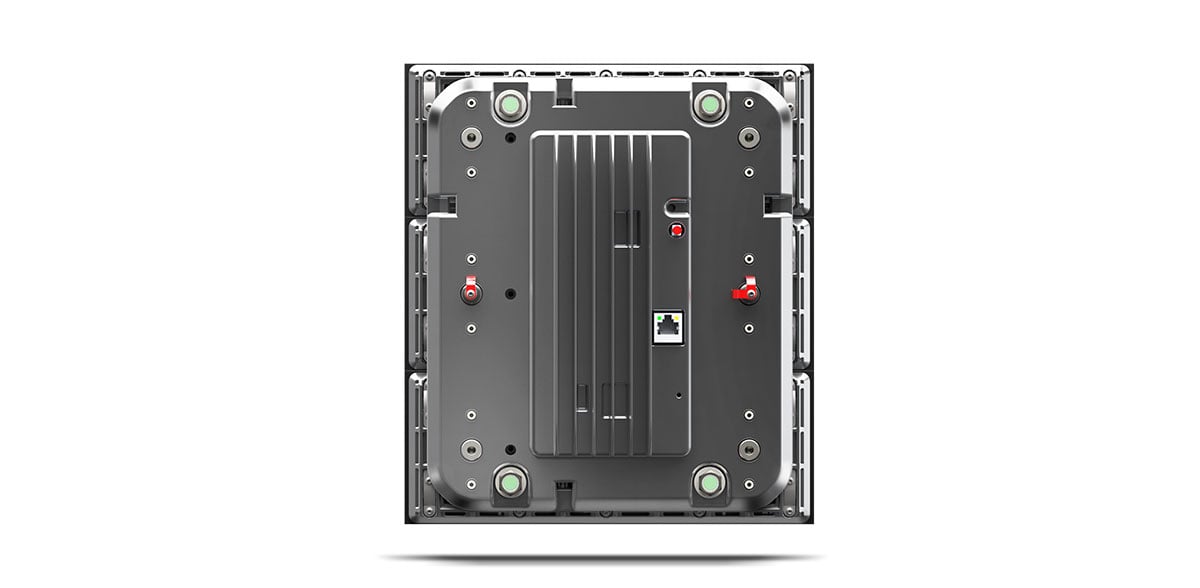

• Tile/cabinet design: Die-cast aluminum
• Installation options: Flat, concave, convex, hanging/flying, creative shapes

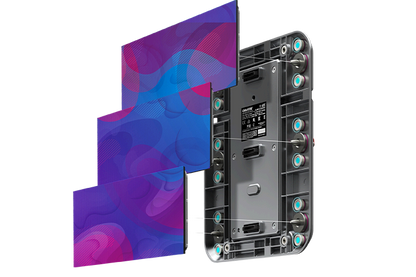

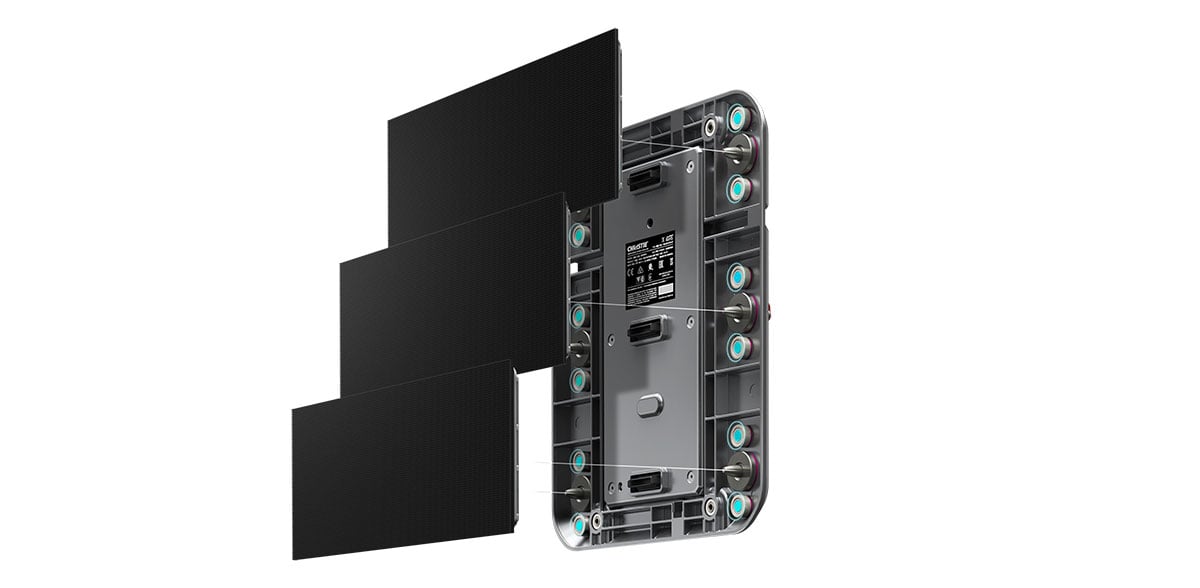

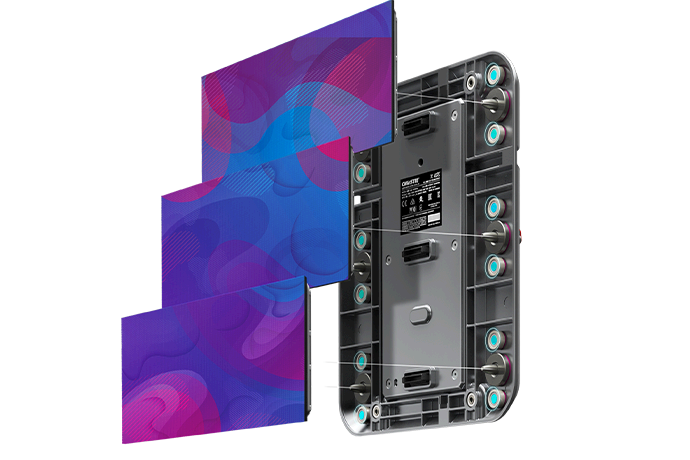

• Direct mount system: QuickMount system included
• Additional required components: Remote power supply rack shelf, power supply unit modules (rectifiers), tile controller (Octroller) and wall controller sold separately
• Inputs: 2 x HDMI 2.0 (HDCP); 2 x DisplayPort 1.2 (HDCP)
• Outputs: 2 x QSFP+ (Bi-directional)
• Control: 1 x RJ45 Ethernet, USB (RS232 via dongle)
• Certifications**: UL60950, FCC, CE, RoHS
• Warranty: Three year parts and labor limited warranty, extended warranty option available for a one-time fee at time of purchase. Contact an authorized Christie representative for full details on our limited warranty?.
• Octroller inputs: 2 x QSFP+ (Bi-directional)
• Octroller outputs: 8 X RJ45 Ethernet (PoE up to 75 W per port)
• Octroller control: 1 x RJ45 Ethernet
• Octroller power: Input rating: 48-56 VDC; Power consumption: 25 W max
• Octroller environment: Operating temperature: 32-104 F (0-40 C); Operating humidity: 10-90%; Storage temperature: 14-122 F (-10-55? C)
