Christie Digital 161-014106-01 MicroTiles LED MBA 0P75 P3

Christie Digital 161-014106-01 MicroTiles LED MBA 0P75 P3

Christie MicroTiles^® LED 0.75mm represents the finest pixel pitch in our MicroTiles LED family, delivering exceptional visual clarity for the most demanding close-viewing applications.

When your project requires breathtaking detail combined with unparalleled architectural flexibility, the ultra-fine 0.75mm transforms your vision into reality. This premium display solution delivers flawless image quality at any brightness up to 2,000 nits to bring every detail to life with remarkable clarity in any installation where visual excellence cannot be compromised.

Powered by VividLife

Engineered for accuracy, reliability, and brilliance, Christie VividLife™ is our LED video processing platform that combines advanced hardware architecture, intelligent processing, pixel-perfect factory calibration, and an incredibly intuitive interface into one seamless system.

Discover VividLife

Ready to start planning your video wall?

 With just a few clicks, our LED designer can help you start designing a wall to fit your space and create a simple reference diagram with a bill of materials. Have a custom idea in mind? Our team of LED experts is ready to help bring your ideas to life.

Start designing

Contact sales

Why choose MicroTiles LED 0.75mm? See what sets it apart from the rest:

• Ultra-fine pixel pitch for critical viewing: Delivers exceptional visual acuity at close-viewing distances where every detail matters, making it ideal for mission-critical control rooms, high-end visualization centers, and premium corporate spaces.
• Superior color and contrast performance: Experience cinema-quality visuals with DCI-P3 colors, 24-bit output color processing, HDR10 support, and 3,840 Hz refresh rate for smooth, flicker-free imagery.
• Designed for increased reliability and efficiency: By using flip-chip technology, MicroTiles LED distributes power evenly across the LEDs and dissipates heat more efficiently. The result is a lower total cost of ownership, greater power efficiency, and a more reliable system without sacrificing visual quality.
• Trusted displays: Designed and manufactured in Canada, MicroTiles LED is a secure, reliable, and fully TAA-compliant LED solution.
• Incredibly intuitive Web UI: Using our E1000 wall controller, you manage inputs, customize color optimizations, perform diagnostics, troubleshoot, and get alerts in real-time.

Discover the truly limitless design freedom of MicroTiles LED

Discover truly limitless design freedom

• Pixel pitch: 0.75mm
• Pixel configuration: 4-in-1 (4R4G4B)
• Brightness (maximum calibrated): 2,000 nits (cd/sq m)
• Aspect ratio: 8:9
• Contrast ratio (full field): Greater than 10000:1
• Viewing angle (degrees) - horizontal / vertical: 160 / 140
• Refresh rate: up to 3840 Hz
• Scan rate: 1/60
• Color temperature: 2,700-9,600 K
• Display colors: 18 quadrillion (18-bit)
• Color space: P3
• Power input rating – remote power supply*: 100-240 VAC @ 50-60 Hz
• Power input rating – tile: 48 V Power over Ethernet
• Power consumption per tile/cabinet: 16W typical - 32W maximum
• Heat output per tile: 55 BTU/hr typical - 109 BTU/hr maximum
• Operating temperature - degrees F / C: 32-104 F / 0-40 C
• Operating humidity: 10-90% non-condensing
• Storage temperature - degrees F / C: 14-122 F / -10-50 C
• Environment: Indoor
• IP rating: 30
• LED lifespan (50% brightness): 100,000 hrs
• Runtime: 24/7
• Tile dimensions (installed): (WxHxD): 9.45 x 10.63 x 3.35" (240 x 270 x 85mm)
• Diagonal: 14.22" (361mm)
• Tile area: 0.70 sq ft (0.0648 sq m)
• Tile resolution: 320 x 360 pixels
• Tile weight: 7.06lbs (3.2kg)
• Tile array size to achieve 1920 x 1080: 6 x 3

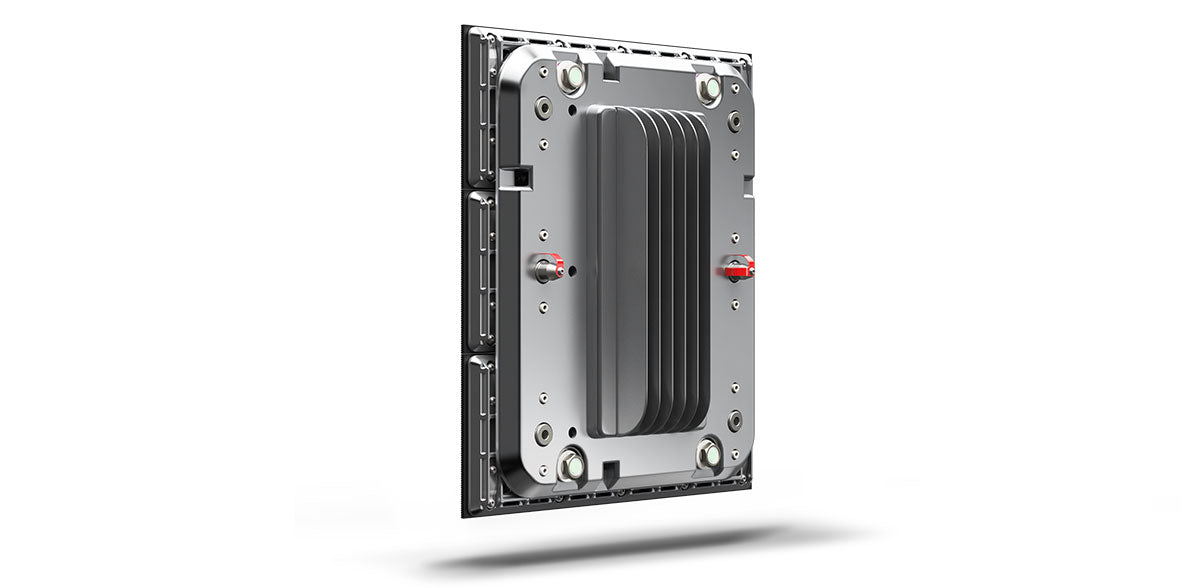

• Tile/cabinet design: Die-cast aluminum
• Orientation: Portrait, (8:9) Landscape (16:9)

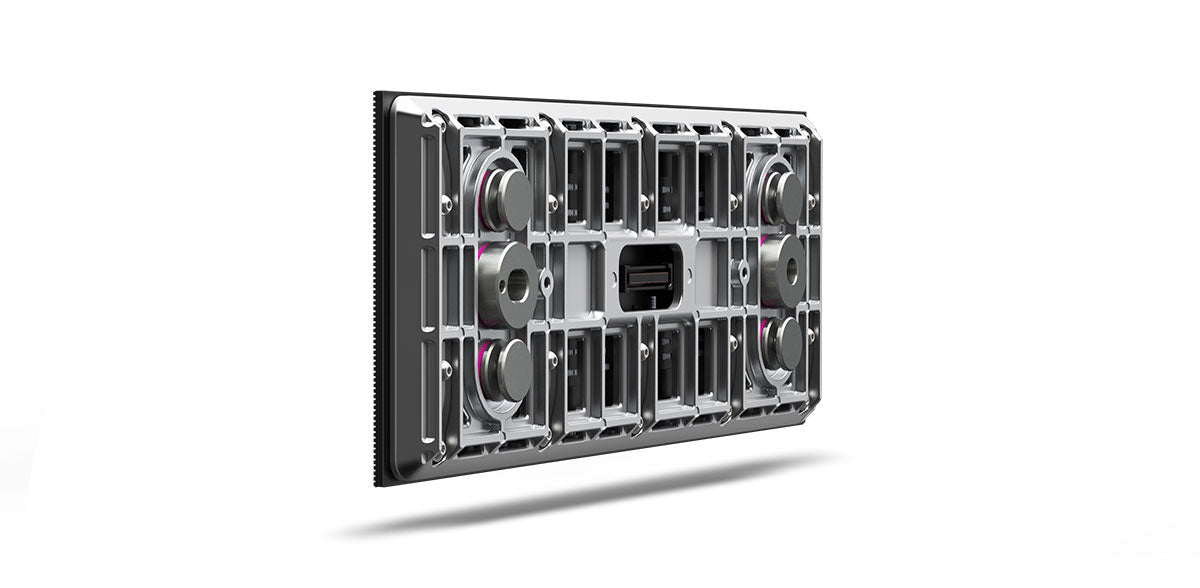

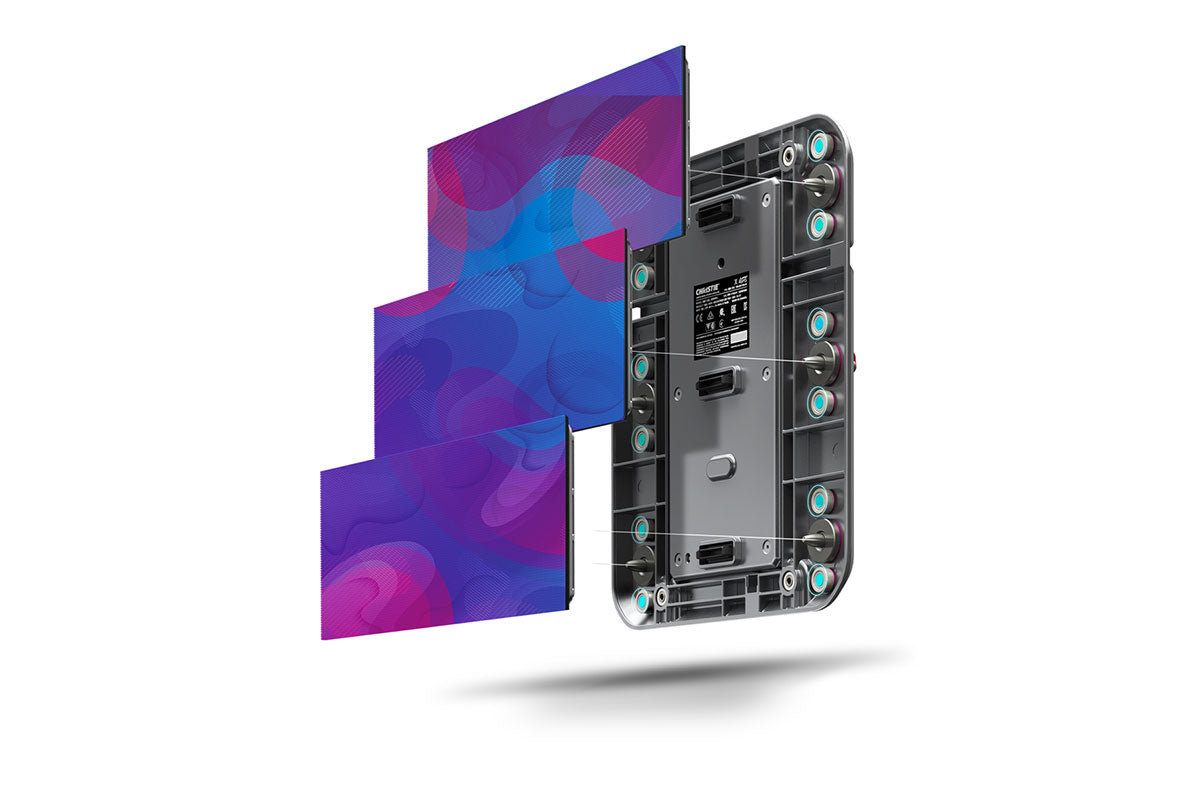

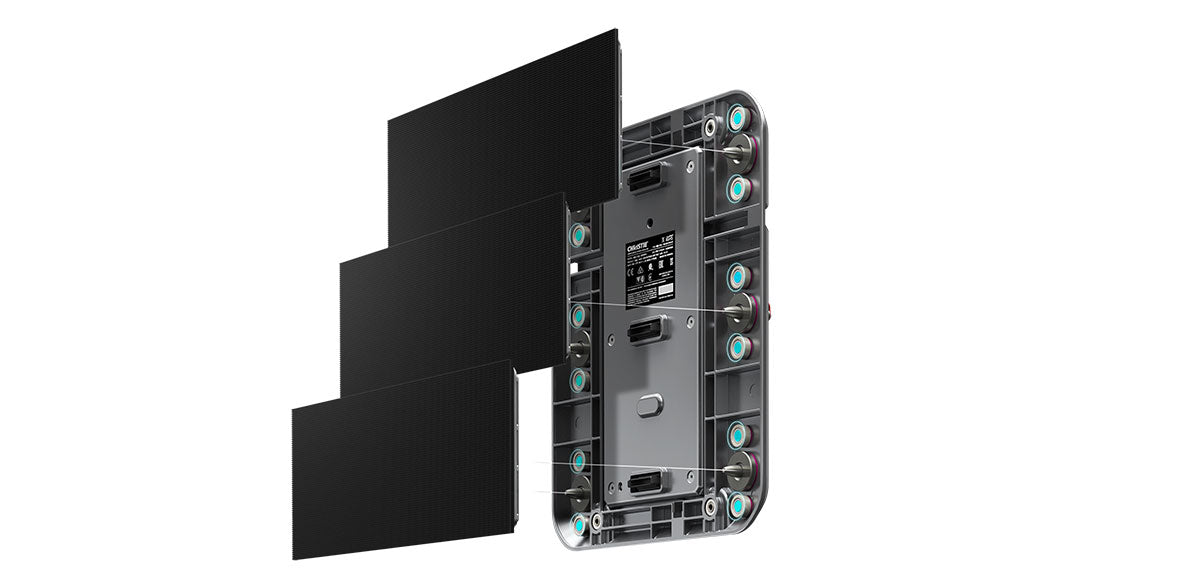

• Module dimensions: (WxH): 9.45 x 3.54" (240 x 90mm)
• Module resolution: 320 x 120 pixels
• Installation options: Flat, concave, convex, 90 degree outside and inside corner, hanging/flying, creative shapes
• Direct mount system: QuickMount system included
• Additional required components: Remote power supply rack shelf, power supply unit modules (rectifiers), tile controller (Octroller) and wall controller sold separately
• Inputs: 2 x HDMI 2.0 (HDCP); 2 x DisplayPort 1.2 (HDCP)
• Certifications**: UL60950, FCC, CE, EMC, RoHS, RC2
• Warranty: Three year parts and labor limited warranty, extended warranty option available for a one-time fee at time of purchase. Contact an authorized Christie representative for full details on our limited warranty?.
• Octroller inputs: 2 x QSFP+ (Bi-directional)
• Octroller outputs: 8 X RJ45 Ethernet (PoE up to 75W per port)
• Octroller control: 1 x RJ45 Ethernet
• Octroller power: Input rating: 48-56 VDC; Power consumption: 25W max
• Octroller environment: Operating temperature: 32-104 F (0-40 C); Operating humidity: 10-90%; Storage temperature: 14-122F (-10-55? C)
