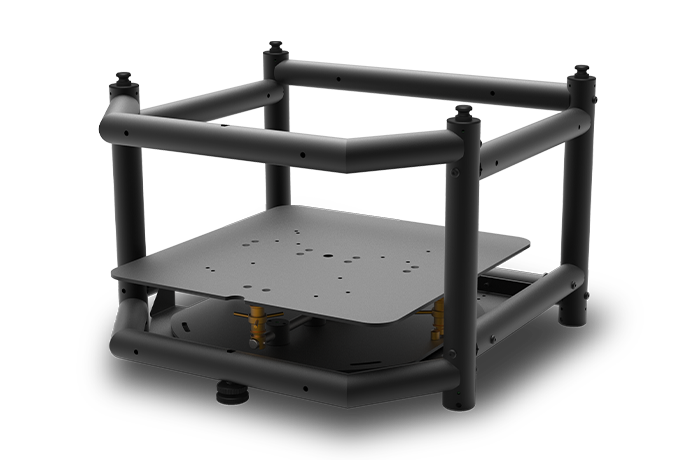

Christie Digital 140-154101-01 Christie QwikRig Rigging Frame V2 GS, and Inspire series.
This version redesigns the Christie® QwikRig Rigging Frame to support the use of Ultra Short Throw (UST) L-shaped lenses, including the GS UST 0.37-0.4:1 GS series lens. Designed for the newest GS and Inspire Series 1DLP® projectors, this single assembly rigging frame fastens to the bottom of your projector. Up to three V2 frames and projectors can be stacked and rigged in normal or inverted orientations.
This frame can also be used to mount the projectors to truss in portrait orientation.
Installation and adjustments can be done quickly and easily by one person.
Features:
- Independent controls for adjusting pitch, yaw and tilt for quicker and more accurate setup with lock downs available for each adjustment.
- Individual projector adjustments within a stack (up to three projectors high) enabling modifications to a single projector without affecting the other connected projectors
- Standard tubing (50mm OD pipe) accommodates common burger and industry clamps
- Design enables easy access to projector for installation, filter replacements and maintenance
- ?Required for use of L-shaped UST lenses
- Packaged (GW): 28.25kg (62.78lbs)
- Unpacked: 25.65kg (57lbs)
