Christie Digital 135-054100-01 SECURE SERIES III, SUHD98-V3 - 98"

Christie Digital 135-054100-01 SECURE SERIES III, SUHD98-V3 - 98"

When security is your highest priority, Christie^® Secure Series III 4K UHD LCD panels deliver performance, display integrity, and reliability you can trust 24/7. With TAA and NDAA compliance and secure firmware architecture, we take security for government and defense seriously.

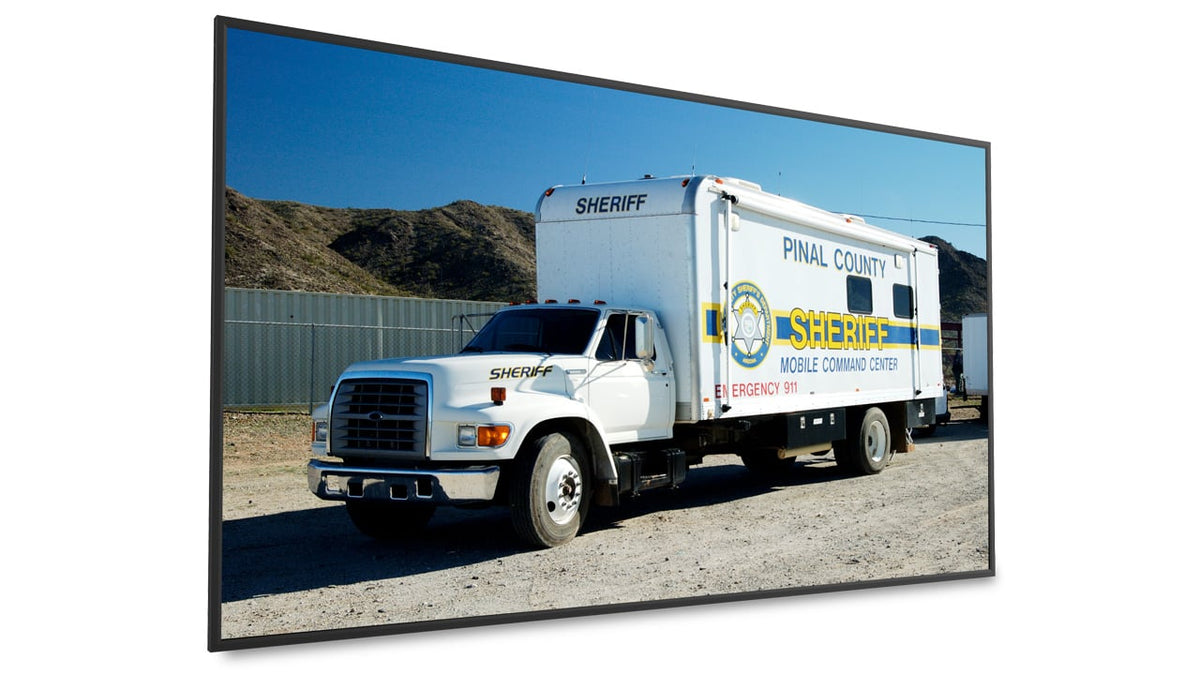

Engineered to meet the unique demands of the highest security environments, Secure Series III is ideally suited for small- to mid-sized control rooms, situation rooms, training centers, and mobile command units. The purpose-built design eliminates conventional attack layers and adheres to strict data protection protocols, making Secure Series III our most secure flat-panel displays ever.

Interested in Secure Series  III?

For customers in the U.S, get in touch with a Christie representative for product information or to place an order.

What makes Secure Series III a trusted LCD solution?

• Encrypted firmware protection: All firmware updates are signed and encrypted so only authorized software can be installed, preventing unauthorized access, tampering, and malware installation throughout the product lifecycle.
• Volatile memory data protection: All on-screen data is automatically erased when the display powers down to protect sensitive content. Secure Series III supports ‘statement of volatility’ requirements used in high-security environments.
• Configurable interface lockdown: Interfaces such as RS-232, LAN, IR, and keypad controls can be disabled as needed to limit access points and align the display with internal security policies.
• Professional 4K UHD image quality: You get sharp detail and accurate visuals for maps, video feeds, dashboards, and mission-critical content thanks to 4K UHD resolution with 500 nits of brightness and 1 billion colors.

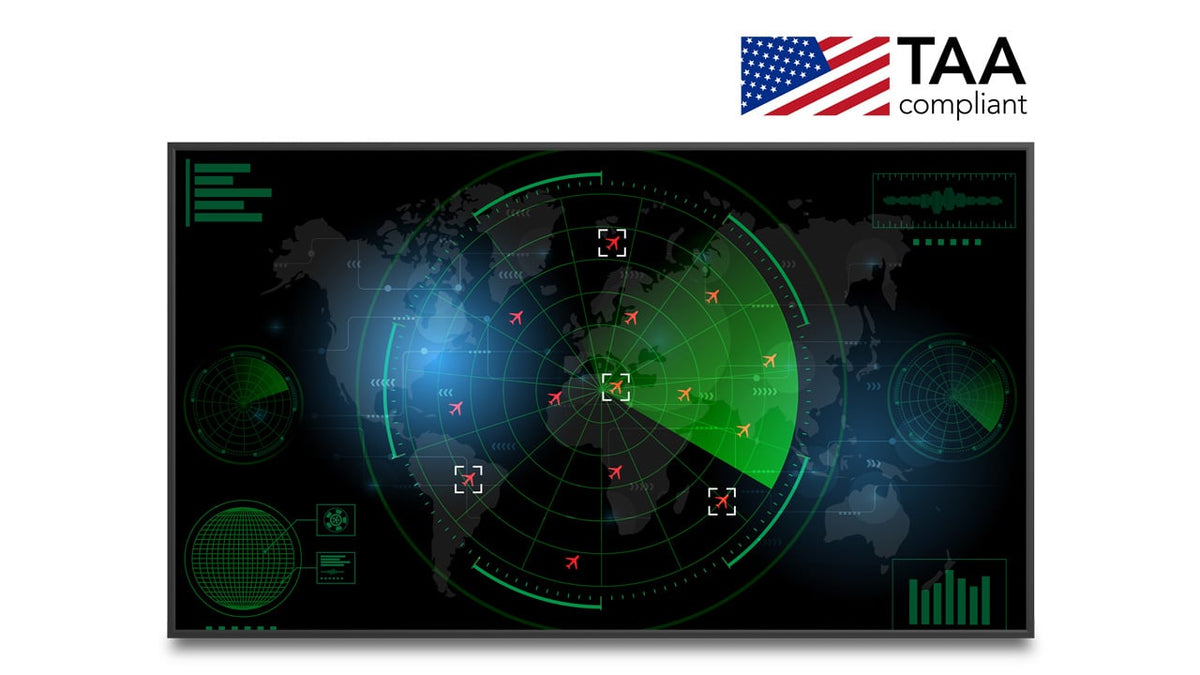

• Compliance for government projects: Secure Series III is both TAA- and NDAA-compliant to support government procurement requirements, with additional certifications for professional and regulated environments.

Engineered for continuous 24/7 operation.

Designed for always-on environments with a reliable power supply and stable performance, Secure Series III delivers around the clock operation you can trust.

Purpose-built secure display architecture

Designed for secure environments, Secure Series III has no Wi-Fi, no RF capability, and no embedded operating system to help eliminate common wireless and software-based attack surfaces found in conventional displays.

Sharp landscape or portrait screen visibility in ambient lighting

Anti-glare treatment and wide viewing angles ensure critical information is clearly visible from anywhere in the room, even under challenging lighting conditions.

Multi-source viewing with built-in failover

Display up to four UHD sources simultaneously using quad-view, picture-in-picture, or picture-by-picture layouts. Built-in source failover helps maintain visibility if the primary input is lost, automatically switching to the secondary input.

Specifications

• Native resolution: 4K UHD 3840 x 2160 (16:9)
• Backlight: Direct LED

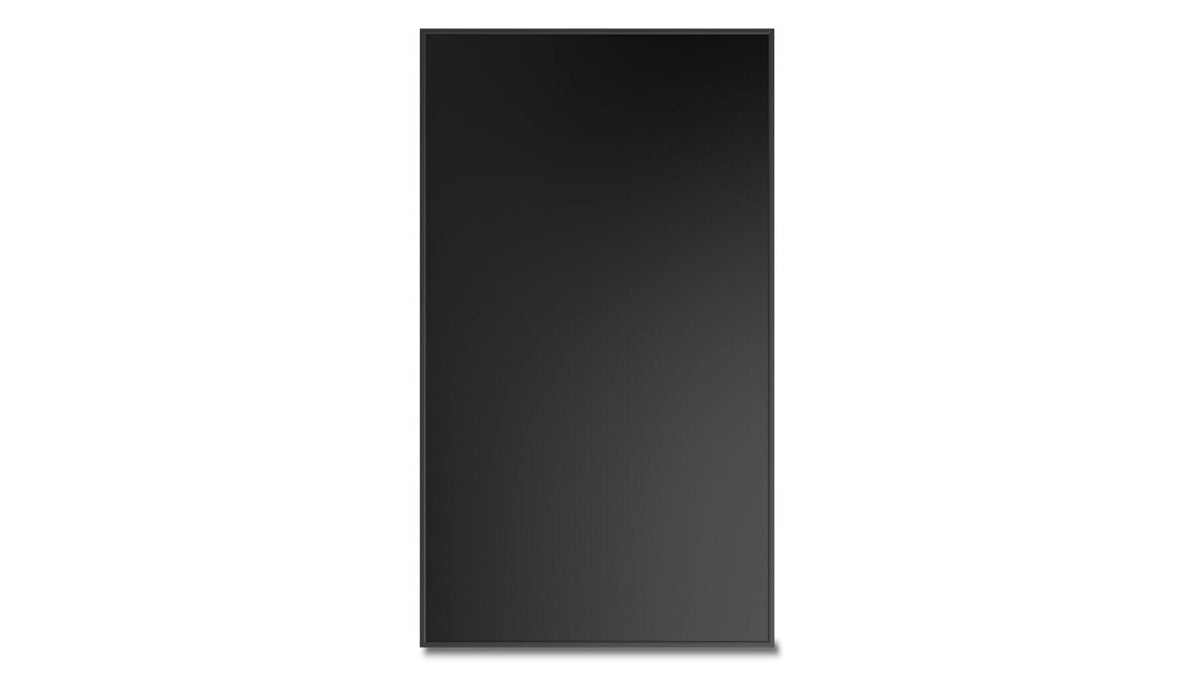

• Display orientation: Portrait or landscape
• Pixel pitch (WxH): 0.562 x 0.562mm
• Bezel size (bottom/side/top): 28.5mm/ 28.5mm/ 28.5mm
• Brightness (typical) - (cd/sq m): 500 nits
• Contrast ratio (typical): 1,200:1
• Viewing angle (CR 10:1): 178 degrees h/v
• Refresh rate: 60 Hz
• Response time (typical): 8ms
• Color space typical (CIE 1931): 72% typical
• Display colors: 10-bit, 1.07 billion
• Video inputs: 2x DisplayPort (version 1.2); 2x HDMI (version 2.0); 2 x HDMI (version 1.4); VGA / DisplayPort 1.2 Out
• Audio:: Input: 3.5mm analog; Output: 3.5mm analog SPDIF digital
• Control inputs: RS-232 (D-Sub9); LAN (RJ45); IR wire extender; USB-A for service
• Power input rating: 100-240 VAC
• Power consumption: 440 W typical; 610 W maximum
• Operating temperature: 0–40 °C (32–104 °F)
• Storage temperature: –20–60 °C (–4–140 °F)
• Operating humidity: 10–80% RH
• Physical size (panel only): 2218.8 x 1274.3 x 91.7 mm (W × H × D)
• Weight: Net: 67 kg (148 lb); Gross: 84 kg (185 lb)
• Mounting: VESA 1000 × 400 M8 (Landscape); VESA 1000 × 800 M8 (Portrait)
• Runtime: Designed for 24/7 operation featuring a reliable power supply*
• Certifications: TAA, NDAA
• Features: ADA-compliant; Anti-glare treatment; 2 x 10W speakers; Source switching for failover; No RF capability; Four window multi-source UHD viewing; (Quadview, PiP, PBP)
• Accessories: HDMI cable – Black, 1800 mm ±50 mm, Power cord (US type) – Black, 1800 mm ±50 mm, IR receiver, Remote control, Battery
• Warranty: Three-year standard limited warranty.; Contact an authorized Christie representative or channel partner for extended warranty and more details.
