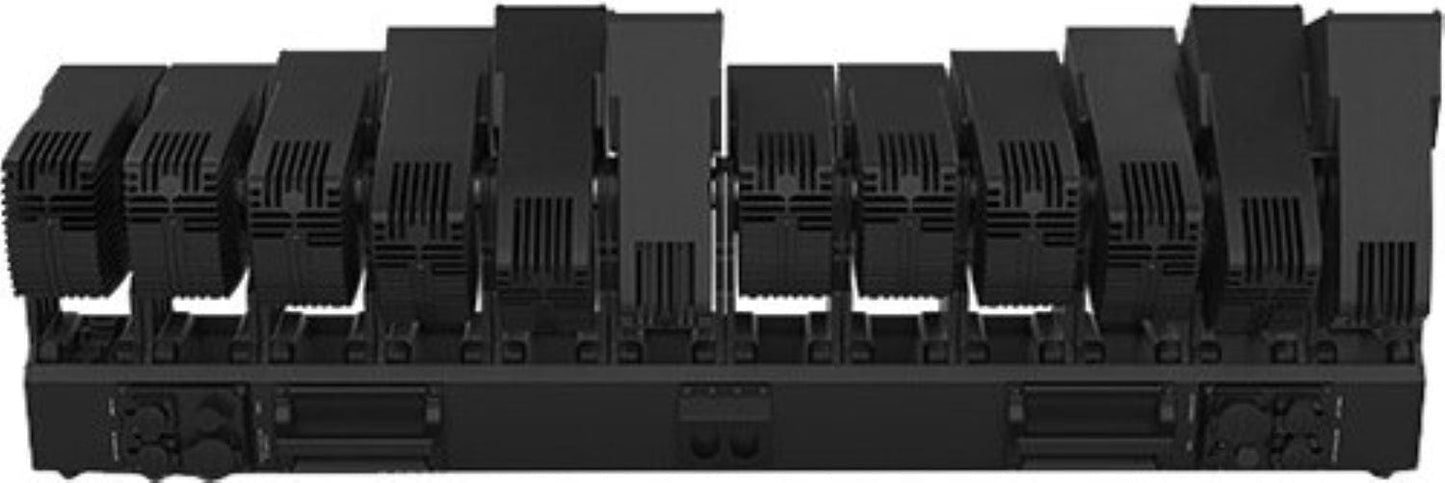

ChauvetPro COLORado PXL Curve 12 IP65 Motorized Articulated Linear Bar Light
The CHAUVET PROFESSIONAL COLORado PXL Curve 12 LED Light is a fully pixel-mappable motorized IP65-rated RGBW LED batten with individual control of zoom, tilt, and color across twelve independent heads. Basic and advanced operating modes and an extensive library of pre-built effects that includes virtual gobos, movement macros, and foreground/background color control make creating complex and volumetric looks easy. Seamless edge-to-edge mounting maintains pixel pitch between fixtures, helping to make runway effects consistent. The COLORado PXL Curve 12 is compatible with DMX, sACN, Art-Net, Kling-Net, and RDM.
Features:
- IP65-Rated Weatherproof
- RGBW LED Fixture
- Individual Zoom of Tilt & Color Control
- DMX, sACN, Art-Net, Kling-Net & RDM
Specifications:
- Light:
- Fixture Type: Linear/Bar Light / Moving Head
- Light Source: 12x Color LED - 45 W / 2.96 A
- Expected Lamp Life: 50,000 Hours
- Colors: Blue, Green, Red, White
- Pixel Configuration: 12x Zone
- Photometrics:
- 5.7°: 3597 fc / 38,727 Lux at 16.4' / 5 m
- 26.8°: 104 fc / 1120 Lux at 0' / 5 mm
- Color Temperature: 2700 to 8000K
- Lumen Output: 5807 Lumens
- Beam Angle: 5.7 to 26.8°
- Field Angle: 9 to 33.9°
- Shutter / Strobe: Electronic
- Iris: No
- Zoom Adjustment: Motorized, 5.7 to 36.3°
- Dimming: Electronic
- Performance:
- Operating Modes: DMX
- Macros / Programs: Auto-Program
- Effects: Strobe
- Strobe Rate: 0 to 20 Hz
- Gobos: No
- Movement:
- Tilt Ranges: 200° / 180°
- Control:
- Control Protocols: DMX512, RDM, Art-Net, Kling-Net, sACN
- DMX Channel Modes:
- 5 Mode(s): 20 / 53 / 101 / 155 / 179-Channel
- Remote Control: No
- Mobile App Compatible: No
- Connectivity:
- Inputs/Outputs:
- 1 x XLR 5-Pin DMX Input
- 1 x XLR 5-Pin DMX Output
- 1 x etherCON/RJ45 Network Input
- 1 x etherCON/RJ45 Network Output
- Wireless: No
- Power:
- AC Input Power: 120 to 240 VAC, 50/60 Hz
- AC Power Connector:
- Input: 1x Seetronic IP-Rated
- Output: 1x Seetronic IP-Rated
- Plug Type: NEMA 5-15
- Cord Length: 5' / 1.5 m
- Fuse: F 12 A 250 V
- Power / Current Consumption:
- 120 VAC, 60 Hz: 790 W
- 208 VAC, 60 Hz: 772 W
- 230 VAC, 50 Hz: 768 W
- Power Linking:
- 1 Units at 120 VAC
- 3 Units at 208 VAC
- 3 Units at 230 VAC
- Environmental:
- Environmental Protection: Dust/Water-Resistant (IP65)
- Operating Temperature: 14 to 113°F / -10 to 45°C
- Physical:
- Mounting: Omega Bracket
- Included Accessories: 1x Power Cable
- Duty Cycle: No
- Exterior Color: Black
- Cooling: Fan
- Certifications: CE, MET, UKCA, FCC
- Dimensions: 39.49 x 12.76 x 6.65" / 100.3 x 32.41 x 16.89 cm
- Weight: 76 lb / 34.5 kg
- Light:
- Fixture Type: Linear/Bar Light / Moving Head
- Light Source: 12x Color LED - 45 W / 2.96 A
- Expected Lamp Life: 50,000 Hours
- Colors: Blue, Green, Red, White
- Pixel Configuration: 12x Zone
- Photometrics:
- 5.7°: 3597 fc / 38,727 Lux at 16.4' / 5 m
- 26.8°: 104 fc / 1120 Lux at 0' / 5 mm
- Color Temperature: 2700 to 8000K
- Lumen Output: 5807 Lumens
- Beam Angle: 5.7 to 26.8°
- Field Angle: 9 to 33.9°
- Shutter / Strobe: Electronic
- Iris: No
- Zoom Adjustment: Motorized, 5.7 to 36.3°
- Dimming: Electronic
- Performance:
- Operating Modes: DMX
- Macros / Programs: Auto-Program
- Effects: Strobe
- Strobe Rate: 0 to 20 Hz
- Gobos: No
- Movement:
- Tilt Ranges: 200° / 180°
- Control:
- Control Protocols: DMX512, RDM, Art-Net, Kling-Net, sACN
- DMX Channel Modes:
- 5 Mode(s): 20 / 53 / 101 / 155 / 179-Channel
- Remote Control: No
- Mobile App Compatible: No
- Connectivity:
- Inputs/Outputs:
- 1 x XLR 5-Pin DMX Input
- 1 x XLR 5-Pin DMX Output
- 1 x etherCON/RJ45 Network Input
- 1 x etherCON/RJ45 Network Output
- Wireless: No
- Inputs/Outputs:
- Power:
- AC Input Power: 120 to 240 VAC, 50/60 Hz
- AC Power Connector:
- Input: 1x Seetronic IP-Rated
- Output: 1x Seetronic IP-Rated
- Plug Type: NEMA 5-15
- Cord Length: 5' / 1.5 m
- Fuse: F 12 A 250 V
- Power / Current Consumption:
- 120 VAC, 60 Hz: 790 W
- 208 VAC, 60 Hz: 772 W
- 230 VAC, 50 Hz: 768 W
- Power Linking:
- 1 Units at 120 VAC
- 3 Units at 208 VAC
- 3 Units at 230 VAC
- Environmental:
- Environmental Protection: Dust/Water-Resistant (IP65)
- Operating Temperature: 14 to 113°F / -10 to 45°C
- Physical:
- Mounting: Omega Bracket
- Included Accessories: 1x Power Cable
- Duty Cycle: No
- Exterior Color: Black
- Cooling: Fan
- Certifications: CE, MET, UKCA, FCC
- Dimensions: 39.49 x 12.76 x 6.65" / 100.3 x 32.41 x 16.89 cm
- Weight: 76 lb / 34.5 kg
