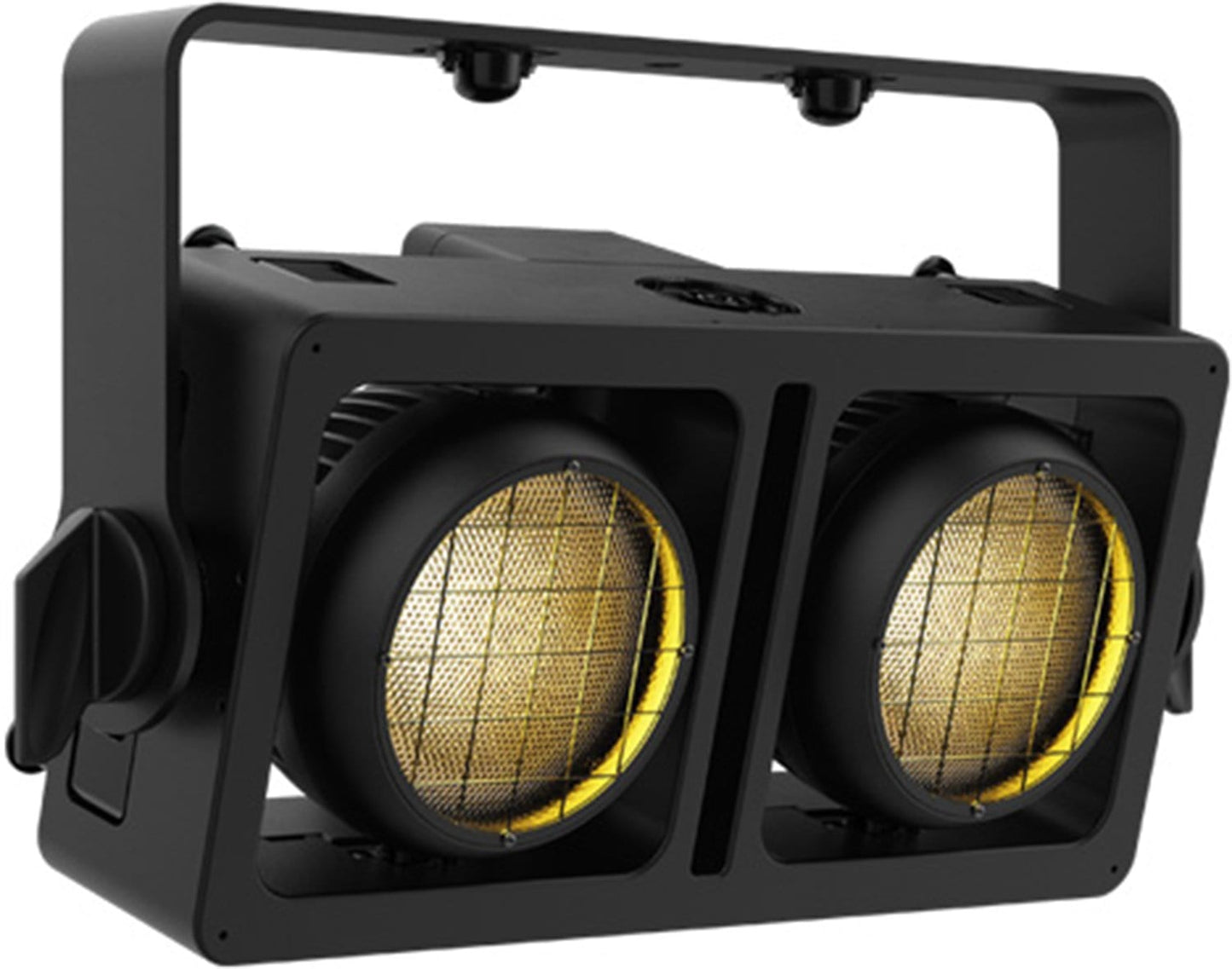

Chauvet Strike Array 2 Outdoor Ready Blinder

Chauvet Strike Array 2 Outdoor Ready Blinder

STRIKE Array 2 is an outdoor-ready audience blinder powered by two intense warm white LEDs housed in independently focusable pods. An emulated “amber shift” warms the color temperature of the light as it dims to deliver a classic tungsten look. Its variable PWM and high CRI make it ideal for broadcast applications. Thanks to a custom interlocking system CHAUVET Professional has developed, STRIKE Array 2 can be interconnected with multiple Array units for scalable design configurations without any tools. Omega-Bracket locks are also installed both on the yoke and the back of the IP65 blinder to give you a streamlined truss mounting process.

Features:

• Intense 2 pod blinder/strobe rated IP65 for all-weather use
• Emulated “red shift” to mimic incandescent fixtures perfectly.
• Individual pan (or tilt, depending on mount orientation) of each head to allow for directional adjustment of light output.
• Innovative interlocking system to connect multiple Strike Array 2s and Strike Array 4s together.
• Multiple mounting locations with ¼ turn adaptors for creative and convenient rigging options
• 16-bit dimming control for smooth, perfect fades
• Strobe functionality for high-impact effects on the fly
• Easy to use OLED display
• Adjustable Pulse Width Modulation (PWM) and RDM (Remote Device Management) for added flexibility

Specifications:

• Optical
  • Light Source: 96 LED (WW) 1.33 W, (2.2 A), 2700 K, 50,000 hours life expectancy
  • Light Source: 10 LED (Amber) 2.63 W, (.750 A), 50,000 hours life expectancy
  • Color Temperature (at full): 2792 K
  • CRI: 92.9
  • TLCI: 91
  • Beam Angle: 60.3°
  • Field Angle: 99°
  • Illuminance (total): 360 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz
• Dynamic Effects
  • Dimmer: Electronic
  • Strobe Rate: 0 to 25 Hz
  • Dim Modes: 4
  • Built-in Automated Programs: Yes
• Construction / Physical
  • Dimensions: 18.5 x 10.4 x 6.3 in (469 x 264.5 x 161 mm)
  • Dimensions (shipping size): 20.7 x 8.5 x 12.8 in (525 x 215 x 325 mm)
  • Weight: 17.6 lb (8 kg)
  • Weight (shipping weight): 21.6 lb (9.8 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
• Connections
  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR
  • Cable Length (power): 5 ft (1.5 m)
• Control
  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 2, 3, 4, 5, or 8
• Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 11 units @ 100 V; 13 units @ 120 V; 22 units @ 208 V; 24 units @ 230 V;25 units @ 240 V
  • Power and Current: 124 W, 1.24 A @ 100 V, 60 Hz [3.1 A inrush]
  • Power and Current: 123 W, 1.04 A @ 120 V, 60 Hz [1.8 A inrush]
  • Power and Current: 127 W, 0.61 A @ 208 V, 60 Hz [1.9 A inrush]
  • Power and Current: 129 W, 0.56 A @ 230 V, 50 Hz [3.8 A inrush]
  • Power and Current: 130 W, 0.54 A @ 240 V, 50 Hz [1.2 A inrush]
  • Power and Current (resting): 3 W, .021 A @ 100 V, 60 Hz
  • Power and Current (resting): 4 W, .029 A @ 120 V, 60 Hz
  • Power and Current (resting): 7 W, .040 A @ 208 V, 60 Hz
  • Power and Current (resting): 9 W, .040 A @ 230 V, 50 Hz
  • Power and Current (resting): 10 W, .044 A @ 240 V, 50 Hz
• Certifications / Qualifications
  • CE, MET
  • IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
• What's Included
  • Strike Array 2
  • Seetronic Powerkon IP65
  • Omega bracket with mounting hardware
  • Warranty Card
  • Quick Reference Guide or User Manual
• Optional Accessories
  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Seetronic Powerkon power linking cables
  • 5-pin IP or Non-IP DMX Cables
