Chauvet Professional WELLPOD3X4 WELL Pod 3: 4-Pack

Chauvet Professional WELLPOD3X4 WELL Pod 3: 4-Pack

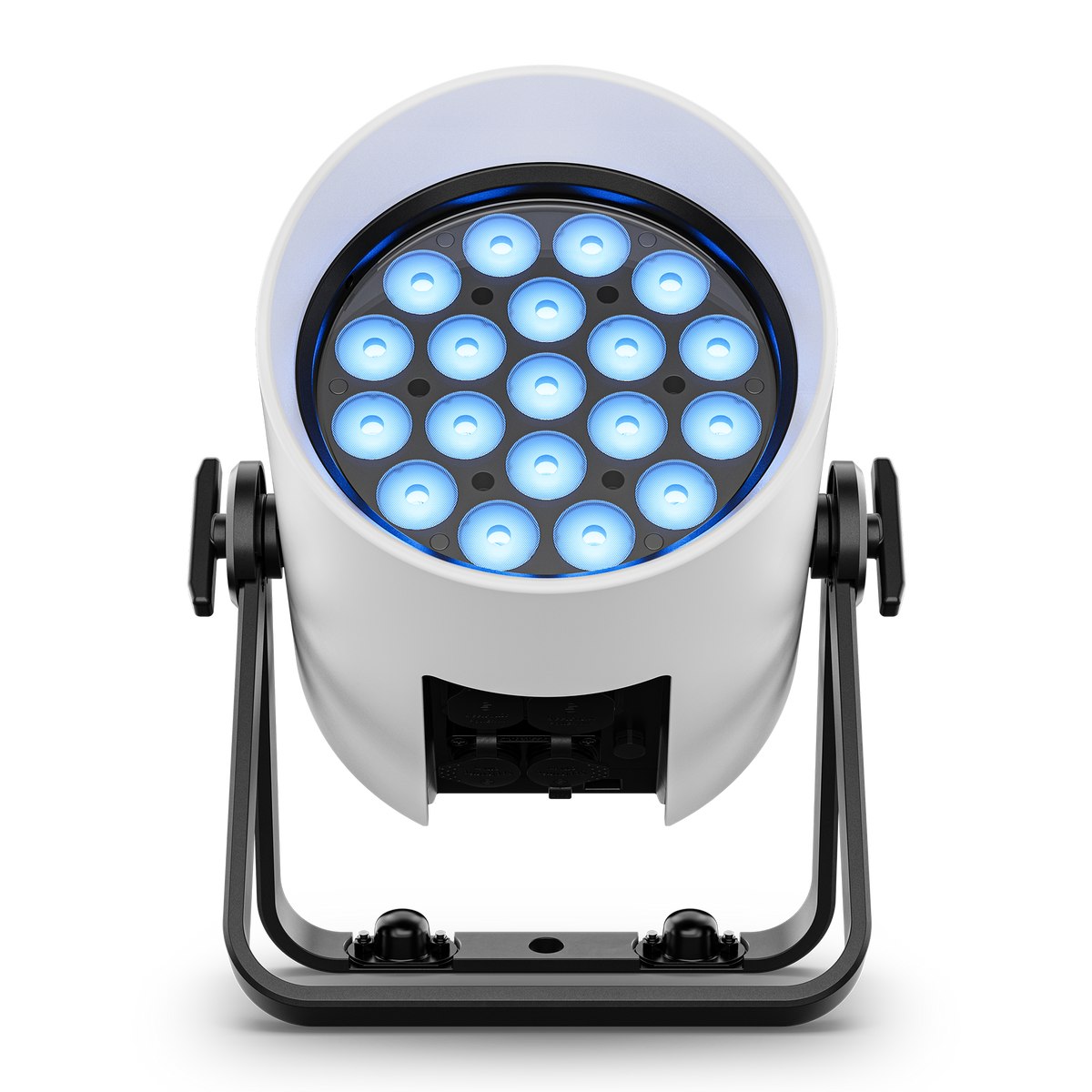

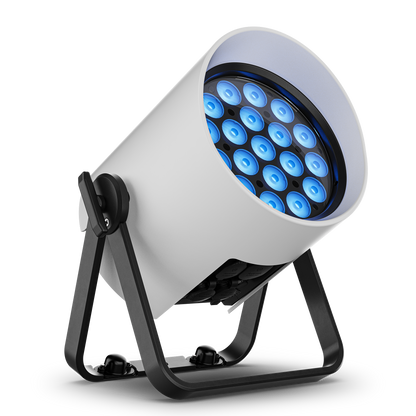

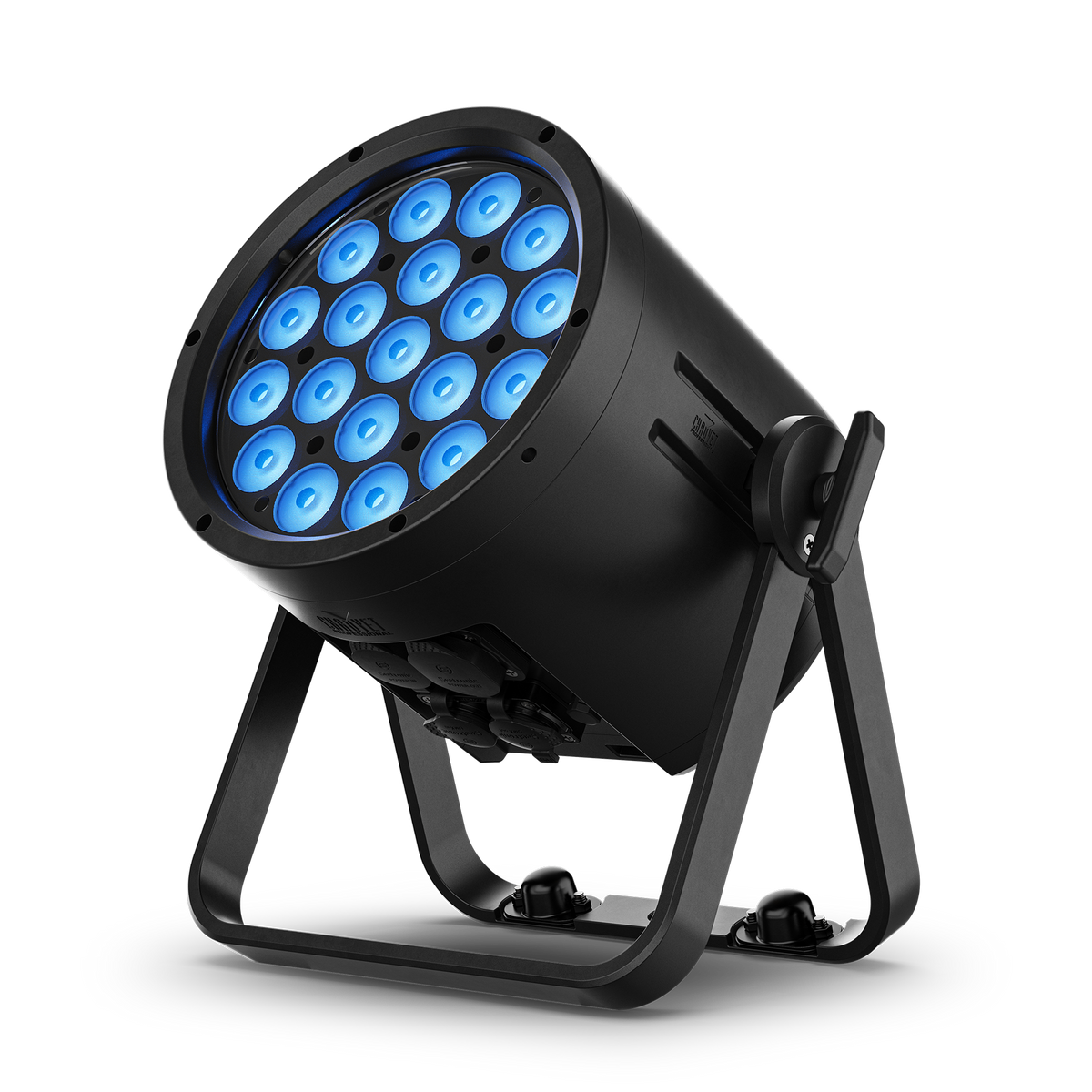

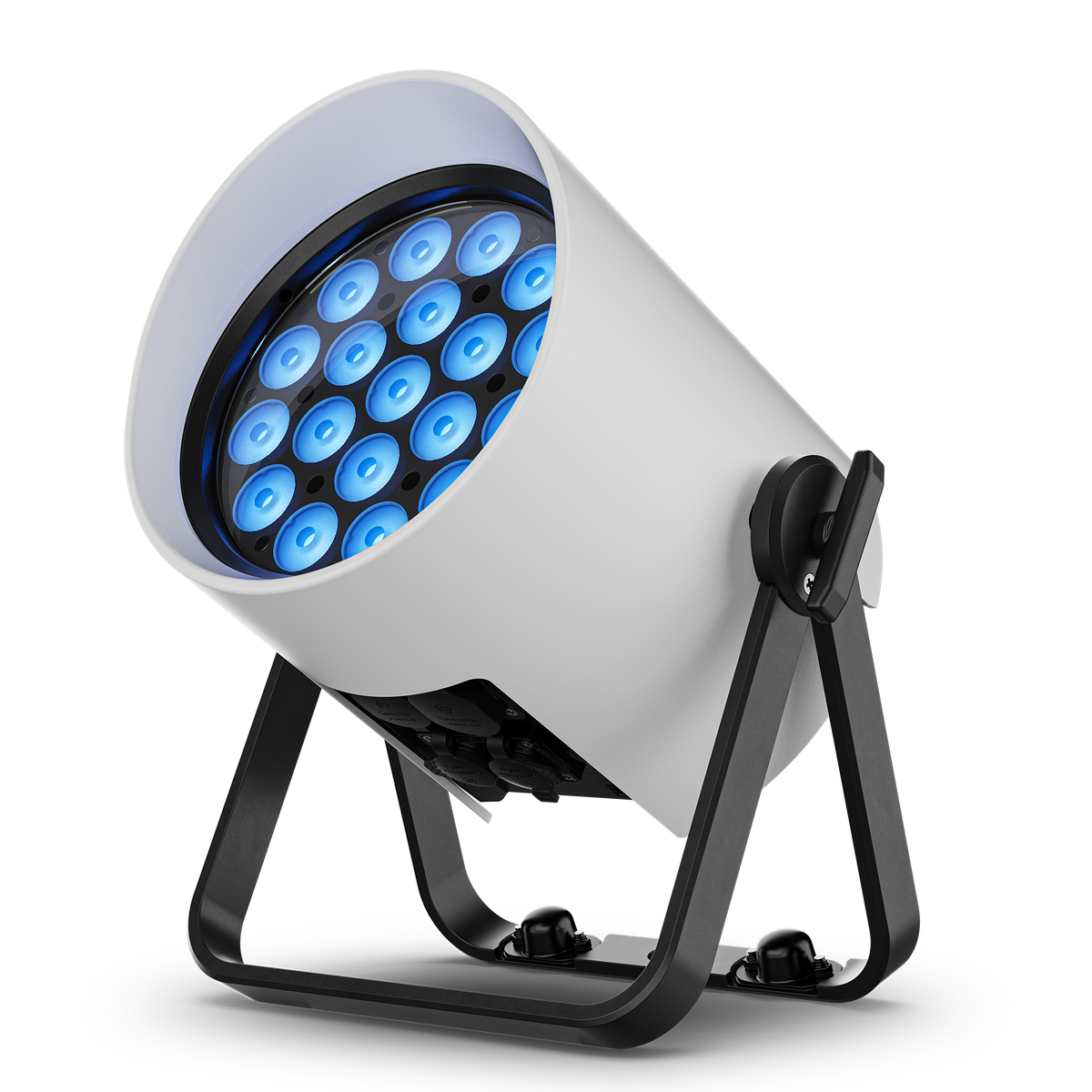

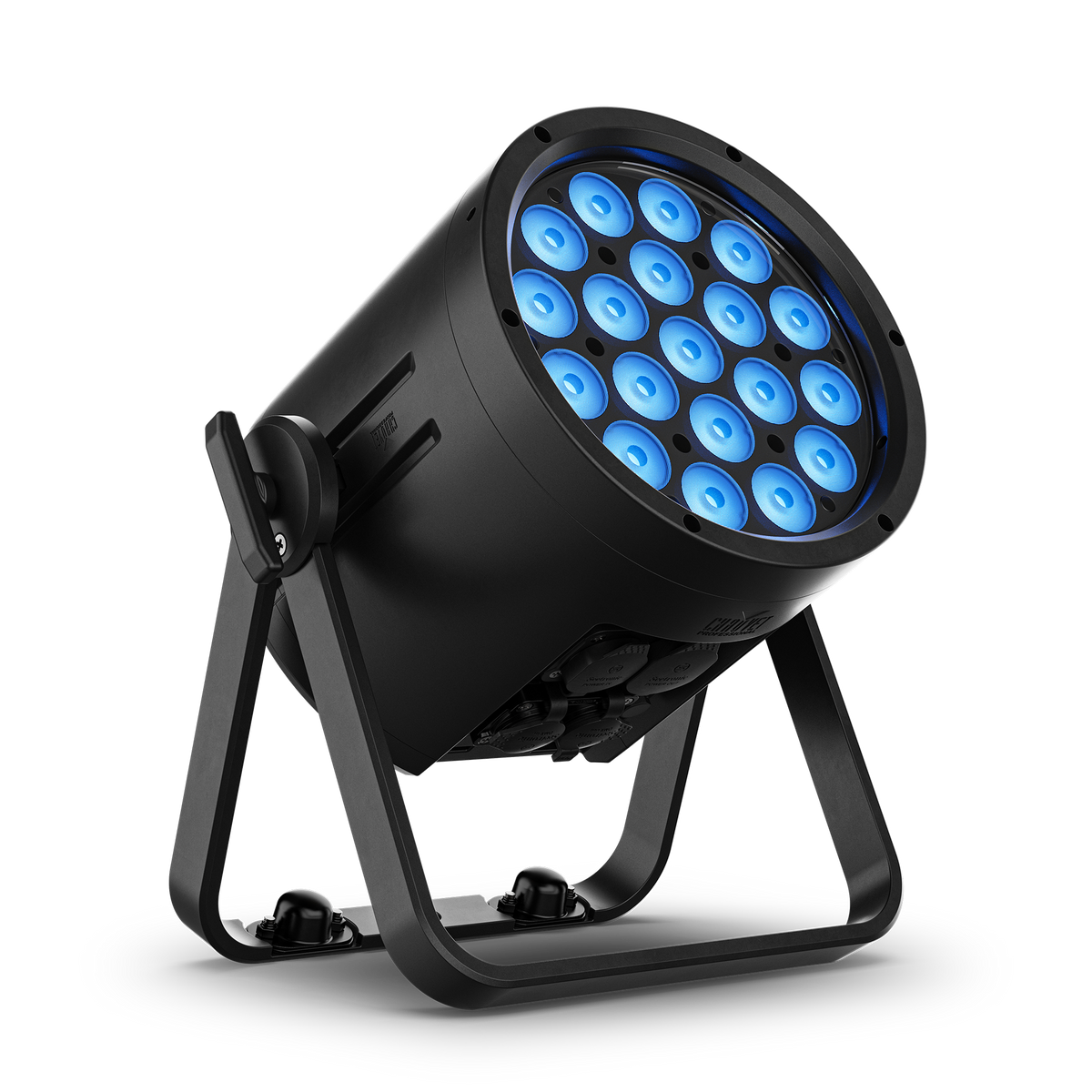

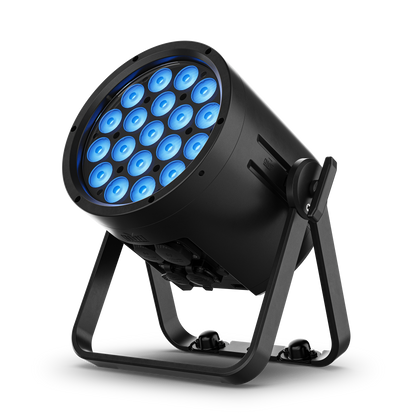

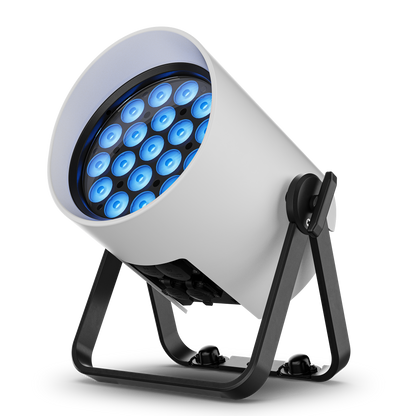

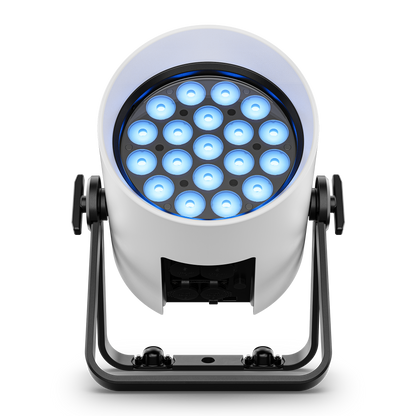

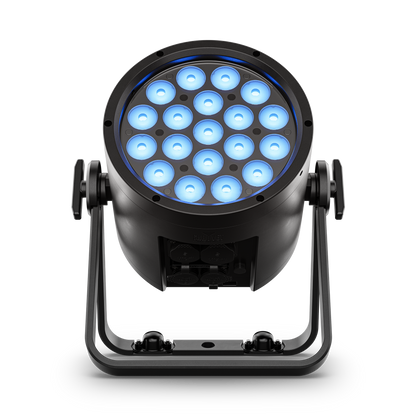

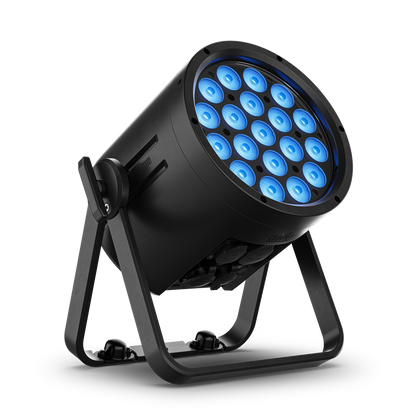

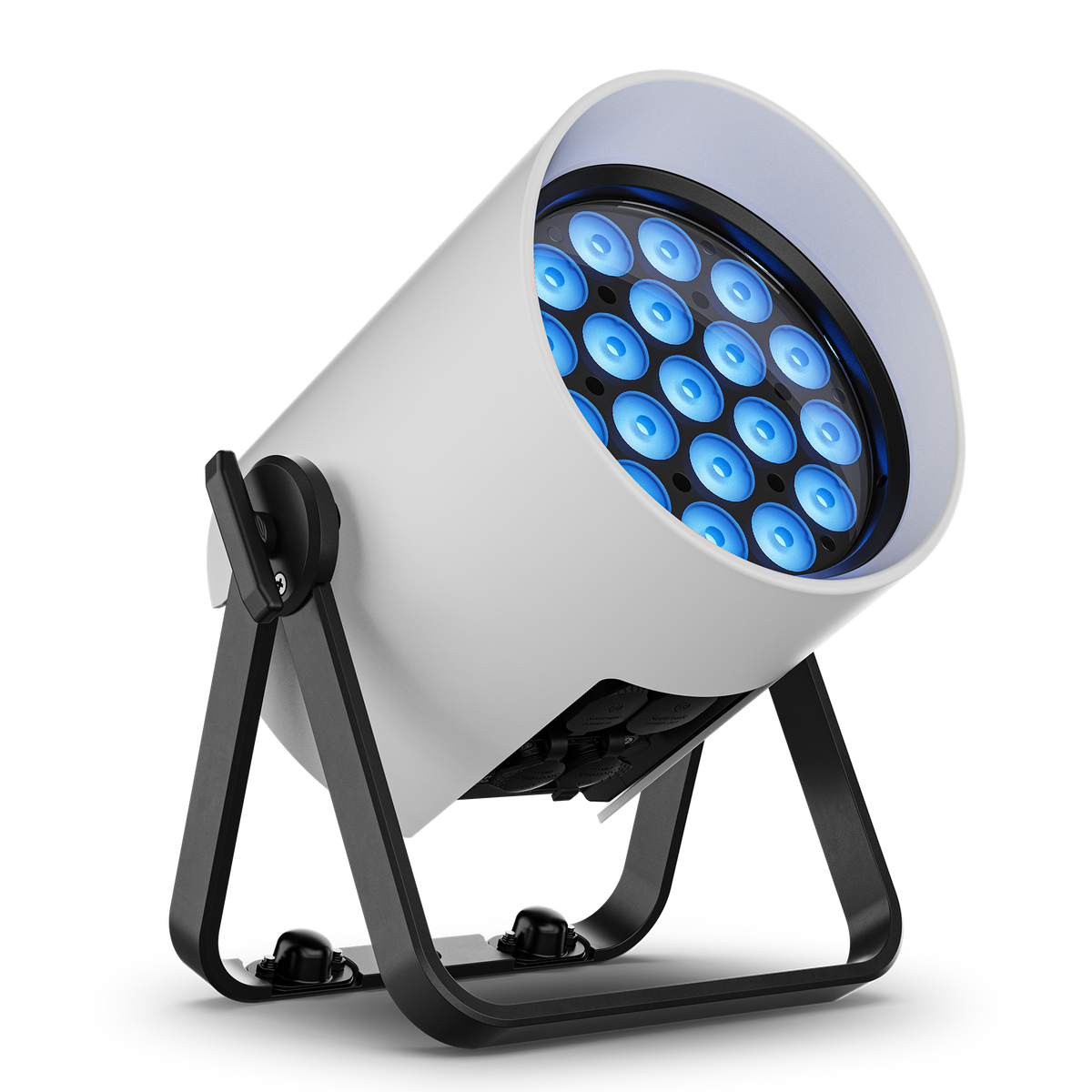

The WELL POD 3 is a versatile, battery-powered wash light that delivers high output and superior color rendering in a flexible PAR fixture design with a removable split yoke. Ideal for indoor or outdoor productions and rental applications where lighting professionals require quick, flexible setup and long battery life.

• Features 19 RGBWW LEDs delivering 3,557 lumens for powerful, high-quality color mixing.
• Offers selectable battery runtimes of up to 18 hours for all-day event reliability.
• Built with a rugged, IP65-rated housing for dependable performance in any weather condition.
• Supports DMX, CRMX, RDM, and RF protocols for maximum control flexibility on any production.
• Ships as a four-fixture kit in a road-ready case with convenient in-case charging.
• Provides adjustable PWM settings to ensure completely flicker-free operation for on-camera use.

WELL POD 3 is a fully-accessorized addition to any rental package, delivering great output, fantastic color rendering, and the flexibility of a PAR fixture design with a removable split yoke ideal for both truss and floor mounting. Up to 18 hours of battery life from a wash light engineered to meet the needs of lighting professionals working in environments where quick setup and flexibility are crucial. Roll into any production, indoors or out, with a road-worthy four-unit kit with built-in charging capability.

ConnectFX delivers dynamic and reliable control solutions when paired with WELL CONNECT. Available for iOS® and Android in both phone and tablet versions.

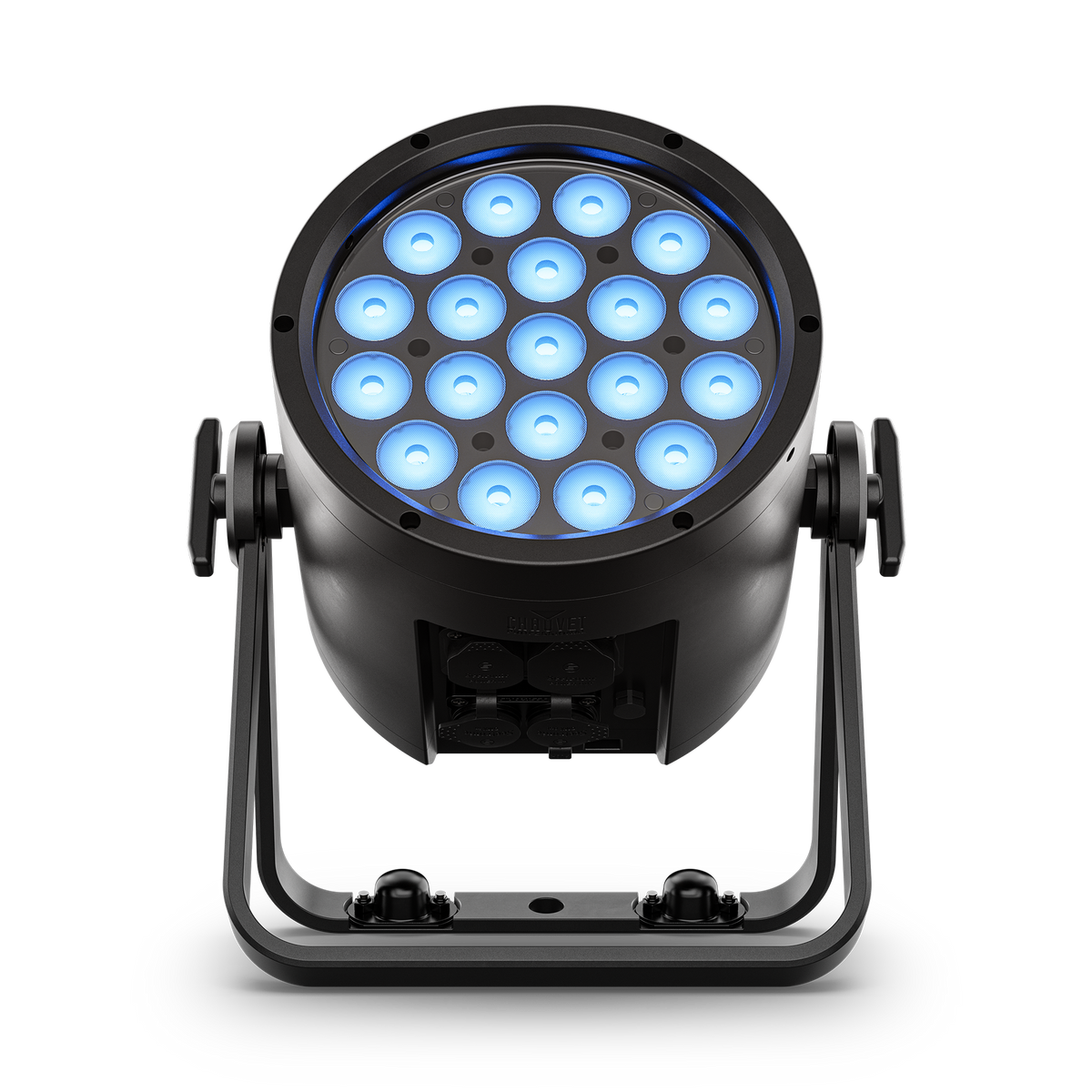

• Complete 4-Fixture Kit: Includes four battery-operated, IP65-rated par fixtures, each with 19 RGB Warm White LEDs and a 12.7-degree beam angle.

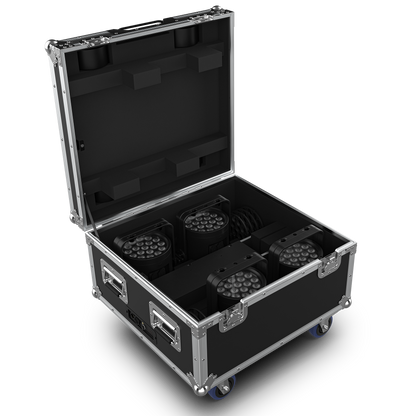

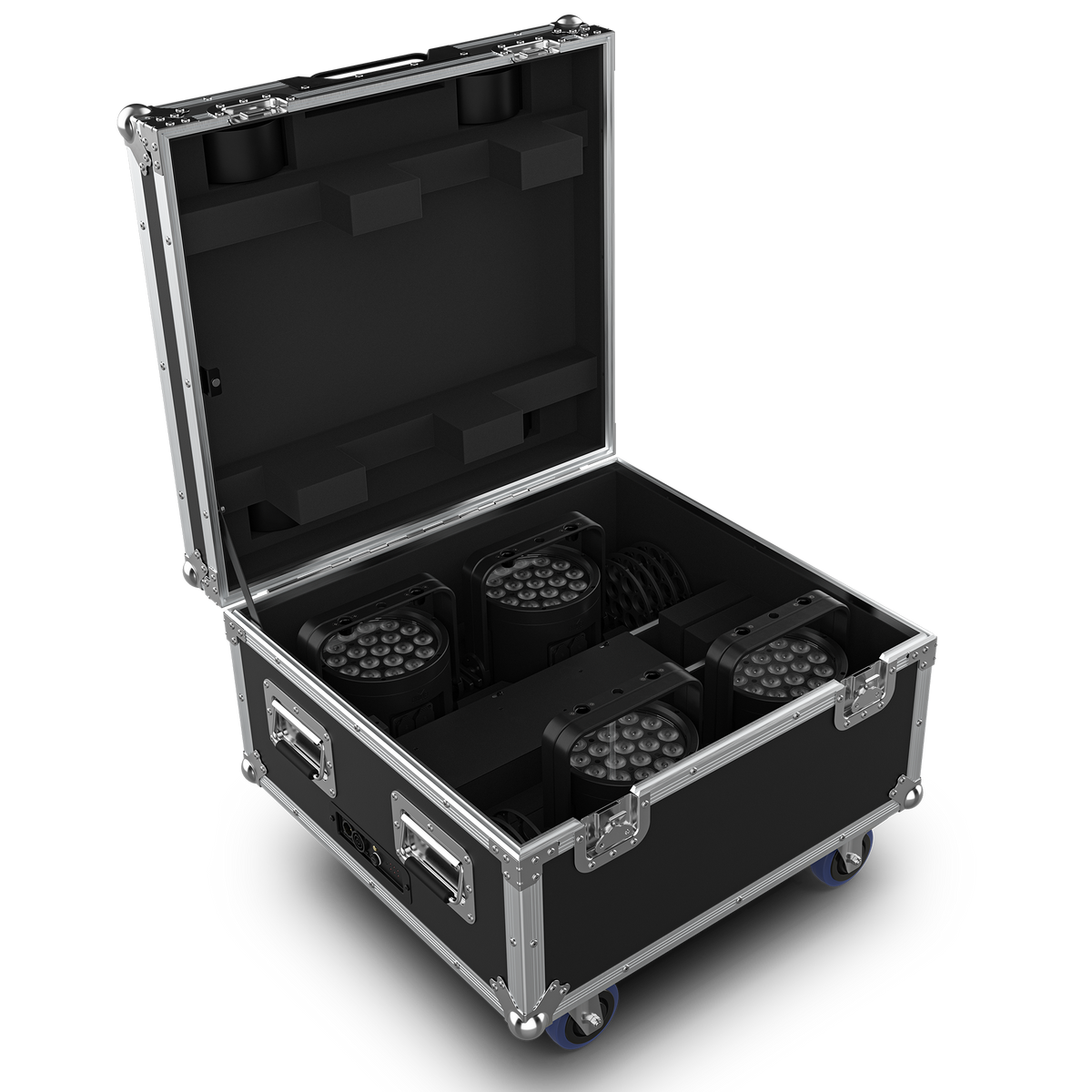

• Space-Saving Charging Case: Charge all fixtures inside the case with the lid closed to maximize storage and warehouse efficiency.
• Selectable Battery Runtimes: Choose from 5, 8, 12, or 18-hour runtimes at full output to match the needs of your event.
• Charge and Operate Simultaneously: The built-in battery charger allows the fixture to be used while it is plugged in and charging.
• IP65 DMX Connectivity: Integrated IP65-rated 5-pin DMX in/out connections provide a reliable wired data link for any environment.
• IP65 Power Connections: Features Seetronic IP65 PowerKon input and output for secure, weather-resistant power linking between fixtures.
• Versatile Control Options: Operate the fixture using DMX, CRMX, RDM, or RF for maximum control flexibility.
• Mobile App Control: Easily connect to the WELL CONNECT box and ConnectFX for convenient control directly from a mobile app.
• USB-C Software Updates: A modern USB-C port allows for simple and convenient firmware updates.
• Flexible Mounting Yoke: The removable split yoke enables versatile rigging options for both hanging and floor-standing applications.
• Pressure Equalizing Valve: An integrated M6 Gore valve equalizes internal pressure, protecting the housing and electronics from the elements.
• Integrated Safety Point: A dedicated attachment point is built directly into the fixture for securely attaching safety cables.

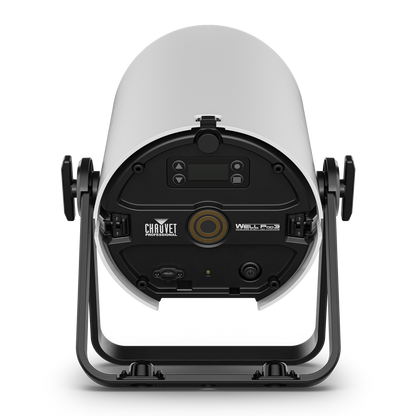

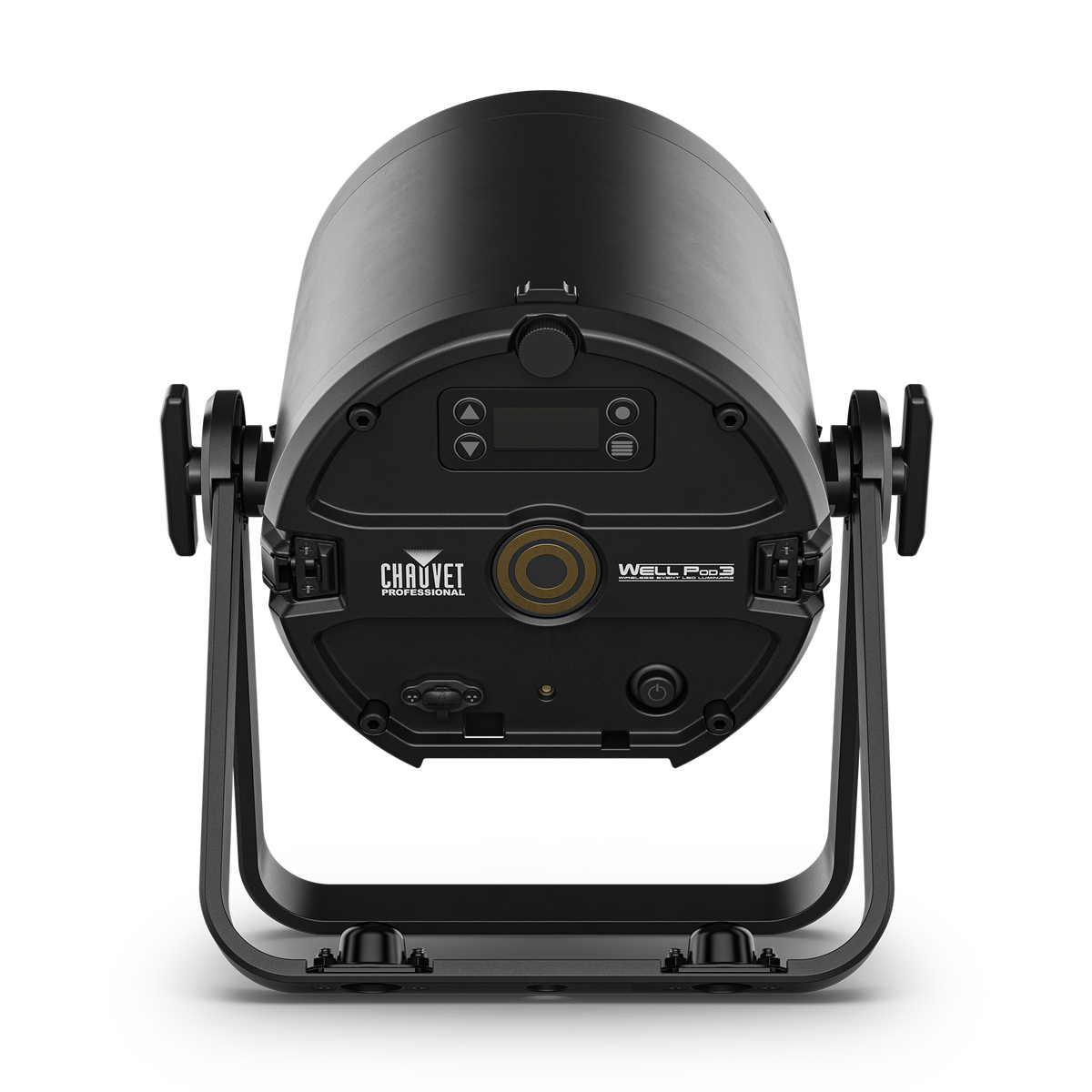

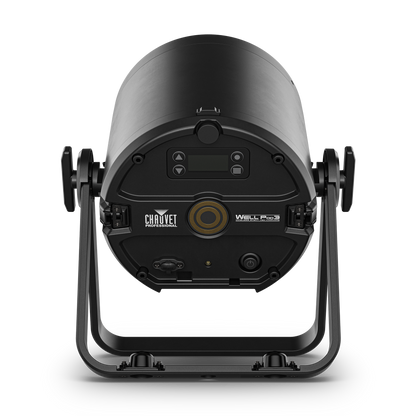

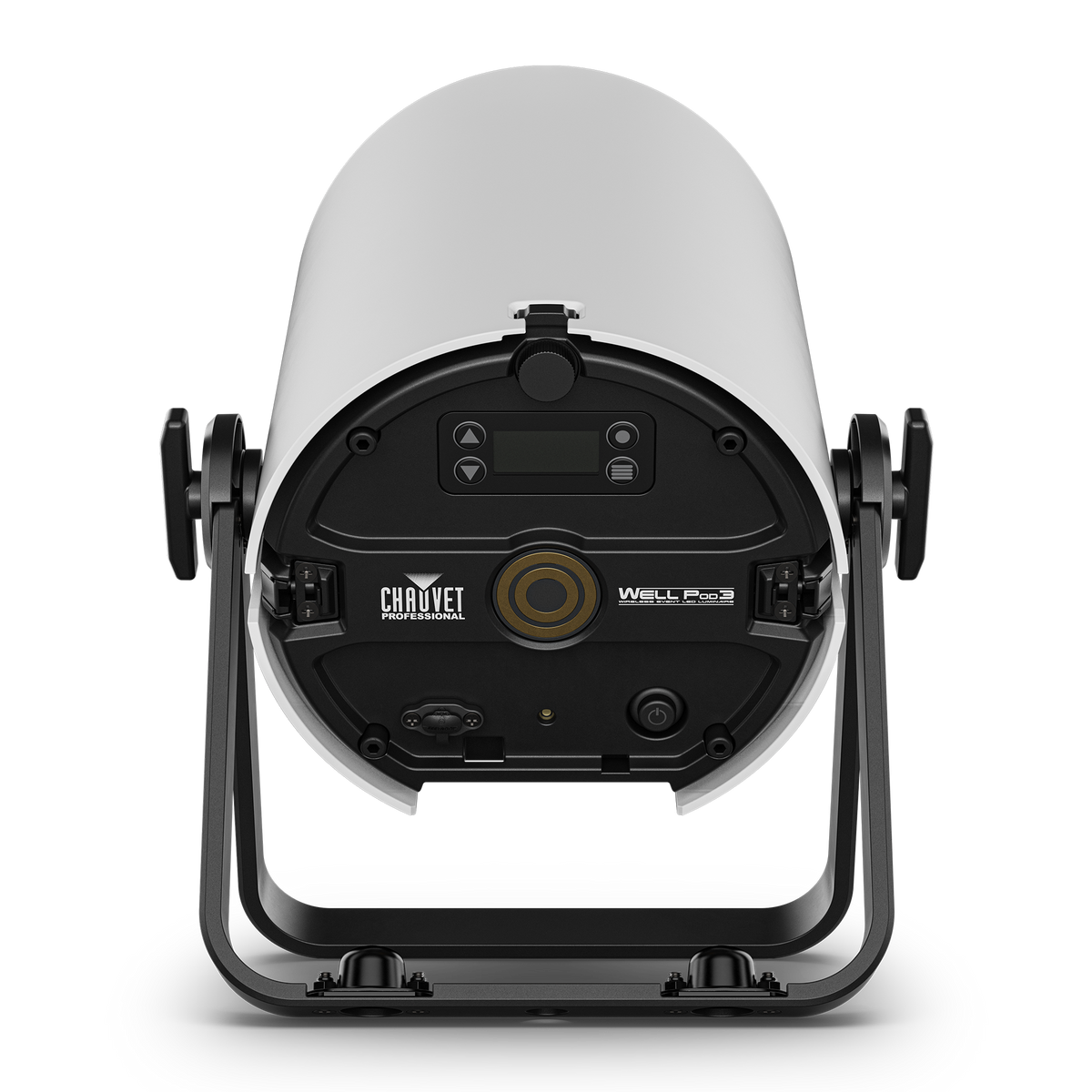

• Clear OLED Display: An easy-to-read OLED display provides clear access to all onboard settings and fixture information.
• Built-In Theft Alarm: Protect your investment with an integrated alarm that provides both audio and visual notifications if the fixture is moved.
• Adjustable PWM: Built-in Pulse Width Modulation adjustment ensures completely flicker-free operation on camera.
• Included RF Remote: An RF remote is included for simple, out-of-the-box wireless control of the fixtures.

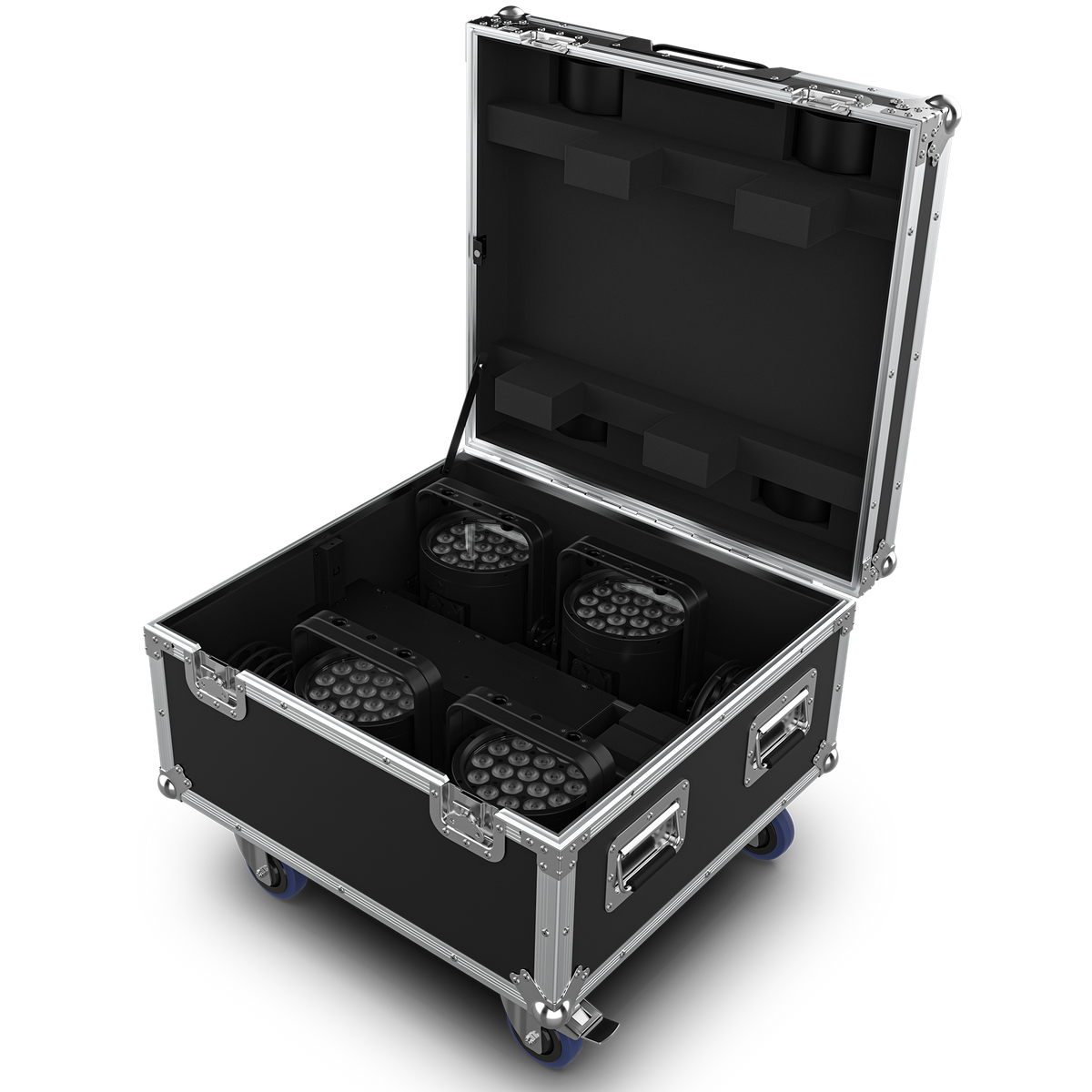

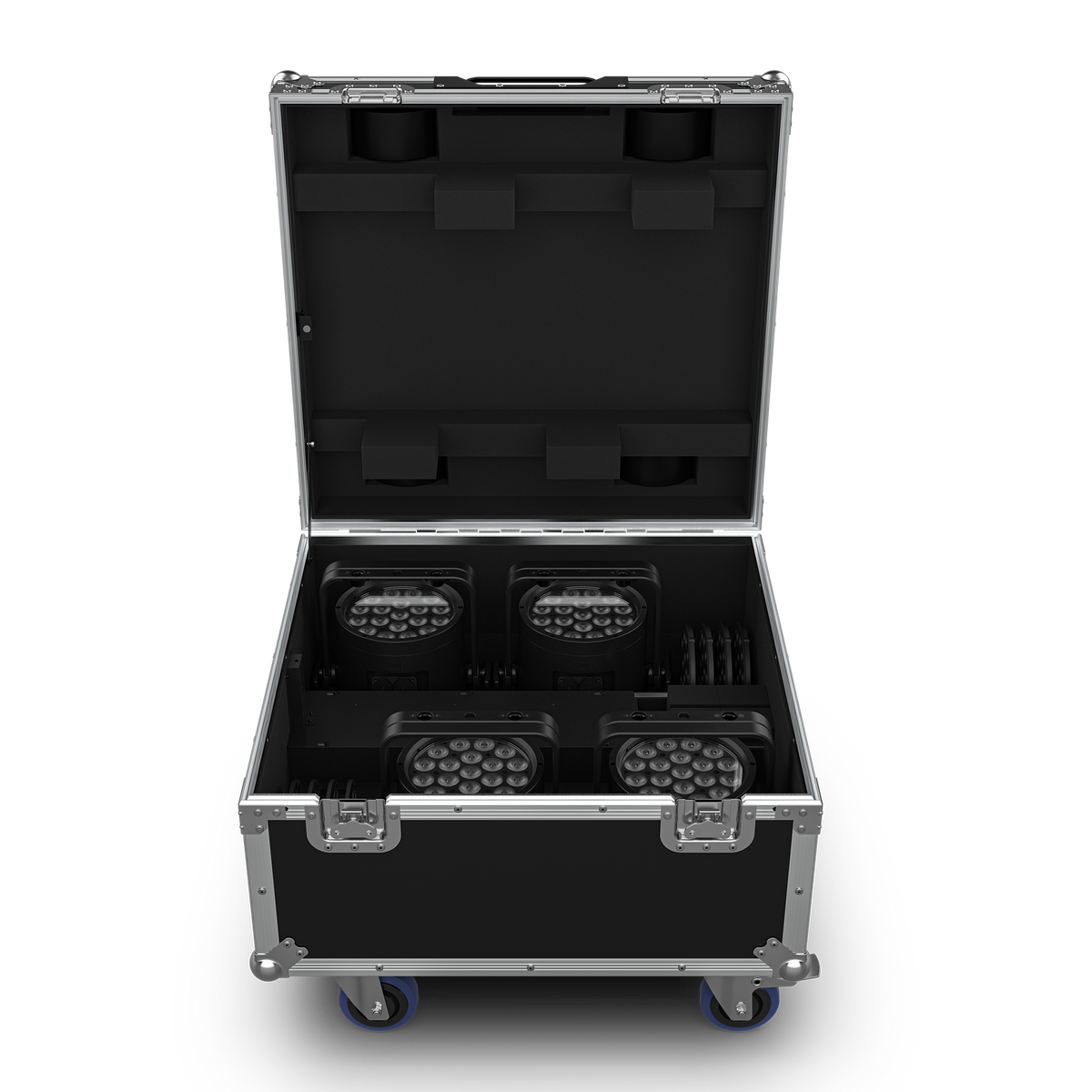

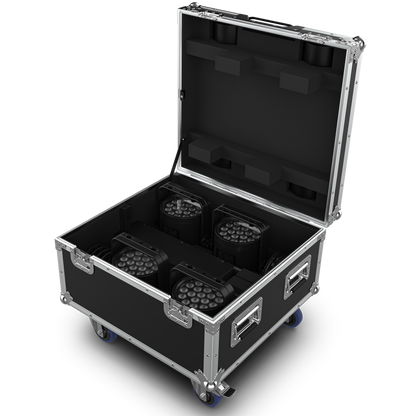

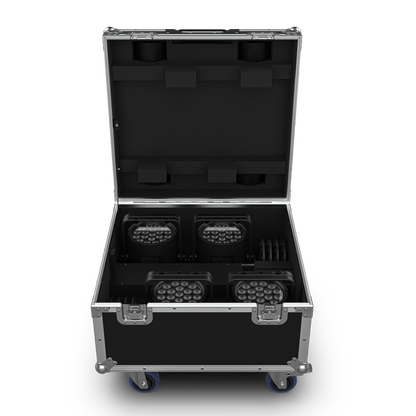

• Included 4-Pack Charging Case: The kit comes complete with a rugged, road-ready charging case that holds and powers all four fixtures.

Optical

• Light Source: 19 LEDs (RGBWW), 13.2W, (960mA) 50,000 hours life
• Color Temperature (range): 2800 to 6500 K
• Beam Angle: 12.7°
• Field Angle: 25.4°
• Cutoff Angle: 47.2°
• Lumens: 3557 lm (AC power)
• Illuminance: 1692 lux @ 5 m (AC power)
• Lumens: 1994 lm (OFF battery setting)
• Illuminance: 946 lux @ 5 m (OFF battery setting)
• Lumens: 2177 lm (5-hour battery setting)
• Illuminance: 1033 lux @ 5 m (5-hour battery setting)
• Lumens: 1379 lm (8-hour battery setting)
• Illuminance: 655 lux @ 5 m (8-hour battery setting)
• Lumens: 845 lm (12-hour battery setting)
• Illuminance: 398 lux @ 5 m (12-hour battery setting)
• Lumens: 555 lm (18-hour battery setting)
• Illuminance: 261 lux @ 5 m (18-hour battery setting)
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 1 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes
• Customizable Programs: No
• Recall Custom Programs: No

Construction/Physical

• Dimensions: 9.76 x 7 x 10.86 in (248 x 178 x 276 mm)
• Dimensions (w/o bracket): 9.76 x 7 x 7 in (248 x 178 x 178 mm)
• Dimensions case: 27 x 25.6 x 15 in (685 x 650 x 380 mm)
• Weight: 11.2 lbs (5.1 kg)
• Shipping Weight: 119.7 lb (54.3 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast

Connections

• Power Connection: Edison (local) plug to Seetronic Powerkon IP65
• Power Input (fixture and charging case): Seetronic Powerkon IP65
• Power Output(fixture and charging case): Seetronic Powerkon IP65
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB-C

Control

• Control Protocol: RDM, CRMX, NFC, RF
• DMX Channels: 5, 8, or 12
• Modes/Personalities: 3 personalities (5Ch, 8Ch, 12Ch)
• Wireless WDMX “G” Compatibility: G4S
• Wireless Lumen Radio Compatibility: CRMX

Electrical

Battery

• Battery type: Lithium Ion
• Rechargeable: Yes
• Battery Charge Time: 8 hours
• Battery Life: 3hr, 5hr, 8hr, 12hr
• Battery Power: 25.9V, 6.6 Ah

Certifications/Qualifications

• Certifications: CE, UKCA, FCC, ROHS
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)
