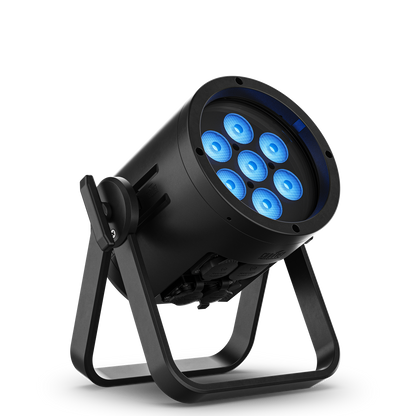

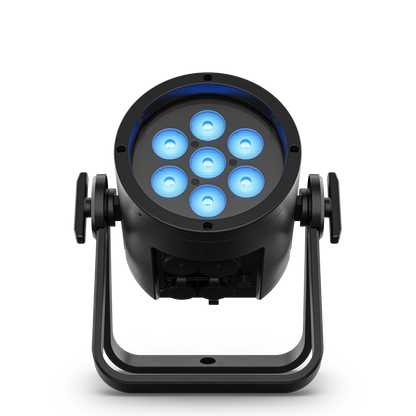

Chauvet Professional WELLPOD2X6 WELL Pod 2: 6-Pack

Chauvet Professional WELLPOD2X6 WELL Pod 2: 6-Pack

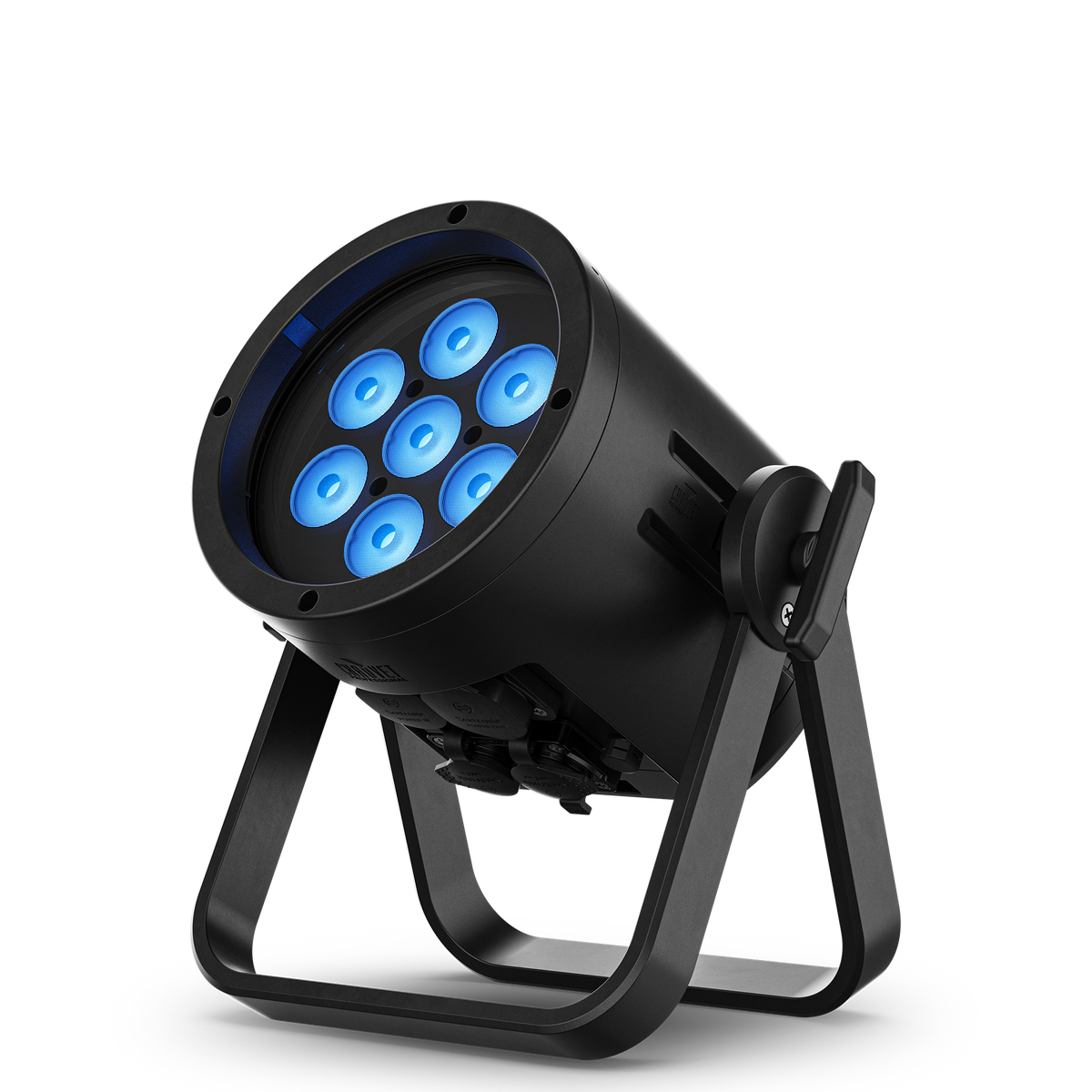

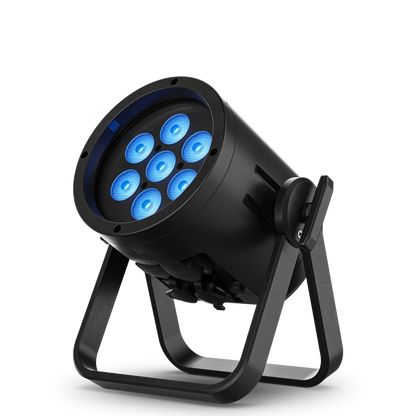

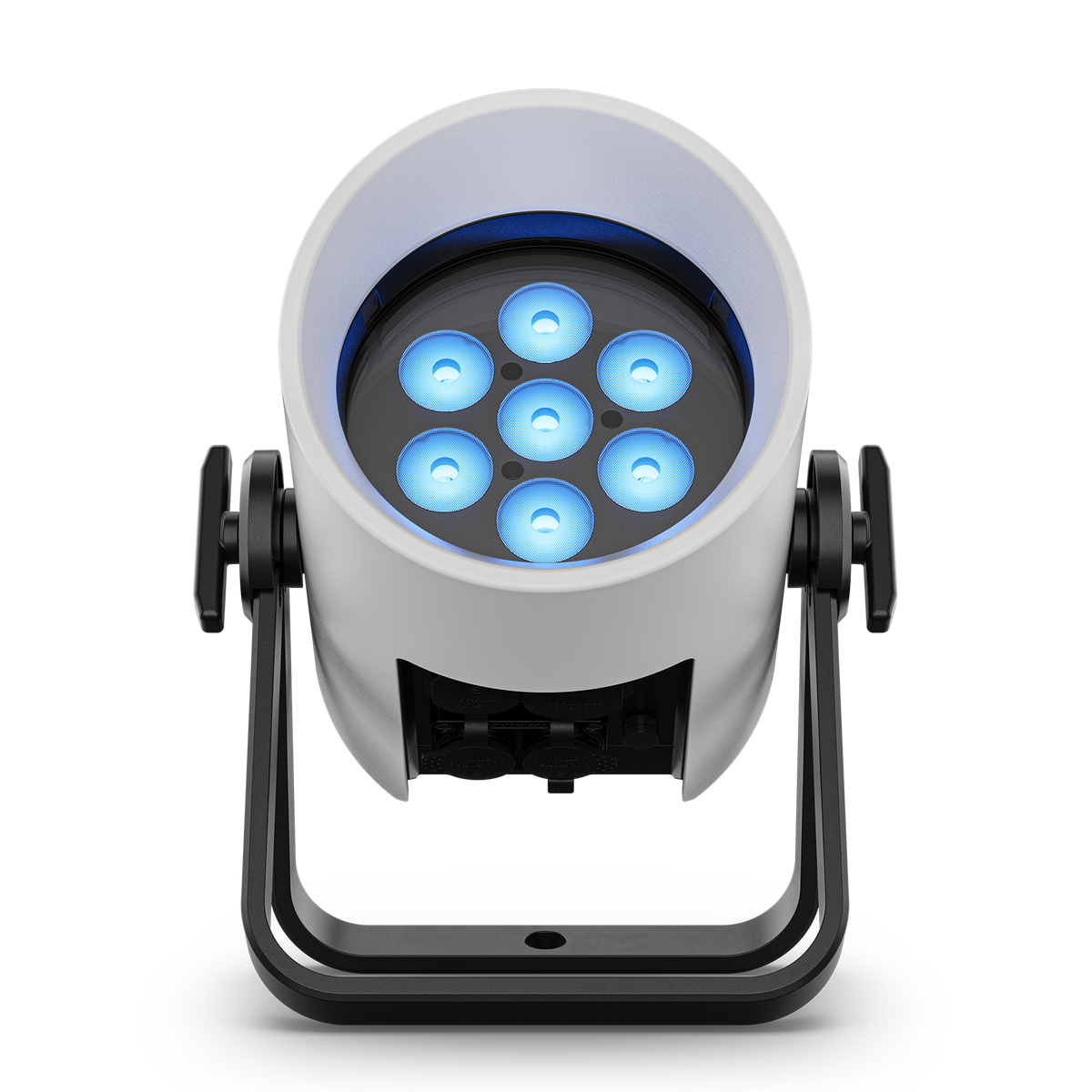

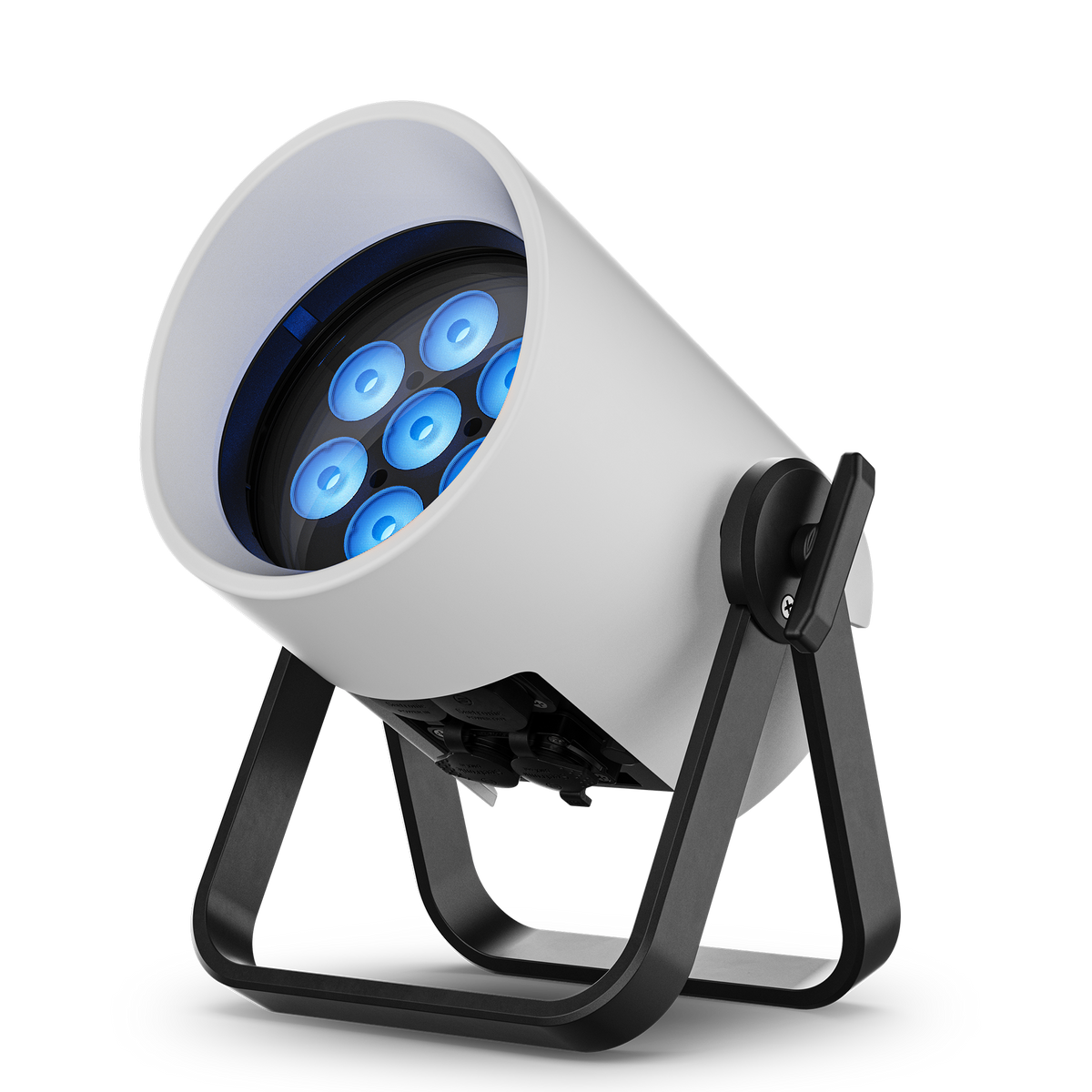

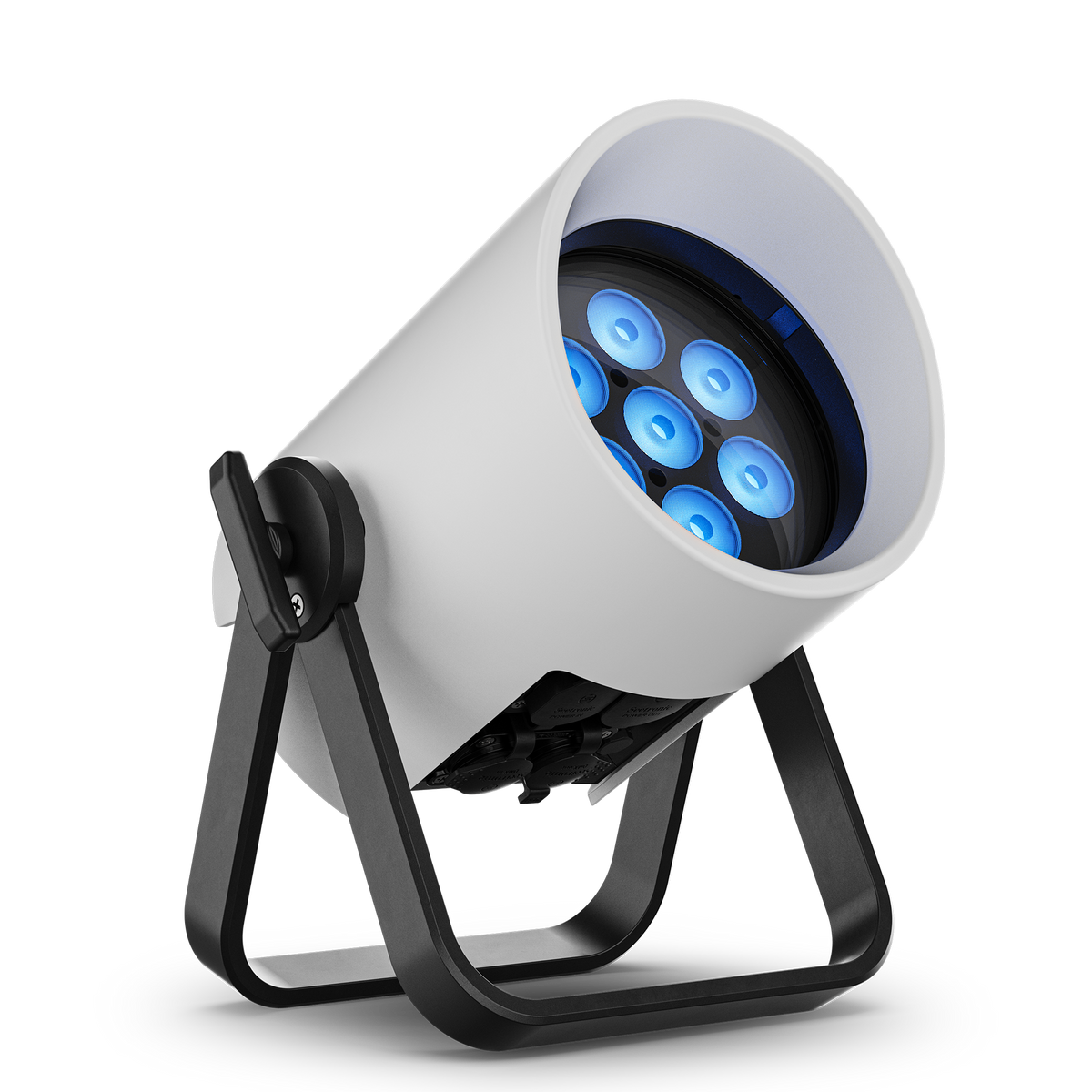

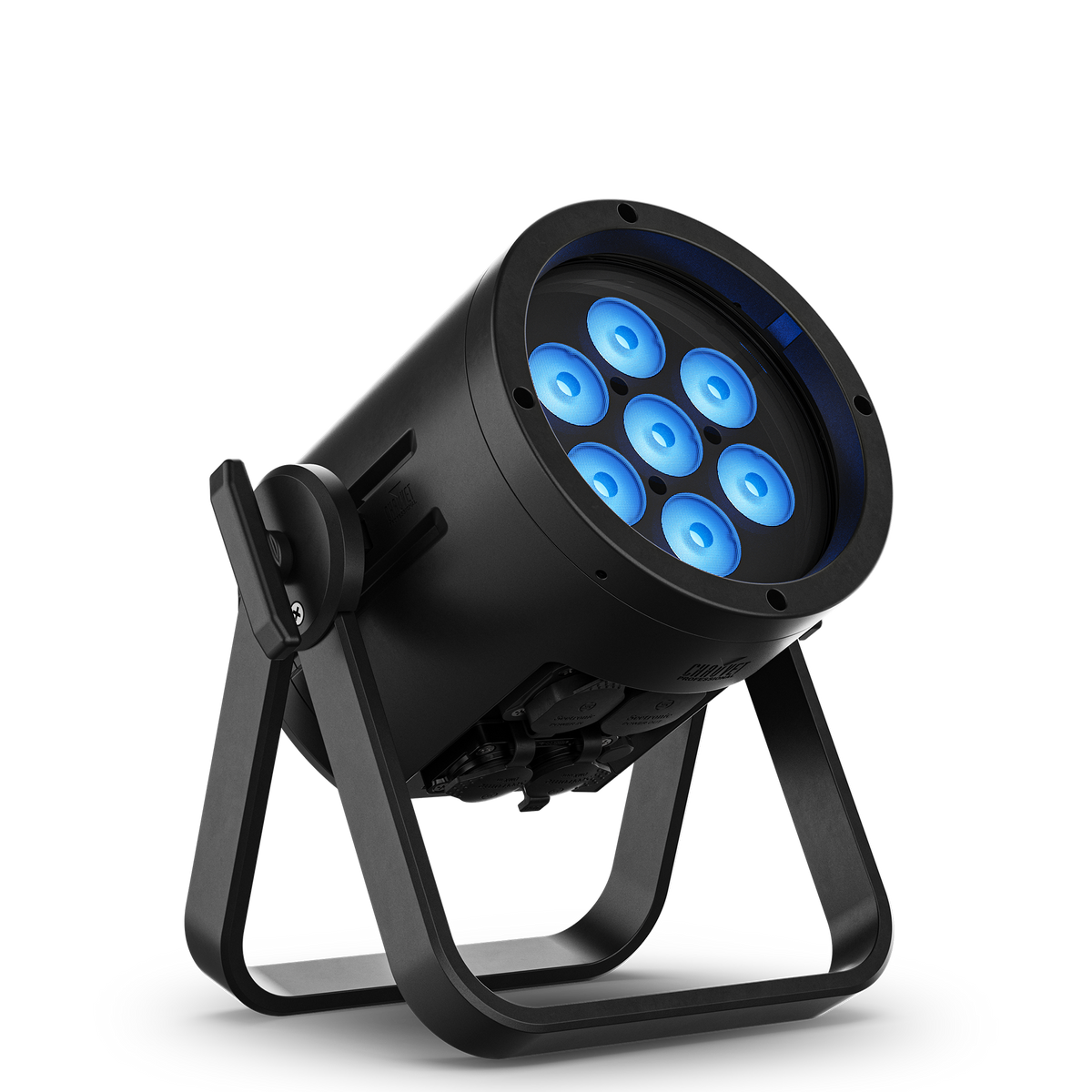

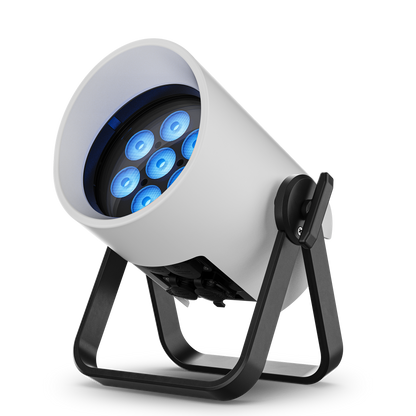

A compact, battery-powered PAR wash light offering high output, excellent color rendering, and flexible mounting with a removable split-yoke design. Ideal for rental inventory and lighting professionals requiring a fast, flexible wash lighting solution for any indoor or outdoor production where quick setup is crucial.

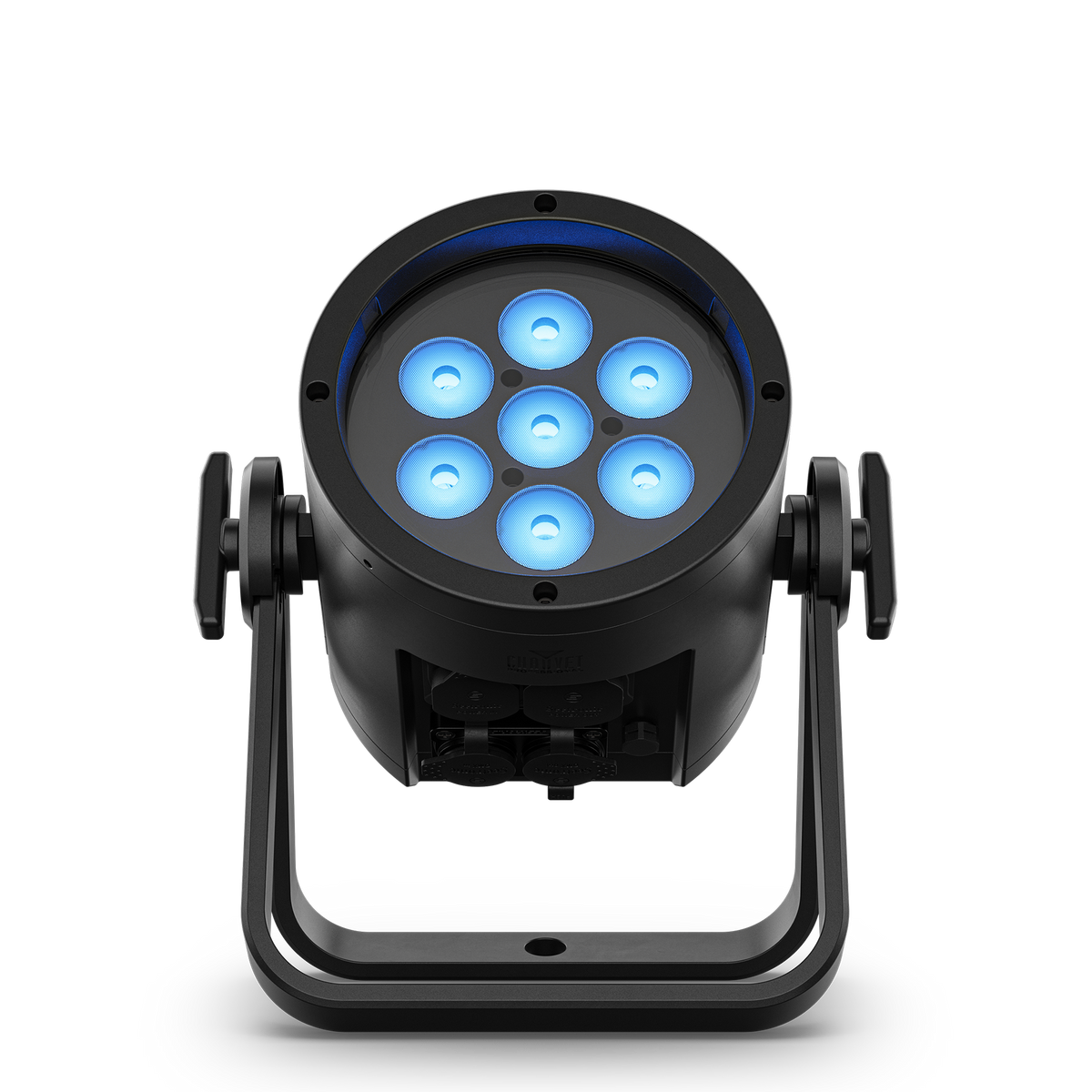

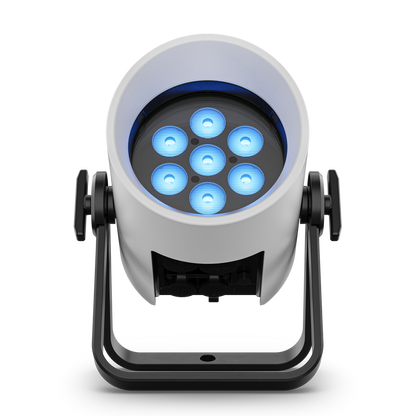

• Features seven RGBWW LEDs for rich colors and high-quality whites from 2800K to 6500K.
• Offers multiple battery runtime selections, delivering up to 18 hours of continuous operation.
• Built with a rugged, IP65-rated housing for reliable performance in any outdoor environment.
• Provides versatile control options including DMX, CRMX, RDM, RF, and mobile app support.
• Sold as a six-unit kit in a road case that charges all fixtures with the lid closed.
• Includes adjustable PWM settings to ensure flicker-free output for on-camera applications.

WELL POD 2 is a compact addition to any rental package, delivering great output, fantastic color rendering, and the flexibility of a PAR fixture design with a removable split yoke ideal for both truss and floor mounting. Up to 18 hours of battery life from a wash light engineered to meet the needs of lighting professionals working in environments where quick setup and flexibility are crucial. Roll into any production, indoors or out, with a road-worthy six-unit kit with built-in charging capability.

ConnectFX delivers dynamic and reliable control solutions when paired with WELL CONNECT. Available for iOS® and Android in both phone and tablet versions.

• All-In-One Fixture Kit: This complete kit includes six IP65-rated par fixtures with RGB warm white LEDs and a 6-pack charging road case.

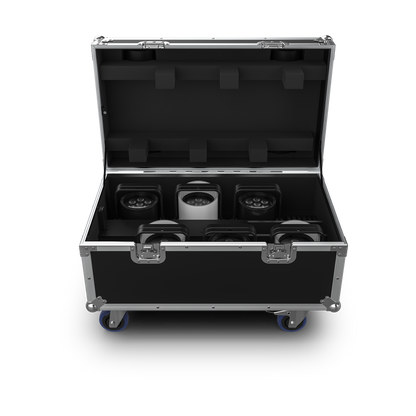

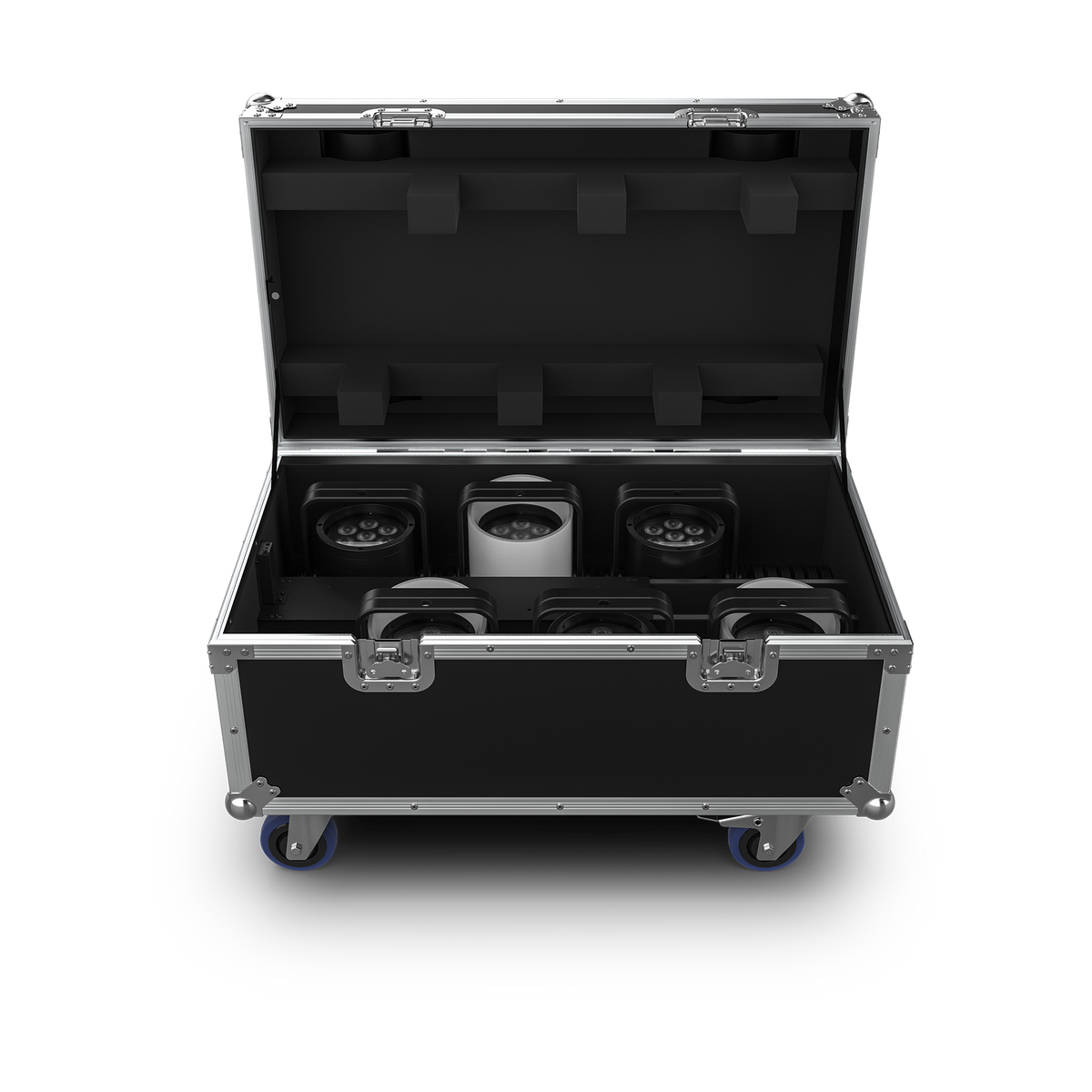

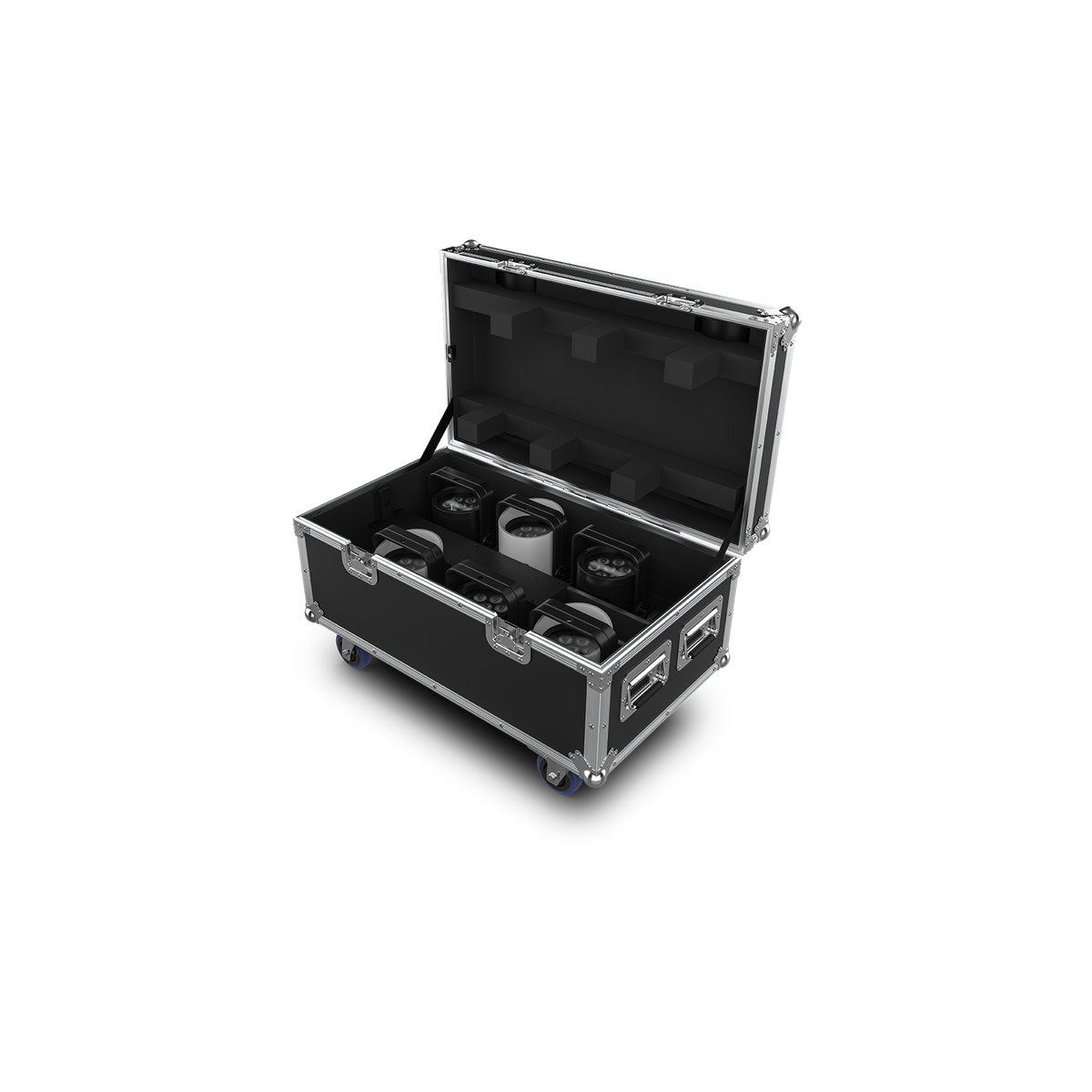

• Space-Saving Charging Case: The included road case charges all fixtures simultaneously with the lid closed to maximize storage efficiency.
• Extended Battery Runtimes: Choose from multiple battery runtime selections of 5, 8, 12, or 18 hours to match your event’s needs.
• Charge and Operate Simultaneously: A built-in charger allows the fixture to be used for illumination even while it is actively charging.
• Wired DMX Control: Integrated IP65-rated 5-pin DMX in/out ports provide a reliable connection for wired data control.
• IP65 Power Linking: Built-in Seetronic PowerKon input and output connections allow for easy and secure power linking between fixtures.
• Versatile Control Options: Operate the fixtures using your preferred method, with support for DMX, CRMX, RDM, and RF control protocols.
• App-Based Control: Easily connect to the WELL CONNECT box and ConnectFX for convenient control directly from a mobile app.
• Convenient Software Updates: A modern USB-C port makes applying future software and firmware updates simple and fast.
• Flexible Mounting Yoke: The removable split yoke provides versatile rigging options for both hanging the fixture and placing it on the floor.
• Pressure Equalizing Valve: An integrated M6 Gore valve equalizes internal and external pressure to protect the fixture’s seals and electronics.
• Integrated Safety Point: A dedicated attachment point is built into the fixture’s housing for securely attaching a safety cable.

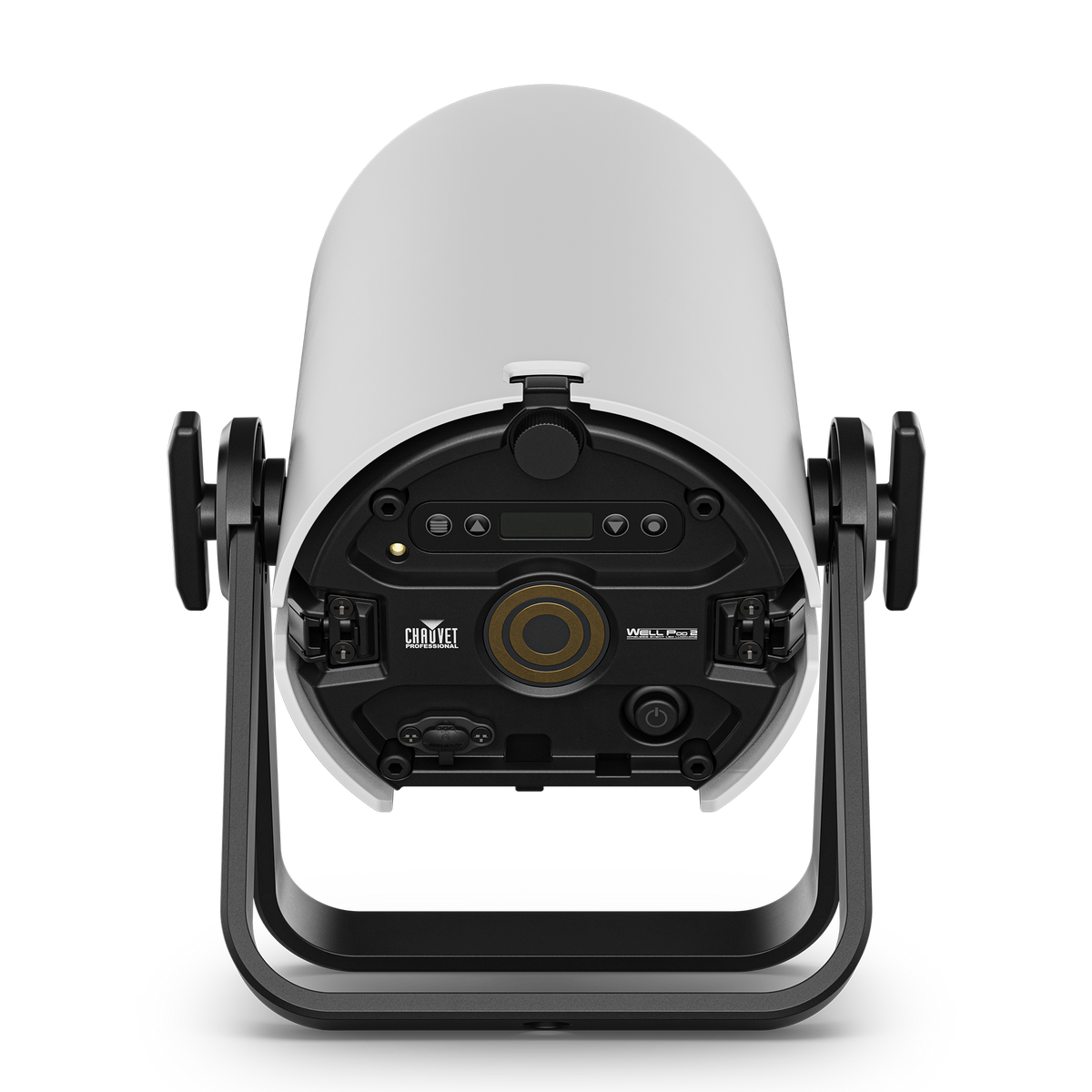

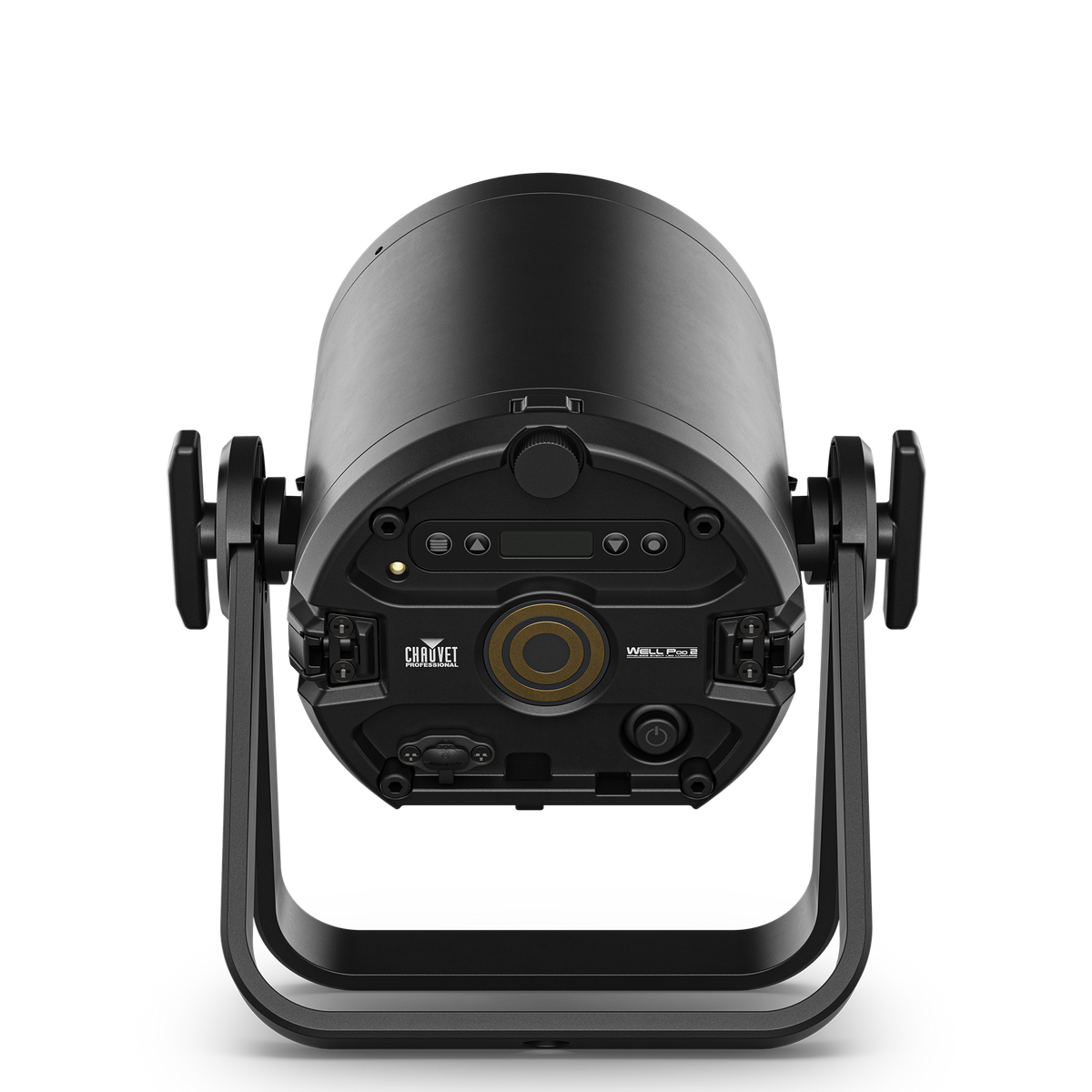

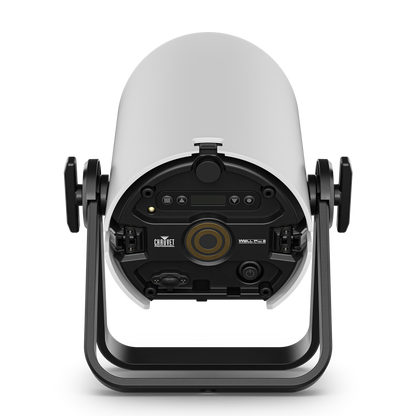

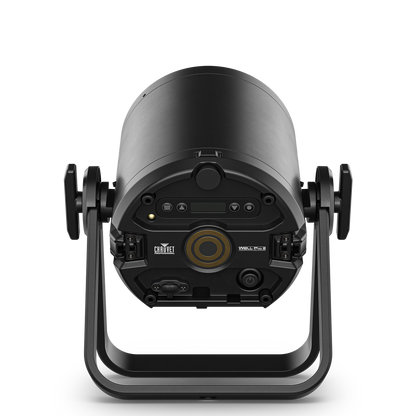

• Clear OLED Display: An easy-to-read OLED screen provides clear access to all settings and operational information.
• Built-In Theft Alarm: Protect your investment with an integrated alarm that provides both an audible and visual notification if moved.
• Adjustable PWM: Adjust the Pulse Width Modulation to ensure flicker-free operation on camera.
• Included RF Remote: An RF remote is included for simple wireless control right out of the box.

Optical

• Light Source: 7 LEDs (RGBWW) 13.2 W, (556 mA), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 6500 K
• Beam Angle: 11.5°
• Field Angle: 21.6°
• Cutoff Angle: 36.9°
• Lumens: 1797 lm (AC power)
• Illuminance: lux 1089 @ 5 m (AC power)
• Lumens: 718 lm (OFF battery setting)
• Illuminance: 436 lux @ 5 m (OFF battery setting)
• Lumens: 834 lm (5-hour battery setting)
• Illuminance: 507 lux @ 5 m (5-hour battery setting)
• Lumens: 528 lm (8-hour battery setting)
• Illuminance: 319 lux @ 5 m (8-hour battery setting)
• Lumens: 335 lm (12-hour battery setting)
• Illuminance: 202 lux @ 5 m (12-hour battery setting)
• Lumens: 214 lm (18-hour battery setting)
• Illuminance: 129 lux @ 5 m (18-hour battery setting)
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 1 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes
• Customizable Programs: No
• Recall Custom Programs: No

Construction/Physical

• Dimensions: 8.11 x 5.31 x 8.76 in (206 x 138 x 222.5 mm)
• Dimensions (w/o bracket): 5.43 x 5.43 x 5.67 in (138 x 138 x 144 mm)
• Dimensions case: 32.7 x 19.3 x 15.4 in (832 x 492 x 390mm)
• Weight: 7.2 lb (3.3 kg)
• Weight (shipping weight): 113.8 lb (51.6 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast

Connections

• Power Connection: Edison (local) plug to Seetronic PowerKon IP65
• Power Input (fixture and charging case): Seetronic PowerKon IP65
• Power Output (fixture and charging case): Seetronic PowerKon IP65
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB-C

Control

• Control Protocol: RDM, CRMX, NFC, RF
• DMX Channels: 5, 8, or 12
• Modes/Personalities: 3 personalities (5Ch, 8Ch, 12Ch)
• Wireless WDMX “G” Compatibility: G4S
• Wireless Lumen Radio Compatibility: CRMX

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Battery

• Battery type: Lithium Ion
• Rechargeable: Yes
• Battery Charge Time: 8 hours
• Battery Life: 12 hours
• Battery Power: 25.9 V, 2.5 Ah

Certifications/Qualifications

• Certifications: CE, UKCA, FCC, ROHS
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
