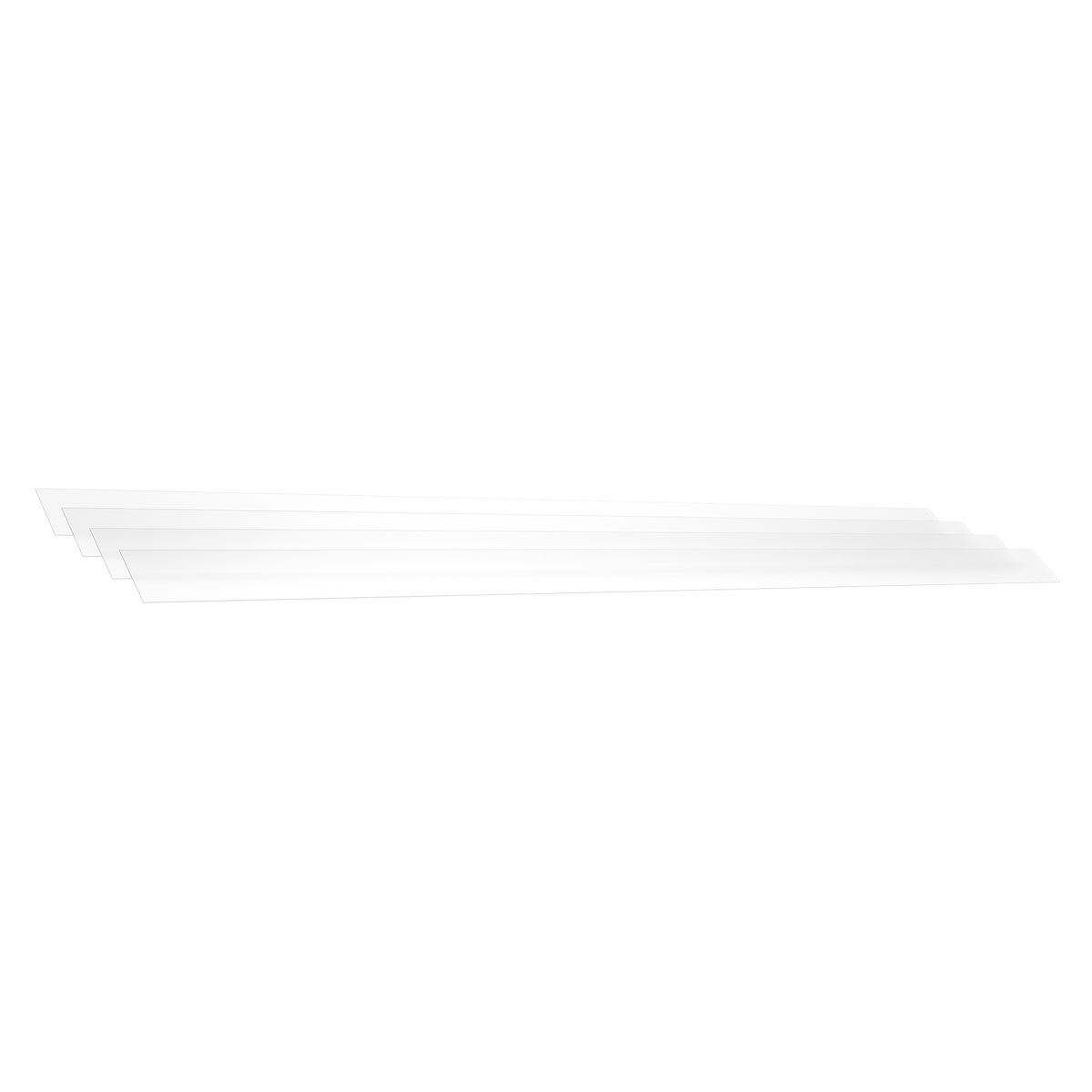

Chauvet Professional WBATT1460X10PACKX4 WELL Batten 14 - 60° x 10° Filter Pack (4pc)

Chauvet Professional WBATT1460X10PACKX4 WELL Batten 14 - 60° x 10° Filter Pack (4pc)

A four-piece pack of 60° x 10° elliptical filters designed as a slide-in lens option for the WELL Batten 14. Ideally suited for creating a wide, linear wash of light to evenly illuminate walls, cycloramas, and other scenic or architectural elements.

• Widens the native 16° beam angle to an elliptical 25° x 42.8° wash.
• Offers simple, tool-free installation for rapid on-site beam adjustments.
• Features a flexible construction for convenient, compact storage and transport.
• A distinct double notch allows for immediate identification of the filter’s beam angle.
• Sold as a pack of four to consistently outfit multiple fixtures on a project.
• Modifies the output to deliver 3,007 lumens of smooth, wide coverage.

4-piece pack of 60 x 10° elliptical filters. Slide-in lens option for WELL Batten 14.

ConnectFX delivers dynamic and reliable control solutions when paired with WELL CONNECT. Available for iOS® and Android in both phone and tablet versions.

• Expanded Beam Angle: Widen the beam angle of the WELL Batten 14 from 16° to an elliptical 25° by 42.8°.
• Flexible Material: The flexible construction allows for simple and compact storage when not in use.
• Simple Installation: Easily install and remove the filter for quick on-site application.
• Easy Identification: A distinct double notch allows for quick identification of the filter’s beam angle.
• Convenient 4-Pack: Ships in a convenient pack of four to outfit multiple fixtures.

Optical

• Beam Angle: 25 X 42.8°
• Illuminance: 216 lux @ 5 m (AC)
• Lumens: 3007 (AC)
• Illuminance: 123 lux @ 5 m (Battery curve off)
• Lumens: 1691 (Battery curve off)
• Illuminance: 131 lux @ 5 m (5 hr)
• Lumens: 1789 (5 hr)
• Illuminance: 79 lux @ 5 m (8 hr)
• Lumens: 1105( 8 hr)
• Illuminance: 50 lux @ 5 m(12 hr)
• Lumens: 687 (12 hr)
• Illuminance: 30 lux @ 5 m (18 hr)
• Lumens: 428 (18 hr)

Construction/Physical

• Dimensions: 38.91 x 1.84 in (988.5 x 46.9mm)
• Weight: 0.06 lb (0.03kg)

Certifications/Qualifications

• Certifications: CE
• IP Rating: IP65, temporary outdoor/wet use
