Chauvet Professional WBATT1415PACKX4 WELL Batten 14 - 15° Filter Pack (4pc)

Chauvet Professional WBATT1415PACKX4 WELL Batten 14 - 15° Filter Pack (4pc)

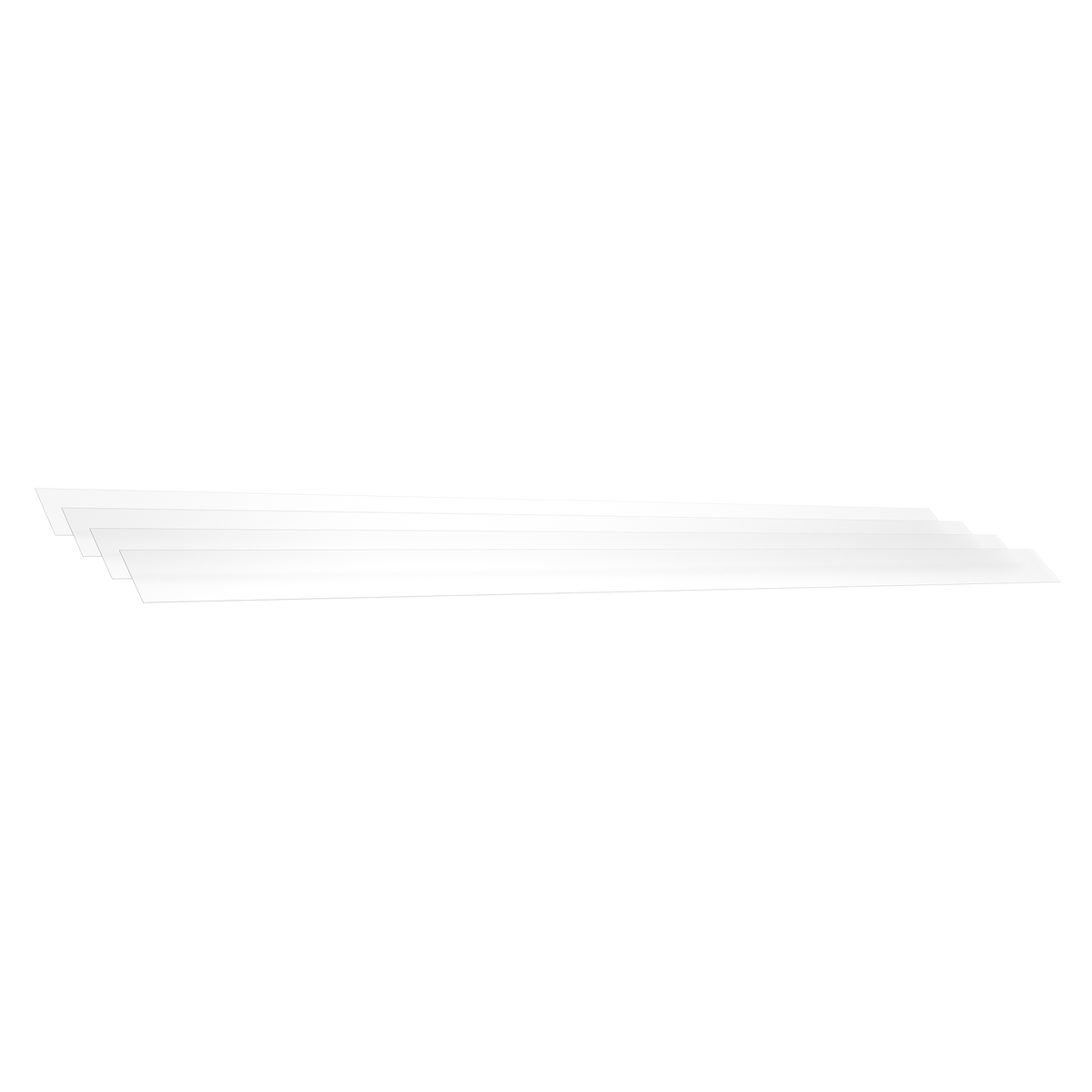

A four-pack of 15-degree filters designed as a slide-in lens option to shape the light beam of the WELL Batten 14. Perfect for quickly modifying the fixture’s wide wash for applications requiring a narrower, more focused beam of light.

• Widens the native 17.3° beam angle of the WELL Batten 14 fixture to 32.8°.
• Features a simple slide-in design for quick installation and removal on site.
• Creates a wider, softer wash ideal for large area or short-throw coverage.
• Includes a single notch for instant visual identification of the beam angle.
• Designed with a compact size for easy storage within the fixture’s charging case.
• Ships as a convenient four-piece pack to outfit multiple fixtures at once.

4-piece pack of 15° filters. Slide-in lens option for WELL Batten 14.

ConnectFX delivers dynamic and reliable control solutions when paired with WELL CONNECT. Available for iOS® and Android in both phone and tablet versions.

• Wider Beam Angle: Easily install to widen the WELL Batten’s beam angle from 17.3° to 32.8°.
• Compact Storage: The small size allows for simple storage and transport in the charging case.
• Simple On-Site Installation: A straightforward design allows for quick installation and removal for any application.
• Easy Beam Identification: A single notch provides instant visual identification of the beam angle.
• Convenient Multi-Pack: This product ships in a convenient pack of four.

Optical

• Beam Angle: 17.3°
• Field Angle: 32.8°
• Illuminance: 507 lux @ 5 m (AC)
• Lumens: 171 (AC)
• Illuminance: 504 lux @ 5 m (Battery curve off)
• Lumens: 1698 (Battery curve off)
• Illuminance: 491 lux @ 5 m (5 hr)
• Lumens: 1655 (5 hr)
• Illuminance: 321 lux @ 5 m (8 hr)
• Lumens: 1081 ( 8 hr)
• Illuminance: 213 lux @ 5 m (12 hr)
• Lumens: 717 (12 hr)
• Illuminance: 142 lux @ 5 m (18 hr)
• Lumens: 476 (18 hr)

Construction/Physical

• Dimensions: 38.91 x 1.84 in (104 x 104mm)
• Weight: 0.06 lb (0.03kg)

Certifications/Qualifications

• Certifications: CE
• IP Rating: IP65, temporary outdoor/wet use
