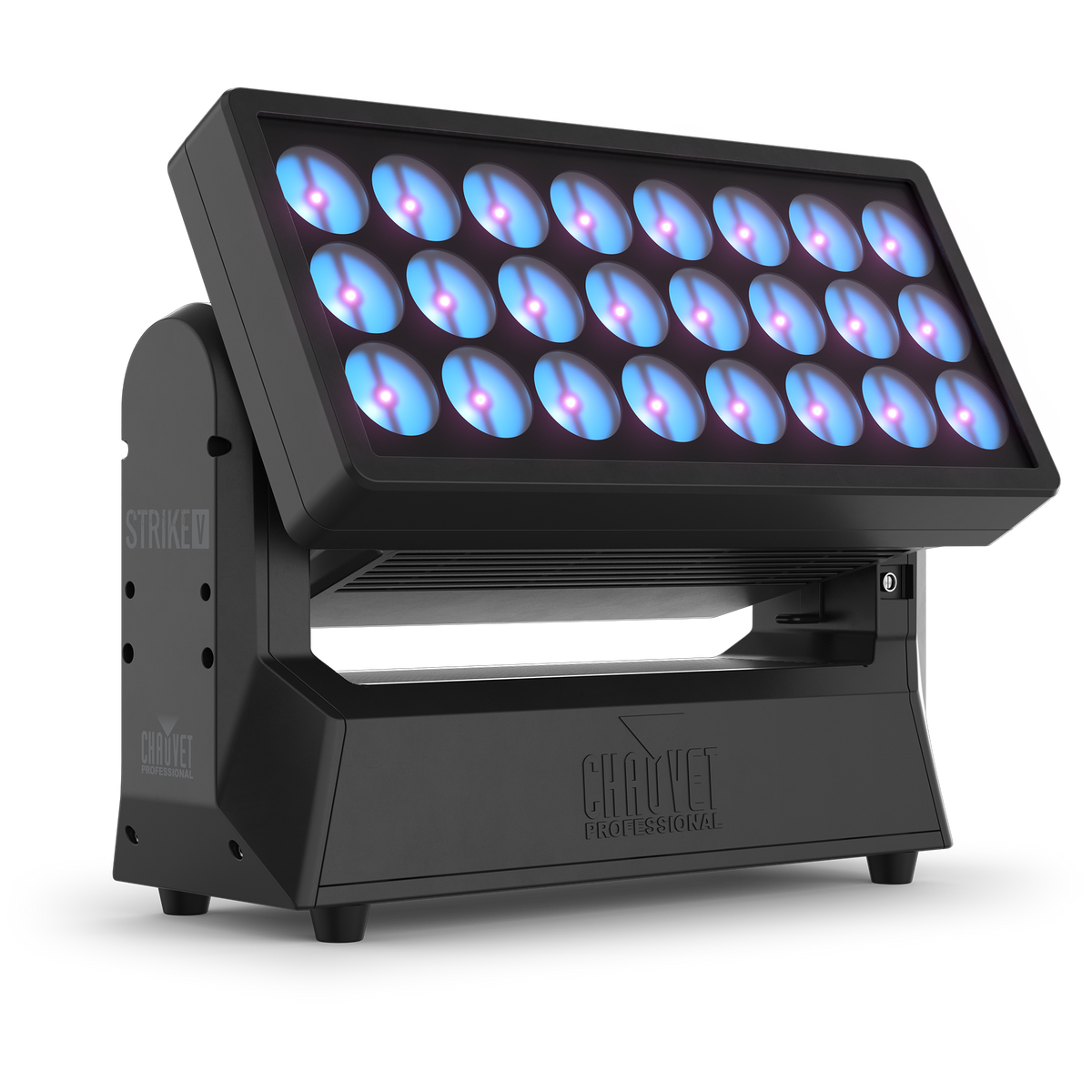

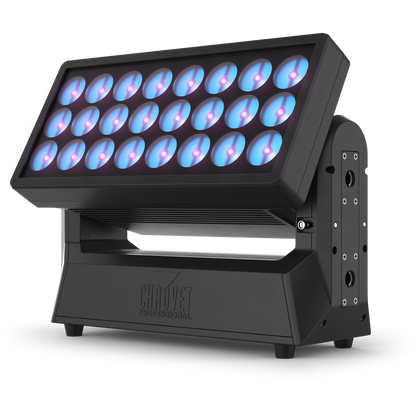

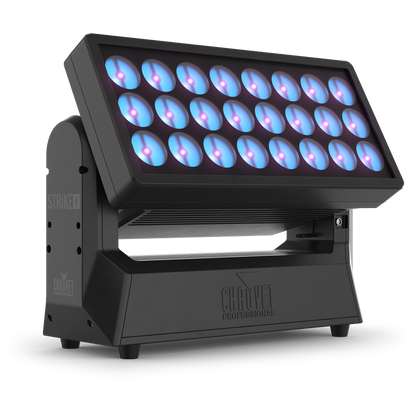

Chauvet Professional STRIKEV STRIKE V

Chauvet Professional STRIKEV STRIKE V

This IP65-rated, motorized tilting strobe and wash hybrid delivers dynamic dual-layer pixel effects, vibrant multicolor washes, and powerful strobe capabilities. Perfectly suited for touring productions, large-scale concerts, and outdoor festivals requiring robust, high-impact, and weather-resistant lighting effects.

• Features 48 individually controllable quad-color RGBW LEDs across two distinct layers for dynamic effects.
• Features a rugged, IP65-rated housing, ensuring dependable operation in any outdoor environment.
• An integrated variable electronic frost filter instantly changes the beam angle for versatile wash effects.
• Delivers a wide 180° motorized tilt range for precise and dynamic fixture positioning.
• Supports versatile control options including DMX, RDM, Art-Net, and sACN protocols.
• Includes a magnetic stealth filter to completely conceal the LED pixels when not in use.

Our newest STRIKE design introduces dynamic dual-layer pixel effects with a punchy flair that brings totally new and unique looks to our tour-proven STRIKE family of IP65-rated strobes and blinders. STRIKE V features dual LED diodes, under a variable electronic frost plate that can change beam angles instantly at the press of a button, and together offer fresh new multicolor creative possibilities. Advanced eye-candy effects, vibrant color washes, and stunning strobe capabilities from a motorized 180° tilting strobe/wash hybrid designed for powerful performance in the most demanding applications and conditions.

• Hybrid Strobe and Wash: A fully featured, high-power fixture combining strobe and wash effects with 180 degrees of tilt.
• IP65 All-Weather Rating: The IP65 rating ensures reliable performance and protection for all-weather outdoor use.
• Individual Pixel Control: Features 48 individually controllable pixels across two layers of LEDs for dynamic visual effects.
• Variable Electronic Frost: Create stunning eye candy effects with the integrated variable electronic frost filter.
• Magnetic Stealth Filter: An included filter attaches magnetically to completely hide the LEDs when the fixture is not in use.
• Flexible Rigging Options: Multiple mounting locations and a repositionable yoke offer creative and convenient rigging in any orientation.
• RDM Control: Allows for remote device management and fixture reporting over a standard DMX connection.
• 16-Bit Dimming: Achieve exceptionally smooth control of fades with 16-bit resolution on the master dimmer.
• Easy-to-Use OLED Display: Effortlessly navigate settings and options on the clear, user-friendly OLED display.
• Rugged Design: Built to withstand years of rough use in the most extreme conditions.
• Adjustable PWM: Adjustable Pulse Width Modulation provides added operational flexibility and flicker-free performance on camera.
• USB Software Updates: A convenient onboard USB port allows for easy fixture software updates.
• Built-In Alignment Pins: Integrated alignment pins ensure perfectly straight and seamless linear arrays.
• Failsafe Ethernet Connectivity: Data continues to pass through to other fixtures even if the unit’s power is lost.

Optical

• Light Source: 24 LEDs top plate (quad-color RGBW), 6W, 50,000 hours life expectancy
• Light Source: 24 LEDs bottom plate (quad-color RGBW), 50W, 50,000 hours life expectancy
• Lumens (Combine): 19,589
• Lumens (Dot): 1,912
• Lumens (Cell): 17,127
• Selectable PWM: 1000Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25000 Hz, 64,000 Hz

Dynamic Effects

• Tilt: 180°
• Tilt Ranges: 0° to 180°
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

Construction/Physical

• Dimensions: 16 x 7.3 x 12.2 in (407 x 187.4 x 310 mm)
• Weight: 36 lb (16.3 kg)
• Exterior Color: Black
• Housing Material: AZ91D Magnesium diecast

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: Art-Net, DMX, RDM, sACN

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 747 W, 7.54 A @ 100 V, 60 Hz
• Power and Current: 747 W, 6.20 A @ 120 V, 60
• Power and Current: 719 W, 3.63 A @ 208 V, 60 Hz
• Power and Current: 717 W, 3.28 A @ 230 V, 50 Hz
• Power and Current: 717 W, 3.17 A @ 240 V, 50 Hz

Certifications/Qualifications

• Certifications: CE, MET, ROHS, FCC
• IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
