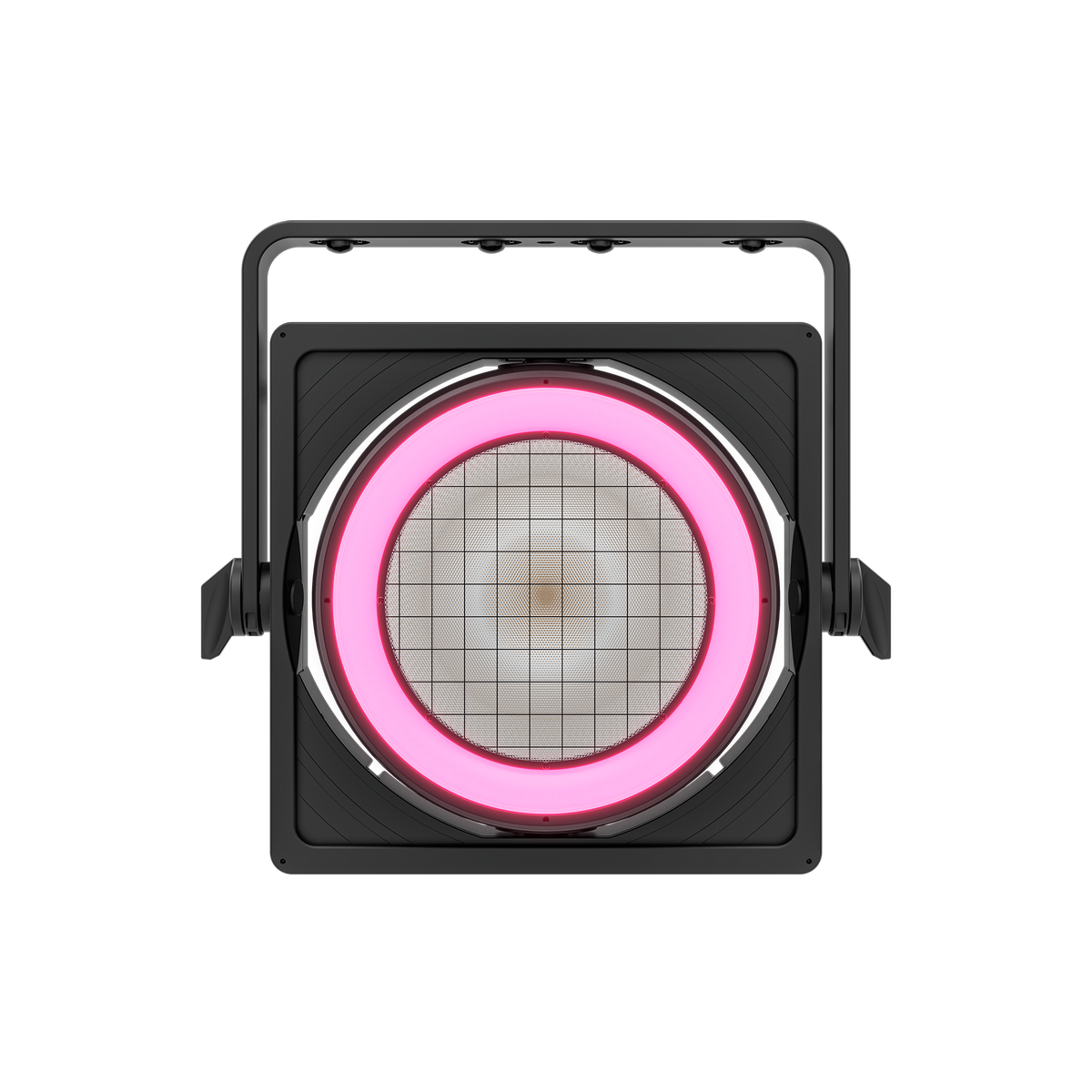

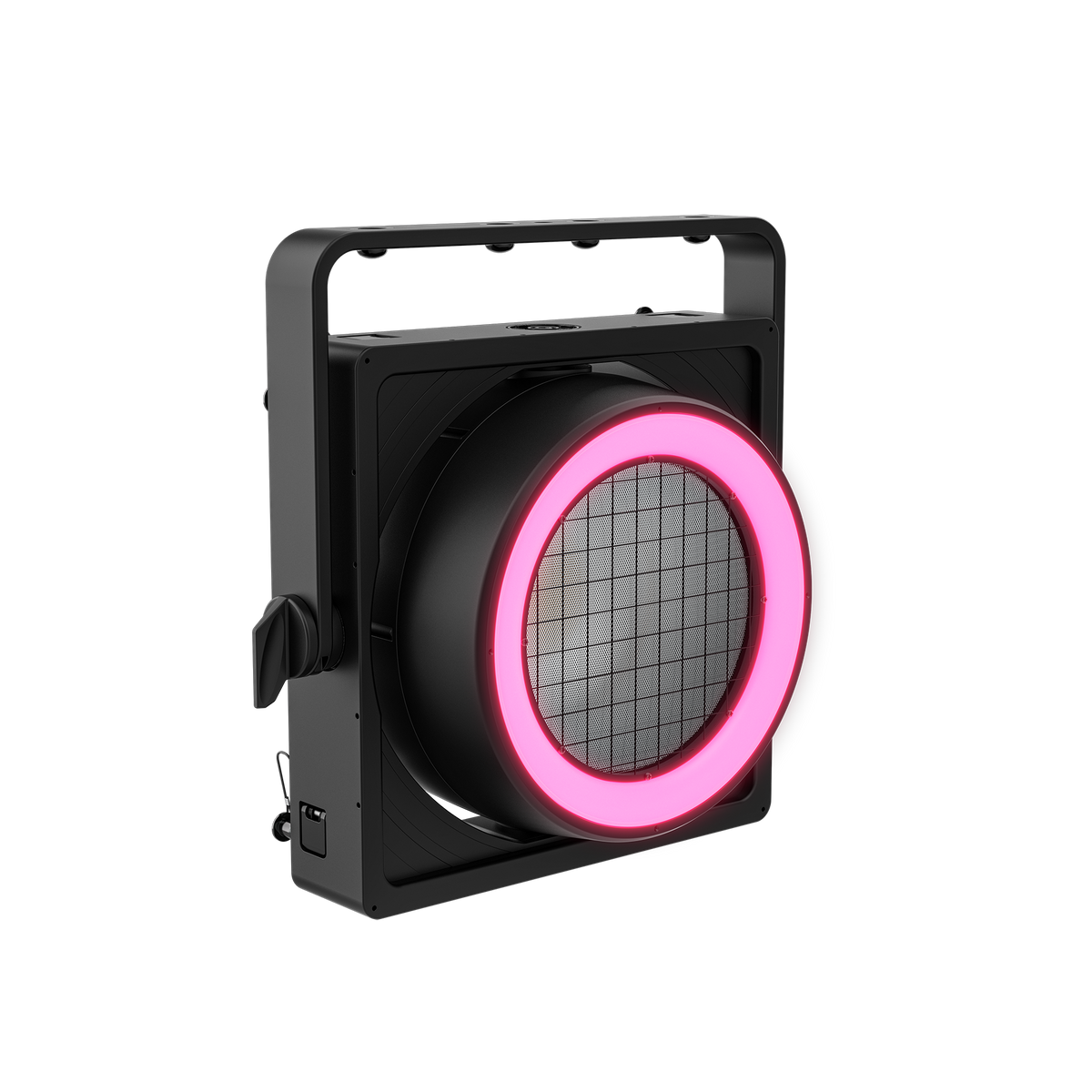

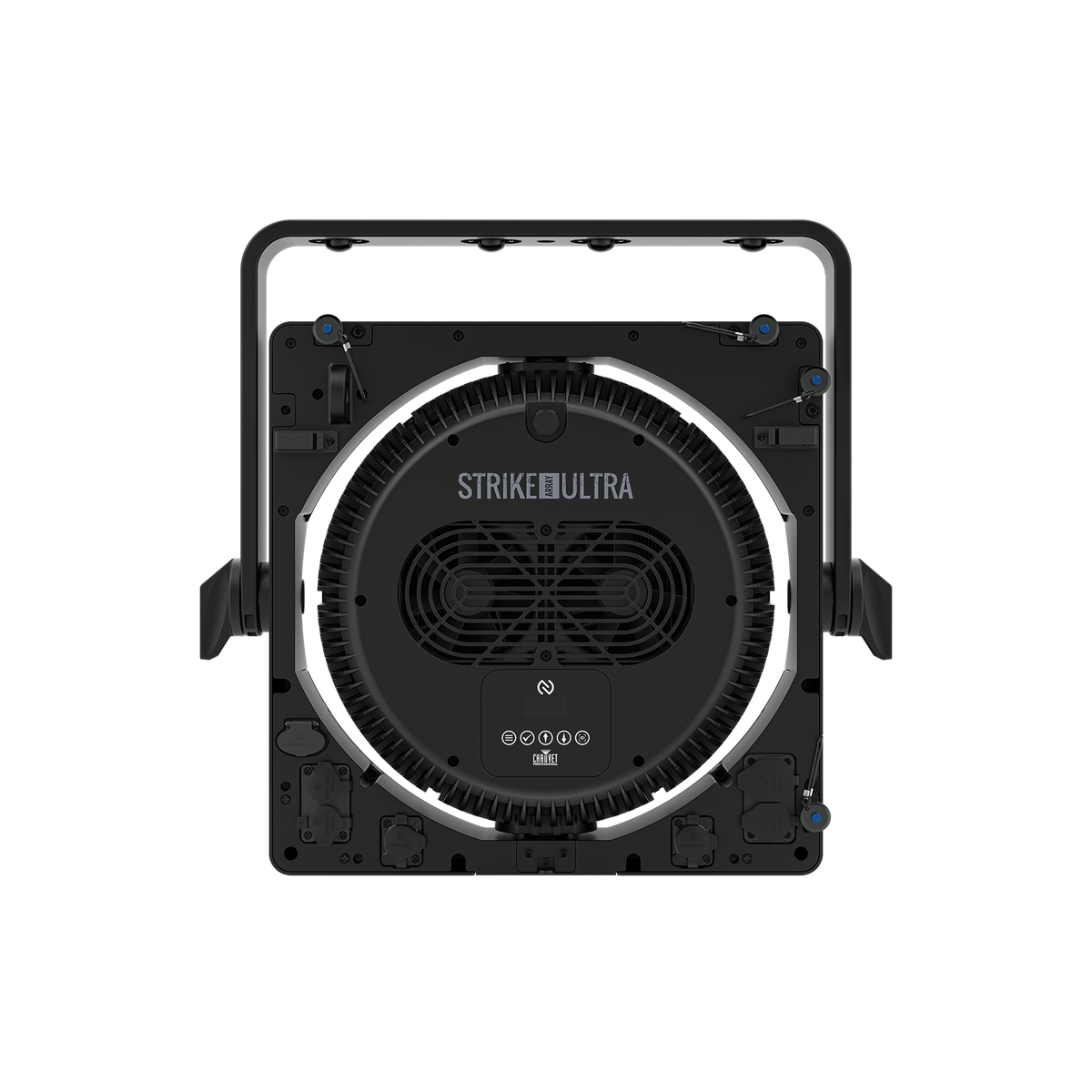

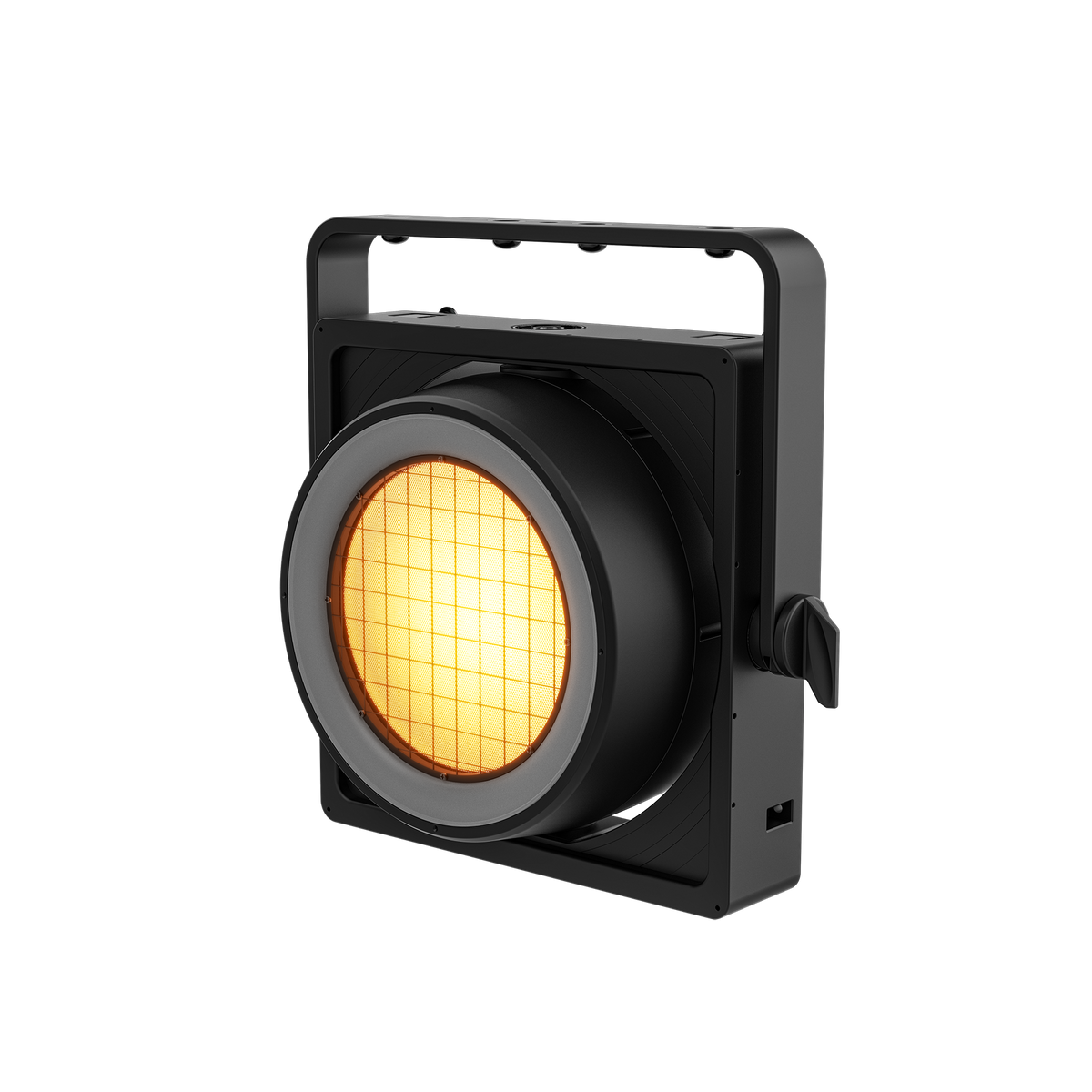

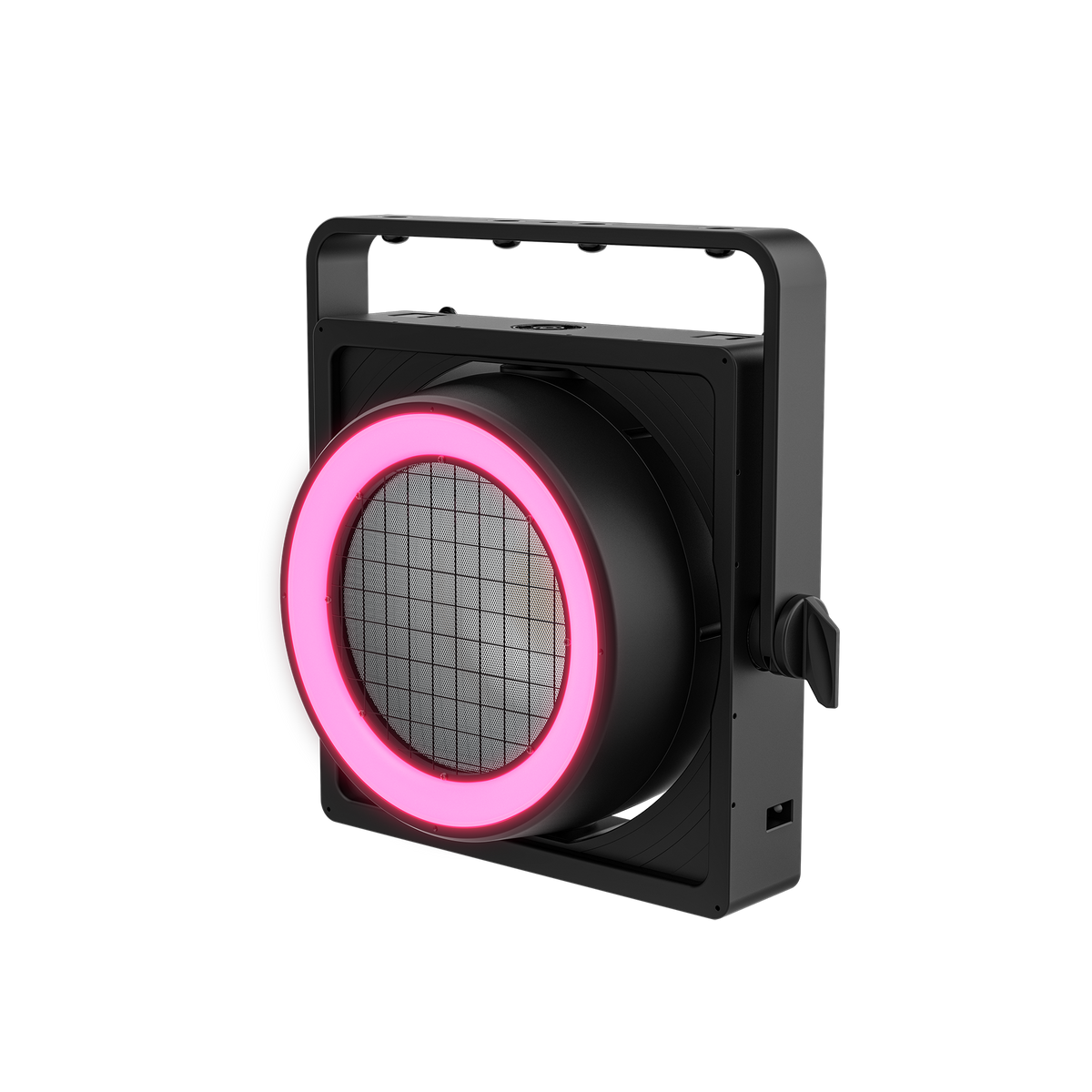

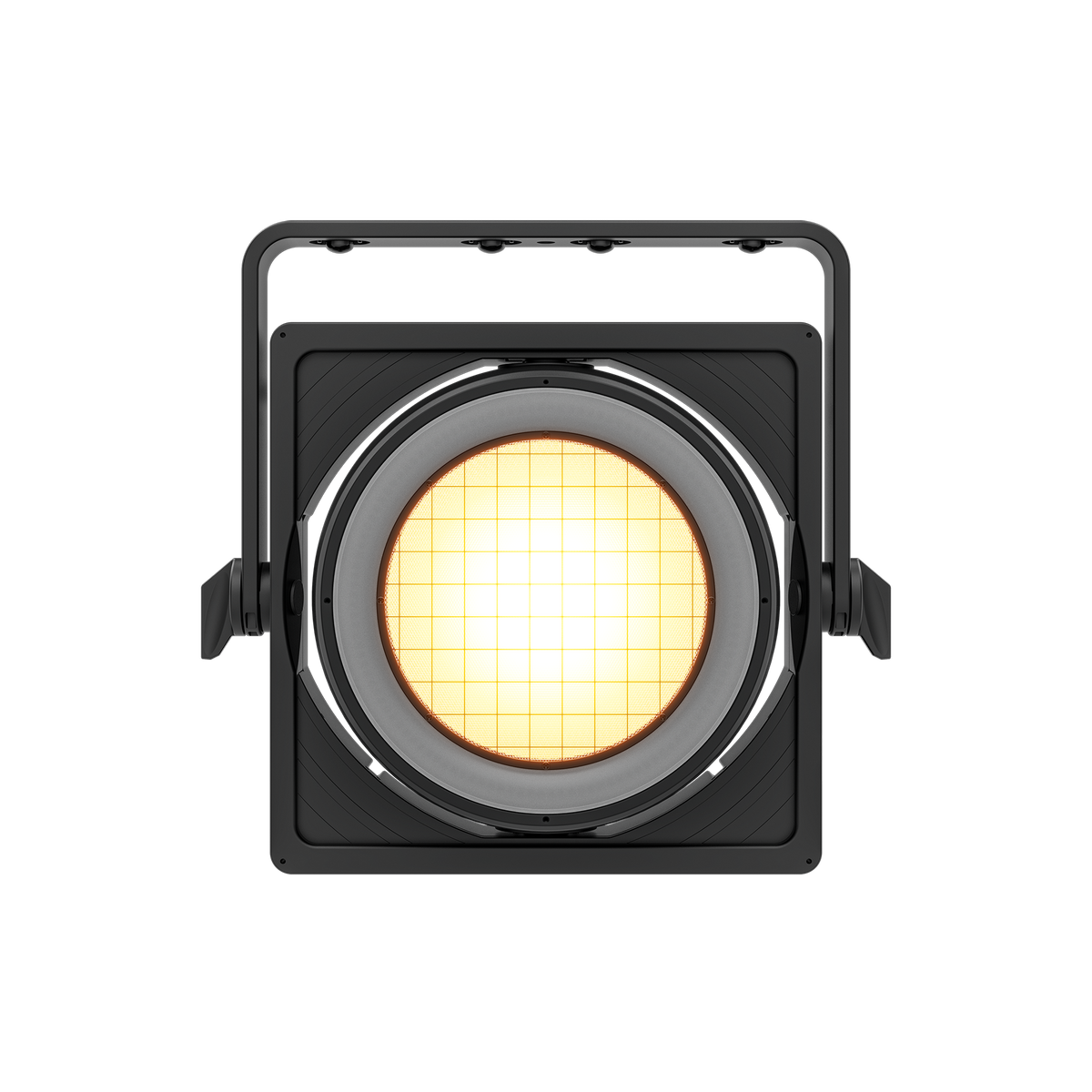

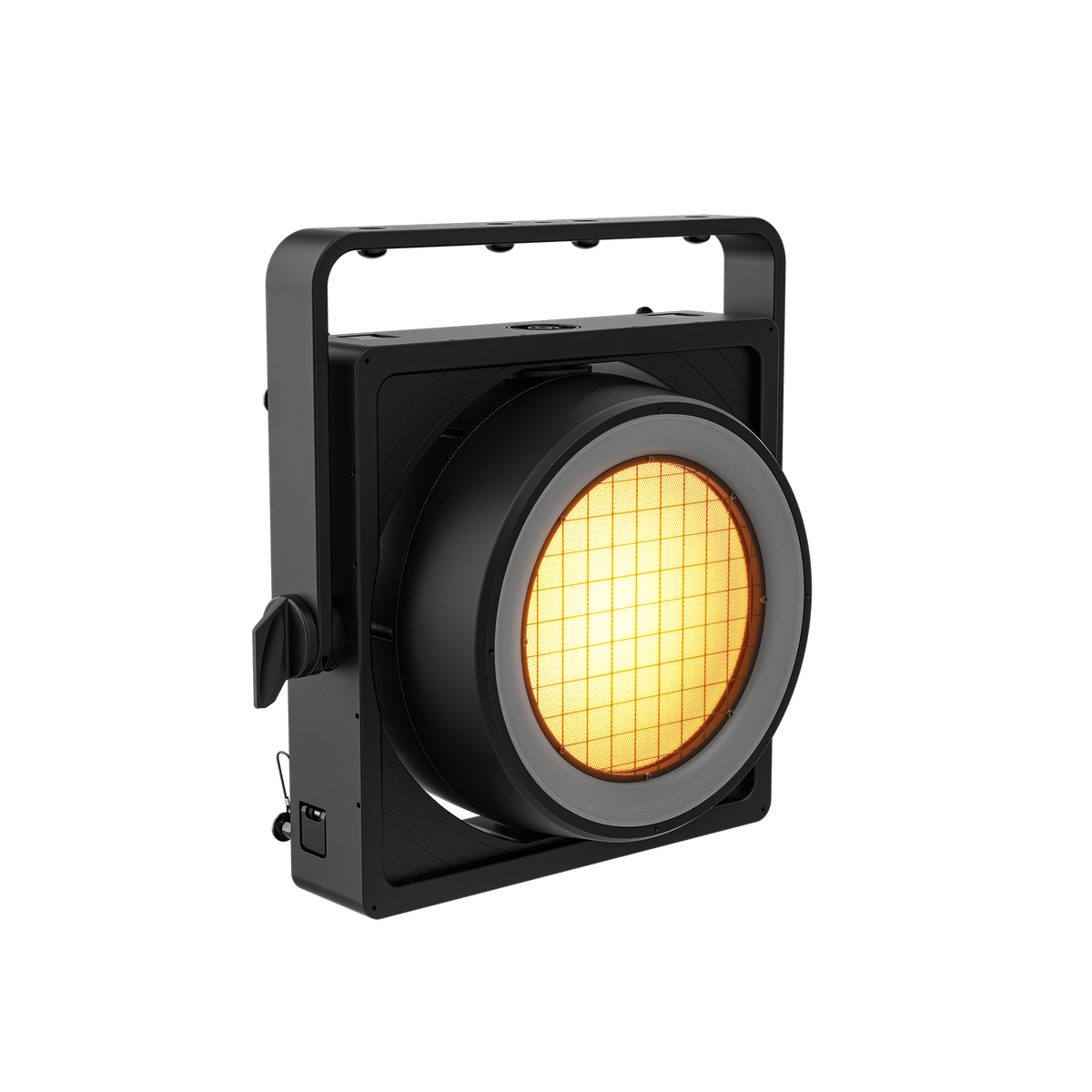

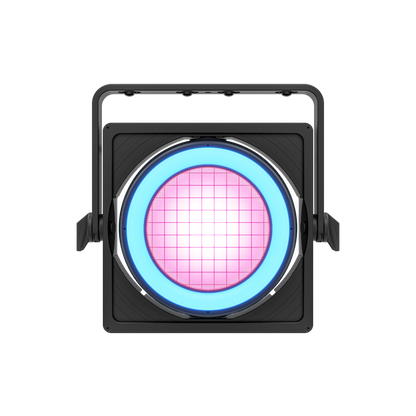

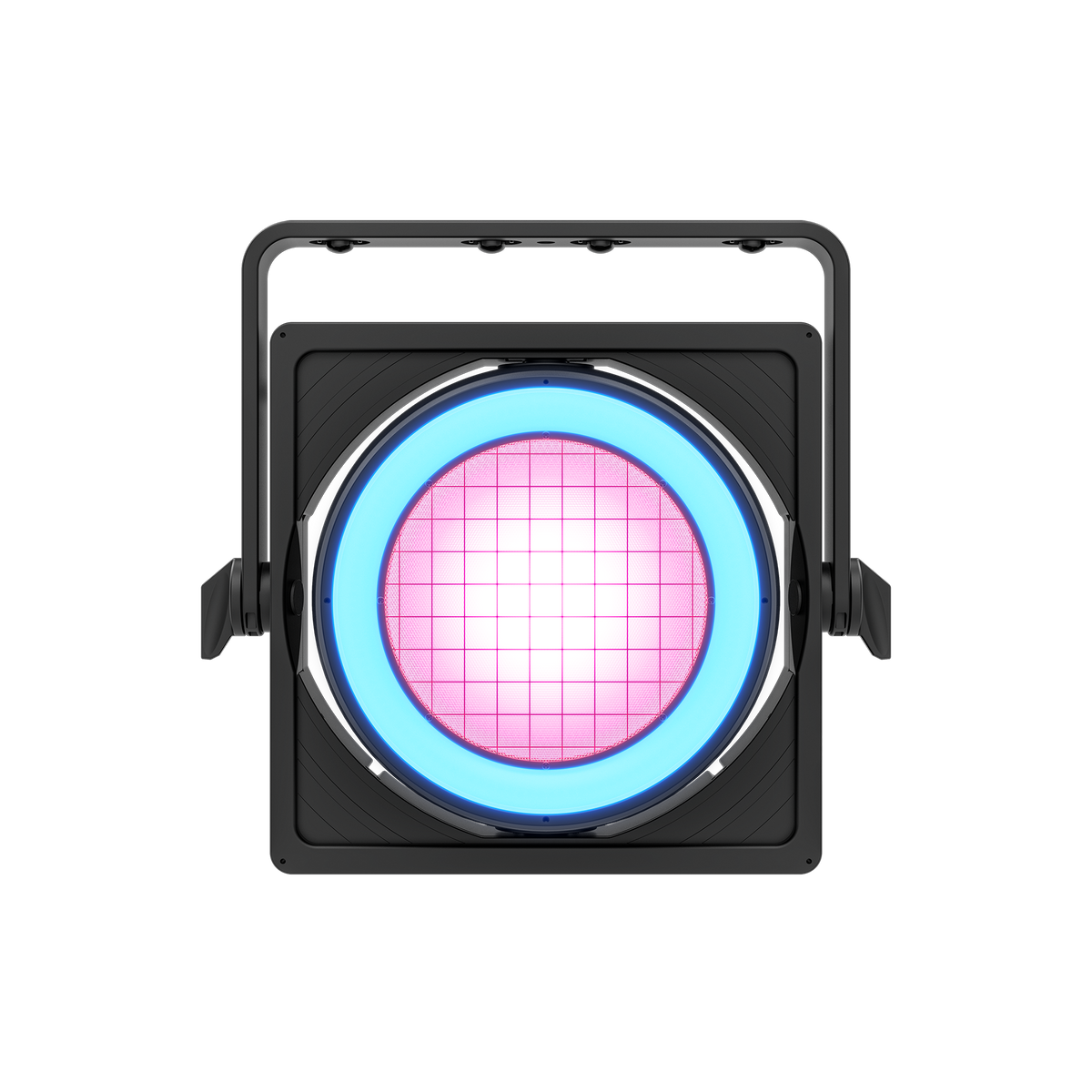

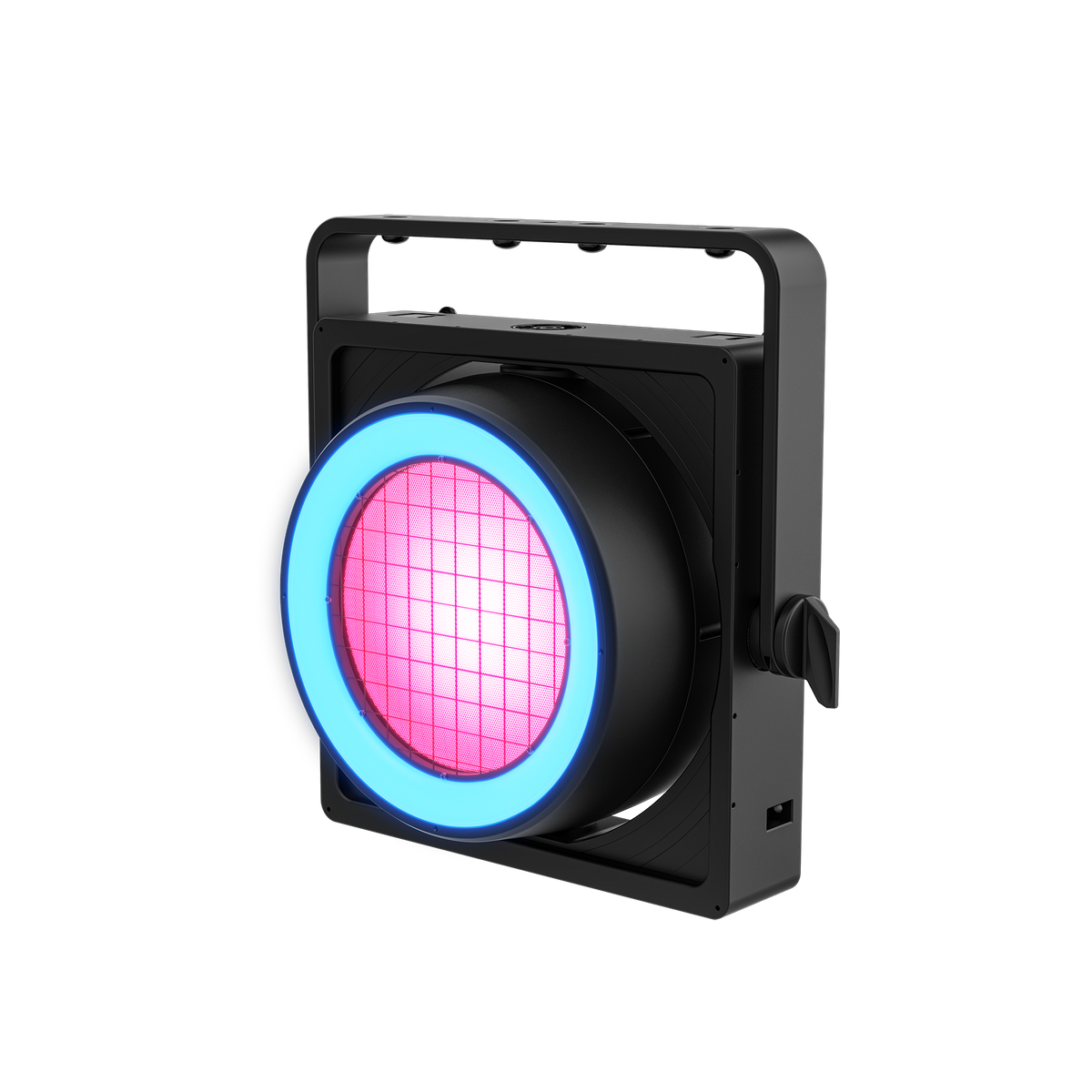

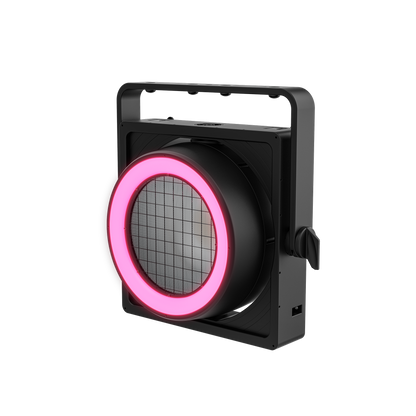

Chauvet Professional STRIKEARRAYULTRA STRIKE Array Ultra

Chauvet Professional STRIKEARRAYULTRA STRIKE Array Ultra

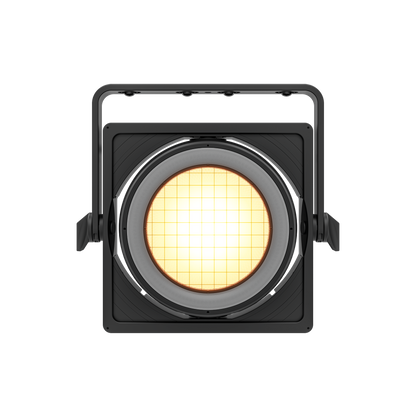

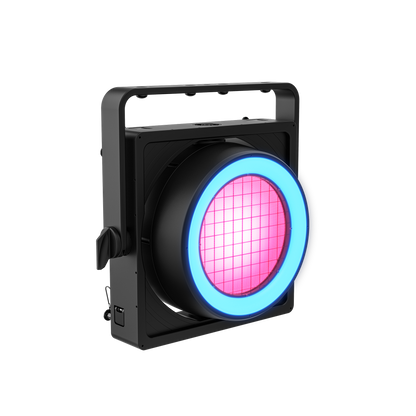

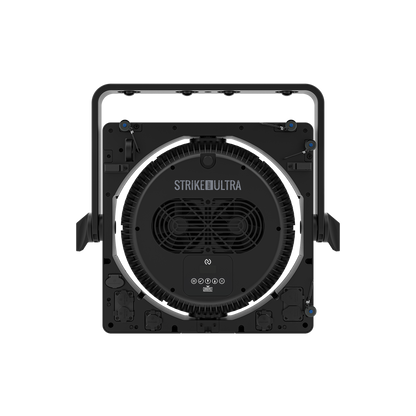

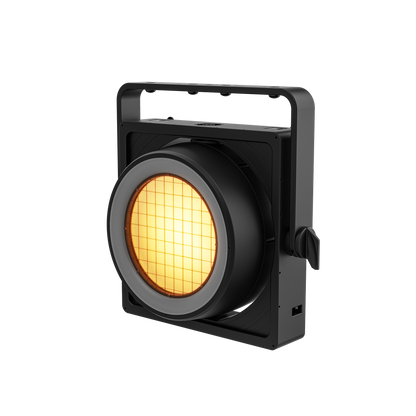

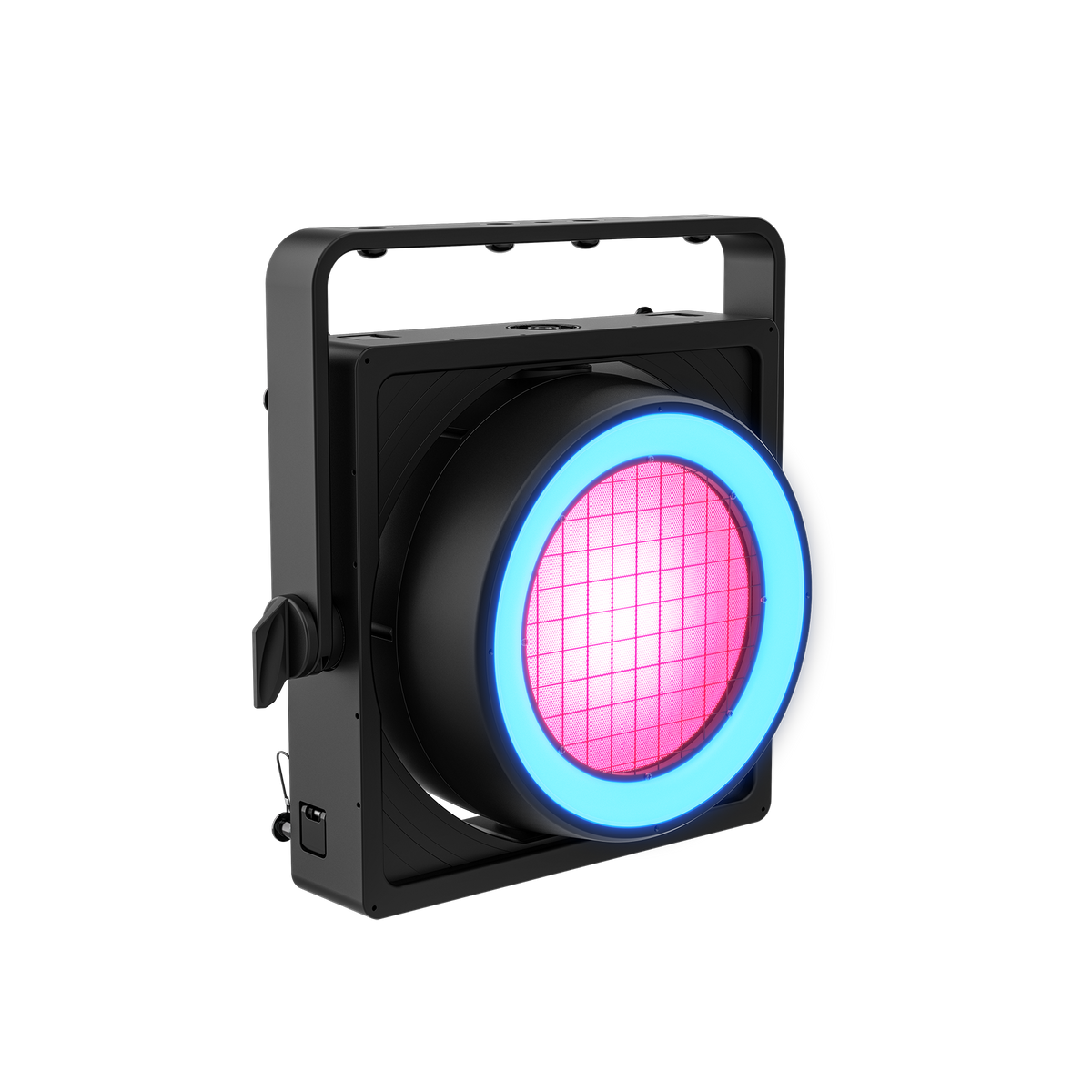

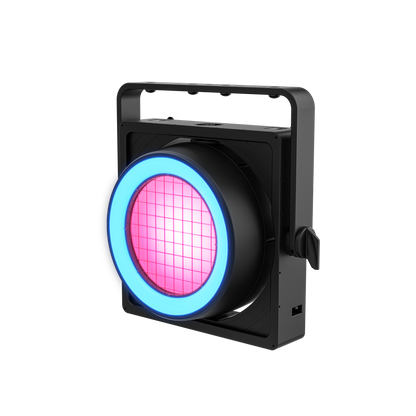

A next-generation IP65 audience blinder that pairs a powerful RGBA-WW engine with a motorized movement axis and a dynamic RGB halo ring.

• High-power, big aperture full color (RGBwWA), IP65 blinder in the STRIKE Array Family
• Class defining output for stadium filling light in any color or high quality white with our trademark red-shift dimming
• Features motorized pan (or tilt based on mount orientation), and RGB ring with segment control for added versatility and effects.

STRIKE Array Ultra is a next-generation IP65 audience blinder that pairs a powerful RGBA-WW engine with a distinctive RGB halo ring for bold, camera-ready looks. Its high-CRI calibrated whites and filter option deliver natural skin tones and rich color on camera, while a single motorized movement axis that functions as pan or tilt, along with broadcast-optimized dimming, transforms classic blinder punch into a flexible, dynamic effects platform. Built to integrate seamlessly with other STRIKE Array and STRIKE Bolt fixtures, it scales effortlessly from clubs to full festival and broadcast rigs.

• 60,000+ Lumen Single-Source Punch: A single high-output pod delivers 60,000+ lumens of blinder-intensity impact—built to read on camera and carry from studio floors to stadium tours.
• Broadcast-Grade RGBA-WW Color + High-CRI Whites: RGBA-WW color mixing produces saturated color and clean, high-CRI whites, with red-shift dimming for natural warmth on fades and superior on-camera skin tones.
• Dynamic Motorized Movement: A single motorized axis provides pan or tilt movement, adding a layer of dynamic motion to traditional blinder effects for more engaging looks.

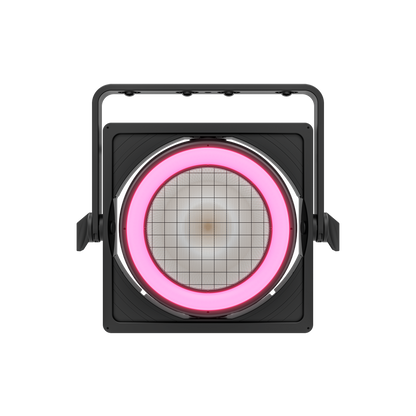

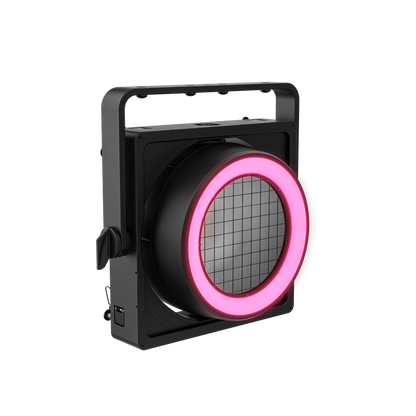

• 12?Section RGB Halo Ring Effects: A distinctive 12-segment RGB ring adds pixel-style effects, chases, and eye-candy—expanding looks beyond “on/off blinder” for live and broadcast.
• STRIKE Array Family Mounting Compatibility: Physically mounts with all fixtures in the STRIKE Array family for seamless lineup builds, consistent rigging, and familiar deployment across existing systems.

Optical

• CRI @ 3200K: 92.8
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

• Pan: +-25°
• Pan Ranges: 50°
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes

Construction/Physical

• Dimensions: 19.13 x 17.79 x 11.02 in (486 x 452 x 280 mm)
• Weight: 39.6 lb (18 kg)
• Exterior Color: Black
• Housing Material: Aluminum Profile, Die-casting magnesium
• IP Rating: IP65

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin Seetronic IP65 XLR or Seetronic IP65 etherCON
• Cable Length (power): 5 ft (1.5 m)
• Software Update: USB-C

Control

• Control Protocol: Art-Net, sACN, DMX, RDM
• DMX Channels: 4, 6, 11, 14, 18, 19, 24, 27, 47, 90 or HSV
• Art-Net Channels: 4, 6, 11, 14, 18, 19, 24, 27, 47, 90 or HSV
• Modes/Personalities: 11 personalities (4, 6, 11, 14, 18, 19, 24, 27, 47, 90 or HSV)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 1 units @ 120 V; 2 units @ 208 V; 2 units @ 230 V;
• Power and Current: 1024 W, 8.54 A @ 120 V, 60 Hz
• Power and Current: 995 W, 4.81 A @ 208 V, 60 Hz
• Power and Current: 995 W, 4.34 A @ 230 V, 50 Hz

Certifications/Qualifications

• Compliance: CE, MET, FCC
• MET Listing Number: [E113093-1110, E113093-1125]
• US Safety: [UL 60950-1]
• Canadian Safety: [CSA C22.2 No. 60950-1]
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
