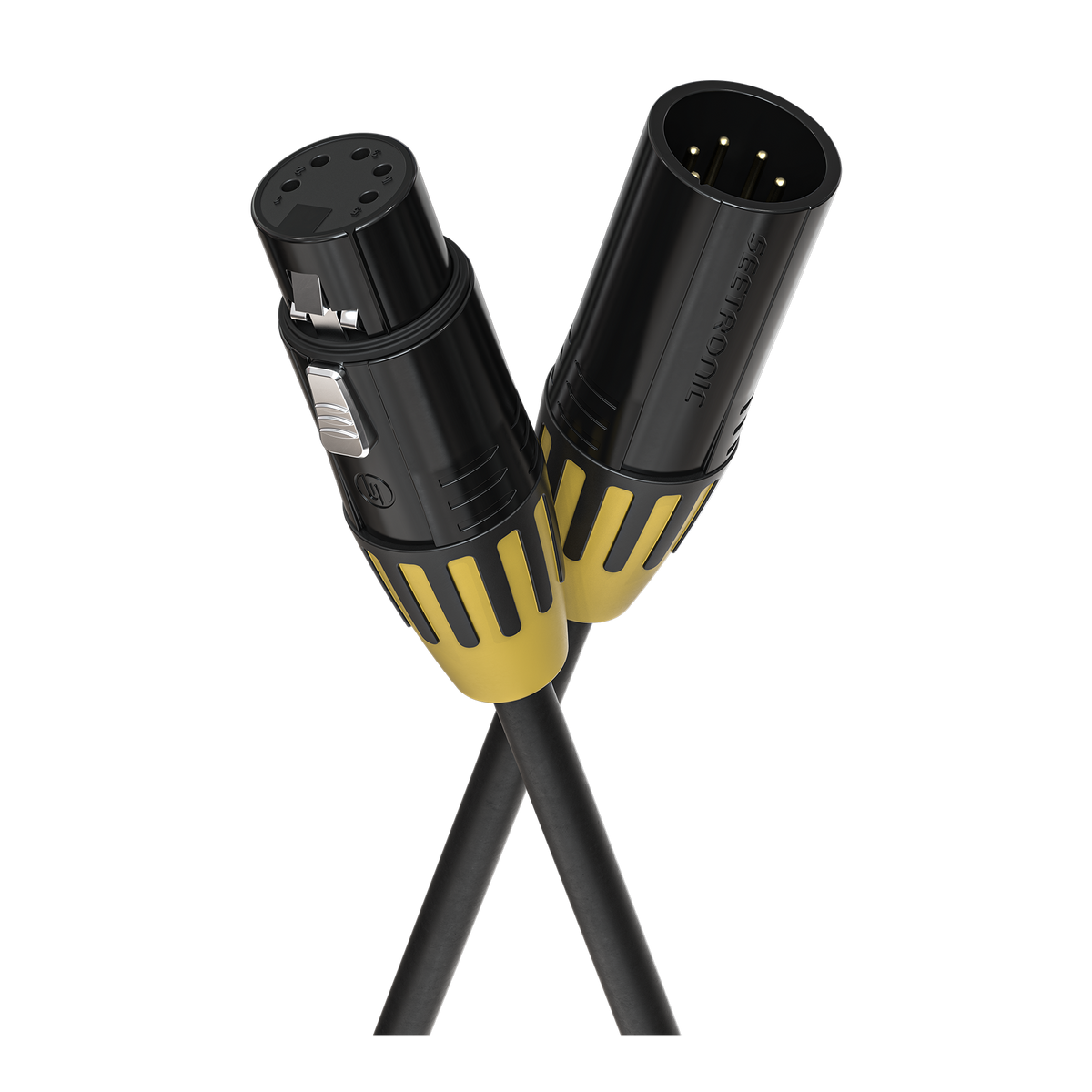

Chauvet Professional RIGLINKDMX10FT RIGLINK 5-Pin DMX - 10FT

Chauvet Professional RIGLINKDMX10FT RIGLINK 5-Pin DMX - 10FT

This durable, double-shielded Riglink DMX cable is a production-grade solution engineered for exceptionally stable signal transmission. Perfect for professional touring, live productions, and permanent installations where signal integrity and robust construction are essential.

• Protects signal integrity with a double shield of braided and aluminum foil layers.
• Delivers stable 110-ohm impedance using high-torsion tinned oxygen-free copper conductors.
• Equipped with professional-grade Seetronic® connectors for reliable and secure connections.
• Housed in a highly elastic PVC jacket for exceptional durability and flexible handling.
• Simplifies setup with color-coded connectors for fast identification of different cable lengths.
• Ensures stable signal transmission with low-dielectric LDPE insulation for precise impedance.

Durable double-shielded Riglink production-grade DMX lighting cable designed for stable signal transmission.

• Double Shielding Design: A braided and aluminum foil shield provides maximum protection against signal interference.
• DMX-512 Ready: Specifically engineered for standard 110-ohm DMX-512 lighting control applications.
• Stable Signal Transmission: Low-dielectric LDPE insulation ensures low capacitance and meets precise impedance requirements for a stable signal.
• High-Quality Conductor: High-torsion tinned oxygen-free copper provides over 89% shielding effectiveness for superior interference resistance.
• Flexible PVC Jacket: A highly elastic PVC outer jacket creates a soft, durable, and flexible cable that is easy to handle.
• Installation and Touring Use: Its versatile design is ideal for both permanent installations and demanding touring environments.
• Color-Coded Connectors: Quickly identify cable lengths with color-coded connectors that eliminate guesswork during setup.
• Certified for Safety: Components are certified to meet worldwide safety standards for reliable and compliant operation.
• Road-Ready Construction: Built rugged to withstand the rigors of live performances and life on the road.
• Reliable Connection System: Ensures consistent signal transmission with a robust and secure connection system.
• Professional Grade Connectors: Equipped with Seetronic® professional production grade connectors for dependable performance.
• Multiple Length Options: Available in a variety of standard lengths measured in both meters and feet to suit any need.

Construction/Physical

• Conductor Specification: 2 x 0.22mm2 (24AWG)
• Conductor Structure: OFC 20/0. 12BC
• Insulation Material: LDPE
• Insulation OD: 1.8mm
• Shield Structure: OFC 16/8/0.1TC + AL
• Outer Jacket Material: PVC (Black)
• Outer Diameter: 6.0 ± 0.2mm
• Temperature Rating: -20ºC – 70ºC
• IP Rating: IP20

Connections

• Connector: Seetronic SCM55-BG
• Connector: Seetronic SCMF5-BG

Electrical

• Withstand Voltage: 0.5kV
• Conductor Resistance: 88.2 ?/km
• Capacitance between Conductors: 50 pF/m
• Conductor and Sheild Capacitance: 122 pF/m
• Impedance: 110 ?

Cable

• Metric: 1m, 3m, 5m, 10m, 20m
• Imperial: 1.5ft, 5ft, 10ft, 25ft, 50ft
