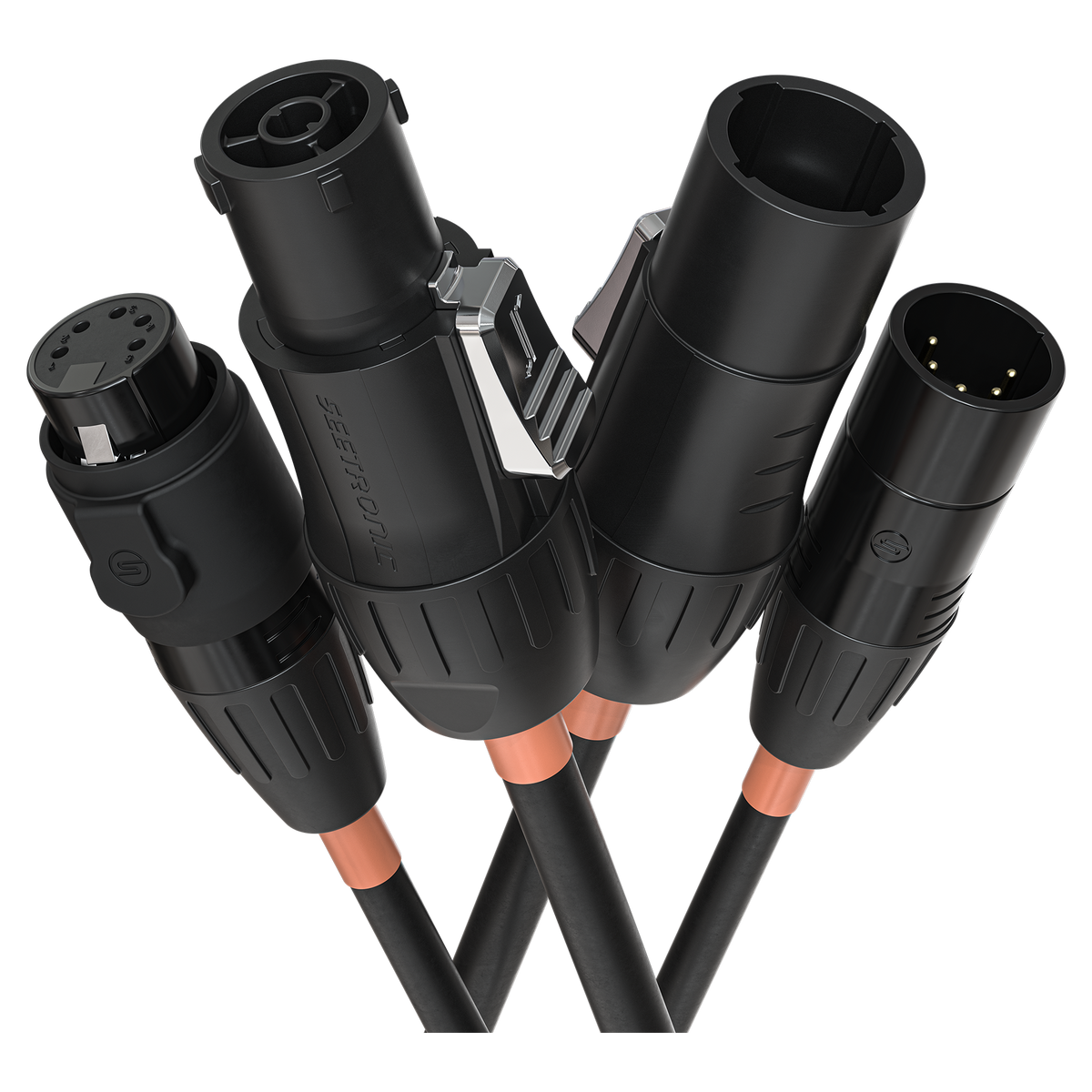

Chauvet Professional RIGLINKCOMBO25FT RIGLINK TR1 DMX Combo IP - 25ft

Chauvet Professional RIGLINKCOMBO25FT RIGLINK TR1 DMX Combo IP - 25ft

An IP65-rated combo cable delivering both power and reliable DMX lighting data in a single, ruggedized line secured by production-grade Seetronic® connectors. Perfect for touring productions, festivals, and outdoor events requiring a single, durable, all-weather cable for both power and lighting control.

• Delivers clean signal transmission with individually insulated conductors and 110 ? impedance.
• Built for touring and outdoor events with a rugged, all-weather IP65-rated construction.
• Guarantees secure connections with professional-grade Seetronic® power and data connectors.
• Speeds up setup with color-coded connectors for immediate identification of cable lengths.
• Built with certified components compliant with global safety standards for worldwide touring use.
• Available in multiple lengths with both meter and feet markings for international convenience.

IP65-rated Riglink combo power and data cable designed for reliable DMX lighting signal transmission and safe connections with Seetronic® production-grade connectors.

• Single Cable Solution: Transmit both power and data signals simultaneously through a single, efficient cable.
• Installation and Touring Ready: Designed for reliability and convenience in both permanent installations and mobile touring setups.
• IP65 Outdoor Rating: An IP65 rating ensures complete protection against dust and water for any outdoor environment.
• Minimal Interference: Each conductor is individually insulated to protect against signal interference and ensure clean transmission.
• Color-Coded Lengths: Quickly identify cable lengths with color-coded connectors, simplifying setup and organization.
• Worldwide Safety Standards: Utilizes certified components that comply with global safety standards for secure operation anywhere.
• Rugged Construction: Built to withstand the demands of live performances and the rigors of life on the road.
• Reliable Transmission: Guarantees dependable signal transmission through a robust and secure connection system.
• Professional Grade Connectors: Equipped with Seetronic® professional production grade connectors for superior performance.
• Multiple Length Units: Available in a variety of lengths measured in both meters and feet to suit international needs.

Construction/Physical

• Conductor Specification: 2 x 0.34mm2 (22AWG) & 3 x 2.07mm2 (14AWG)
• Conductor Structure: OFC 19/0. 15TC & 66/0.20BC
• Insulation Material: HDPE & PVC
• Insulation OD: 1.4mm & 3.0mm
• Filler: Cotton & PPR
• Wrapping Tape: Non-woven fabric
• Sheild Structure: Tinned copper wire, 82% AL, 100% coverage
• Middle Quilt: PVC
• Outer Jacket Material: PVC (Black)
• Outer Diameter: 16.5 ± 0.2mm
• Temperature Rating: -20ºC – 70ºC
• IP Rating: IP65

Connections

• Connector: Seetronic SAC3FX
• Connector: Seetronic SCWM5-B
• Connector: Seetronic SAC3MX
• Connector: Seetronic SCWF5-B

Electrical

• Withstand Voltage: 0.5/1.5 AC kV/min
• Conductor Resistance: 25.98 ?/km & 7.98 ?/km
• Capacitance between Connectors: 100pF/m
• Conductor shiels capacitance: 180pF/m
• Impedance: 110 ?

Cable

• Metric: 1m, 3m, 5m, 10m
• Imperial: 1.5ft, 5ft, 10ft, 25ft
