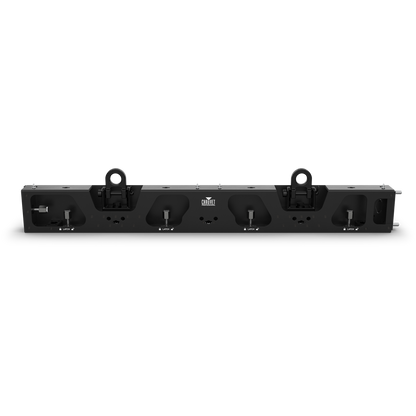

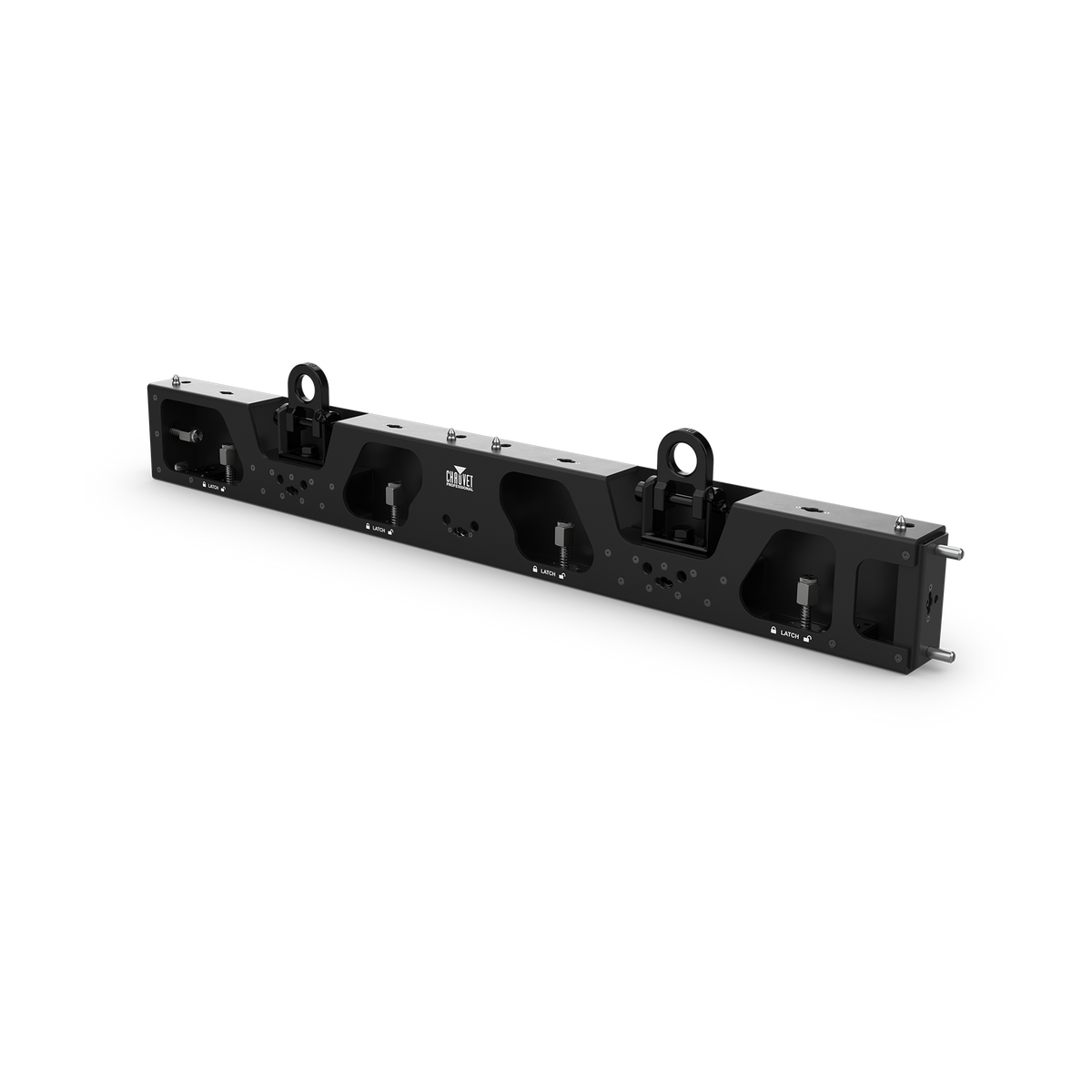

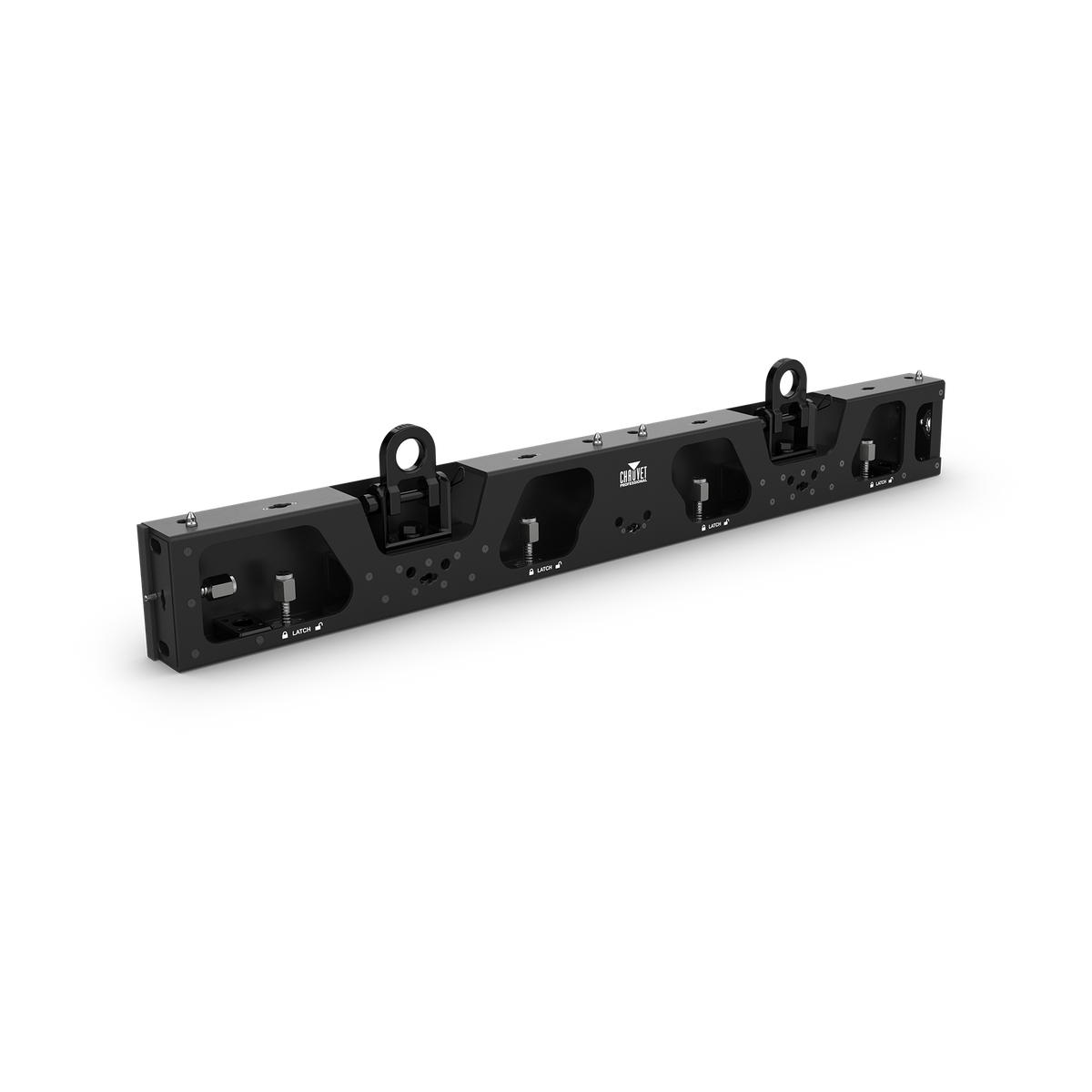

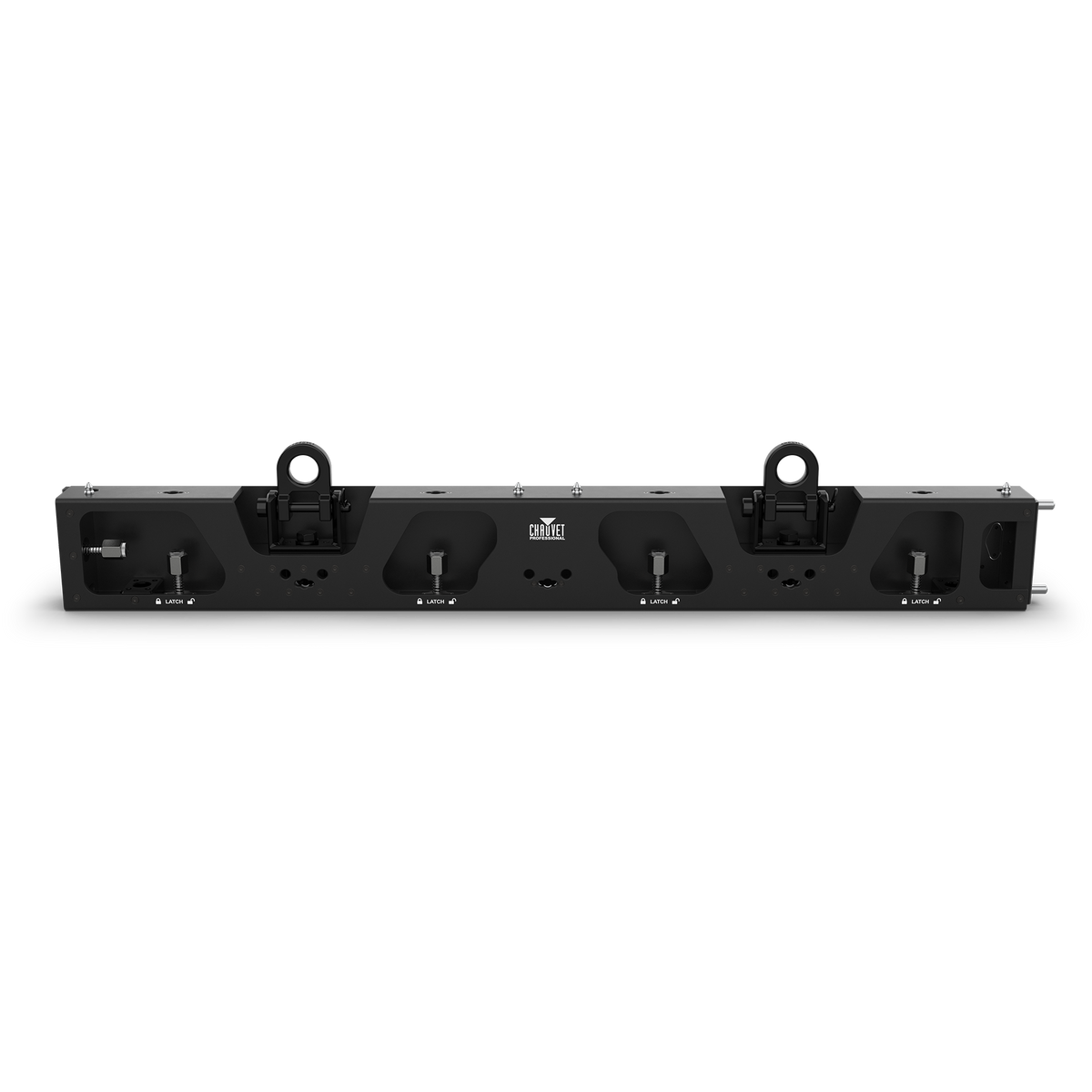

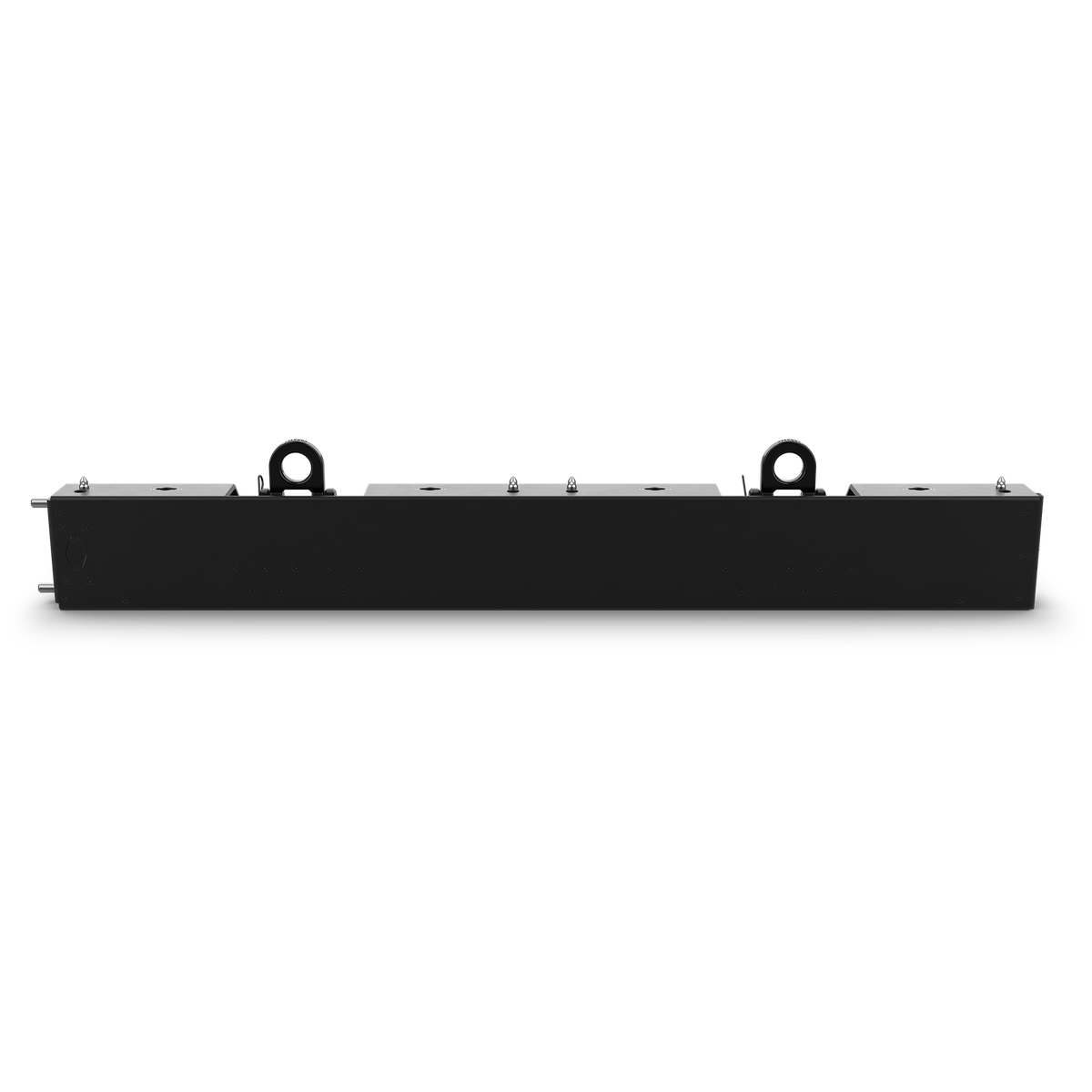

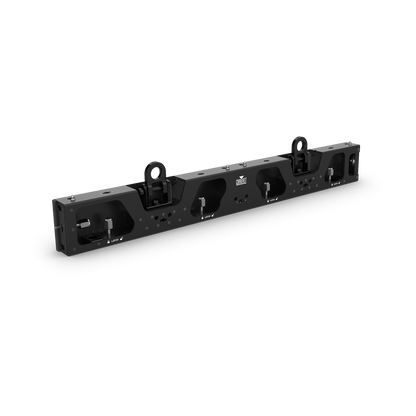

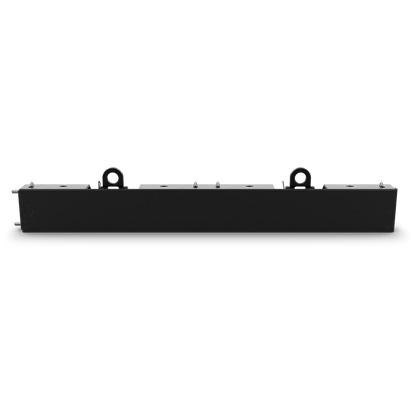

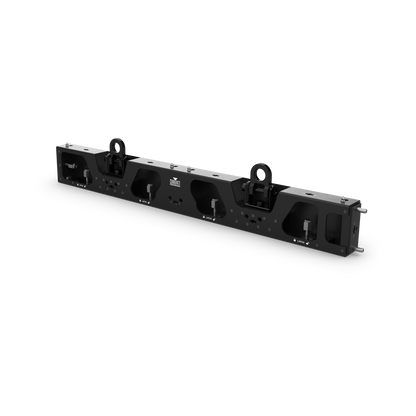

Chauvet Professional REMRB100CMIP2 REM Rig Bar 100CM -2
Designed to work with REM 1 and REM 3IP video panels (not compatible with older F-series Rig Bars), REM-RB100CMIP is a rugged IP65-rated rig bar that performs dual functions. It may be used to hang the video wall overhead, and also for ground stacking purposes, by adding in the GROUND STACK KIT.
-
REM Rig Bar, used for both overhead hanging and ground stacking
-
Works with CHAUVET REM video panels
-
Equipped hoist ring supports standard rigging hardware for overhead hanging (1/2” and 5/8” shackles)
-
Included Clamp attachment bracket (DRB-CTC) allows for direct connection using M12 bolts in clamps using TRUSST CTC-50HC
Specifications
Construction / Physical
- Dimensions: 39.35 x 2.36 x 4.72 in (999.6 x 60 x 120 mm)
- Weight: 16.8 lb (7.62 kg)
- Exterior Color: Black
- Housing Material: Aluminum extrusion, stainless steel
Clamp
- Load Capacity (Hanging): 1,710.8 lb (776 kg)
- Load Capacity (Stacking): 1,752.70 lb (795 kg)
- Recommended Shackle Sizes: 1/2”, 5/8”
Certifications / Qualifications
- IP Rating: IP65, temporary outdoor/wet use
What's Included
- 1pc REM Rig Bar-100 cm (REM-F100CMIP)
- 2pcs clamp attachment brackets (DRB-CTC)
- 2pcs clamp bolts for TRUSST CTC-50HC
Required Accessories
- Compatible Mounting Options: Shackle (Sizes: 1/2”, 5/8”), Pipe Clamp (M12 threaded bolt)
Optional Accessories
- VIP Signal Distributor, VIP Media Server
- ArKaos Media Master Express + KN software
- Controllers (optional): IRC, FCW, ACW, FCT, FCM
- Clamps
- Barn Doors
- Neutrik powerCON cables
- Neutrik etherCON cables
- DMX Cables
- Flight Cases
