Chauvet Professional REM3IPSQX8NOLED REM 3IPSQ 8-pack Road case, NO LED Modules

Chauvet Professional REM3IPSQX8NOLED REM 3IPSQ 8-pack Road case, NO LED Modules

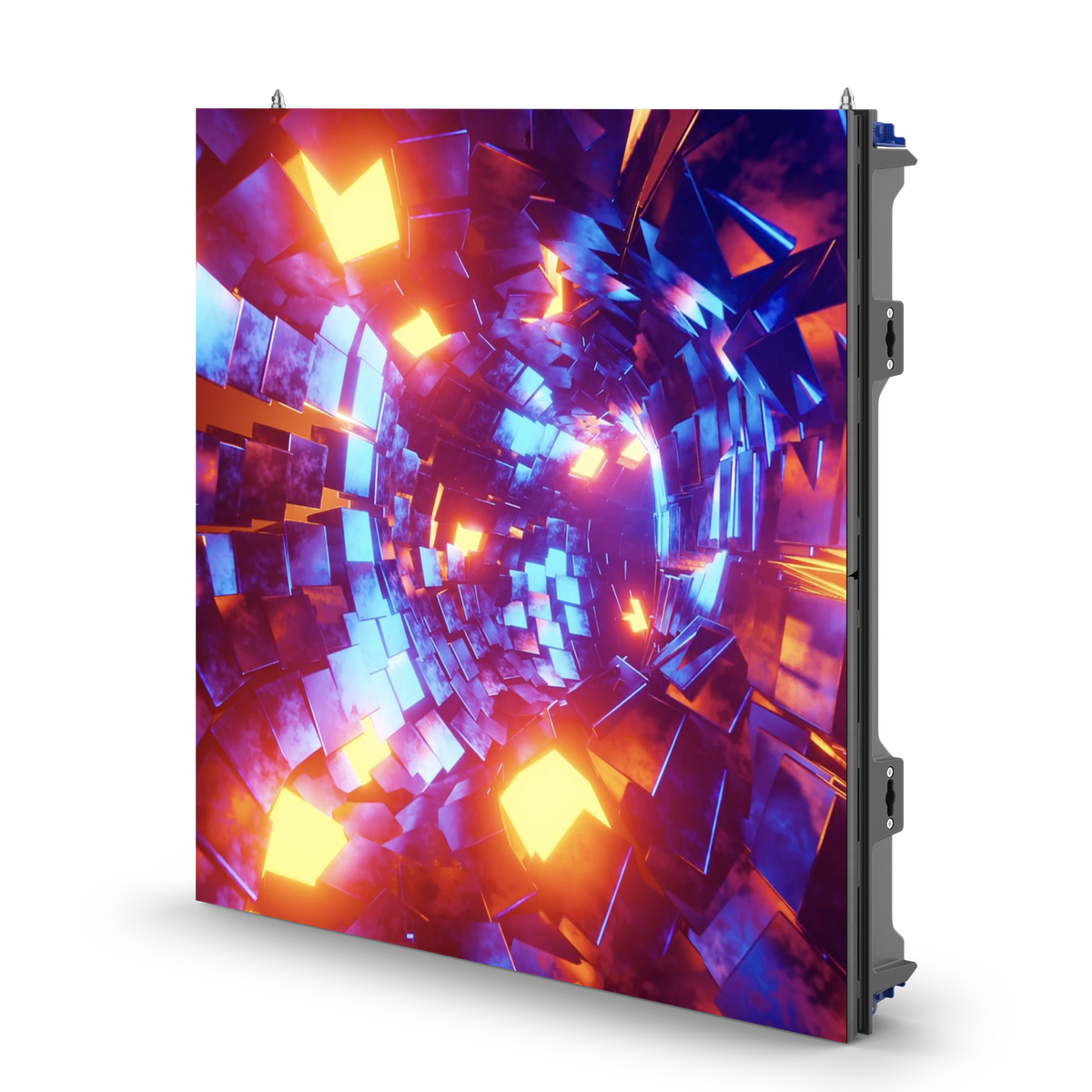

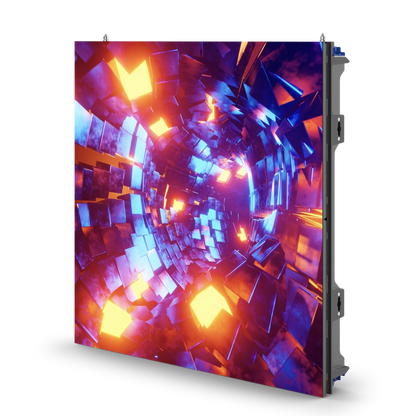

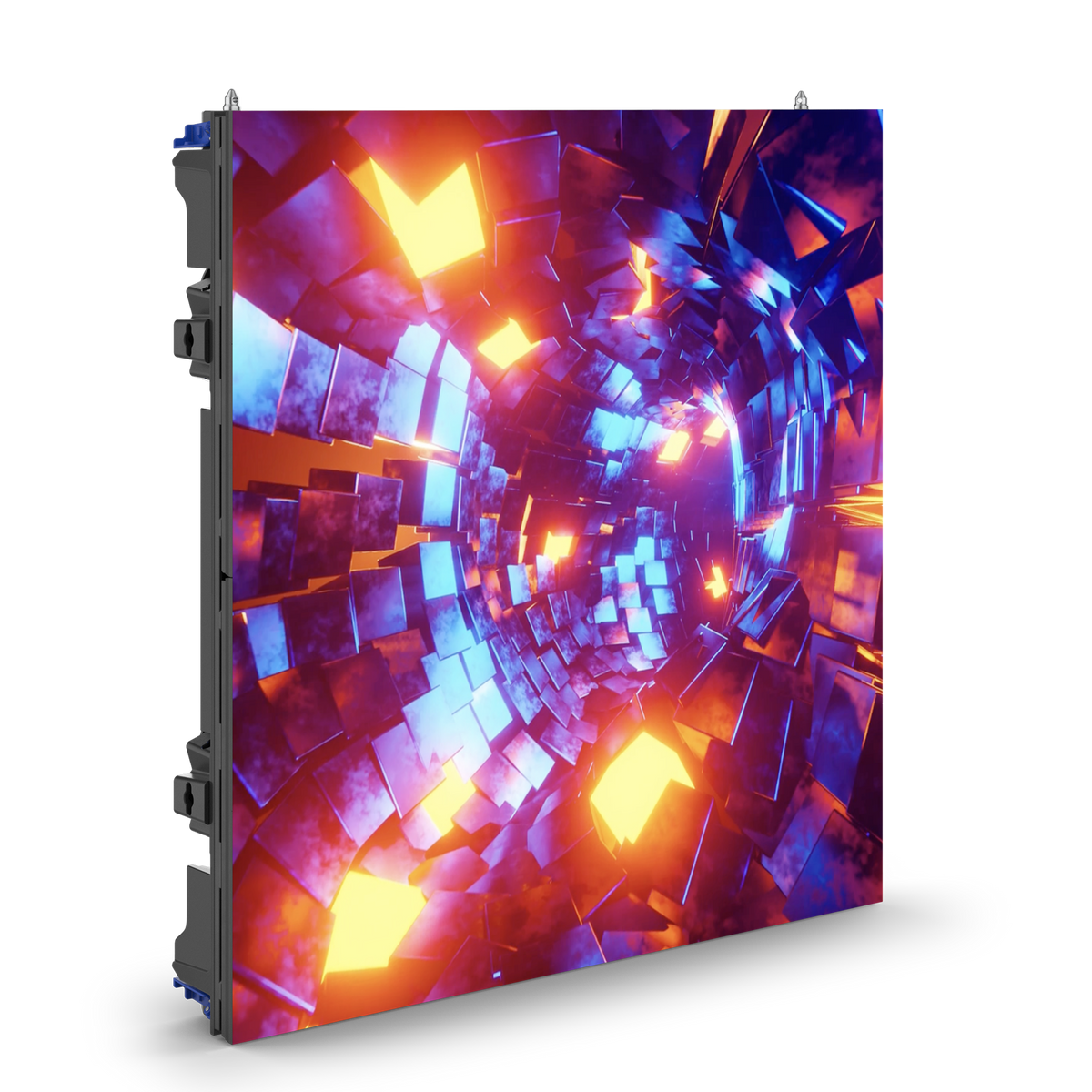

REM 3IP SQ is a bright 4500 NITS indoor/outdoor hybrid video wall solution with a 3.9mm pitch, integrated convex/concave curving capabilities, and universal magnetic LED modules. Its DCI-P3 color gamut LEDs offer 26% more color possibilities compared to standard sRGB/Rec.709 LEDs. With high-speed 7680Hz LED drivers, A10s Pro Novastar Receiving cards, and low latency, REM 3IP SQ offers top-tier on-camera and live performance for broadcast, outdoor rental markets as well as indoor stages and events.

Features

• 3.9 mm pitch, ultra-high resolution, indoor/outdoor video panel in convenient 500 mm (tall) by 500 mm (wide) form factor.
• Map and scale your wall with the Novastar MX40 Pro sender
• Operating in the DCI-P3 color space and driven via the premium A10s Pro receiver card from Novastar, black frame, white reflector LEDs accurately reproduce video at 22-bit+ grayscale and a wide color gamut
• High performance LED drivers deliver 7,680 Hz refresh rate for camera-friendly operation in high-demand applications
• Hot-swap magnetic LED modules with onboard factory calibration storage offers chroma, brightness, and the new thermal calibration for premium performance and uniformity of the panels

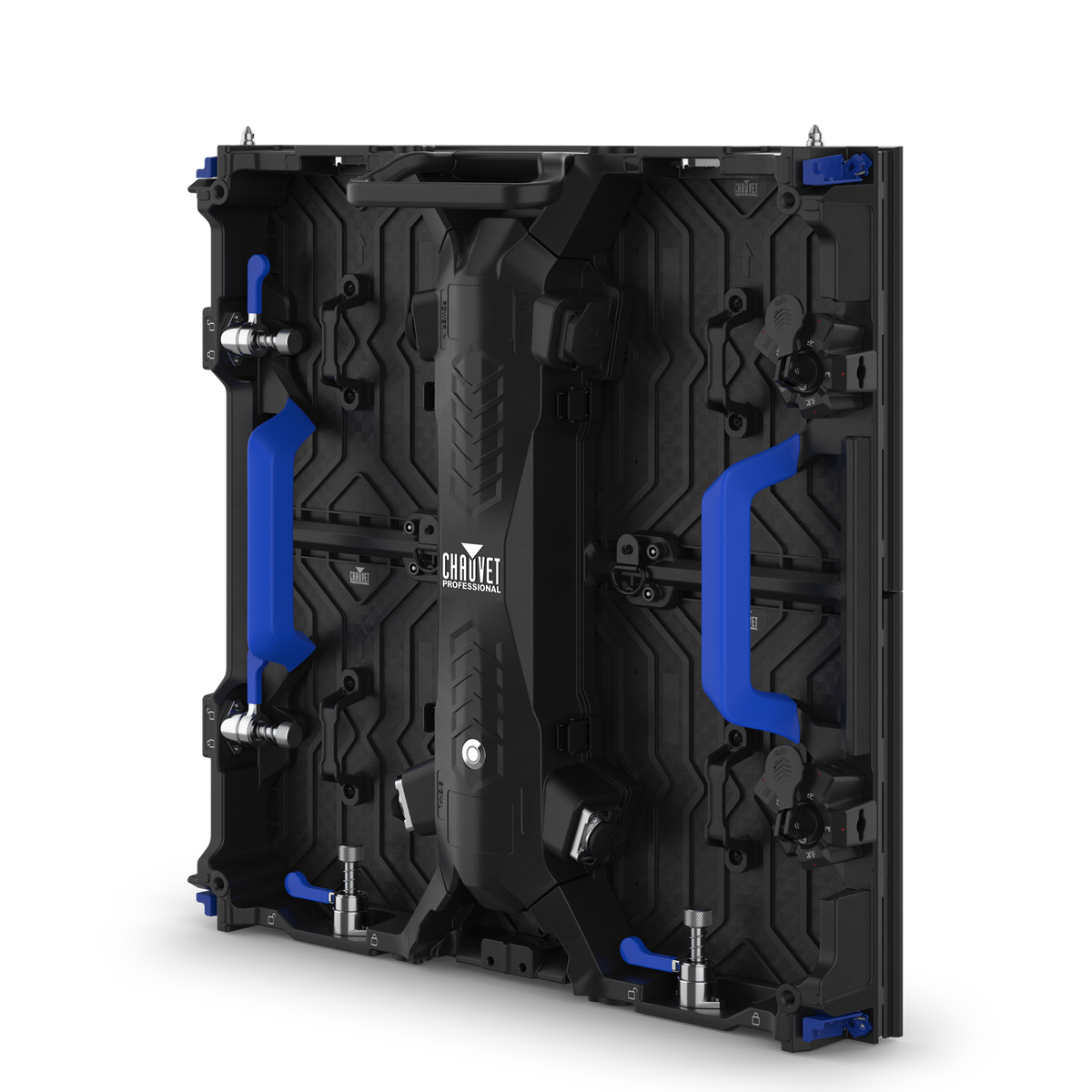

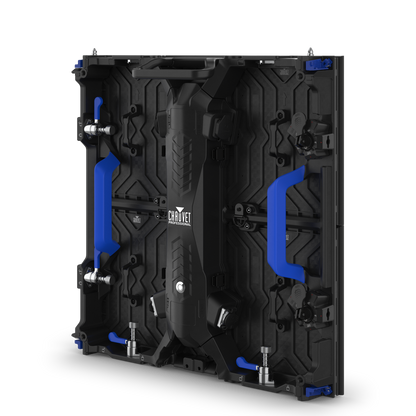

• Specialized frame design allows for overhead hanging, ground stacking, and wall mounting, which maximizes the design for multiple applications

Optical

• Light Source

  32,768 LEDs (tri-color RGB) SMD 1921 (Black frame, white reflector), 100,000 hours life expectancy

• Color Wavelength

  red (620 to 625 nm), green (512 to 532 nm), blue (460 to 475 nm)

• Color Space

  DCI-P3

• Viewing Angle (H/V)

  140°/140°

• Calibrated Illuminance

  4,500 NITS

• Maximum Illuminance

  >5,000 NITS

• Contrast Ratio

  18,500:1

• Grayscale

  22-bit+

• Receiver Card

  A10s Pro

• Drive Type

  1/16

• Pixels

  128 x 128

• Pixel Pitch

  3.9 mm

• Minimum Viewing Distance

  7.5 ft (2.3 m)

• Pixel Density

  65,536/m2

• Display Refresh Rate

  7,680 Hz (S-PWM)
