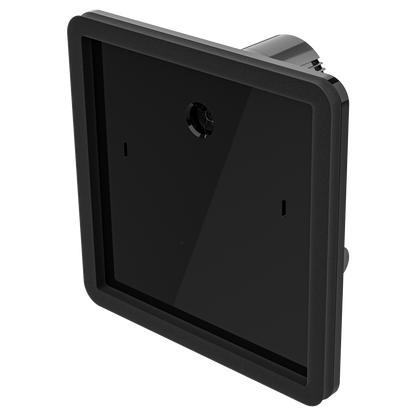

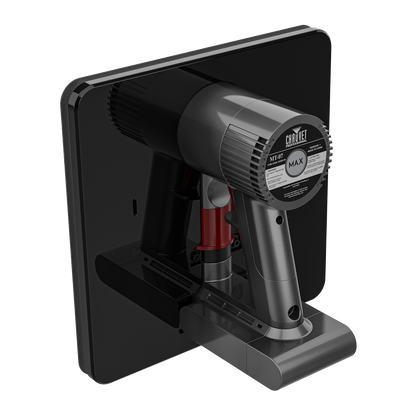

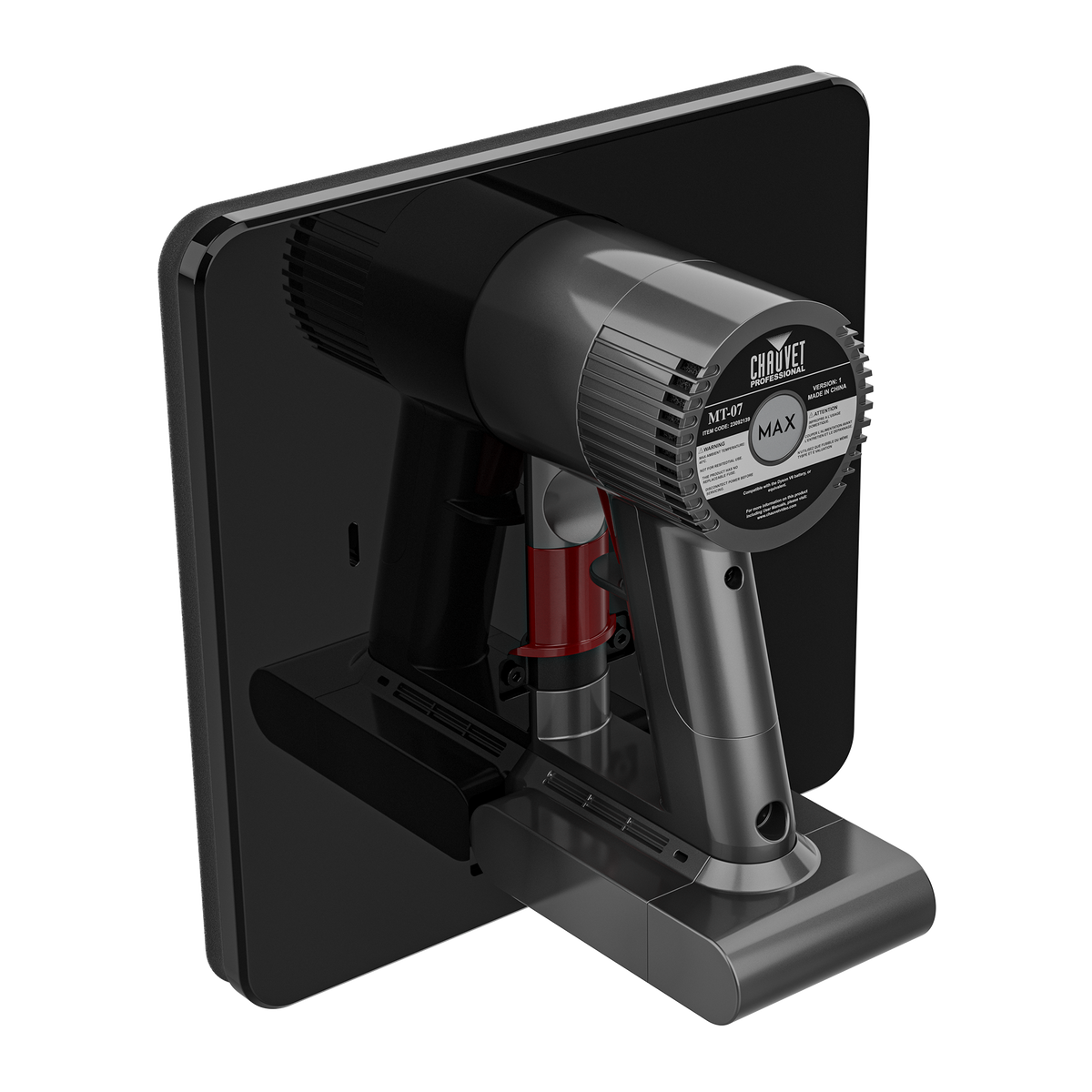

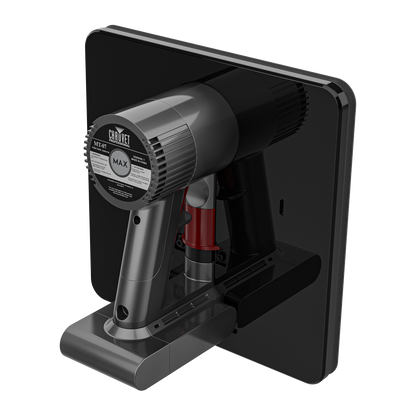

Chauvet Professional MT07 Module Install/Removal Tool; works with any front-service 250x250mm & 500x250mm modules

Chauvet Professional MT07 Module Install/Removal Tool; works with any front-service 250x250mm & 500x250mm modules

Write a review

SKU: MT07

Shipping calculated at checkout.

Available options

 View full details

Description

Chauvet Professional MT07 Module Install/Removal Tool; works with any front-service 250x250mm & 500x250mm modules

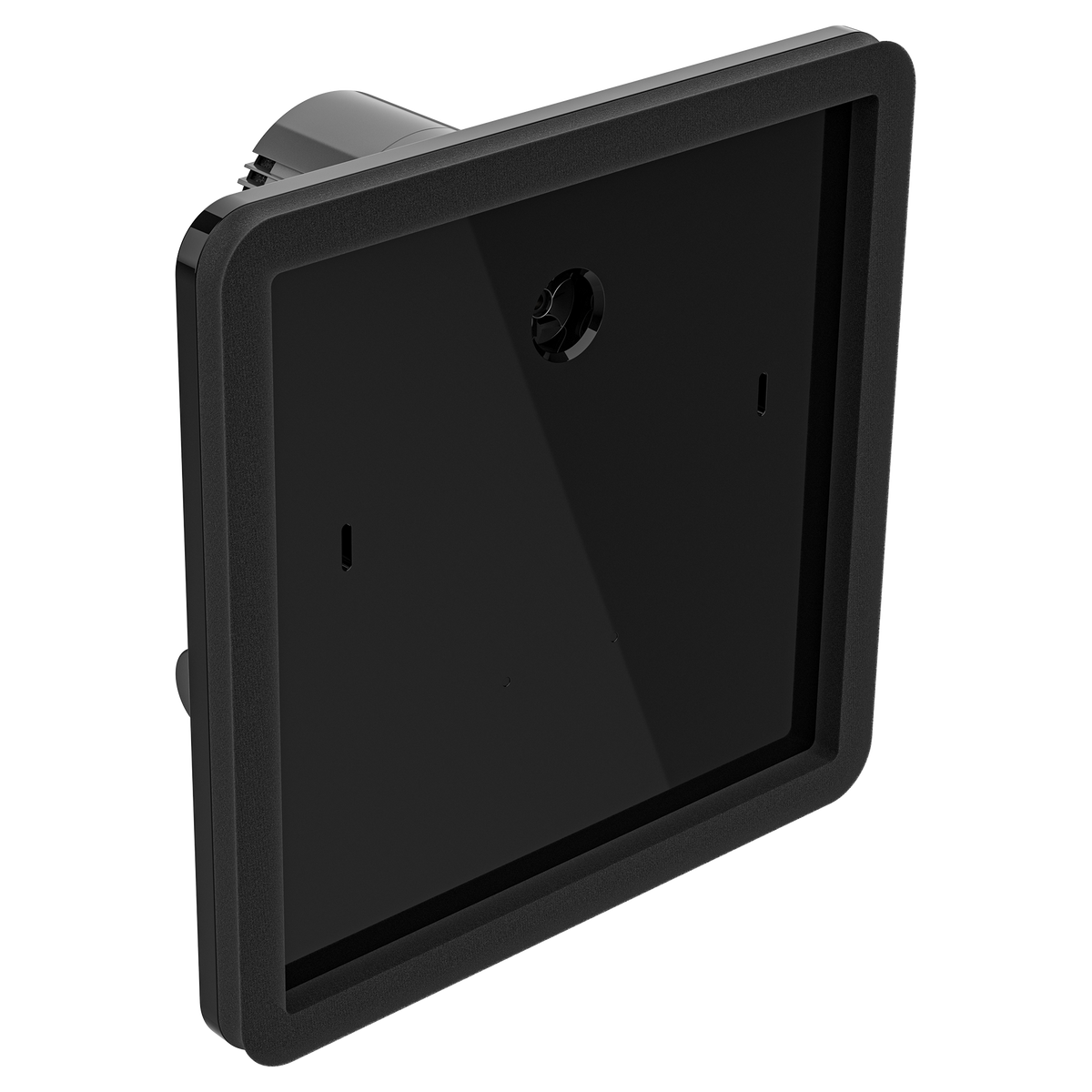

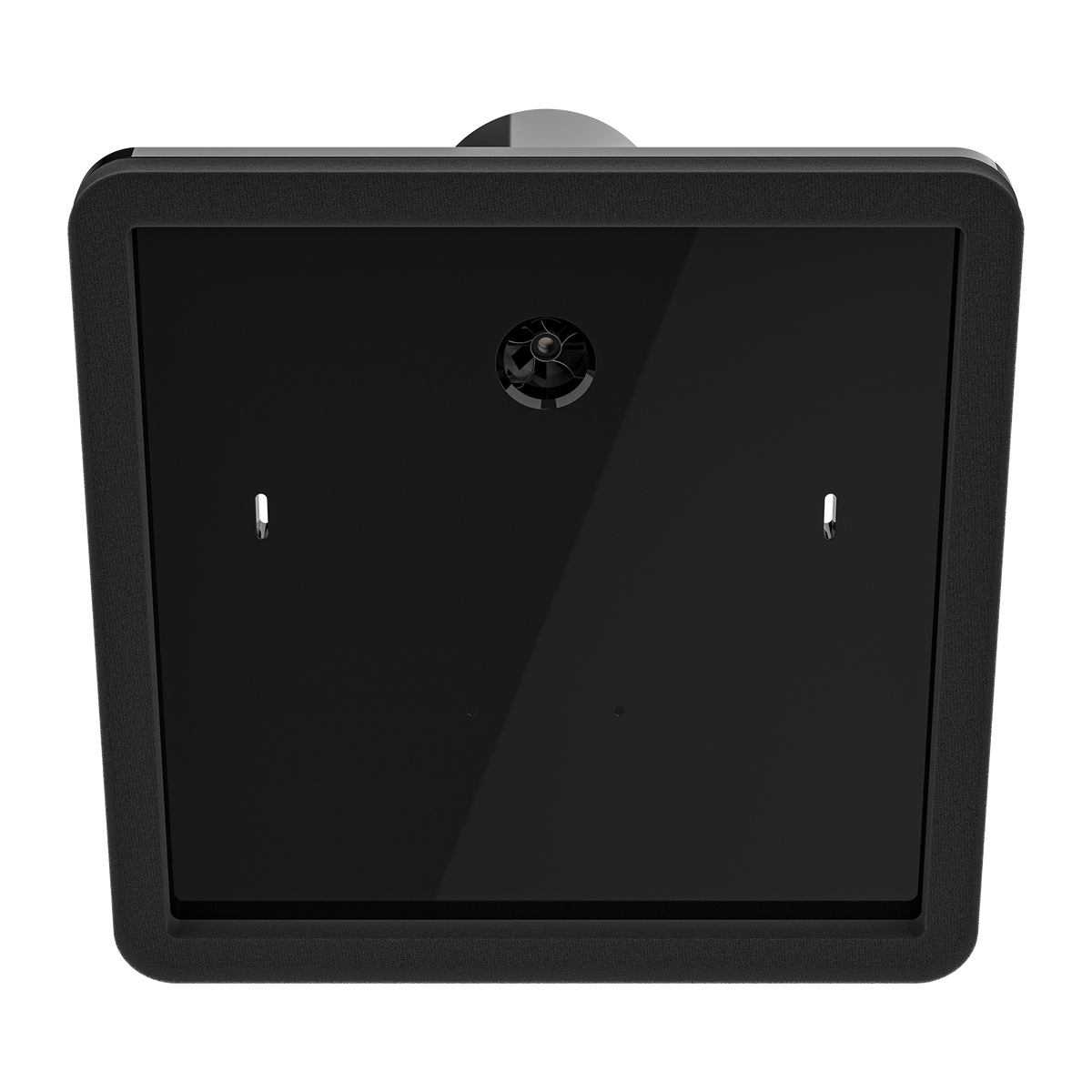

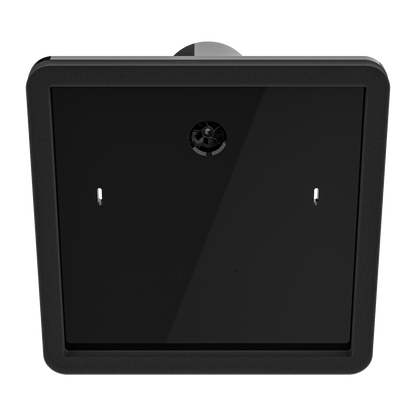

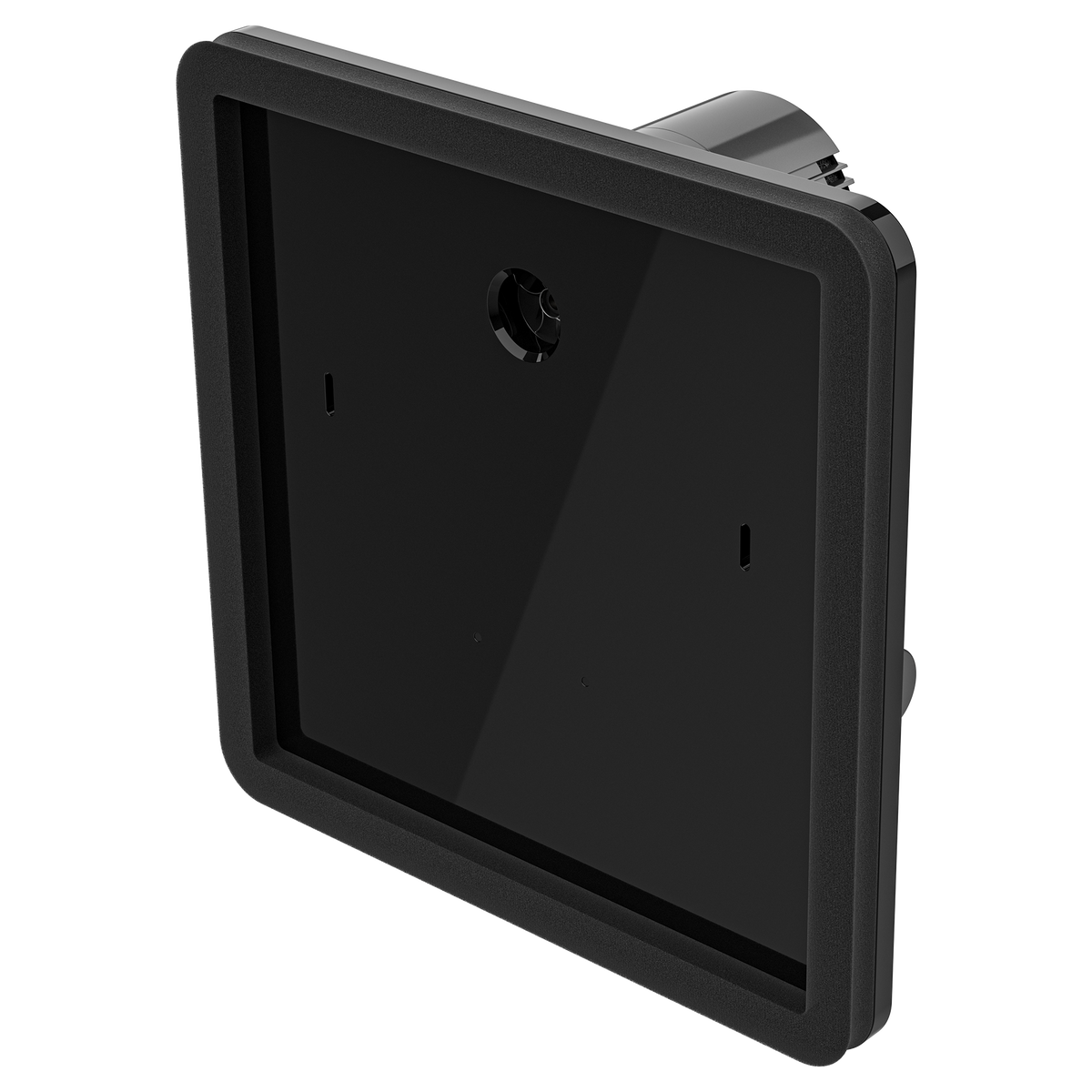

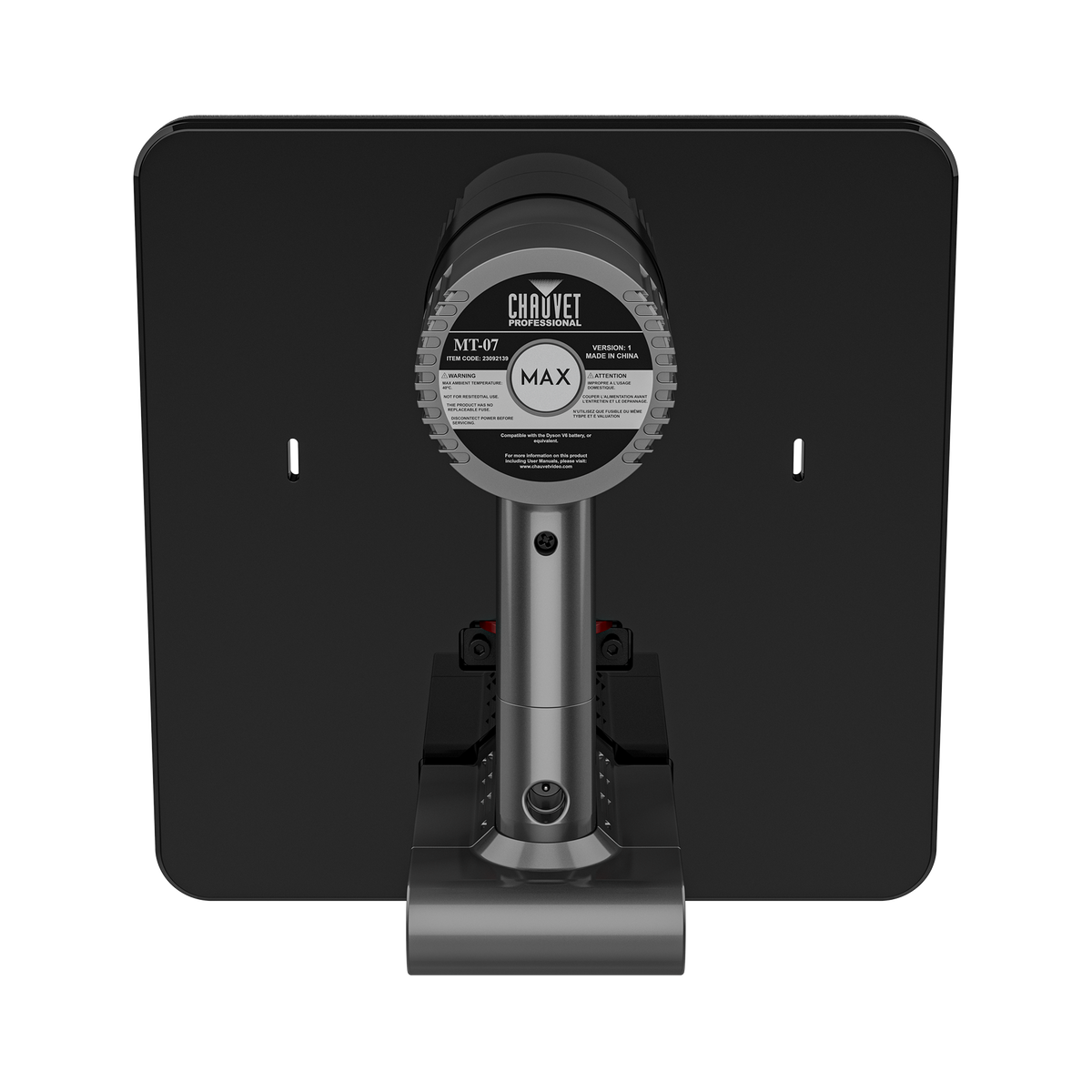

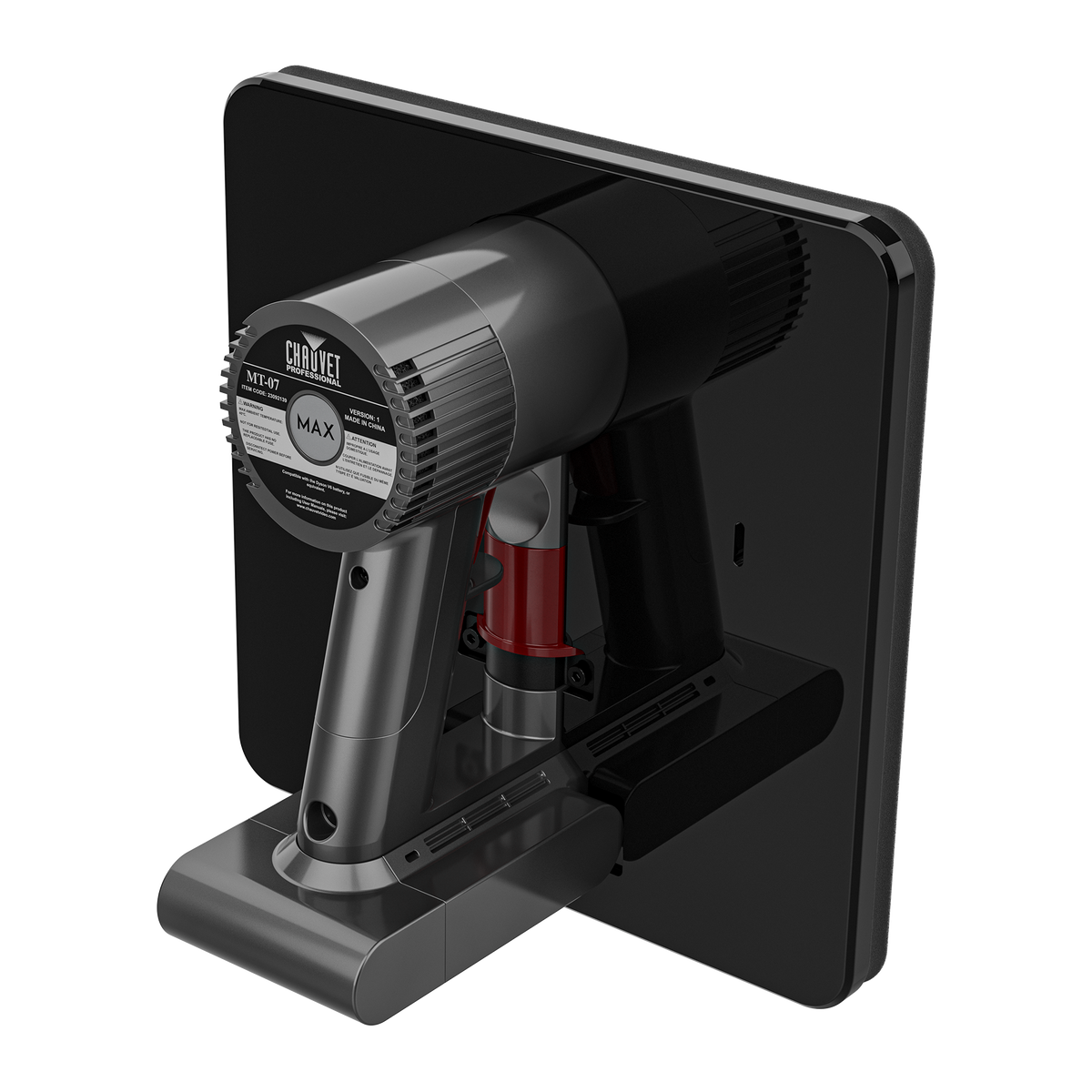

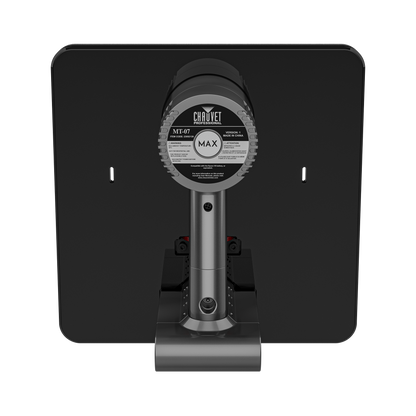

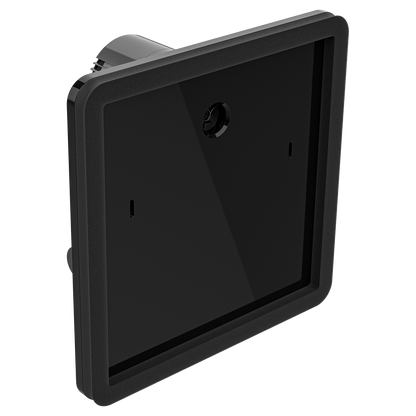

A universal, battery-powered vacuum tool that provides safe and even pulling force for the damage-free removal and installation of LED modules from all CHAUVET Professional video panels. Ideal for technicians performing quick, on-site front-service maintenance and module replacement on video walls in any setting.

  • Creates a secure vacuum seal to apply even pulling force on LED modules.
  • Offers universal compatibility with all CHAUVET Professional F-series and REM-series video panels.
  • Features a convenient battery-powered design for unrestricted use in any environment.
  • Engineered for the safe, damage-free removal and installation of delicate LED modules.
  • Simplifies front-service access for rapid on-site video wall maintenance and repairs.
  • Includes a dedicated battery charger and a protective carry case for portability.

Universal LED Module removal/installation tool that works with all CHAUVET Professional video panels, including F-series and REM-series. Convenient battery-powered tool for front-service module access. Creates vacuum over LED module surface to apply even pulling force, preventing damage to LEDs on LED modules. Includes battery charger and carry case.

Features
  • Universal LED Module Tool: A dedicated tool designed for the simple removal and installation of LED modules.
  • Wide Chauvet Compatibility: Works with all Chauvet video panels, including the F-series and REM-series, for maximum versatility.
  • Convenient Battery Power: The battery-powered design allows for easy use, especially for front-service module access.
  • Damage Free Vacuum Suction: Creates a vacuum to apply even pulling force, preventing damage to the delicate LEDs on each module.
Specifications

Construction/Physical

  • Dimensions: 9.45 x 9.45 x 5.52 in (240 x 240 x 140 mm)
  • Weight: 6.8 lb (3.08 kg)
  • Dimensions (shipping size): 12.05 x 15.04 x 8.27 in (306 x 382 x 210 mm)

Connections

  • Cable Length (power extension): 3 ft (0.91 m)

Electrical

  • Charger Input Voltage: 26.10 VDC, 780 mA (external power supply: 100-240 VAC 50/60 Hz)

Battery

  • Battery type: Lithium Ion
  • Rechargeable: Yes
  • Watt Hours: 97.2 Wh
  • Voltage: 21.6V
  • Amp Hour: 4500 mAh

Certifications/Qualifications

  • Certifications: CE
  • IP Rating: IP20, dry location
